Connecting Clamps for Foundation Earth Electrodes and Reinforcements

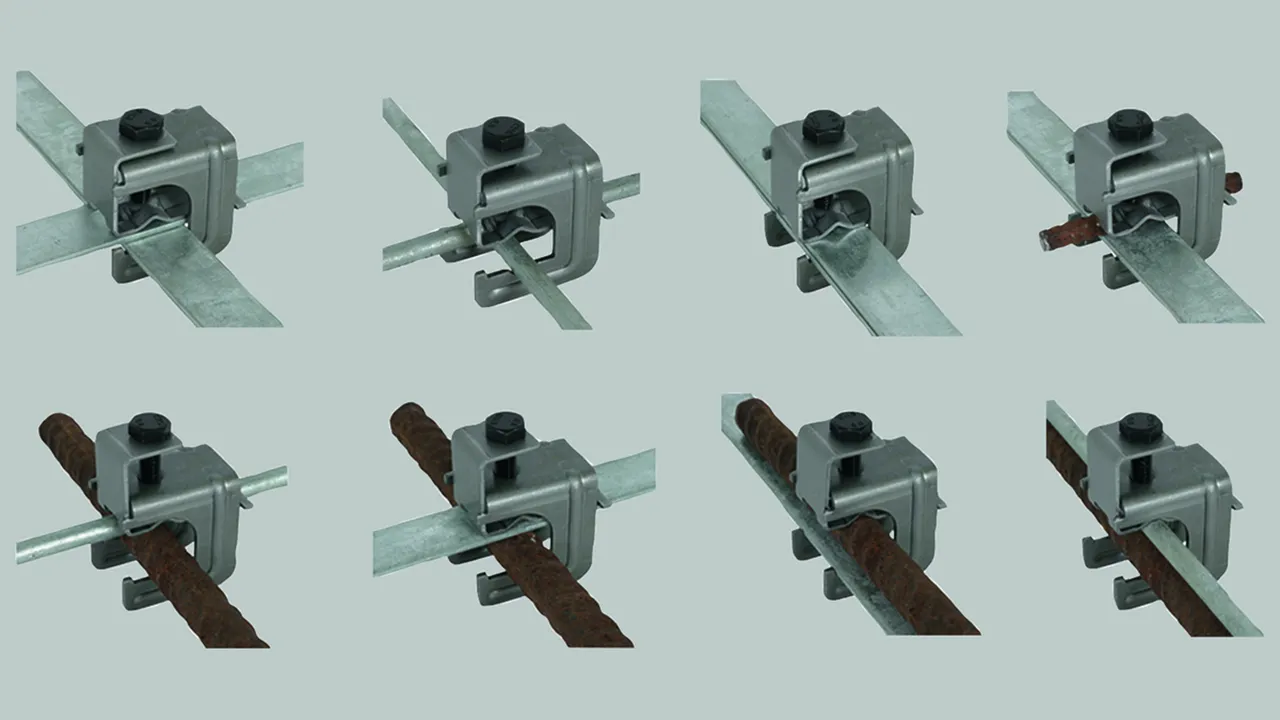

For connecting round and flat conductors in the concrete foundation or reinforcing steel meshes and reinforcements with round and flat conductors.

Arrangement:
(II) = parallel
(+) = cross

Connecting clamp with thrust bracket

For T, cross and parallel connections.

1 Product

Part No. 308031 VK DB 6.20 8.10 FL30 BSB STBL

GTIN 4013364136571, Customs tariff No. (EU): 85359000, Gross weight: 239.60 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

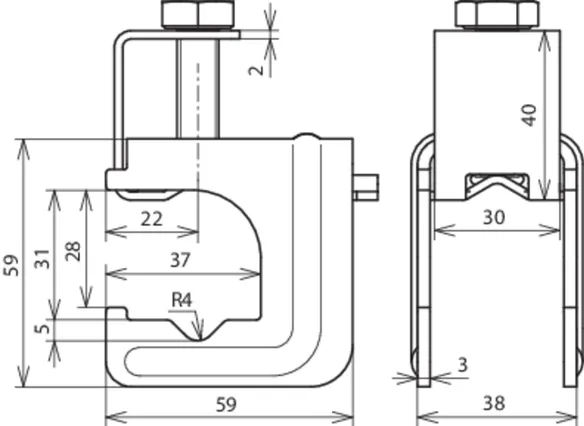

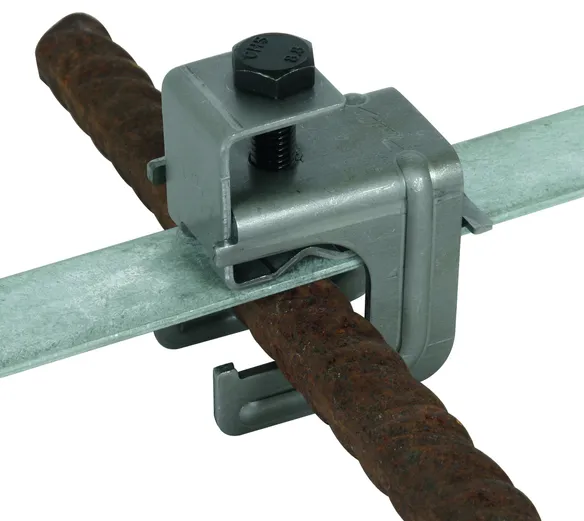

Connecting clamp with thrust bracket, St/bare
Connecting clamp with thrust bracket for connecting round and flat conductors in the concrete
foundation or reinforcing steel meshes and reinforcements with
round and flat conductors
For T, cross and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl: (+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl: (+/II) 30 x 3-4 / 30 x 3-4 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK DB 6.20 8.10 FL30 BSB STBL
Part No.: 308031
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Rd	(+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl	(+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	8.4 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Rd	(+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl	(+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Screw	di M10 x 35 mm
Material of screw	St/bare
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	8.4 kA
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308031 was added to Notepad.

Go to Notepad

Product 308031 was added to the cart.

Go to Web-Shop

Connecting clamp MAXI with thrust bracket

For T, cross and parallel connections.

1 Product

Part No. 308036 VK DB 20.32 8.10 FL40 BSB STBL

GTIN 4013364136588, Customs tariff No. (EU): 85359000, Gross weight: 275.60 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

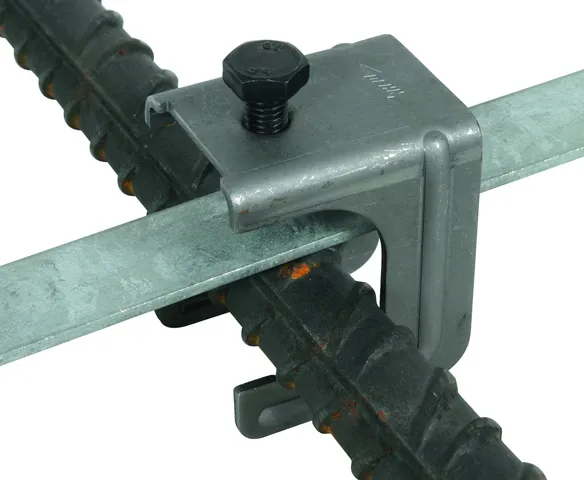

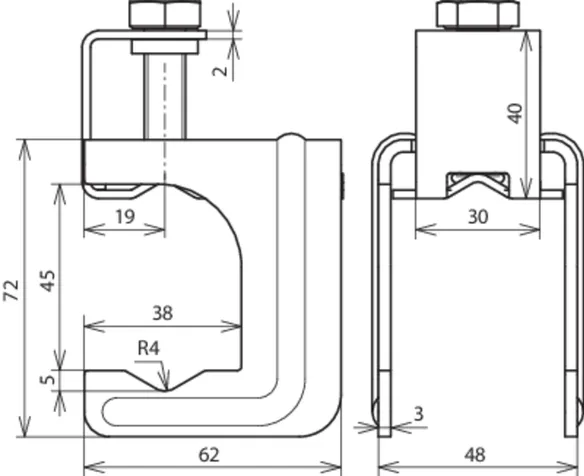

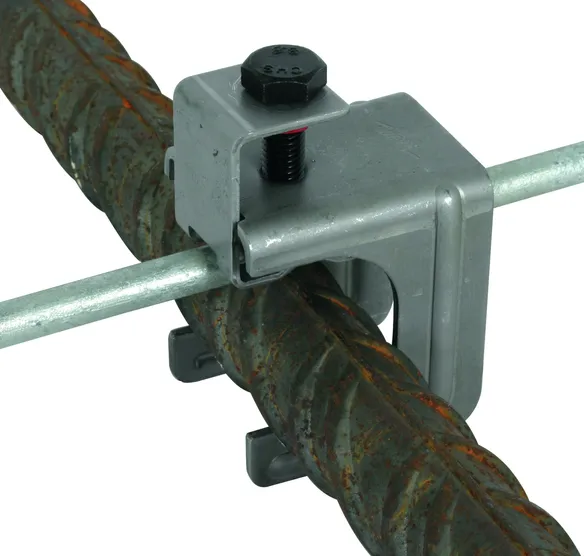

MAXI connecting clamp with thrust bracket, St/bare
Connecting clamp with thrust bracket for connecting round and flat conductors
in the concrete foundation or reinforcing steel meshes
and reinforcements with round and flat conductors
For T, cross and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 20-32 / 8-10 mm
Clamping range Rd / Fl: (+/II) 20-32 / 40 x 4-5 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK DB 20.32 8.10 FL40 BSB STBL
Part No.: 308036
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Rd	(+/II) 20-32 / 8-10 mm
Clamping range Rd / Fl	(+/II) 20-32 / 40 x 4-5 mm
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14.0 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Rd	(+/II) 20-32 / 8-10 mm
Clamping range Rd / Fl	(+/II) 20-32 / 40 x 4-5 mm
Screw	di M10 x 35 mm
Material of screw	St/bare
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14.0 kA
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308036 was added to Notepad.

Go to Notepad

Product 308036 was added to the cart.

Go to Web-Shop

Connecting clamp without thrust bracket

For cross connections.

1 Product

Part No. 308032 VK 6.20 FL30 BSB STBL

GTIN 4013364152823, Customs tariff No. (EU): 85359000, Gross weight: 178.50 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

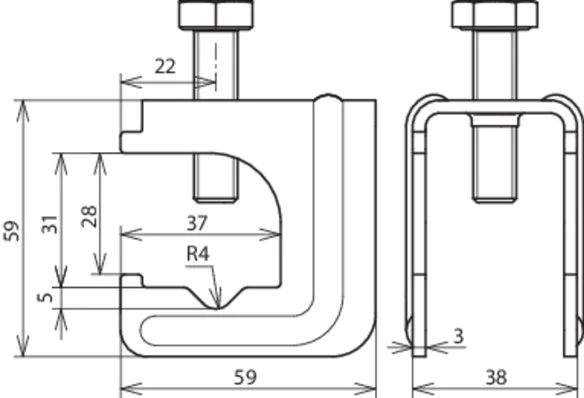

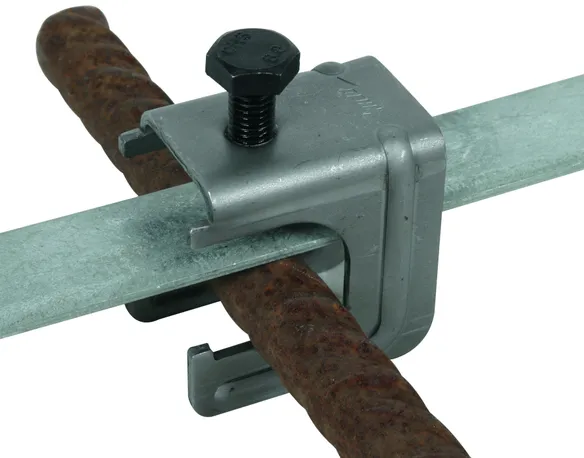

Connecting clamp without thrust bracket, St/bare
Connecting clamp for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For cross connections, without having to insert the conductor

Material: St/bare
Clamping range Rd / Fl: (+) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl: (+) 30 x 3-4 / 30 x 3-4 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK 6.20 FL30 BSB STBL
Part No.: 308032
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Fl	(+) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+) 30 x 3-4 / 30 x 3-4 mm
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7.0 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Fl	(+) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+) 30 x 3-4 / 30 x 3-4 mm
Screw	di M10 x 40 mm
Material of screw	St/bare
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7.0 kA
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308032 was added to Notepad.

Go to Notepad

Product 308032 was added to the cart.

Go to Web-Shop

Connecting clamp MAXI without thrust bracket

For cross connections.

1 Product

Part No. 308037 VK 20.32 FL40 BSB STBL

GTIN 4013364154704, Customs tariff No. (EU): 85359000, Gross weight: 218.00 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

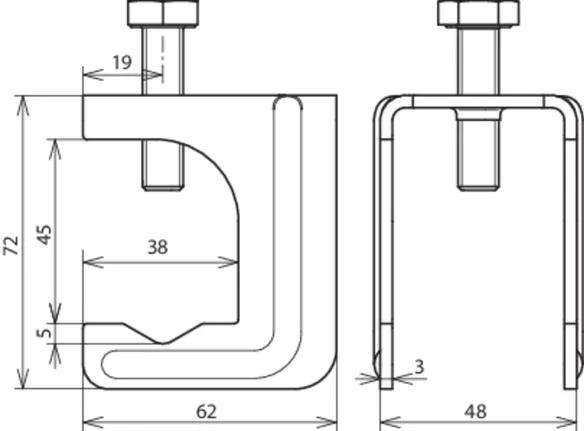

Connecting clamp MAXI without thrust bracket, St/bare
Connecting clamp for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For cross connections, without having to insert the conductor

Material: St/bare
Clamping range Rd / Fl: (+) 20-32 / 30 x 3-40 x 5 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK 20.32 FL40 BSB STBL
Part No.: 308037
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Fl	(+) 20-32 / 30 x 3-40 x 5 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308037 was added to Notepad.

Go to Notepad

Product 308037 was added to the cart.

Go to Web-Shop
