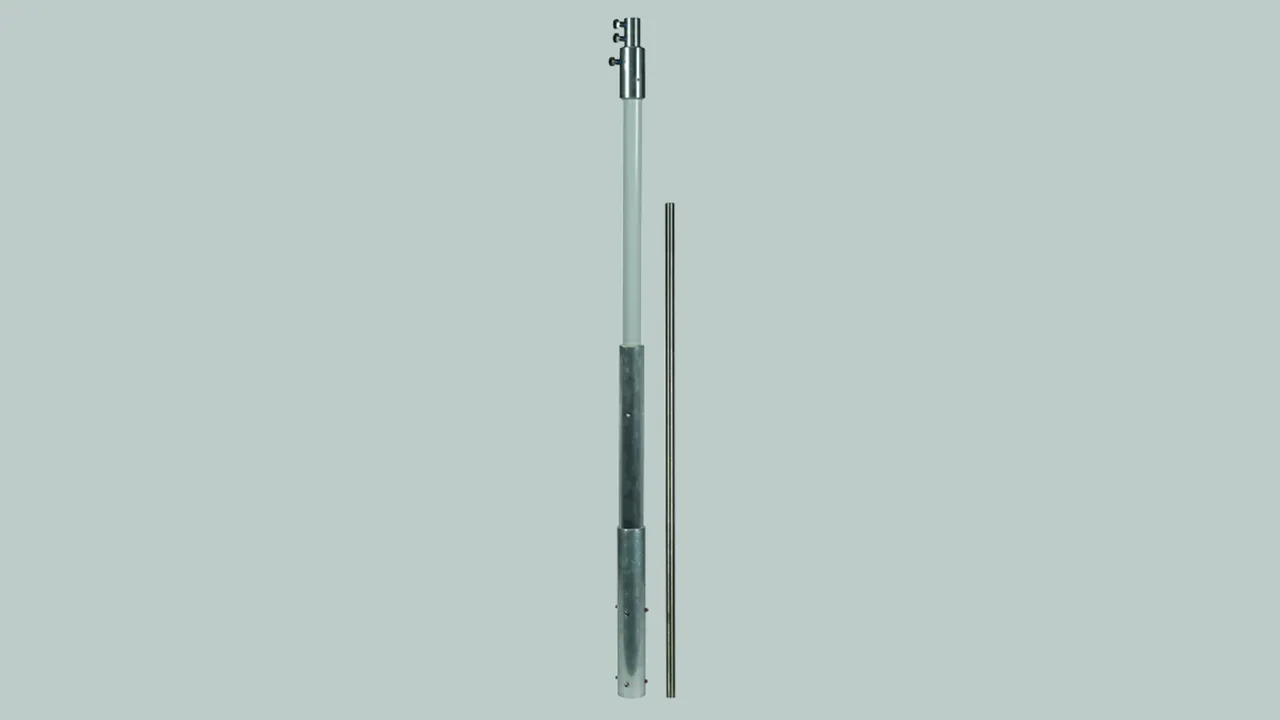

DEHNcon-H Supporting Tube for HVI light Conductor, Sub-roof Installation

Supporting tube for HVI light Conductor for on-site assembly, air-termination tip, StSt, Ø10 mm.

With air-termination tip

1 Product

Part No. 105288 SR D30 2875 FSP10 1000 DSH GFK AL V2A

GTIN 4013364256040, Customs tariff No. (EU): 85389099, Gross weight: 4.80 kg, PU: 1.00 Stk

Images

Additional information

DEHNcon-H supporting tube for HVI light Conductor with air-termination tip 1000 mm GRP/Al
Supporting tubes GRP/Al with internal sealing end for
HVI light Conductor for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 160 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One element, combined with air-termination rod, Ø10 mm, length 1000 mm, StSt
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D30 2875 FSP10 1000 DSH GFK AL V2A
Part No.: 105288
or equivalent.

Certificates



Technical data

Material of supporting tube GRP / Al
Length of supporting tube 2875 mm
Length of air-termination tip 1000 mm
Outside diameter Ø GRP 30 mm
Max. gust wind speed 149 km/h
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)
