BLITZDUCTORconnect accessories

Earthing module

1 Product

Part No. 927318 BCO M2 E

GTIN 4013364470644, Customs tariff No. (EU): 85369010, Gross weight: 56.10 g, PU: 1.00 Stk


Images

Additional information

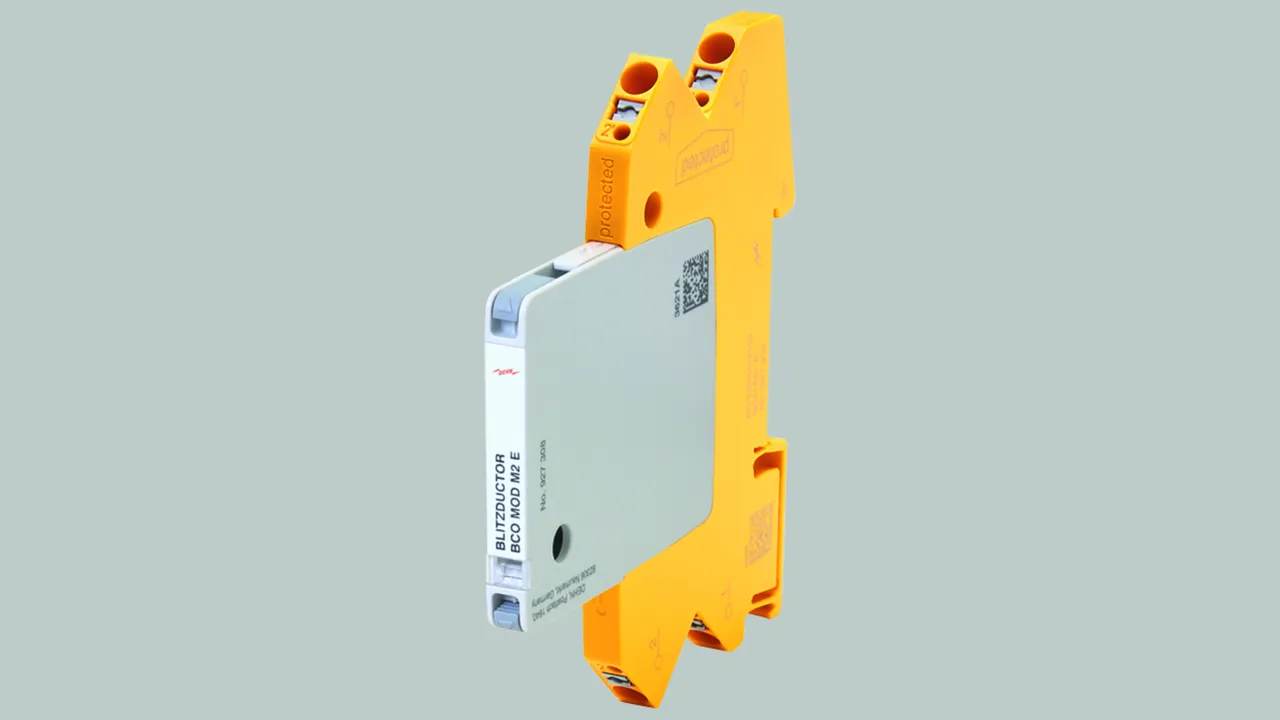

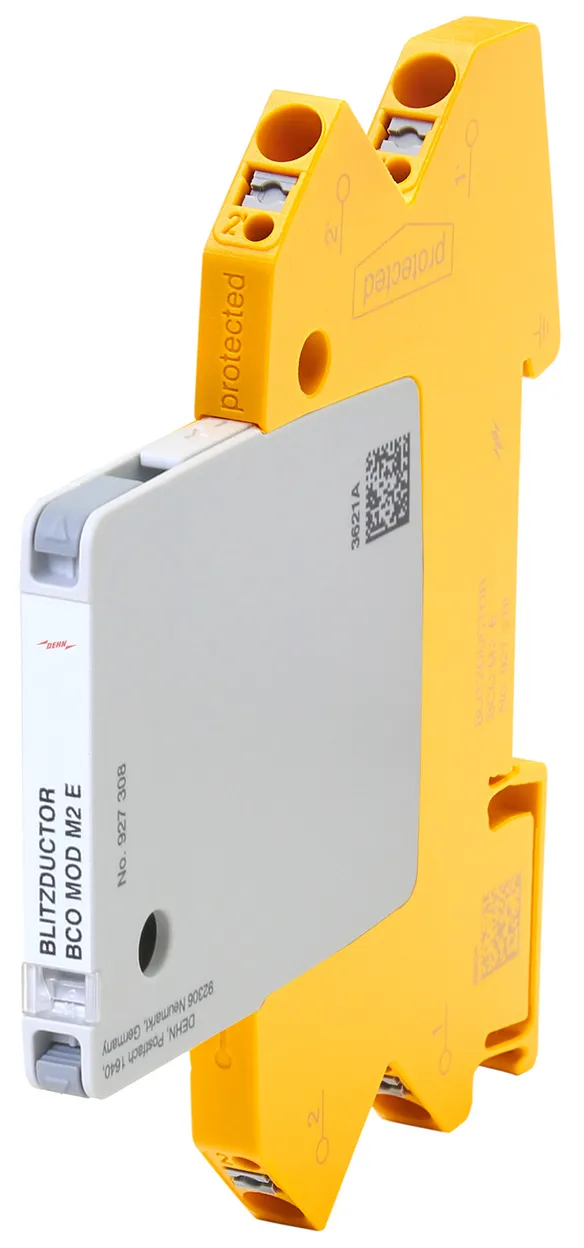

BLITZDUCTORconnect M2 E earthing module
Pluggable module for the defined
equipotential bonding of all lines
connected (not actively used) to the base part

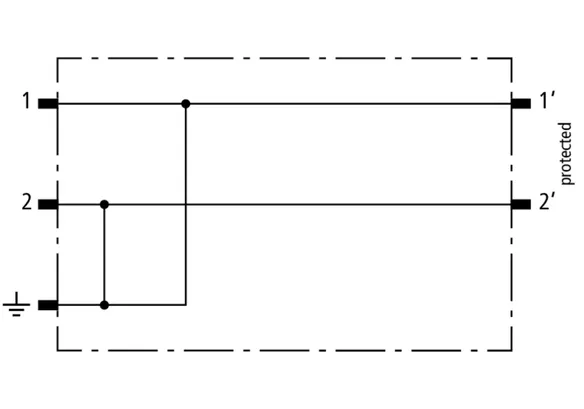

For directly earthing 2 cable cores
Prewired unit consisting of
Earthing module with base part for DIN rail mounting

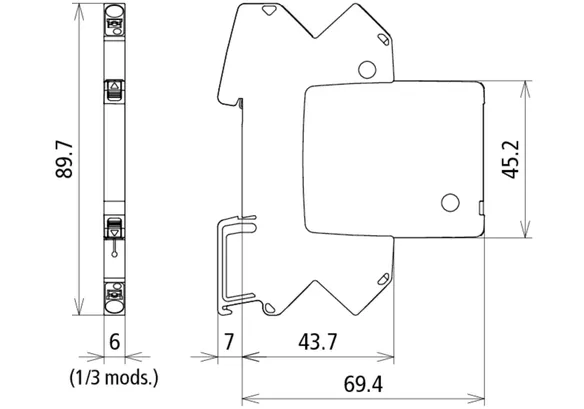

Width: 6 mm
Conductor connection: Push-in

Brand: DEHN
Type: BCO M2 E
Part No.: 927318
or equivalent.



Technical data

D1 Total lightning impulse current (10/350 µs) (Iimp ) 3 kA
Plugs into BCO base part
