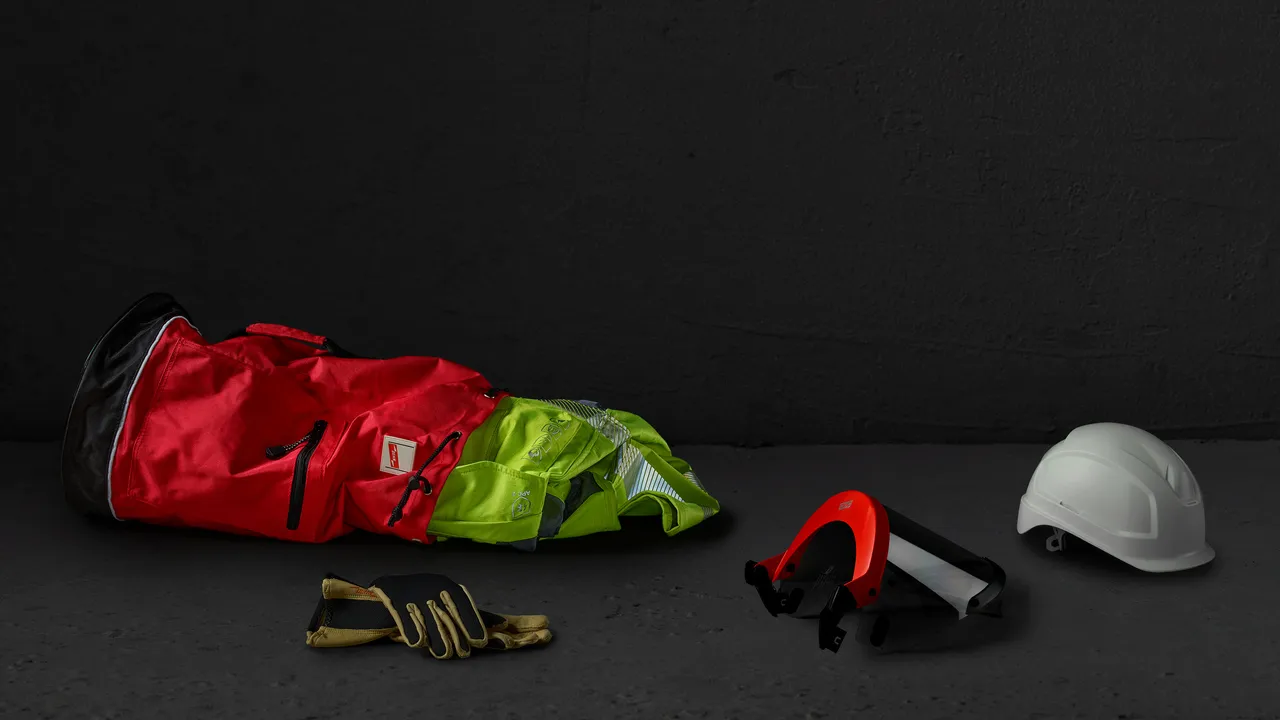

DEHNcare PPE set – Outdoor
![](/thumbor/unsafe/fit-in/480x/filters:fill(ffffff,false):quality(98)/dehn.nl/store/f/24821077/HDVORSCHAU/785908a1.jpg)
![](/thumbor/unsafe/fit-in/1280x720/filters:fill(ffffff,false):quality(98)/dehn.nl/store/f/24821077/HDVORSCHAU/785908a1.jpg)
- Appropriate starter set for electricians for outdoor use
- Available in different sizes
- Components comply with arc fault protection class 2 (APC 2)
- Protective equipment is certified according to PPE regulation (EU) 2016/425
Part No. 785908 PSA ESET S OD
GTIN 4013364476530, Customs tariff No. (EU): 42032910, Gross weight: 4.24 kg, PU: 1.00 Stk
Technical data
Size (international) | 48 (S) |
Protective jacket / protective trousers | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Material | Modacrylic (40%), viscose (59%), static inhibitors (1%), PU membrane: meta-aramid knitting (100%) |
Material (sewing thread) | Kevlar (100%) |
Standard | IEC 61482-2, EN ISO 11612, EN 1149-5, EN ISO 20471, EN 13034, EN ISO 13688 |
Primary colour | fluorescent yellow |
Secondary colour | grey |
Zipper | red |
Size (international) | 48 (S) |
Design code | JOYEGRRE0000P0000 (jacket), TOYEGRRE0000P0 (trousers) |
Protective glove | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Arc Rating – ATPV (Open Arc Test) | 32.8 cal / cm2 |
PPE category (NFPA 70E) | PPE 3 |
Total length | 320 mm |
Gauntlet length | 100 mm |
Size (international) | 9 (L) |
Material (glove palm) | Siliconised calf grain leather |
Material (glove back) | 100% Kevlar interlock knit |
Material (sewing thread) | Kevlar |
Standard | Box test according to IEC 61482-1-2, ATPV test according to IEC 61482-1-1, DIN EN 388, DIN EN 407 |
Face shield | |
Colour | transparent |
Material | polycarbonate |
Wall thickness | 1.5 mm |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 318 kJ |
Visible light transmittance (VLT) | 74.4 ... 100 % |
Light transmittance class | 0 |
Safety helmet for electricians | |
Nominal voltage up to (UN ) | 1000 V |
Colour | yellow ● |
Head circumference | 52-61 |
Material | HDPE plastic |
Standard | EN 397 and EN 50365 |
Accessories | |
Belt | ------------------------------------------ |
Length | 100 cm |
Suitable for APT ID/OD | Size: 48 |
Microfibre bag | ------------------------------------------ |
Suitable for | DEHNcare APS |
Dimensions | 450 x 400 mm |
Storage bag | ------------------------------------------ |
Suitable for | ESH U + DEHNcare APS and APG |
Dimensions | Ø300, 500 mm |
Product 785908 was added to Notepad.
Product 785908 was added to the cart.
Part No. 785903 PSA ESET M OD
GTIN 4013364469587, Customs tariff No. (EU): 42032910, Gross weight: 4.24 kg, PU: 1.00 Stk
Technical data
Size (international) | 50 (M) |
Protective jacket / protective trousers | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Material | Modacrylic (40%), viscose (59%), static inhibitors (1%), PU membrane: meta-armid knitting (100%) |
Material (sewing thread) | Kevlar (100%) |
Standard | IEC 61482-2, EN ISO 11612, EN 1149-5, EN ISO 20471, EN 13034, EN ISO 13688 |
Primary colour | fluorescent yellow |
Secondary colour | grey |
Zipper | red |
Size (international) | 50 (M) |
Design code | JOYEGRRE0000P0000 (jacket), TOYEGRRE0000P0 (trousers) |
Protective glove | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Arc Rating – ATPV (Open Arc Test) | 32.8 cal / cm2 |
PPE category (NFPA 70E) | PPE 3 |
Total length | 330 mm |
Gauntlet length | 100 mm |
Size (international) | 10 (XL) |
Material (glove palm) | Siliconised calf grain leather |
Material (glove back) | 100% Kevlar interlock knit |
Material (sewing thread) | Kevlar |
Standard | Box test according to IEC 61482-1-2, ATPV test according to IEC 61482-1-1, DIN EN 388, DIN EN 407 |
Face shield | |
Colour | transparent |
Material | polycarbonate |
Wall thickness | 1.5 mm |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 318 kJ |
Visible light transmittance (VLT) | 74.4 ... 100 % |
Light transmittance class | 0 |
Safety helmet for electricians | |
Nominal voltage up to (UN ) | 1000 V |
Colour | yellow ● |
Head circumference | 52-61 |
Material | HDPE plastic |
Standard | EN 397 and EN 50365 |
Accessories | |
Belt | ------------------------------------------ |
Length | 110 cm |
Suitable for APT ID/OD | Size: 50-54 |
Microfibre bag | ------------------------------------------ |
Suitable for | DEHNcare APS |
Dimensions | 450 x 400 mm |
Storage bag | ------------------------------------------ |
Suitable for | ESH U + DEHNcare APS and APG |
Dimensions | Ø300, 500 mm |
Product 785903 was added to Notepad.
Product 785903 was added to the cart.
Part No. 785904 PSA ESET L OD
GTIN 4013364469594, Customs tariff No. (EU): 42032910, Gross weight: 4.34 kg, PU: 1.00 Stk
Technical data
Size (international) | 54 (L) |
Protective jacket / protective trousers | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Material | Modacrylic (40%), viscose (59%), static inhibitors (1%), PU membrane: meta-aramid knitting (100%) |
Material (sewing thread) | Kevlar (100%) |
Standard | IEC 61482-2, EN ISO 11612, EN 1149-5, EN ISO 20471, EN 13034, EN ISO 13688 |
Primary colour | fluorescent yellow |
Secondary colour | grey |
Zipper | red |
Size (international) | 54 (L) |
Design code | JOYEGRRE0000P0000 (jacket), TOYEGRRE0000P0 (trousers) |
Protective glove | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Arc Rating – ATPV (Open Arc Test) | 32.8 cal / cm2 |
PPE category (NFPA 70E) | PPE 3 |
Total length | 330 mm |
Gauntlet length | 100 mm |
Size (international) | 10 (XL) |
Material (glove palm) | Siliconised calf grain leather |
Material (glove back) | 100% Kevlar interlock knit |
Material (sewing thread) | Kevlar |
Standard | Box test according to IEC 61482-1-2, ATPV test according to IEC 61482-1-1, DIN EN 388, DIN EN 407 |
Face shield | |
Colour | transparent |
Material | polycarbonate |
Wall thickness | 1.5 mm |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 318 kJ |
Visible light transmittance (VLT) | 74.4 ... 100 % |
Light transmittance class | 0 |
Safety helmet for electricians | |
Nominal voltage up to (UN ) | 1000 V |
Colour | yellow ● |
Head circumference | 52-61 |
Material | HDPE plastic |
Standard | EN 397 and EN 50365 |
Accessories | |
Belt | ------------------------------------------ |
Length | 110 cm |
Suitable for APT ID/OD | Size: 50-54 |
Microfibre bag | ------------------------------------------ |
Suitable for | DEHNcare APS |
Dimensions | 450 x 400 mm |
Storage bag | ------------------------------------------ |
Suitable for | ESH U + DEHNcare APS and APG |
Dimensions | Ø300, 500 mm |
Product 785904 was added to Notepad.
Product 785904 was added to the cart.
Part No. 785905 PSA ESET XL OD
GTIN 4013364469600, Customs tariff No. (EU): 42032910, Gross weight: 4.44 kg, PU: 1.00 Stk
Technical data
Size (international) | 56 (XL) |
Protective jacket / protective trousers | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Material | Modacrylic (40%), viscose (59%), static inhibitors (1%), PU membrane: meta-aramid knitting (100%) |
Material (sewing thread) | Kevlar (100%) |
Standard | IEC 61482-2, EN ISO 11612, EN 1149-5, EN ISO 20471, EN 13034, EN ISO 13688 |
Primary colour | fluorescent yellow |
Secondary colour | grey |
Zipper | red |
Size (international) | 56 (XL) |
Design code | JOYEGRRE0000P0000 (jacket), TOYEGRRE0000P0 (trousers) |
Protective glove | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Arc Rating – ATPV (Open Arc Test) | 32.8 cal / cm2 |
PPE category (NFPA 70E) | PPE 3 |
Total length | 330 mm |
Gauntlet length | 100 mm |
Size (international) | 10 (XL) |
Material (glove palm) | Siliconised calf grain leather |
Material (glove back) | 100% Kevlar interlock knit |
Material (sewing thread) | Kevlar |
Standard | Box test according to IEC 61482-1-2, ATPV test according to IEC 61482-1-1, DIN EN 388, DIN EN 407 |
Face shield | |
Colour | transparent |
Material | polycarbonate |
Wall thickness | 1.5 mm |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 318 kJ |
Visible light transmittance (VLT) | 74.4 ... 100 % |
Light transmittance class | 0 |
Safety helmet for electricians | |
Nominal voltage up to (UN ) | 1000 V |
Colour | yellow ● |
Head circumference | 52-61 |
Material | HDPE plastic |
Standard | EN 397 and EN 50365 |
Accessories | |
Belt | ------------------------------------------ |
Length | 120 cm |
Suitable for APT ID/OD | Size: 56-58 |
Microfibre bag | ------------------------------------------ |
Suitable for | DEHNcare APS |
Dimensions | 450 x 400 mm |
Storage bag | ------------------------------------------ |
Suitable for | ESH U + DEHNcare APS and APG |
Dimensions | Ø300, 500 mm |
Product 785905 was added to Notepad.
Product 785905 was added to the cart.
Part No. 785909 PSA ESET 2XL OD
GTIN 4013364476547, Customs tariff No. (EU): 42032910, Gross weight: 4.44 kg, PU: 1.00 Stk
Technical data
Size (international) | 60 (2XL) |
Protective jacket / protective trousers | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Material | Modacrylic (40%), viscose (59%), static inhibitors (1%), PU membrane: meta-aramid knitting (100%) |
Material (sewing thread) | Kevlar (100%) |
Standard | IEC 61482-2, EN ISO 11612, EN 1149-5, EN ISO 20471, EN 13034, EN ISO 13688 |
Primary colour | fluorescent yellow |
Secondary colour | grey |
Zipper | red |
Size (international) | 60 (2XL) |
Design code | JOYEGRRE0000P0000 (jacket), TOYEGRRE0000P0 (trousers) |
Protective glove | |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 320 kJ |
Arc Rating – ATPV (Open Arc Test) | 32.8 cal / cm2 |
PPE category (NFPA 70E) | PPE 3 |
Total length | 340 mm |
Gauntlet length | 100 mm |
Size (international) | 11 (XXL) |
Material (glove palm) | Siliconised calf grain leather |
Material (glove back) | 100% Kevlar interlock knit |
Material (sewing thread) | Kevlar |
Standard | Box test according to IEC 61482-1-2, ATPV test according to IEC 61482-1-1, DIN EN 388, DIN EN 407 |
Face shield | |
Colour | transparent |
Material | polycarbonate |
Wall thickness | 1.5 mm |
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) | APC 2 |
Arc energy (Warc or WLBP ) | 318 kJ |
Visible light transmittance (VLT) | 74.4 ... 100 % |
Light transmittance class | 0 |
Safety helmet for electricians | |
Nominal voltage up to (UN ) | 1000 V |
Colour | yellow ● |
Head circumference | 52-61 |
Material | HDPE plastic |
Standard | EN 397 and EN 50365 |
Accessories | |
Belt | ------------------------------------------ |
Length | 130 cm |
Suitable for APT ID/OD | Size: 60-62 |
Microfibre bag | ------------------------------------------ |
Suitable for | DEHNcare APS |
Dimensions | 450 x 400 mm |
Storage bag | ------------------------------------------ |
Suitable for | ESH U + DEHNcare APS and APG |
Dimensions | Ø300, 500 mm |
