Cross Units with Truss Head Screws for Aboveground and Underground Connections

For conductors in cross and T arrangement. Version with anti-rotation protection for mounting with a tool.

With intermediate plate for round and flat conductors

2 Products

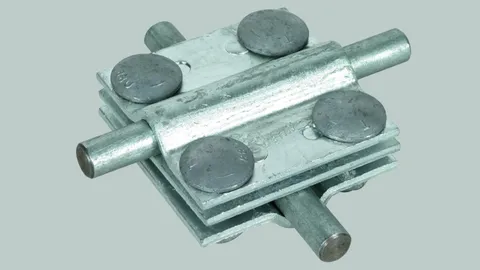

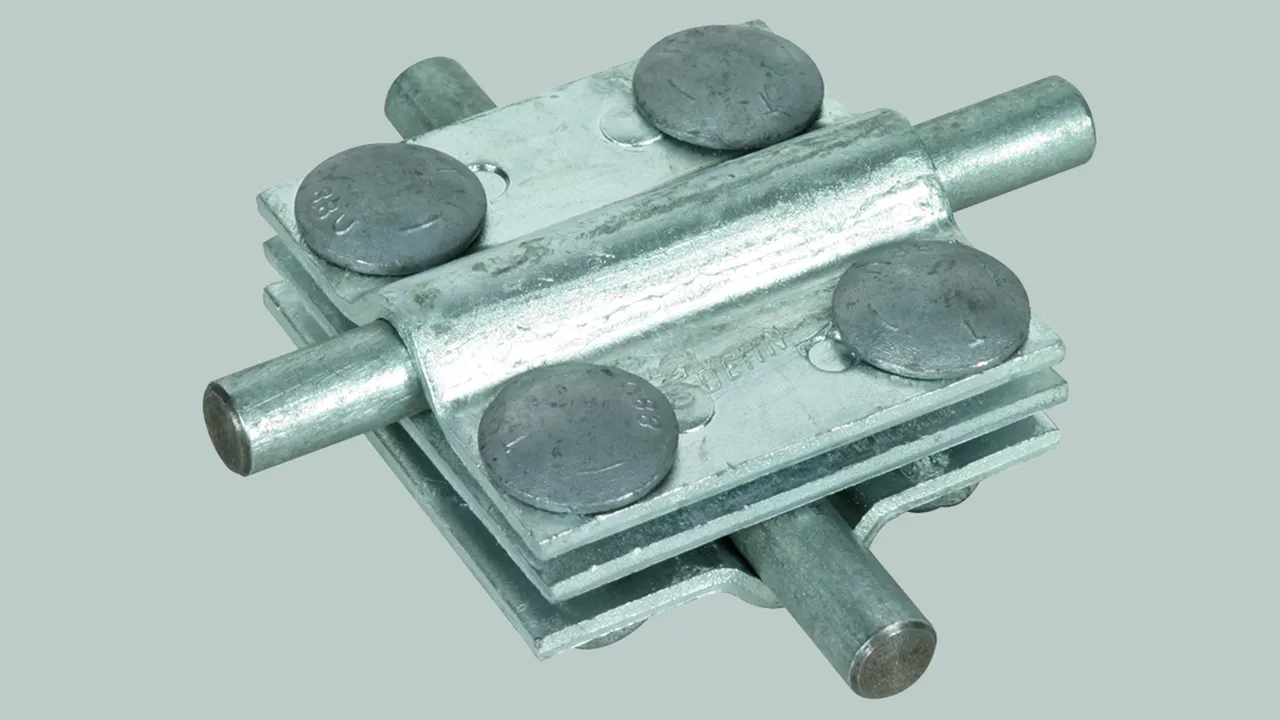

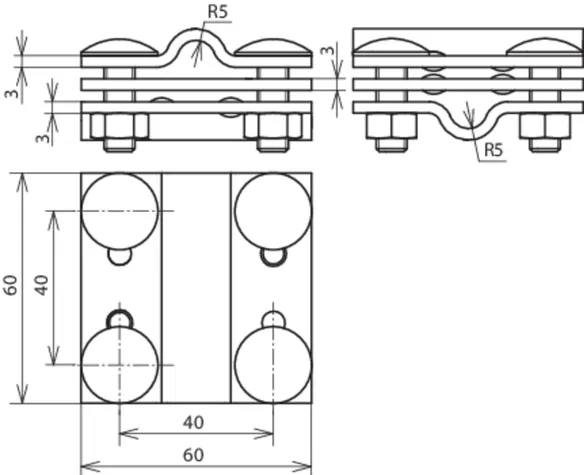

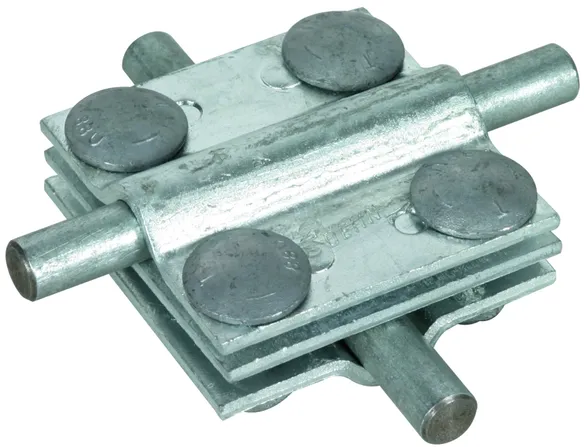

Part No. 318203 KS 8.10 8.10 FL30 ZP FRSM8 STTZN

GTIN 4013364159914, Customs tariff No. (EU): 85389099, Gross weight: 333.00 g, PU: 1.00 Stk

Images

Open PDF

Additional information

CAD files

Cross units with intermediate plate for round and flat conductors, St/tZn
Cross unit for aboveground and underground connections
For connecting conductors in cross and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 ZP FRSM8 STTZN
Part No.: 318203
or equivalent.

Certificates

Technical data

Material of clamp	St/tZn
Clamping range Rd / Rd	8-10 / 8-10 mm
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Dimensions	60 x 60 x 3 mm
Standard	EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14 kA

Material of clamp	St/tZn
Clamping range Rd / Rd	8-10 / 8-10 mm
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Screw	e M8 x 25 mm
Material of screw / nut	St/tZn
Dimensions	60 x 60 x 3 mm
Intermediate plate	yes
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14 kA
Zinc coating acc. EN 1461	~50 µm

Product 318203 was added to Notepad.

Go to Notepad

Product 318203 was added to the cart.

Go to Web-Shop

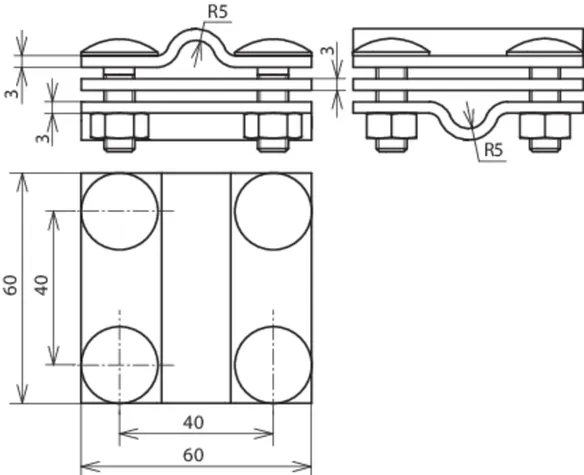

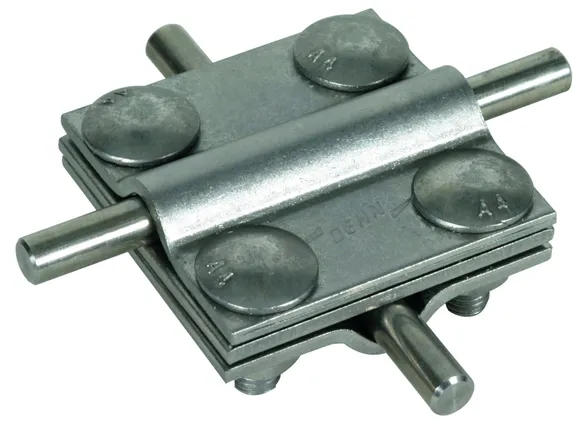

Part No. 318229 KS 8.10 8.10 FL30 ZP FRSM8 V4A

GTIN 4013364159938, Customs tariff No. (EU): 85389099, Gross weight: 327.00 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

Cross units with intermediate plate for round and flat conductors, StSt (V4A)
Cross unit for aboveground and underground connections
For connecting conductors in cross and T arrangement
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 ZP FRSM8 V4A
Part No.: 318229
or equivalent.

Certificates

Technical data

Material of clamp	StSt (V4A)
Clamping range Rd / Rd	8-10 / 8-10 mm
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Clamping range (stranded / cable)	50-70 mm²
Dimensions	60 x 60 x 3 mm
Standard	EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7 kA

Material of clamp	StSt (V4A)
Clamping range Rd / Rd	8-10 / 8-10 mm
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Clamping range (stranded / cable)	50-70 mm²
Screw	e M8 x 25 mm
Material of screw / nut	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Dimensions	60 x 60 x 3 mm
Intermediate plate	yes
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7 kA

Product 318229 was added to Notepad.

Go to Notepad

Product 318229 was added to the cart.

Go to Web-Shop

Without intermediate plate for round and flat conductors

2 Products

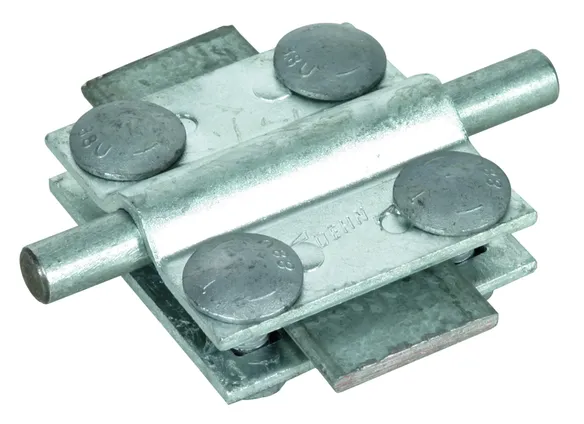

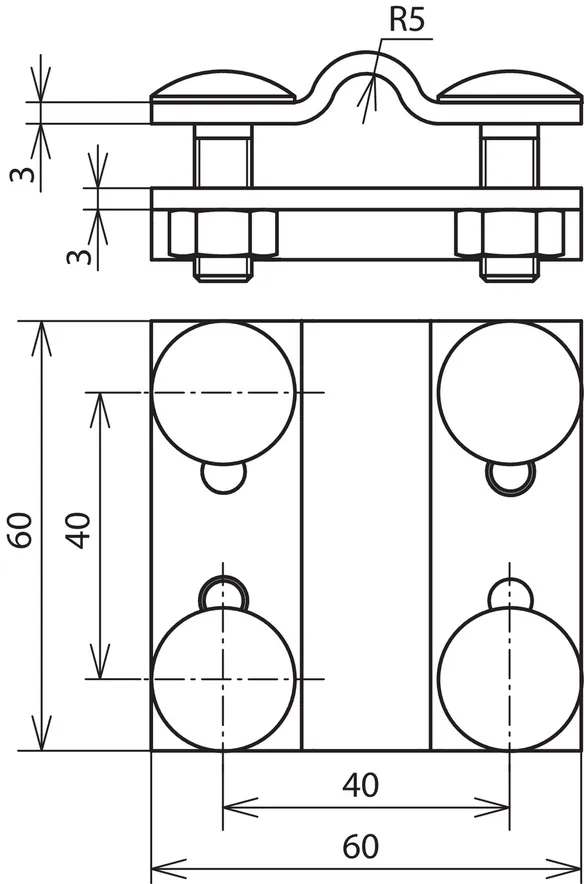

Part No. 318205 KS 8.10 FL30 FRSM8 STTZN

GTIN 4013364159921, Customs tariff No. (EU): 85389099, Gross weight: 249.00 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

Cross units without intermediate plate for round and flat conductors, St/tZn
Cross unit for aboveground and underground connections
For connecting conductors in cross and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 6561-1

Brand: DEHN
Type: KS 8.10 FL30 FRSM8 STTZN
Part No.: 318205
or equivalent.

Certificates

Technical data

Material of clamp	St/tZn
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Dimensions	60 x 60 x 3 mm
Standard	EN 6561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14 kA

Material of clamp	St/tZn
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Screw	e M8 x 25 mm
Material of screw / nut	St/tZn
Dimensions	60 x 60 x 3 mm
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 6561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14 kA
Zinc coating acc. EN 1461	~50 µm

Product 318205 was added to Notepad.

Go to Notepad

Product 318205 was added to the cart.

Go to Web-Shop

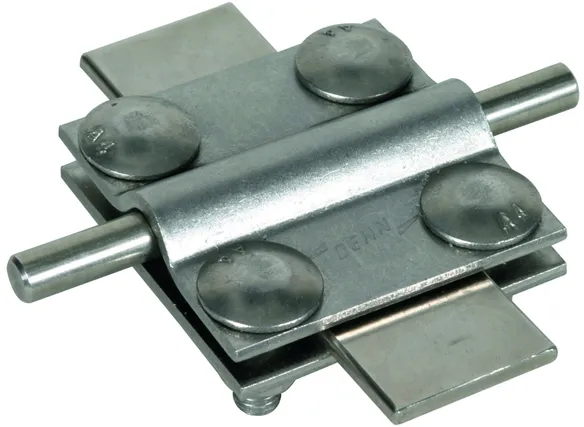

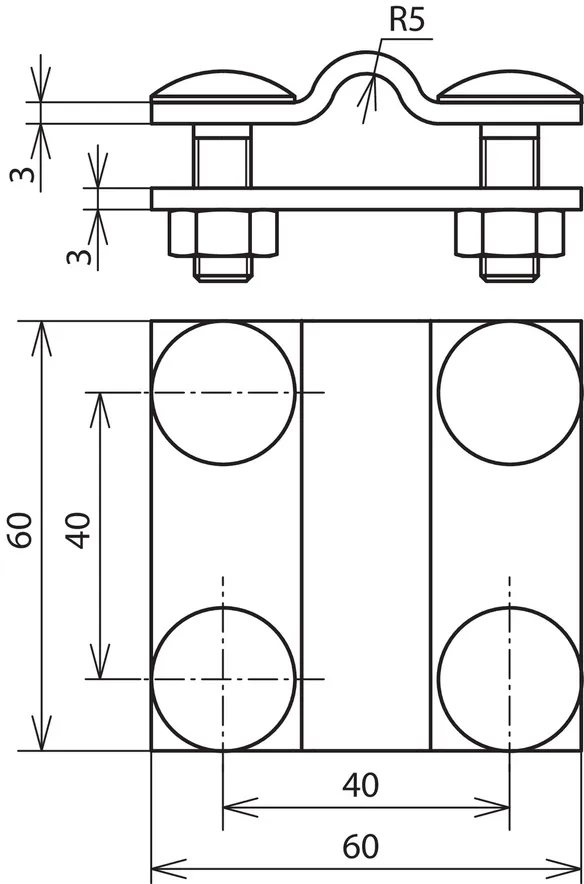

Part No. 318239 KS 8.10 FL30 FRSM8 V4A

GTIN 4013364159945, Customs tariff No. (EU): 85389099, Gross weight: 244.00 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

Cross units without intermediate plate for round and flat conductors, StSt (V4A)
Cross unit for aboveground and underground connections
For connecting conductors in cross and T arrangement
Material of clamp: StSt (V4A)
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 FL30 FRSM8 V4A
Part No.: 318239
or equivalent.

Certificates

Technical data

Material of clamp	StSt (V4A)
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Clamping range (stranded / cable)	50-70 mm²
Dimensions	60 x 60 x 3 mm
Standard	EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7.4 kA

Material of clamp	StSt (V4A)
Clamping range Rd / Fl	8-10 / 30 mm
Clamping range Fl / Fl	30 / 30 mm
Clamping range (stranded / cable)	50-70 mm²
Screw	e M8 x 25 mm
Material of screw / nut	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Dimensions	60 x 60 x 3 mm
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7.4 kA

Product 318239 was added to Notepad.

Go to Notepad

Product 318239 was added to the cart.

Go to Web-Shop
