Connection Brackets

For connecting round conductors, cables and flat strips to earth rods.

Diagonal design

Also for use with uncut earth conductors.

5 Products

Part No. 620015 AS S TE 20 7.10 FL40 STTZN

GTIN 4013364026582, Customs tariff No. (EU): 85359000, Gross weight: 375.20 g, PU: 20.00 Stk

Images

Additional information

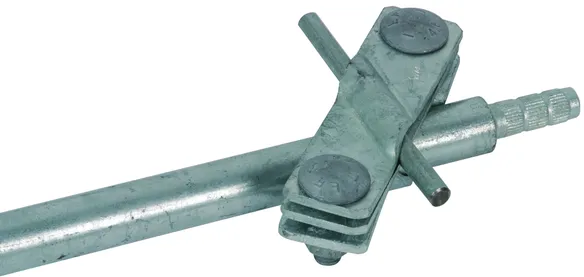

Connection bracket, diagonal, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd / Fl: 7-10 / -40 mm
Type for earth rods: Ø20 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS S TE 20 7.10 FL40 STTZN
Part No.: 620015
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd / Fl 7-10 / -40 mm
Type for earth rods Ø20 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 21.0 kA
*) For exact assignment, see test certificate.

Product 620015 was added to Notepad.

Go to Notepad

Product 620015 was added to the cart.

Go to Web-Shop

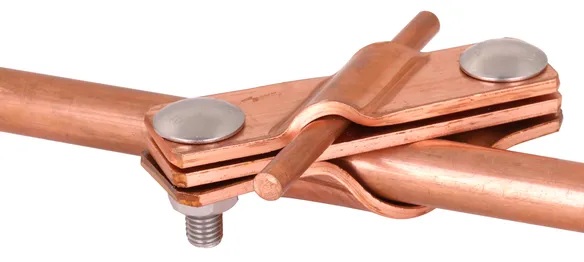

Part No. 620017 AS S TE 20 7.10 FL40 CU

GTIN 4013364026612, Customs tariff No. (EU): 85359000, Gross weight: 425.00 g, PU: 1.00 Stk

Images

Additional information

Connection bracket, diagonal, Cu
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: Cu
Clamping range Rd / Fl: 7-10 / -40 mm
Clamping range (stranded / cable): 35-95 mm2
Type for earth rods: Ø20 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS S TE 20 7.10 FL40 CU
Part No.: 620017
or equivalent.

Certificates



Technical data

Material Cu
Clamping range Rd / Fl 7-10 / -40 mm
Clamping range (stranded / cable) 35-95 mm2
Type for earth rods Ø20 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 29.0 kA
*) For exact assignment, see test certificate.

Product 620017 was added to Notepad.

Go to Notepad

Product 620017 was added to the cart.

Go to Web-Shop

Part No. 620915 AS S TE 20 7.10 FL40 V4A

GTIN 4013364026629, Customs tariff No. (EU): 85359000, Gross weight: 303.00 g, PU: 20.00 Stk

Images

Additional information

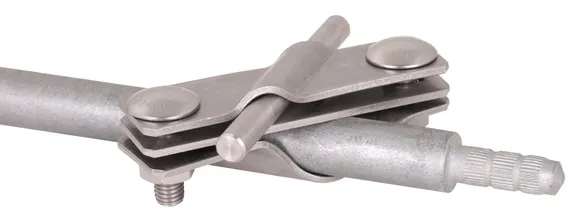

Connection bracket, diagonal, StSt (V4A)
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: StSt (V4A)
Clamping range Rd / Fl: 7-10 / -40 mm
Clamping range (stranded / cable): 35-95 mm2
Type for earth rods: Ø20 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: AS S TE 20 7.10 FL40 V4A
Part No.: 620915
or equivalent.

Certificates



Technical data

Material StSt (V4A)
Clamping range Rd / Fl 7-10 / -40 mm
Clamping range (stranded / cable) 35-95 mm2
Type for earth rods Ø20 mm
Material No. 1.4571 / 1.4404 / 1.4401
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 7.3 kA
*) For exact assignment, see test certificate.

Product 620915 was added to Notepad.

Go to Notepad

Product 620915 was added to the cart.

Go to Web-Shop

Part No. 625015 AS S TE 25 7.10 FL40 STTZN

GTIN 4013364026599, Customs tariff No. (EU): 85359000, Gross weight: 388.00 g, PU: 20.00 Stk

Images

Additional information

Connection bracket, diagonal, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd / Fl: 7-10 / -40 mm
Type for earth rods: Ø25 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS S TE 25 7.10 FL40 STTZN
Part No.: 625015
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd / Fl 7-10 / -40 mm
Type for earth rods Ø25 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 18 kA
*) For exact assignment, see test certificate.

Product 625015 was added to Notepad.

Go to Notepad

Product 625015 was added to the cart.

Go to Web-Shop

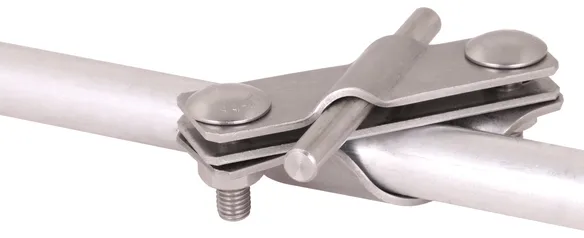

Part No. 649015 AS S TE 25 7.10 FL40 V4A

GTIN 4013364119376, Customs tariff No. (EU): 85359000, Gross weight: 305.00 g, PU: 20.00 Stk

Images

Additional information

Connection bracket, diagonal, StSt (V4A)
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: StSt (V4A)
Clamping range Rd / Fl: 7-10 / -40 mm
Clamping range (stranded / cable): 35-95 mm2
Type for earth rods: Ø25 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: AS S TE 25 7.10 FL40 V4A
Part No.: 649015
or equivalent.

Certificates



Technical data

Material StSt (V4A)
Clamping range Rd / Fl 7-10 / -40 mm
Clamping range (stranded / cable) 35-95 mm2
Type for earth rods Ø25 mm
Material No. 1.4571 / 1.4404 / 1.4401
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8 kA
*) For exact assignment, see test certificate.

Product 649015 was added to Notepad.

Go to Notepad

Product 649015 was added to the cart.

Go to Web-Shop

Diagonal design – especially for tubular earth rods St/tZn

Also for use with uncut earth electrodes.

1 Product

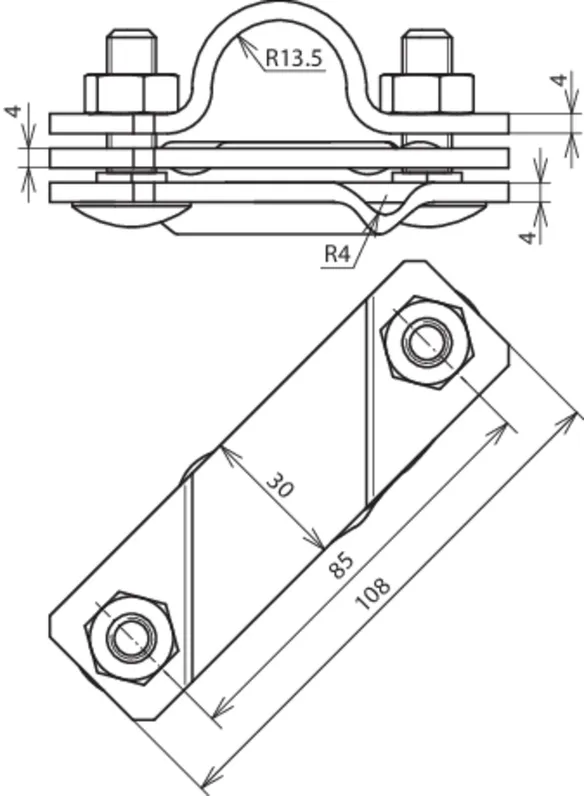

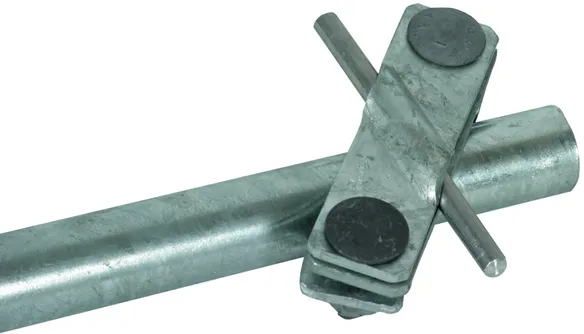

Part No. 640015 AS S RE 27 7.10 FL40 STTZN

GTIN 4013364106864, Customs tariff No. (EU): 85359000, Gross weight: 395.20 g, PU: 1.00 Stk

Images

Additional information

Connection bracket, diagonal, especially for tubular earth electrodes, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd / Fl: 7-10 / -40 mm
Type for earth rods: Ø27 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS S RE 27 7.10 FL40 STTZN
Part No.: 640015
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd / Fl 7-10 / -40 mm
Type for earth rods Ø27 mm
Standard EN 62561-1

Product 640015 was added to Notepad.

Go to Notepad

Product 640015 was added to the cart.

Go to Web-Shop

One-sided connection with KS connector

2 Products

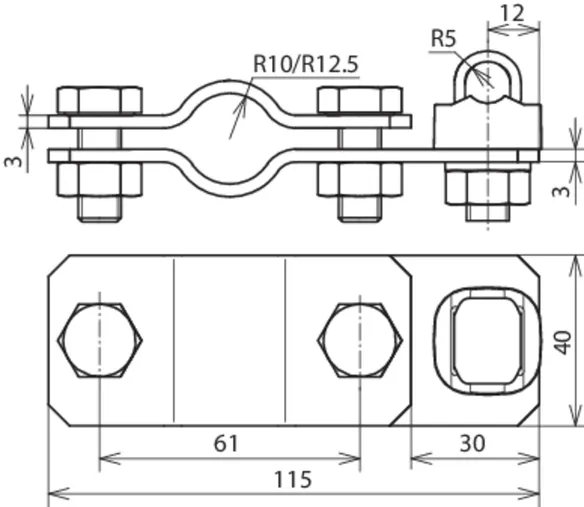

Part No. 620011 AS TE 20 KSV 7.10 STTZN

GTIN 4013364026636, Customs tariff No. (EU): 85359000, Gross weight: 320.00 g, PU: 20.00 Stk

Images

Additional information

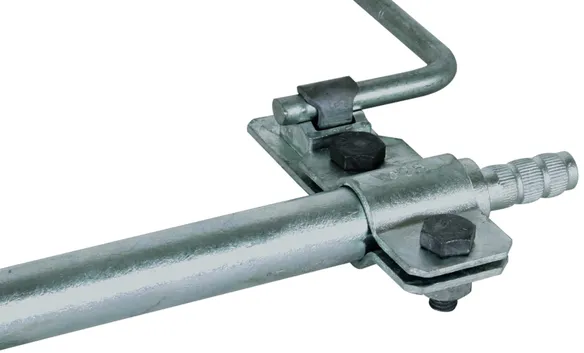

Connection bracket, one-sided connection with KS connector, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd: 7-10 mm
Type for earth rods: Ø20 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS TE 20 KSV 7.10 STTZN
Part No.: 620011
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd 7-10 mm
Type for earth rods Ø20 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 620011 was added to Notepad.

Go to Notepad

Product 620011 was added to the cart.

Go to Web-Shop

Part No. 625011 AS TE 25 KSV 7.10 STTZN

GTIN 4013364026643, Customs tariff No. (EU): 85359000, Gross weight: 345.00 g, PU: 20.00 Stk

Images

Additional information

Connection bracket, one-sided connection with KS connector, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd: 7-10 mm
Type for earth rods: Ø25 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS TE 25 KSV 7.10 STTZN
Part No.: 625011
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd 7-10 mm
Type for earth rods Ø25 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 625011 was added to Notepad.

Go to Notepad

Product 625011 was added to the cart.

Go to Web-Shop

Double-sided connection with KS connectors (St/tZn)

2 Products

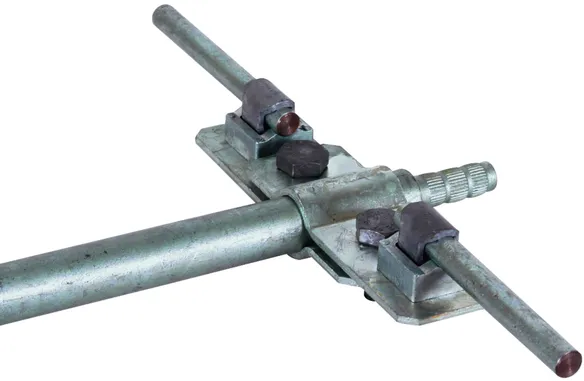

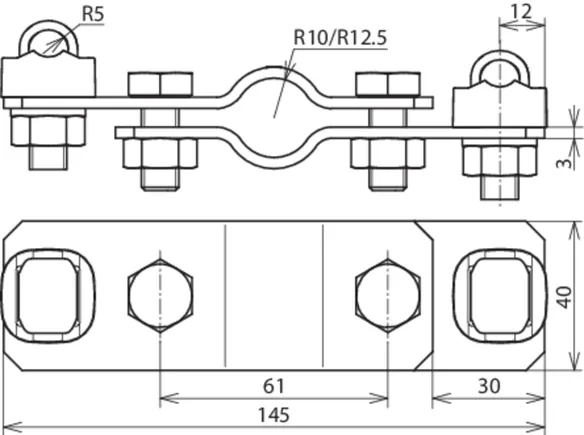

Part No. 620012 AS TE 20 2XKSV 7.10 STTZN

GTIN 4013364026698, Customs tariff No. (EU): 85359000, Gross weight: 428.00 g, PU: 10.00 Stk

Images

Additional information

Connection bracket, two-sided connection with KS connector, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd: 7-10 mm
Type for earth rods: Ø20 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS TE 20 2XKSV 7.10 STTZN
Part No.: 620012
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd 7-10 mm
Type for earth rods Ø20 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 620012 was added to Notepad.

Go to Notepad

Product 620012 was added to the cart.

Go to Web-Shop

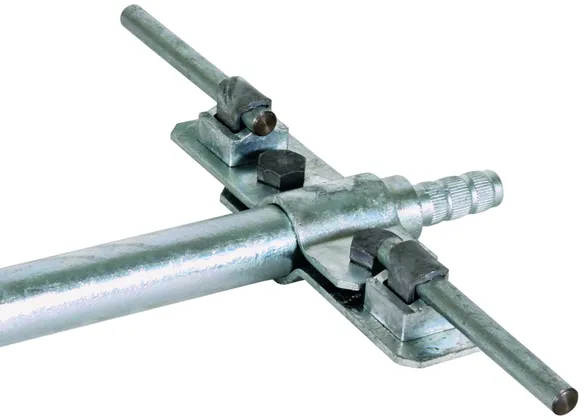

Part No. 625012 AS TE 25 2XKSV 7.10 STTZN

GTIN 4013364026704, Customs tariff No. (EU): 85359000, Gross weight: 434.00 g, PU: 1.00 Stk

Images

Additional information

Connection bracket, two-sided connection with KS connector, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Rd: 7-10 mm
Type for earth rods: Ø25 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS TE 25 2XKSV 7.10 STTZN
Part No.: 625012
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Rd 7-10 mm
Type for earth rods Ø25 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 625012 was added to Notepad.

Go to Notepad

Product 625012 was added to the cart.

Go to Web-Shop

One-sided connection with M10 screw

2 Products

Part No. 620021 AS TE 20 ASSM10 STTZN

GTIN 4013364026667, Customs tariff No. (EU): 85359000, Gross weight: 294.00 g, PU: 1.00 Stk

Images

Additional information

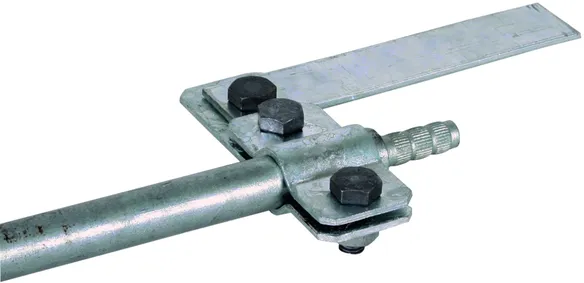

Connection bracket, one-sided connection with M10 screw, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Fl: -40 mm
Type for earth rods: Ø20 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS TE 20 ASSM10 STTZN
Part No.: 620021
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Fl -40 mm
Type for earth rods Ø20 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.4 kA
*) For exact assignment see test certificate.

Product 620021 was added to Notepad.

Go to Notepad

Product 620021 was added to the cart.

Go to Web-Shop

Part No. 625021 AS TE 25 ASSM10 STTZN

GTIN 4013364026674, Customs tariff No. (EU): 85359000, Gross weight: 315.00 g, PU: 20.00 Stk

Images

Additional information

Connection bracket, one-sided connection with M10 screw, St/tZn
Connecting clamp
For connecting round conductors, cables and tape conductors to earth rods
Material: St/tZn
Clamping range Fl: -40 mm
Type for earth rods: Ø25 mm
Standard: EN 62561-1

Brand: DEHN
Type: AS TE 25 ASSM10 STTZN
Part No.: 625021
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range Fl -40 mm
Type for earth rods Ø25 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.4 kA
*) For exact assignment see test certificate.

Product 625021 was added to Notepad.

Go to Notepad

Product 625021 was added to the cart.

Go to Web-Shop
