Disconnecting Clamp – Austrian Standard

With connecting screw, for round conductors.

1 Product

Part No. 460213 OENTK 7.10 7.10 ZG

GTIN 4013364034358, Customs tariff No. (EU): 85389099, Gross weight: 168.00 g, PU: 50.00 Stk

Predecessor

Images

Open PDF

Additional information

CAD files

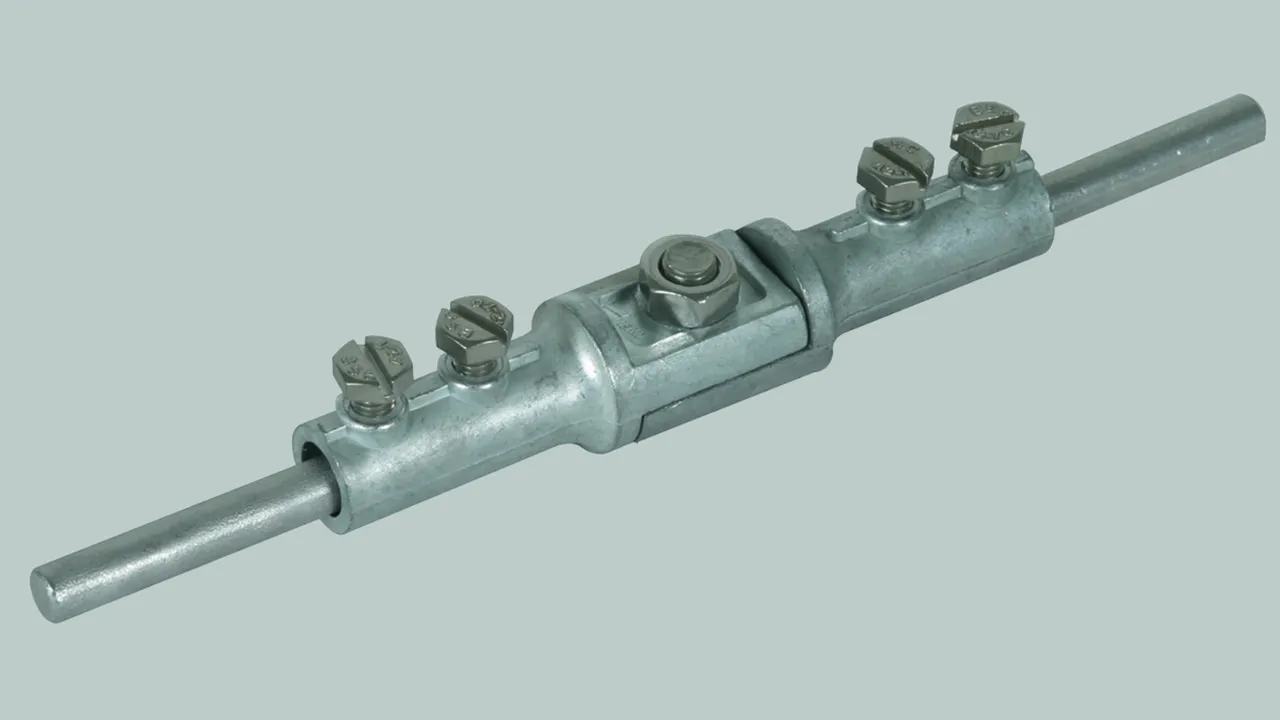

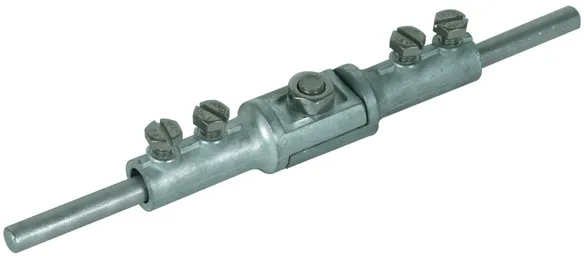

Disconnecting clamp (Austrian standard)
Disconnecting clamp (Austrian standard) with connecting screw
For connecting the down conductor with the earth entry
Material: ZDC
Clamping range Rd / Rd: 7-10 / 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: OENTK 7.10 7.10 ZG
Part No.: 460213
or equivalent.

Technical data

Material	ZDC
Clamping range Rd / Rd	7-10 / 7-10 mm
Standard	EN 62561-1

Product 460213 was added to Notepad.

Go to Notepad

Product 460213 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Disconnecting Clamp – Austrian Standard

Part No. 460213 OENTK 7.10 7.10 ZG

Product 460213 was added to Notepad.

Product 460213 was added to the cart.

Material	ZDC
Clamping range Rd / Rd	7-10 / 7-10 mm
Screw	dj M6 x 12 / di M8 x 25 mm
Material of screw / nut	StSt
Lightning current carrying capability (10/350 µs)	= / & *⁾
Standard	EN 62561-1
