Part No. 377005 AL ZF B11.11 B5.2 6.5 L81 AL

GTIN 4013364024908, Customs tariff No. (EU): 85359000, Gross weight: 23.90 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

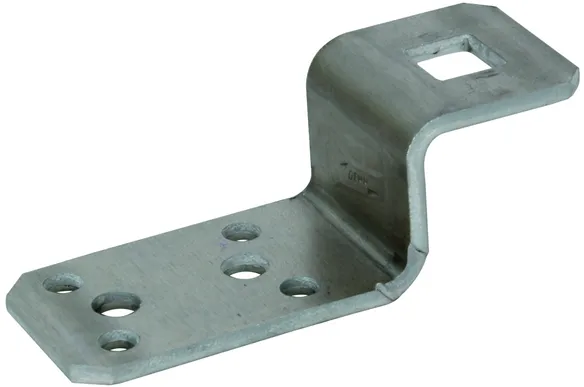

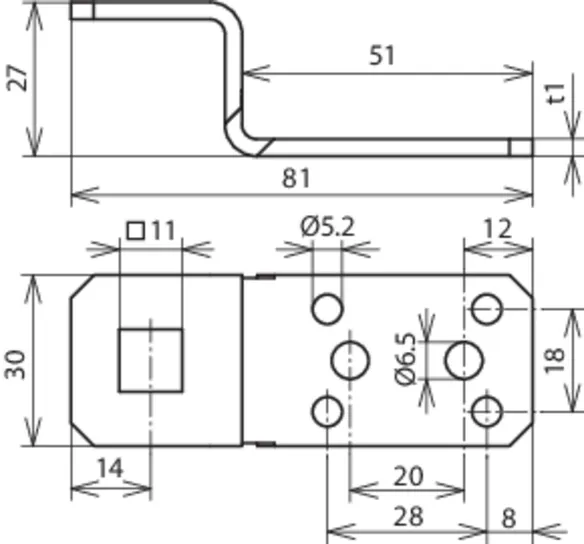

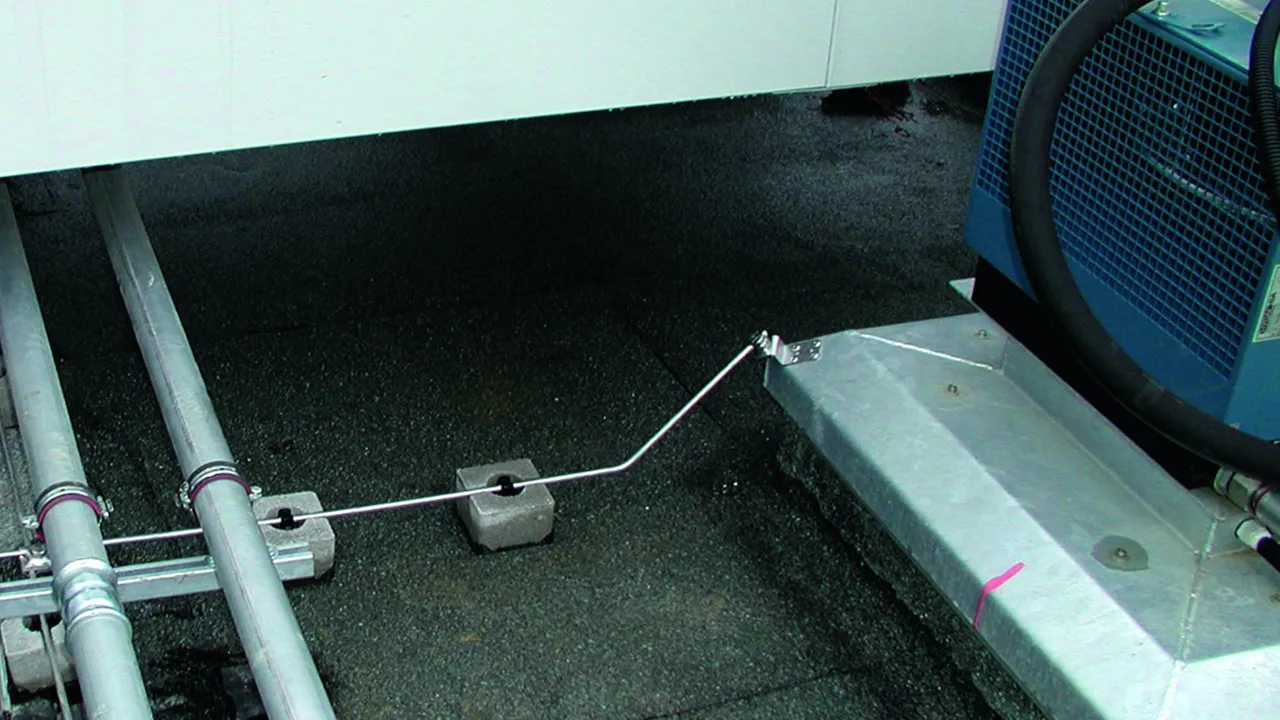

Connection bracket with square hole, Al
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 AL
Part No.: 377005
or equivalent.

Certificates

Technical data

Material of bracket	Al
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Al
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm, shall be used to connect materials ≥ 0,5mm thick, or 2 Parker screws StSt Ø6,3mm for materials ≥ 2mm thick.
Connection	lengthwise / crosswise
Connection with	square hole 11x11 mm (KS connector)
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Product 377005 was added to Notepad.

Go to Notepad

Product 377005 was added to the cart.

Go to Web-Shop

Part No. 377017 AL ZF B11.11 B5.2 6.5 L81 CU

GTIN 4013364024915, Customs tariff No. (EU): 85359000, Gross weight: 51.20 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Connection bracket with square hole, Cu
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: Cu
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 CU
Part No.: 377017
or equivalent.

Certificates

Technical data

Material of bracket	Cu
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Cu
Material thickness (t1)	2 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Connection	lengthwise / crosswise
Connection with	square hole 11x11 mm (KS connector)
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Product 377017 was added to Notepad.

Go to Notepad

Product 377017 was added to the cart.

Go to Web-Shop

Part No. 377009 AL ZF B11.11 B5.2 6.5 L81 V2A

GTIN 4013364119284, Customs tariff No. (EU): 85359000, Gross weight: 54.10 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Connection bracket with square hole, StSt
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: StSt
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 V2A
Part No.: 377009
or equivalent.

Certificates

Technical data

Material of bracket	StSt
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	StSt
Material thickness (t1)	2.5 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6,3mm for materials ≥ 2mm thick.
Connection	lengthwise / crosswise
Connection with	square hole 11x11 mm (KS connector)
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Product 377009 was added to Notepad.

Go to Notepad

Product 377009 was added to the cart.

Go to Web-Shop

Part No. 377100 AL ZF KB 6.10STTZN B5.2 6.5 L81 AL

GTIN 4013364078604, Customs tariff No. (EU): 85359000, Gross weight: 76.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

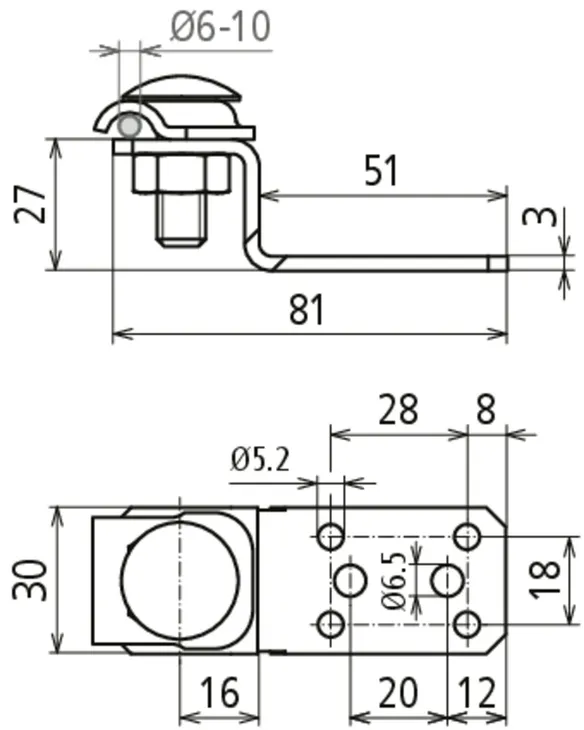

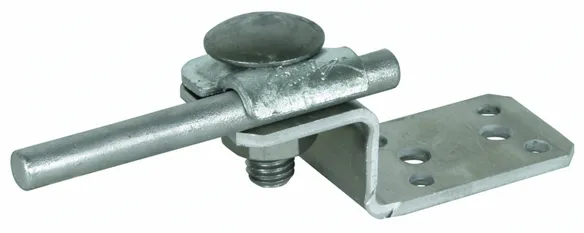

Connection bracket with clamping piece
Connection bracket for connecting metal cladding
using blind rivets or screws
With clamping piece for Rd 6-10 mm conductors
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece: St/tZn
Screw: M10 x 30 mm
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF KB 6.10STTZN B5.2 6.5 L81 AL
Part No.: 377100
or equivalent.

Certificates

Technical data

Material of bracket	Al
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Al
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Material of clamping piece	St/tZn
Screw	e M10 x 30 mm
Material of screw / nut	StSt
Connection	lengthwise / crosswise
Connection with	clamping piece
Clamping range Rd	6-10 mm
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Product 377100 was added to Notepad.

Go to Notepad

Product 377100 was added to the cart.

Go to Web-Shop

Part No. 377200 AL ZF DUL 6.10 B5.2 6.5 L81 AL

GTIN 4013364136465, Customs tariff No. (EU): 85359000, Gross weight: 72.40 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

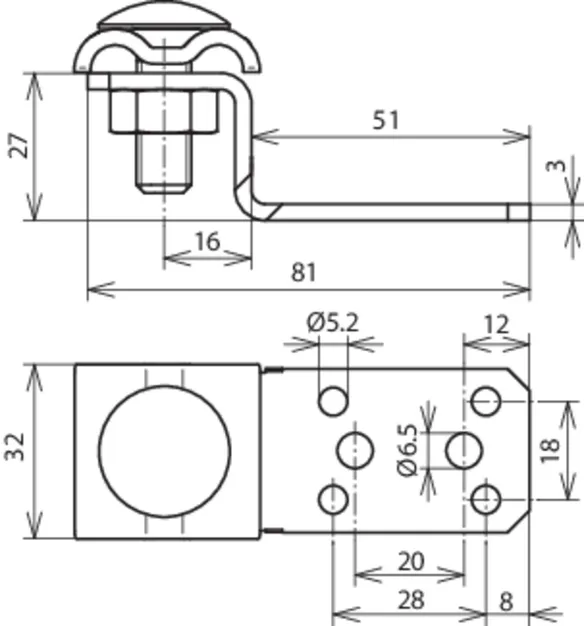

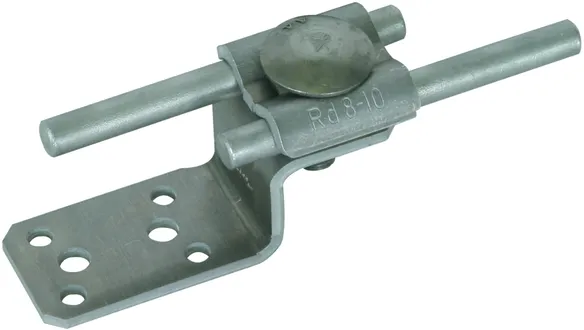

Connection bracket with double clamp, Al
Connection bracket for connecting metal cladding
using blind rivets or screws
With double clamp for Rd 8-10 mm conductors
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: Al
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 AL
Part No.: 377200
or equivalent.

Certificates

Technical data

Material of bracket	Al
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp	Al
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Al
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Material of double clamp	Al
Screw	e M10 x 30 mm
Material of screw / nut	StSt
Connection	lengthwise / crosswise
Connection with	double cleat
Clamping range Rd	8-10 mm
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Product 377200 was added to Notepad.

Go to Notepad

Product 377200 was added to the cart.

Go to Web-Shop
