Connection Clamps for Steel Girders

Heavy design; for connection to steel constructions.

Vertical design, with clamping piece

Lengthwise or crosswise connection with clamping piece.

4 Products

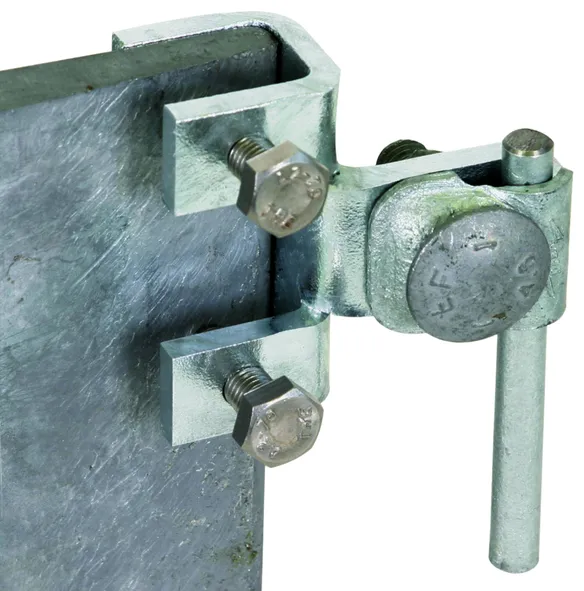

Part No. 372110 AK 6.10 KB S KBF3 18 STTZN

GTIN 4013364119055, Customs tariff No. (EU): 85389099, Gross weight: 287.60 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 STTZN
Part No.: 372110
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372110 was added to Notepad.

Go to Notepad

Product 372110 was added to the cart.

Go to Web-Shop

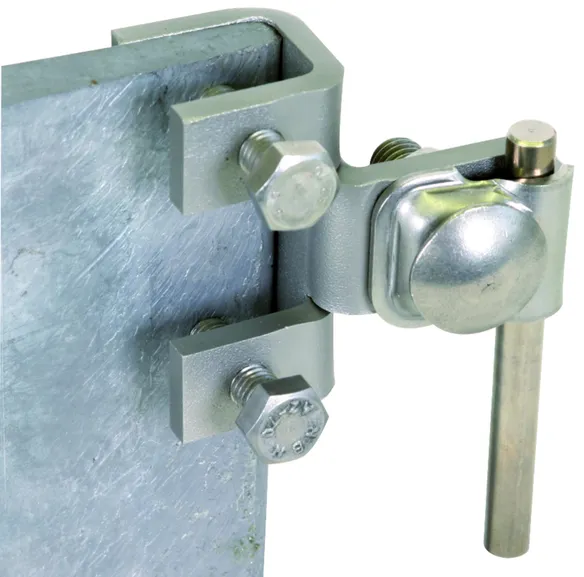

Part No. 372119 AK 6.10 KB S KBF3 18 V2A

GTIN 4013364119178, Customs tariff No. (EU): 85389099, Gross weight: 282.00 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 V2A
Part No.: 372119
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372119 was added to Notepad.

Go to Notepad

Product 372119 was added to the cart.

Go to Web-Shop

Part No. 372140 AK 6.10 KB S KBF18 35 STTZN

GTIN 4013364119086, Customs tariff No. (EU): 85389099, Gross weight: 340.20 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Conneciton clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 STTZN
Part No.: 372140
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372140 was added to Notepad.

Go to Notepad

Product 372140 was added to the cart.

Go to Web-Shop

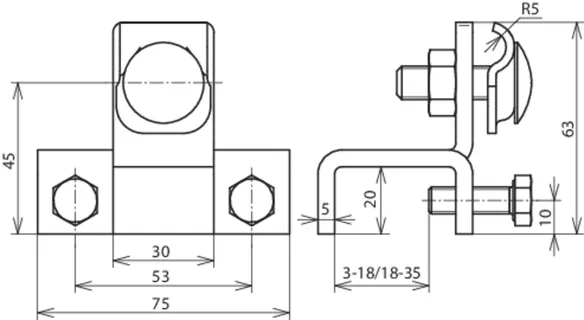

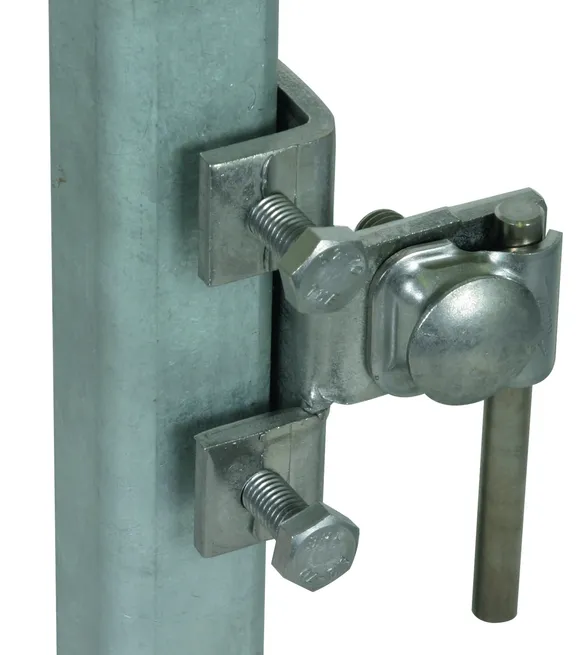

Part No. 372149 AK 6.10 KB S KBF18 35 V2A

GTIN 4013364119208, Customs tariff No. (EU): 85389099, Gross weight: 331.10 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 V2A
Part No.: 372149
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372149 was added to Notepad.

Go to Notepad

Product 372149 was added to the cart.

Go to Web-Shop

Horizontal design, with clamping piece

Lengthwise or crosswise connection with clamping piece.

4 Products

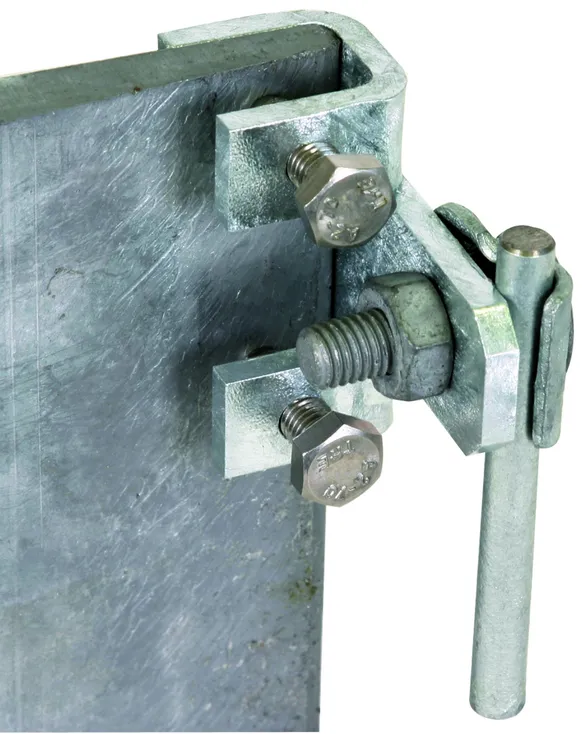

Part No. 372210 AK 6.10 KB W KBF3 18 STTZN

GTIN 4013364119116, Customs tariff No. (EU): 85389099, Gross weight: 288.40 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 STTZN
Part No.: 372210
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372210 was added to Notepad.

Go to Notepad

Product 372210 was added to the cart.

Go to Web-Shop

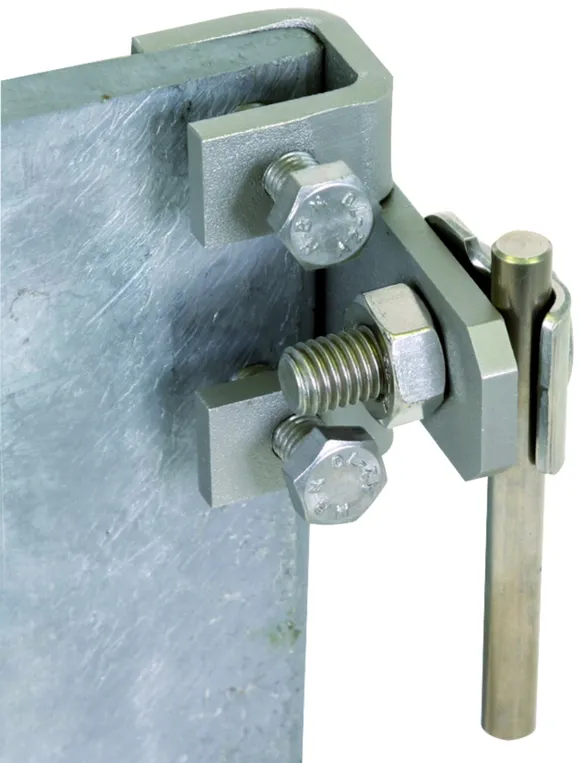

Part No. 372219 AK 6.10 KB W KBF3 18 V2A

GTIN 4013364119239, Customs tariff No. (EU): 85389099, Gross weight: 282.90 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 V2A
Part No.: 372219
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372219 was added to Notepad.

Go to Notepad

Product 372219 was added to the cart.

Go to Web-Shop

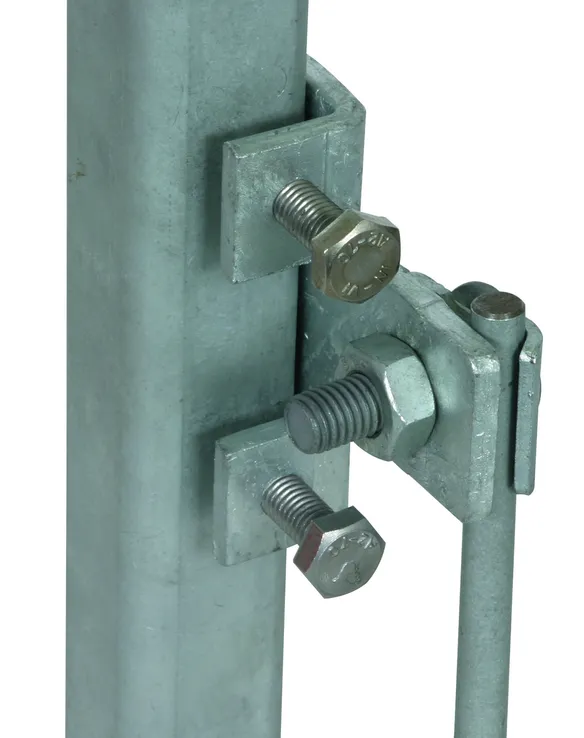

Part No. 372240 AK 6.10 KB W KBF18 35 STTZN

GTIN 4013364119147, Customs tariff No. (EU): 85389099, Gross weight: 339.50 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 STTZN
Part No.: 372240
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372240 was added to Notepad.

Go to Notepad

Product 372240 was added to the cart.

Go to Web-Shop

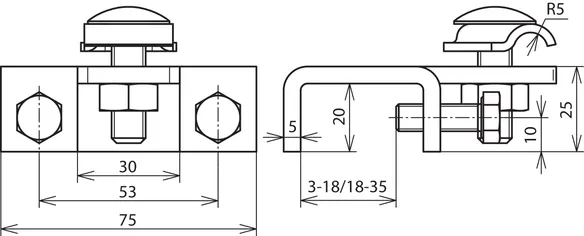

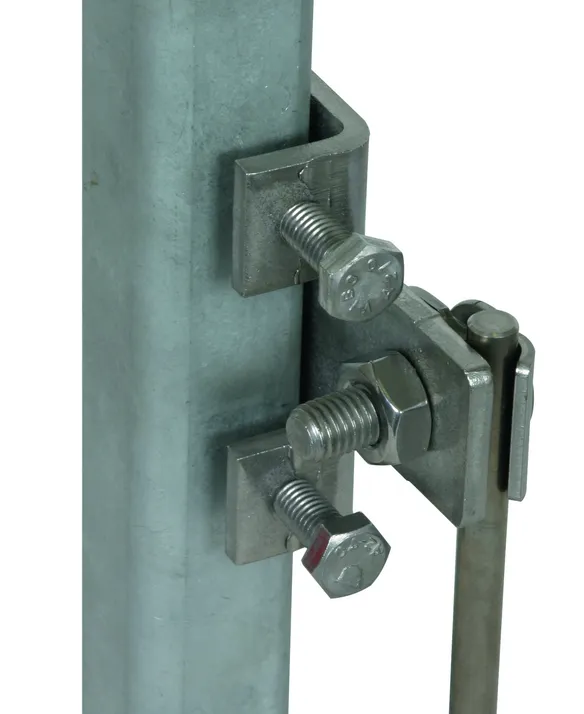

Part No. 372249 AK 6.10 KB W KBF18 35 V2A

GTIN 4013364119260, Customs tariff No. (EU): 85389099, Gross weight: 330.90 g, PU: 1.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 V2A
Part No.: 372249
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372249 was added to Notepad.

Go to Notepad

Product 372249 was added to the cart.

Go to Web-Shop

Vertical design, with KS connector

Lengthwise or crosswise connection with KS connector.

4 Products

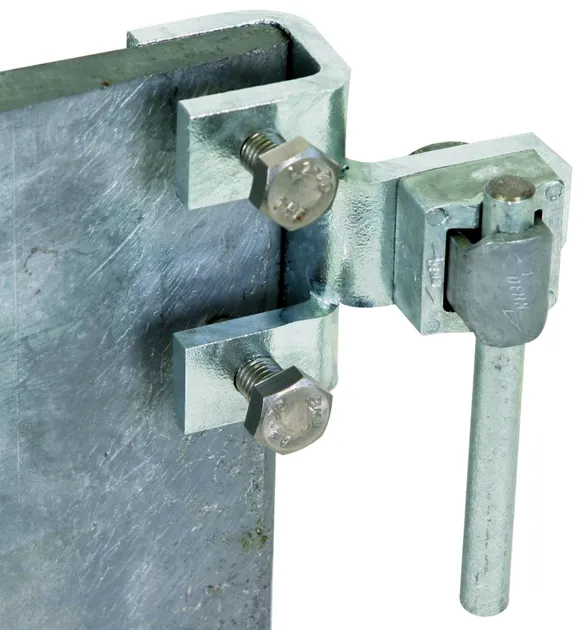

Part No. 372120 AK 7.10 KSV S KBF3 18 STTZN

GTIN 4013364119062, Customs tariff No. (EU): 85389099, Gross weight: 292.30 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF3 18 STTZN
Part No.: 372120
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1

Product 372120 was added to Notepad.

Go to Notepad

Product 372120 was added to the cart.

Go to Web-Shop

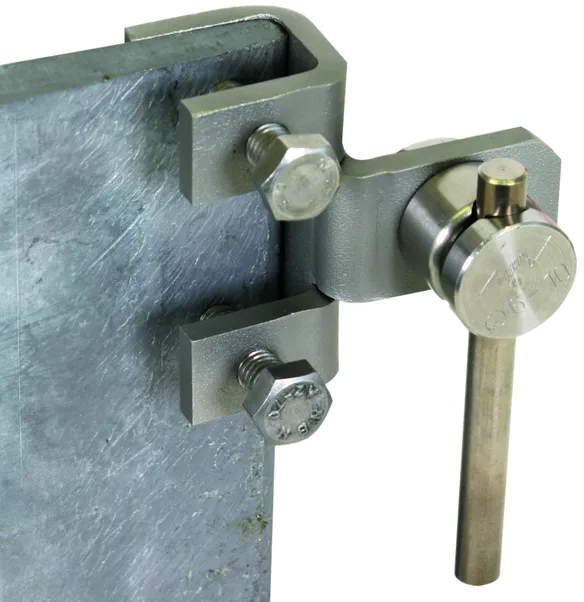

Part No. 372129 AK 6.10 KSV S KBF3 18 V2A

GTIN 4013364119185, Customs tariff No. (EU): 85389099, Gross weight: 287.80 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF3 18 V2A
Part No.: 372129
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372129 was added to Notepad.

Go to Notepad

Product 372129 was added to the cart.

Go to Web-Shop

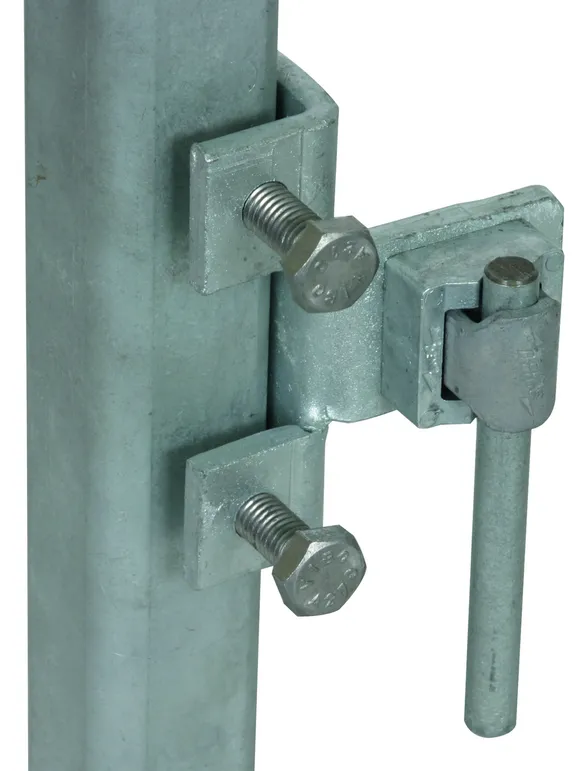

Part No. 372150 AK 7.10 KSV S KBF18 35 STTZN

GTIN 4013364119093, Customs tariff No. (EU): 85389099, Gross weight: 343.60 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF18 35 STTZN
Part No.: 372150
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1

Product 372150 was added to Notepad.

Go to Notepad

Product 372150 was added to the cart.

Go to Web-Shop

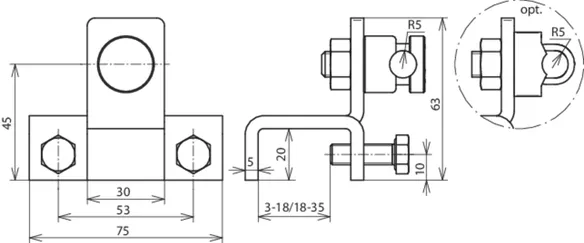

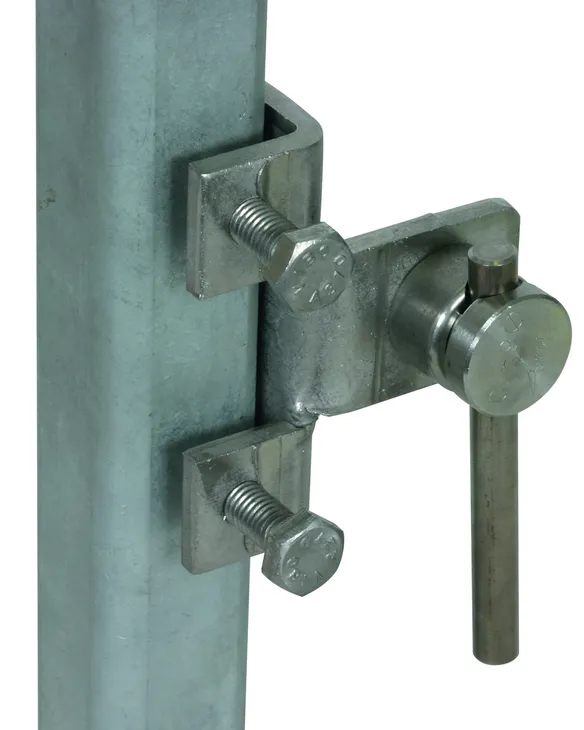

Part No. 372159 AK 6.10 KSV S KBF18 35 V2A

GTIN 4013364119215, Customs tariff No. (EU): 85389099, Gross weight: 337.80 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF18 35 V2A
Part No.: 372159
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372159 was added to Notepad.

Go to Notepad

Product 372159 was added to the cart.

Go to Web-Shop

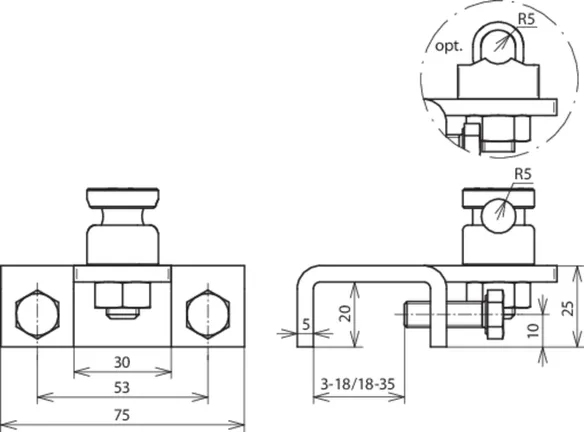

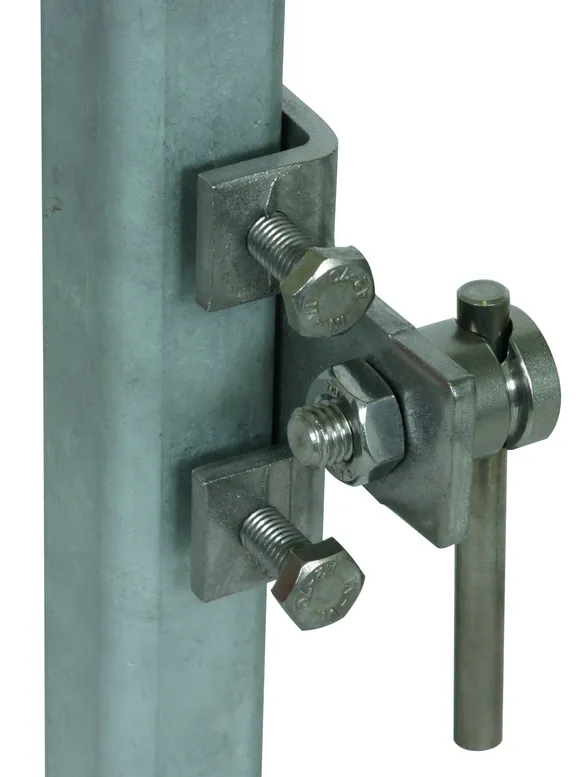

Horizontal design, with KS connector

Lengthwise or crosswise connection with KS connector.

4 Products

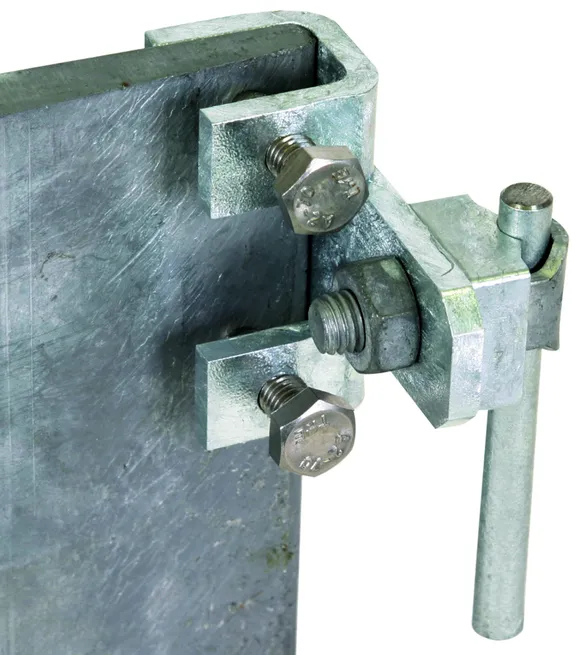

Part No. 372220 AK 7.10 KSV W KBF3 18 STTZN

GTIN 4013364119123, Customs tariff No. (EU): 85389099, Gross weight: 292.40 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF3 18 STTZN
Part No.: 372220
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1

Product 372220 was added to Notepad.

Go to Notepad

Product 372220 was added to the cart.

Go to Web-Shop

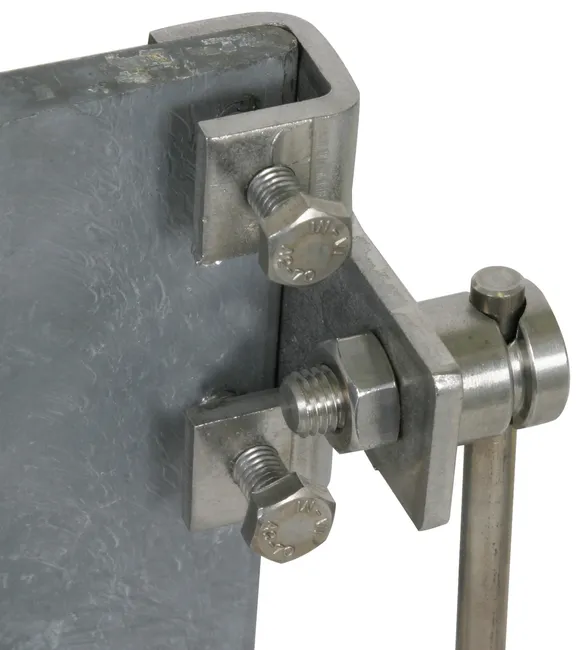

Part No. 372229 AK 6.10 KSV W KBF3 18 V2A

GTIN 4013364119246, Customs tariff No. (EU): 85389099, Gross weight: 287.90 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF3 18 V2A
Part No.: 372229
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372229 was added to Notepad.

Go to Notepad

Product 372229 was added to the cart.

Go to Web-Shop

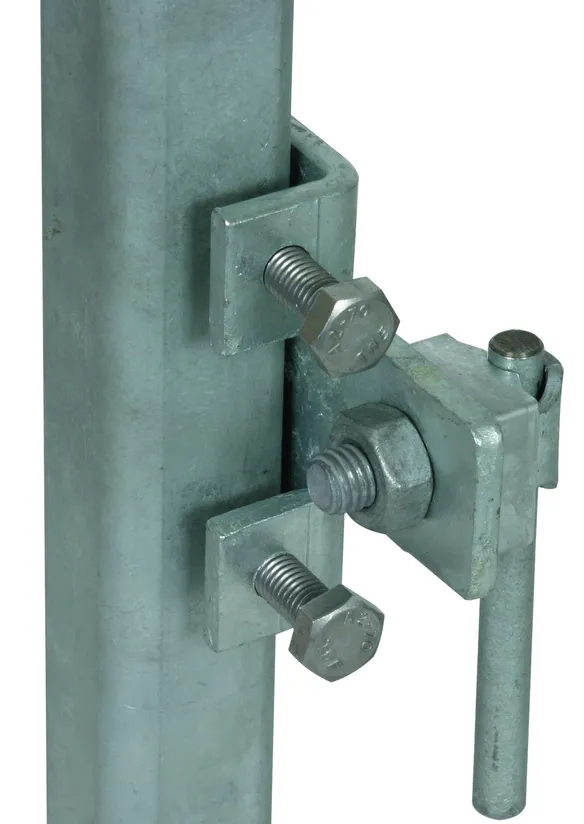

Part No. 372250 AK 7.10 KSV W KBF18 35 STTZN

GTIN 4013364119154, Customs tariff No. (EU): 85389099, Gross weight: 342.60 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF18 35 STTZN
Part No.: 372250
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1

Product 372250 was added to Notepad.

Go to Notepad

Product 372250 was added to the cart.

Go to Web-Shop

Part No. 372259 AK 6.10 KSV W KBF18 35 V2A

GTIN 4013364119277, Customs tariff No. (EU): 85389099, Gross weight: 335.80 g, PU: 25.00 Stk

Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF18 35 V2A
Part No.: 372259
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 372259 was added to Notepad.

Go to Notepad

Product 372259 was added to the cart.

Go to Web-Shop
back to top
