Parallel Connectors

For connecting two conductors in parallel arrangement.

For equal diameters with one screw

2 Products

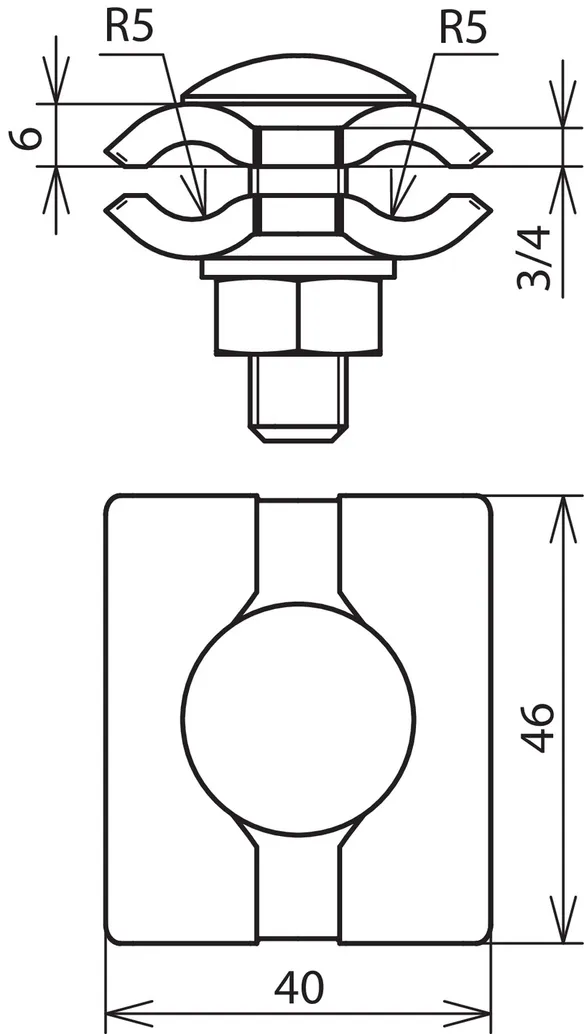

Part No. 306020 PV 7.10 FRM10X35 STTZN

GTIN 4013364096264, Customs tariff No. (EU): 85359000, Gross weight: 147.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

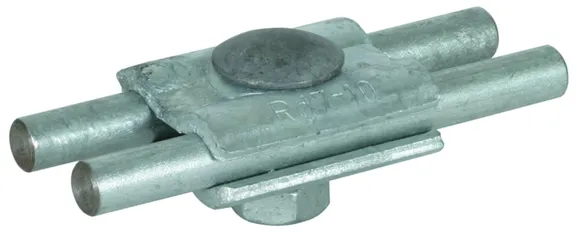

Parallel connector with one screw, St/tZn
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 mm
Screw: M10 x 35 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 FRM10X35 STTZN
Part No.: 306020
or equivalent.

Certificates

Technical data

Material of clamp	St/tZn
Clamping range Rd / Rd	7-10 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	4.0 kA
*⁾ For exact classification, see test certificate.

Material of clamp	St/tZn
Clamping range Rd / Rd	7-10 mm
Screw	e M10 x 35 mm
Material of screw / nut	St/tZn
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	4.0 kA
Material thickness	4 mm
*⁾ For exact classification, see test certificate.

Product 306020 was added to Notepad.

Go to Notepad

Product 306020 was added to the cart.

Go to Web-Shop

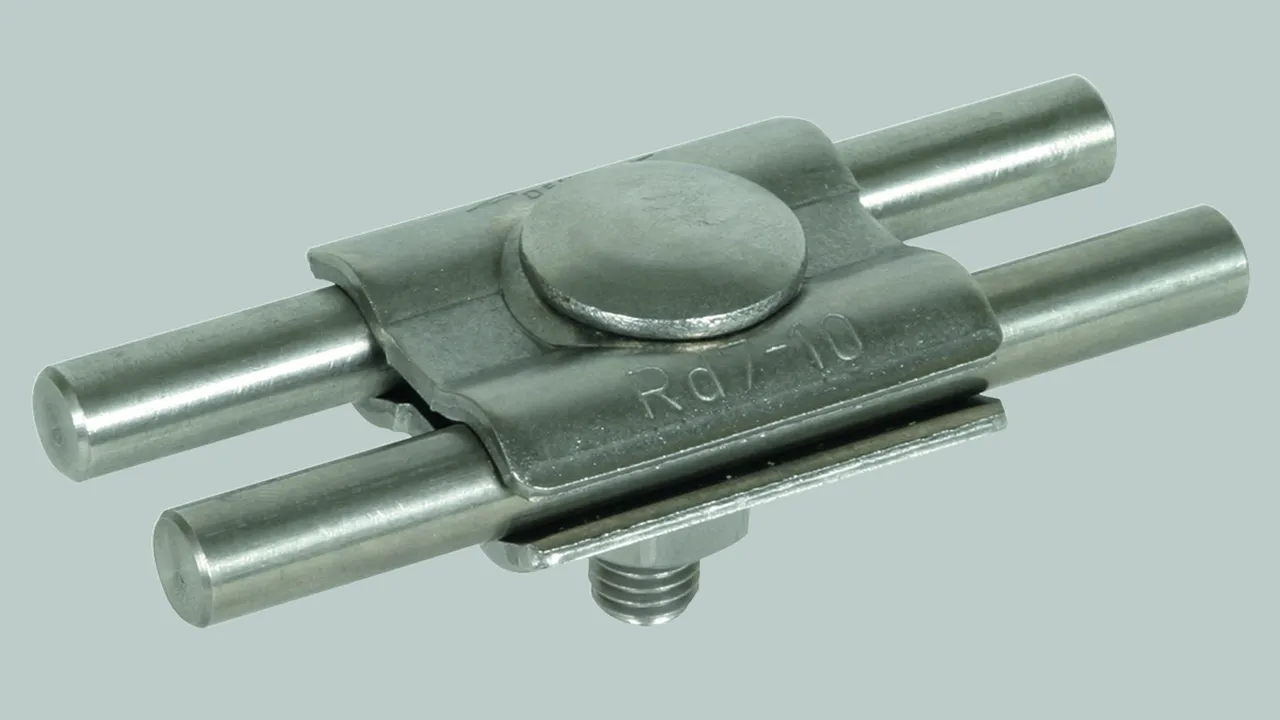

Part No. 306029 PV 7.10 FRM10X35 V4A

GTIN 4013364129467, Customs tariff No. (EU): 85359000, Gross weight: 122.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Parallel connector with one screw, StSt (V4A)
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 7-10 mm
Screw: M10 x 35 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 FRM10X35 V4A
Part No.: 306029
or equivalent.

Certificates

Technical data

Material of clamp	StSt (V4A)
Clamping range Rd / Rd	7-10 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
*⁾ For exact classification, see test certificate.

Material of clamp	StSt (V4A)
Clamping range Rd / Rd	7-10 mm
Screw	e M10 x 35 mm
Material of screw / nut	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Type	also for underground application
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Material thickness	3 mm
*⁾ For exact classification, see test certificate.

Product 306029 was added to Notepad.

Go to Notepad

Product 306029 was added to the cart.

Go to Web-Shop

For equal diameters with two screws

2 Products

Part No. 307000 PV 7.10 SKM8X20 STTZN

GTIN 4013364024151, Customs tariff No. (EU): 85359000, Gross weight: 107.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

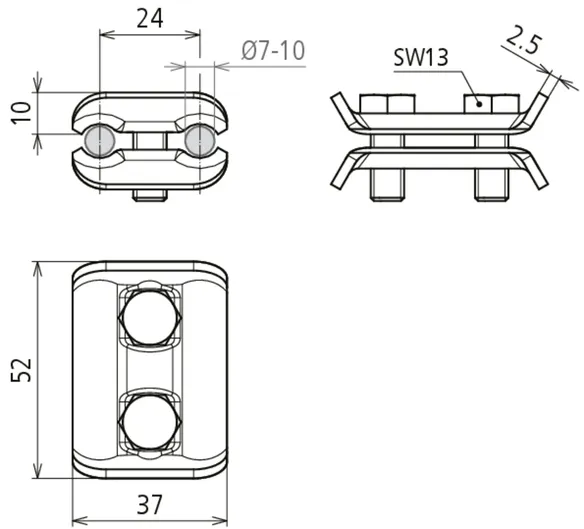

Parallel connector with two screws, St/tZn
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 mm
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 SKM8X20 STTZN
Part No.: 307000
or equivalent.

Certificates

Technical data

Material of clamp	St/tZn
Clamping range Rd / Rd	7-10 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 307000 was added to Notepad.

Go to Notepad

Product 307000 was added to the cart.

Go to Web-Shop

Part No. 307007 PV 7.10 SKM8X20 CU

GTIN 4013364024168, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

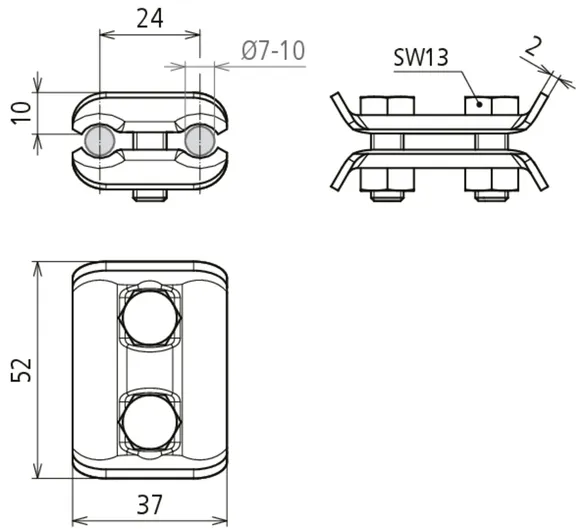

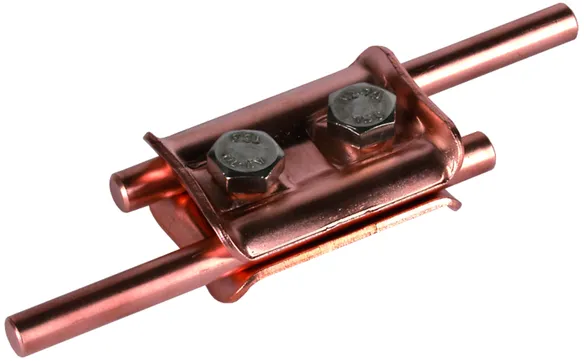

Parallel connector with two screws, Cu
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 7-10 mm
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 SKM8X20 CU
Part No.: 307007
or equivalent.

Certificates

Technical data

Material of clamp	Cu
Clamping range Rd / Rd	7-10 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 307007 was added to Notepad.

Go to Notepad

Product 307007 was added to the cart.

Go to Web-Shop

For different diameters with one screw

2 Products

Part No. 306121 PV 6.22 FRM10X40 STBLANK

GTIN 4013364284920, Customs tariff No. (EU): 85359000, Gross weight: 163.16 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

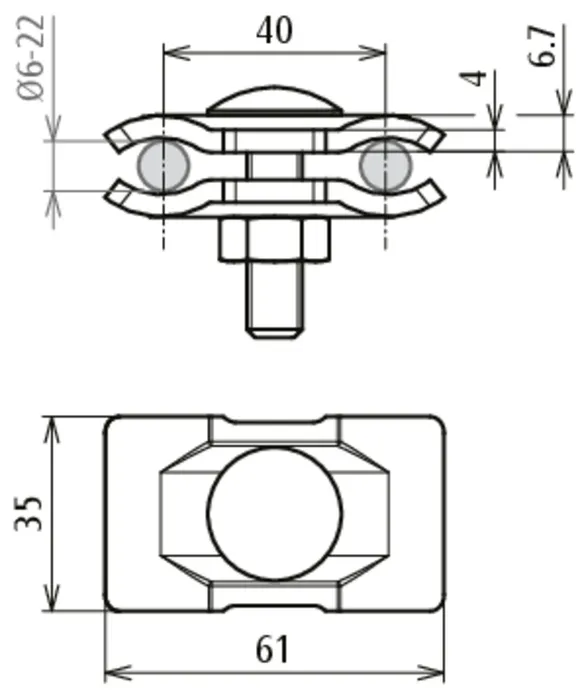

Parallel connector with one screw, St/blank
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/bare
Clamping range Rd / Rd: 6-22 / 6-22 mm
Screw: M10 x 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 6.22 FRM10X40 STBLANK
Part No.: 306121
or equivalent.

Certificates

Technical data

Material of clamp	St/bare
Clamping range Rd / Rd	6-22 / 6-22 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.1 kA
*⁾ For exact classification, see test certificate.

Material of clamp	St/bare
Clamping range Rd / Rd	6-22 / 6-22 mm
Screw	e M10 x 40 mm
Material of screw / nut	St/tZn
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.1 kA
Material thickness	4 mm
*⁾ For exact classification, see test certificate.

Product 306121 was added to Notepad.

Go to Notepad

Product 306121 was added to the cart.

Go to Web-Shop

Part No. 306122 PV 6.22 FRM10X40 STTZN

GTIN 4013364284937, Customs tariff No. (EU): 85359000, Gross weight: 167.12 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Parallel connector with one screw, St/tZn
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 6-22 / 6-22 mm
Screw: M10 x 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 6.22 FRM10X40 STTZN
Part No.: 306122
or equivalent.

Certificates

Technical data

Material of clamp	St/tZn
Clamping range Rd / Rd	6-22 / 6-22 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.1 kA
*⁾ For exact classification, see test certificate.

Material of clamp	St/tZn
Clamping range Rd / Rd	6-22 / 6-22 mm
Screw	e M10 x 40 mm
Material of screw / nut	St/tZn
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.1 kA
Material thickness	4 mm
*⁾ For exact classification, see test certificate.

Product 306122 was added to Notepad.

Go to Notepad

Product 306122 was added to the cart.

Go to Web-Shop

For different diameters 4-10 mm with two scews

2 Products

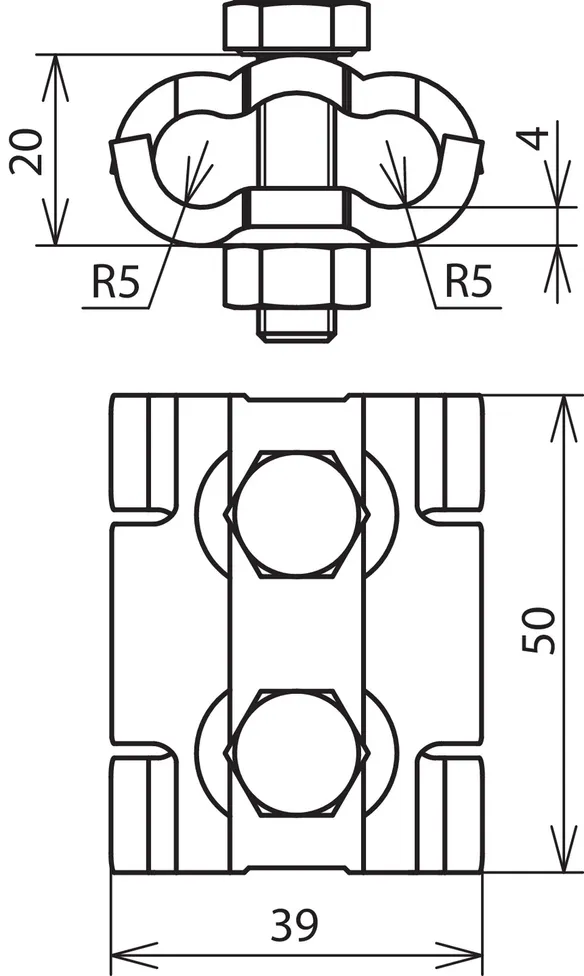

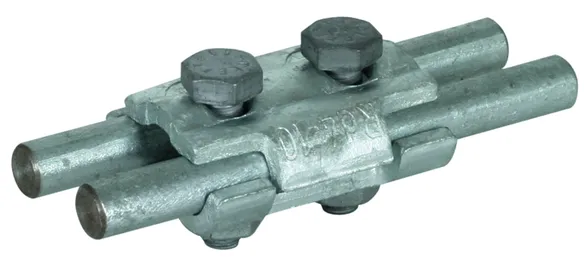

Part No. 305000 PV 4.10 SKM8X30 STTZN

GTIN 4013364041936, Customs tariff No. (EU): 85359000, Gross weight: 148.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Parallel connector for different diameters 4-10 mm, St/tZn
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 4-10 mm
Screw: M8 x 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 4.10 SKM8X30 STTZN
Part No.: 305000
or equivalent.

Certificates

Technical data

Material of clamp	St/tZn
Clamping range Rd / Rd	4-10 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 305000 was added to Notepad.

Go to Notepad

Product 305000 was added to the cart.

Go to Web-Shop

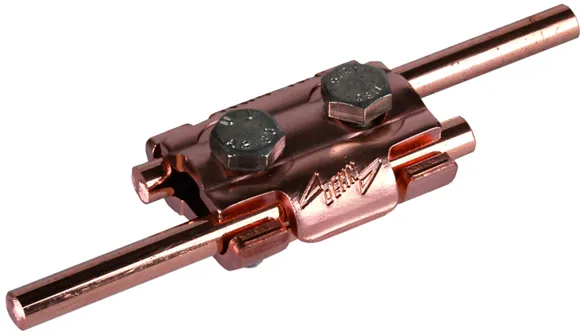

Part No. 305007 PV 4.10 SKM8X30 CU

GTIN 4013364052307, Customs tariff No. (EU): 85369095, Gross weight: 153.00 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Parallel connector for different diameters 4-10 mm, Cu
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 4-10 mm
Screw: M8 x 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: PV 4.10 SKM8X30 CU
Part No.: 305007
or equivalent.

Certificates

Technical data

Material of clamp	Cu
Clamping range Rd / Rd	4-10 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13.6 kA
*⁾ For exact classification, see test certificate.

Material of clamp	Cu
Clamping range Rd / Rd	4-10 mm
Screw	di M8 x 30 mm
Material of screw / nut	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13.6 kA
*⁾ For exact classification, see test certificate.

Product 305007 was added to Notepad.

Go to Notepad

Product 305007 was added to the cart.

Go to Web-Shop

For equal and different cable diameters, small

With thread in the base part and lock nut M8.
Specified short-circuit current applies to 70 mm² Cu cable.

1 Product

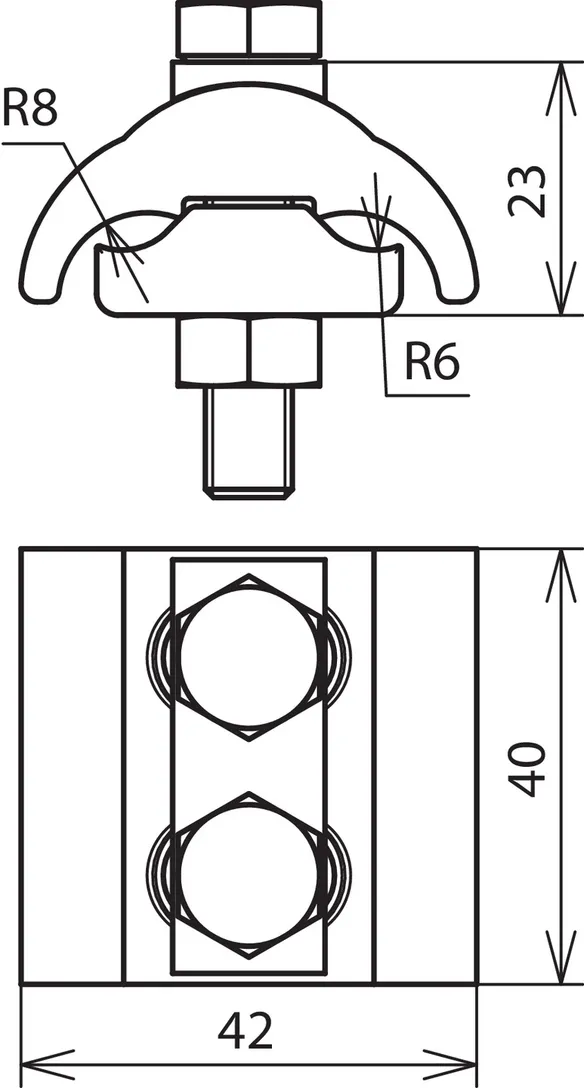

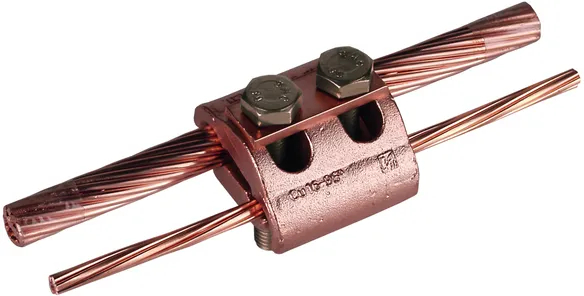

Part No. 306100 PV 5.12.5 SKM8X45 CU

GTIN 4013364024113, Customs tariff No. (EU): 85359000, Gross weight: 238.30 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

Parallel connector for different cable diameters, small, Cu
Parallel connector
For connecting two conductors or cables in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 5-12.5 mm
Clamping range (stranded / cable): 16-95 mm2
Screw: M8 x 45 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: PV 5.12.5 SKM8X45 CU
Part No.: 306100
or equivalent.

Certificates

Technical data

Material of clamp	Cu
Clamping range Rd / Rd	5-12.5 mm
Clamping range (stranded / cable)	16-95 mm²
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13.6 kA
*⁾ For exact classification, see test certificate.

Material of clamp	Cu
Clamping range Rd / Rd	5-12.5 mm
Clamping range (stranded / cable)	16-95 mm²
Screw	di M8 x 45 mm
Material of screw / nut	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13.6 kA
*⁾ For exact classification, see test certificate.

Product 306100 was added to Notepad.

Go to Notepad

Product 306100 was added to the cart.

Go to Web-Shop

For equal and different cable diameters, large

With thread in the base part and lock nut M10.
Specified short-circuit current applies to 70 mm² Cu cable.

1 Product

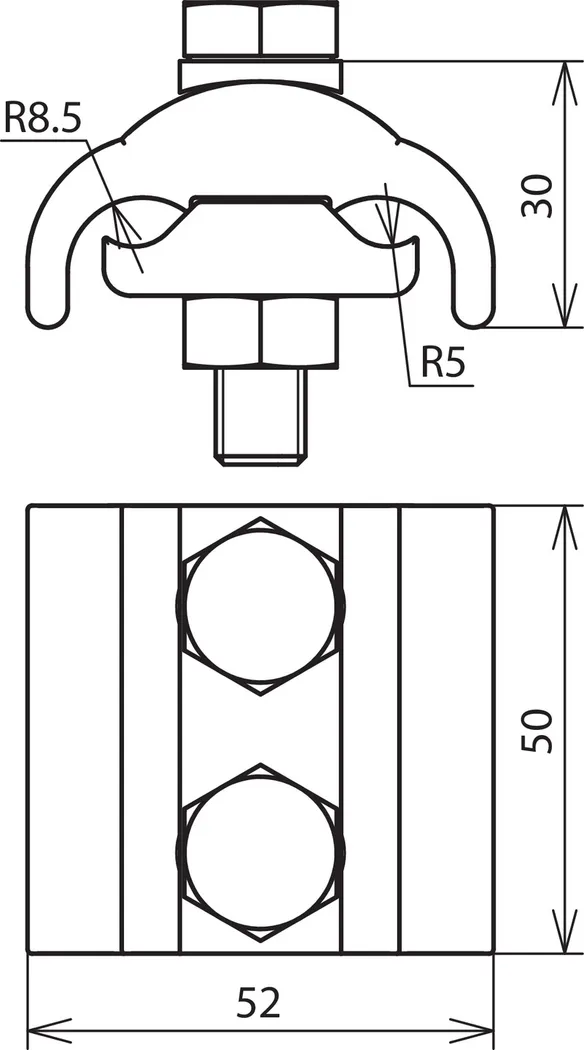

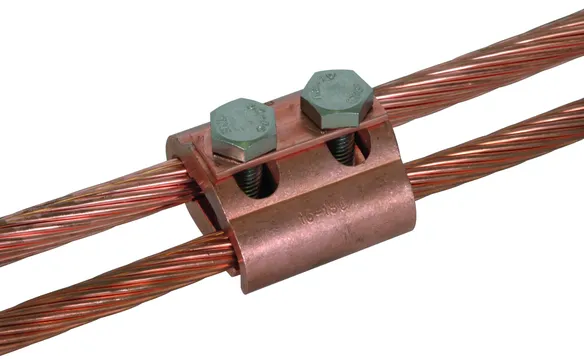

Part No. 306101 PV 5.16 SKM10X50 CU

GTIN 4013364024120, Customs tariff No. (EU): 85359000, Gross weight: 412.00 g, PU: 25.00 Stk

Images

Open PDF

Additional information

CAD files

Parallel connector for different cable diameters, large, Cu
Parallel connector
For connecting two conductors or cables in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 5-16 mm
Clamping range (stranded / cable): 16-150 mm2
Screw: M10 x 50 mm
Material No.: 1.4571 / 1.4404 / 1.4401
Standard: EN 62561-1

Brand: DEHN
Type: PV 5.16 SKM10X50 CU
Part No.: 306101
or equivalent.

Certificates

Technical data

Material of clamp	Cu
Clamping range Rd / Rd	5-16 mm
Clamping range (stranded / cable)	16-150 mm²
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13.6 kA
*⁾ For exact classification, see test certificate.

Material of clamp	Cu
Clamping range Rd / Rd	5-16 mm
Clamping range (stranded / cable)	16-150 mm²
Screw	di M10 x 50 mm
Material of screw / nut	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13.6 kA
*⁾ For exact classification, see test certificate.

Product 306101 was added to Notepad.

Go to Notepad

Product 306101 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Parallel Connectors

For equal diameters with one screw

Part No. 306020 PV 7.10 FRM10X35 STTZN

Product 306020 was added to Notepad.

Product 306020 was added to the cart.

Part No. 306029 PV 7.10 FRM10X35 V4A

Product 306029 was added to Notepad.

Product 306029 was added to the cart.

For equal diameters with two screws

Part No. 307000 PV 7.10 SKM8X20 STTZN

Product 307000 was added to Notepad.

Product 307000 was added to the cart.

Part No. 307007 PV 7.10 SKM8X20 CU

Product 307007 was added to Notepad.

Product 307007 was added to the cart.

For different diameters with one screw

Part No. 306121 PV 6.22 FRM10X40 STBLANK

Product 306121 was added to Notepad.

Product 306121 was added to the cart.

Part No. 306122 PV 6.22 FRM10X40 STTZN

Product 306122 was added to Notepad.

Product 306122 was added to the cart.

For different diameters 4-10 mm with two scews

Part No. 305000 PV 4.10 SKM8X30 STTZN

Product 305000 was added to Notepad.

Product 305000 was added to the cart.

Part No. 305007 PV 4.10 SKM8X30 CU

Product 305007 was added to Notepad.

Product 305007 was added to the cart.

For equal and different cable diameters, small

Part No. 306100 PV 5.12.5 SKM8X45 CU

Product 306100 was added to Notepad.

Product 306100 was added to the cart.

For equal and different cable diameters, large

Part No. 306101 PV 5.16 SKM10X50 CU

Product 306101 was added to Notepad.

Product 306101 was added to the cart.

Parallel Connectors

For equal diameters with one screw

Part No. 306020 PV 7.10 FRM10X35 STTZN

You are not authorized to download 306020.stp

You are not authorized to download 306020.igs

You are not authorized to download 306020.jt

You are not authorized to download 306020.dwg

You are not authorized to download 306020m_D.dxf

Product 306020 was added to Notepad.

Product 306020 was added to the cart.

Part No. 306029 PV 7.10 FRM10X35 V4A

You are not authorized to download 306020.stp

You are not authorized to download 306020.igs

You are not authorized to download 306020.jt

You are not authorized to download 306020.dwg

You are not authorized to download 306020m_D.dxf

Product 306029 was added to Notepad.

Product 306029 was added to the cart.

For equal diameters with two screws

Part No. 307000 PV 7.10 SKM8X20 STTZN

You are not authorized to download 307000m_D.dxf

Product 307000 was added to Notepad.

Product 307000 was added to the cart.

Part No. 307007 PV 7.10 SKM8X20 CU

You are not authorized to download 307007m_D.dxf

Product 307007 was added to Notepad.

Product 307007 was added to the cart.

For different diameters with one screw

Part No. 306121 PV 6.22 FRM10X40 STBLANK

You are not authorized to download 306121.stp

You are not authorized to download 306121.igs

You are not authorized to download 306121.jt

You are not authorized to download 306121.dwg

You are not authorized to download 306121_306122m_D.dxf

Product 306121 was added to Notepad.

Product 306121 was added to the cart.

Part No. 306122 PV 6.22 FRM10X40 STTZN

You are not authorized to download 306122.stp

You are not authorized to download 306122.igs

You are not authorized to download 306122.jt

You are not authorized to download 306122.dwg

You are not authorized to download 306121_306122m_D.dxf

Product 306122 was added to Notepad.

Product 306122 was added to the cart.

For different diameters 4-10 mm with two scews

Part No. 305000 PV 4.10 SKM8X30 STTZN

You are not authorized to download 305000.stp

You are not authorized to download 305000.igs

You are not authorized to download 305000.jt

You are not authorized to download 305000.dwg

You are not authorized to download 305000m_D.dxf

Product 305000 was added to Notepad.

Product 305000 was added to the cart.

Part No. 305007 PV 4.10 SKM8X30 CU

You are not authorized to download 305000.stp

You are not authorized to download 305000.igs

You are not authorized to download 305000.jt

You are not authorized to download 305000.dwg

You are not authorized to download 305000m_D.dxf

Product 305007 was added to Notepad.

Product 305007 was added to the cart.

For equal and different cable diameters, small

Part No. 306100 PV 5.12.5 SKM8X45 CU

You are not authorized to download 306100.stp

You are not authorized to download 306100.igs

You are not authorized to download 306100.jt

You are not authorized to download 306100.dwg

You are not authorized to download 306100m_D.dxf

Product 306100 was added to Notepad.

Product 306100 was added to the cart.

For equal and different cable diameters, large

Part No. 306101 PV 5.16 SKM10X50 CU

You are not authorized to download 306101.stp

You are not authorized to download 306101.igs

You are not authorized to download 306101.jt

You are not authorized to download 306101.dwg

You are not authorized to download 306101m_D.dxf

Product 306101 was added to Notepad.

Product 306101 was added to the cart.
