Stripping Tool for HVI light Conductors / HVI Conductors

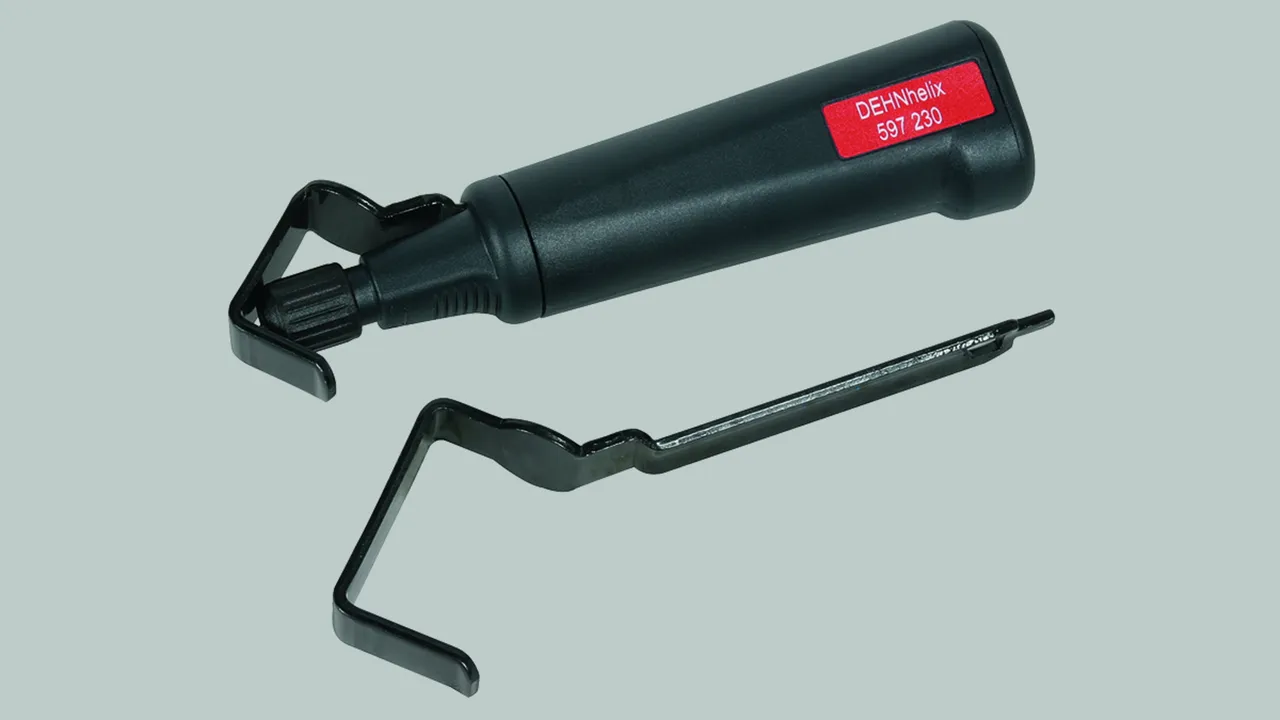

Tool for stripping the additional grey sheath of the HVI light Conductor and HVI Conductor. DEHNhelix consists of a handle and an exchangeable bracket (depending on the conductor diameter).

Application
– Position the tool on the conductor (EB connecting element)
– Open the bracket and attach the tool
– Cut clockwise through 360°
– Turn the cutting blade through 90° each
– Finally return the cutting blade through 90°

DEHNhelix

1 Product

Part No. 597230 AW DEHNHELIX

GTIN 4013364155015, Customs tariff No. (EU): 82055980, Gross weight: 201.60 g, PU: 1.00 Stk

Images

Open PDF

Additional information

Diameter Ø conductor: 23 mm
Material of moulded part: plastic
Material of blade: StSt

Brand: DEHN
Type: AW DEHNHELIX
Part No.: 597230
or equivalent.

Technical data

Diameter Ø conductor	23 mm
Material of moulded part	plastic
Material of blade	StSt
