Conductor Holders for External Thermal Insulation Composite Systems

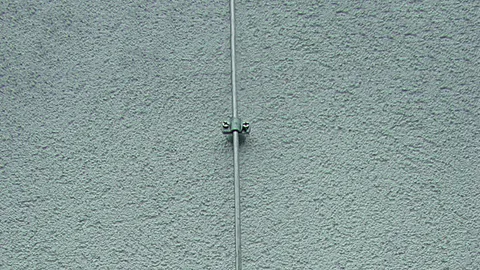

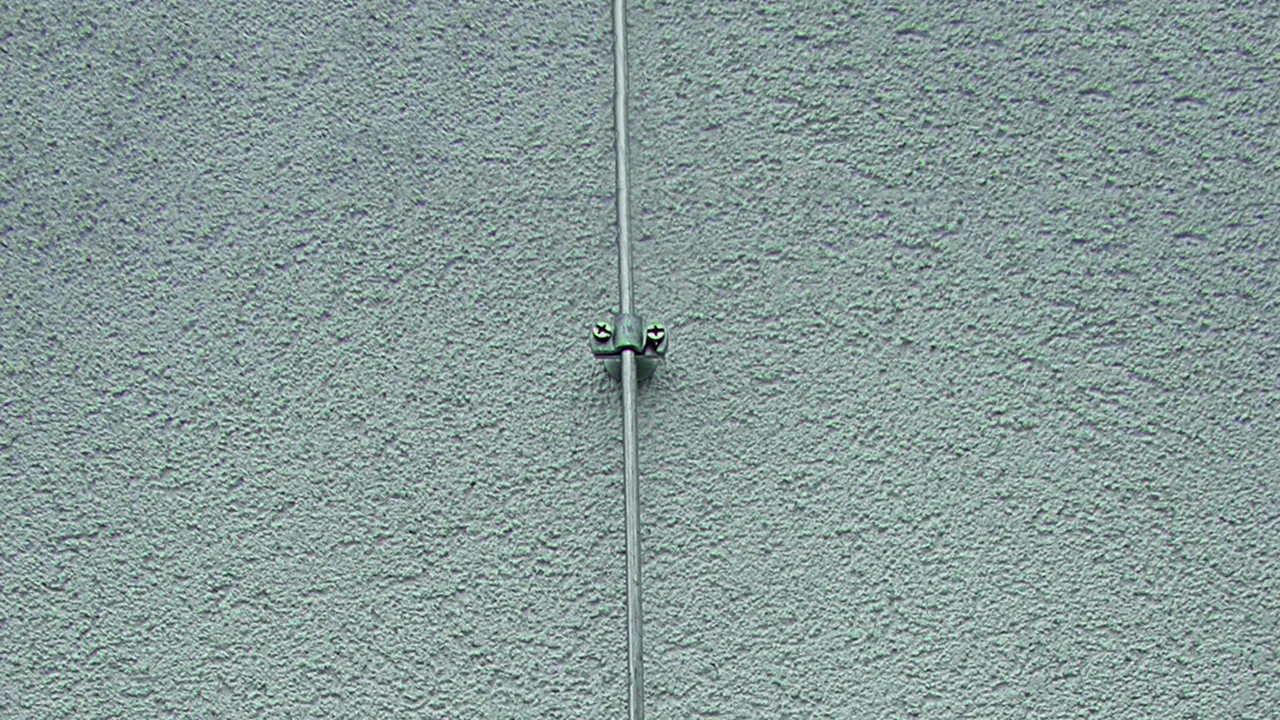

Conductor holders for fixing down conductors at walls with external thermal insulation composite system.
Two-screw clamp with M6 screws, with flange (ZDC) and plastic plug Ø10 mm, fixed conductor routing.

3 Products

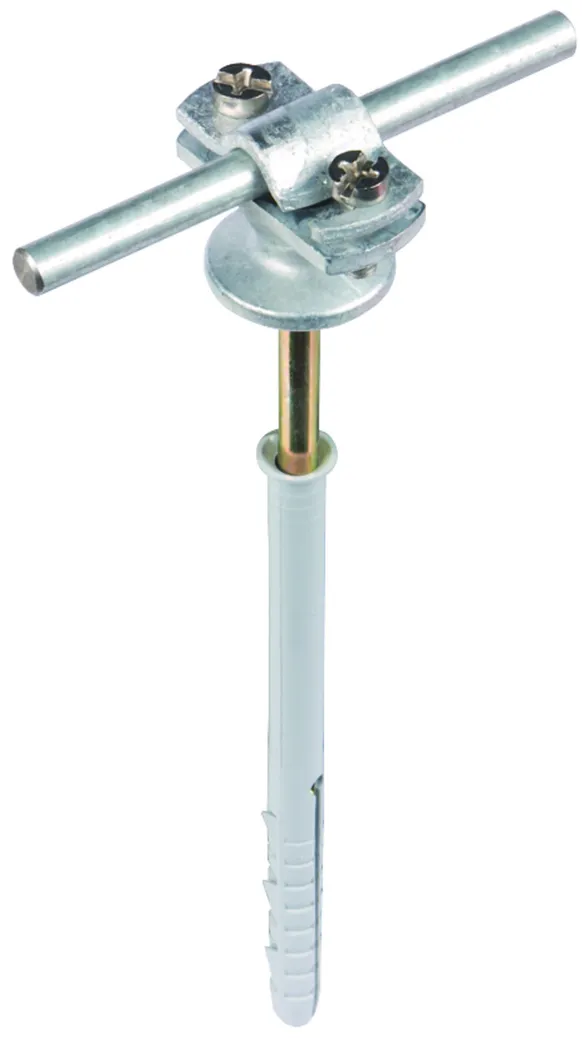

Part No. 273740 LH ZS 7.10 AB D10X140 STTZN ZG

GTIN 4013364096714, Customs tariff No. (EU): 85389099, Gross weight: 113.00 g, PU: 50.00 Stk

Predecessor

Images

Open PDF

Additional information

CAD files

Conductor holder for external thermal insulation composite systems
Conductor holder for external thermal insulation composite systems
Two-screw clamp with M6 screws,
fixed conductor routing
Clamping length: 70 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 140 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X140 STTZN ZG
Part No.: 273740
or equivalent.

Certificates

Technical data

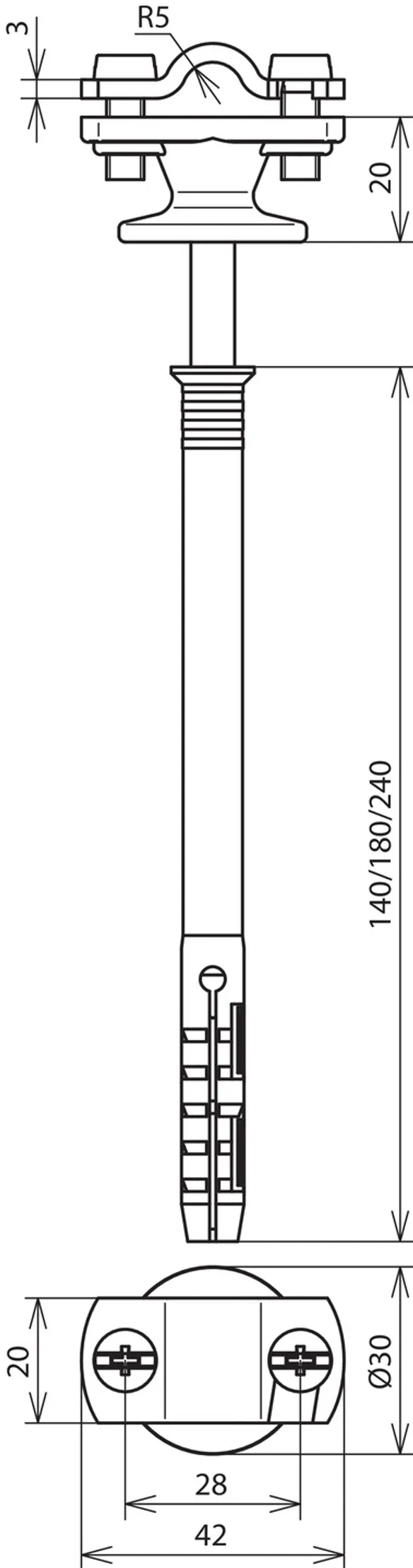

Clamping length	70 mm
Total length	140 mm
Conductor support Rd	7-10 mm
Material of base part	ZDC
Material of clamp	St/tZn
Height of conductor holder	20 mm
Screw, plug	bl (TX40) 7 x 140 mm
Standard	EN 62561-4

Type of conductor holder	two-screw clamp
Clamping length	70 mm
Total length	140 mm
Conductor support Rd	7-10 mm
Material of base part	ZDC
Material of clamp	St/tZn
Height of conductor holder	20 mm
Conductor routing	fixed
Conductor holder screw	dm M6 x 16 mm
Screw, plug	bl (TX40) 7 x 140 mm
Length	140 mm
Hole Ø	10 mm
Standard	EN 62561-4

Product 273740 was added to Notepad.

Go to Notepad

Product 273740 was added to the cart.

Go to Web-Shop

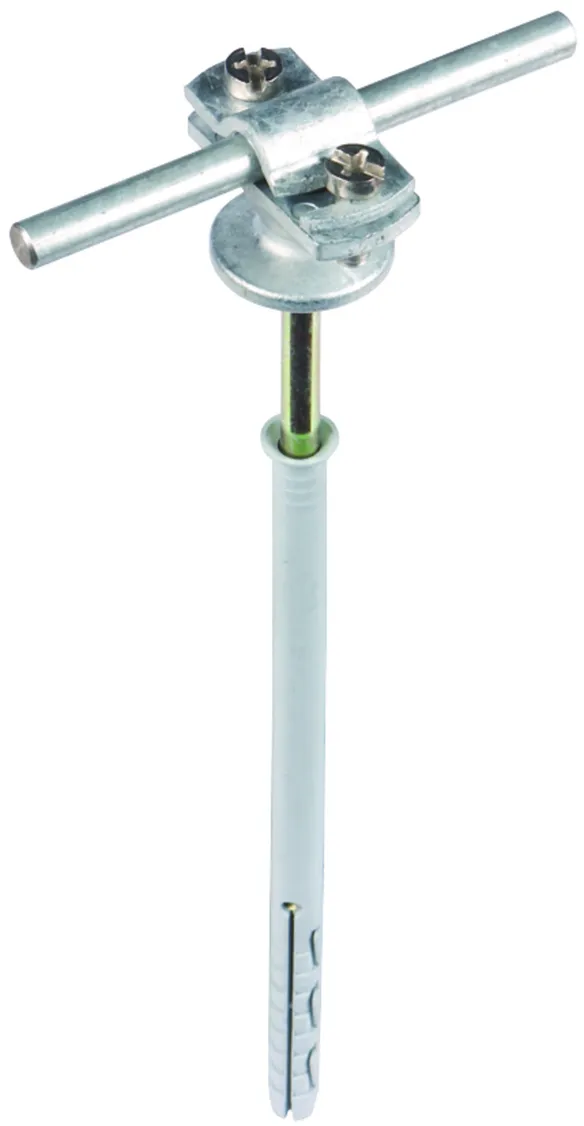

Part No. 273741 LH ZS 7.10 AB D10X180 STTZN ZG

GTIN 4013364096721, Customs tariff No. (EU): 85389099, Gross weight: 126.22 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Conductor holder for external thermal insulation composite systems
Conductor holder for external thermal insulation composite systems
Two-screw clamp with M6 screws,
fixed conductor routing
Clamping length: 100 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 180 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X180 STTZN ZG
Part No.: 273741
or equivalent.

Certificates

Technical data

Clamping length	100 mm
Total length	180 mm
Conductor support Rd	7-10 mm
Material of base part	ZDC
Material of clamp	St/tZn
Height of conductor holder	20 mm
Screw, plug	bl (TX40) 7 x 180 mm
Standard	EN 62561-4

Type of conductor holder	two-screw clamp
Clamping length	100 mm
Total length	180 mm
Conductor support Rd	7-10 mm
Material of base part	ZDC
Material of clamp	St/tZn
Height of conductor holder	20 mm
Conductor routing	fixed
Conductor holder screw	dm M6 x 16 mm
Screw, plug	bl (TX40) 7 x 180 mm
Length	180 mm
Hole Ø	10 mm
Standard	EN 62561-4

Product 273741 was added to Notepad.

Go to Notepad

Product 273741 was added to the cart.

Go to Web-Shop

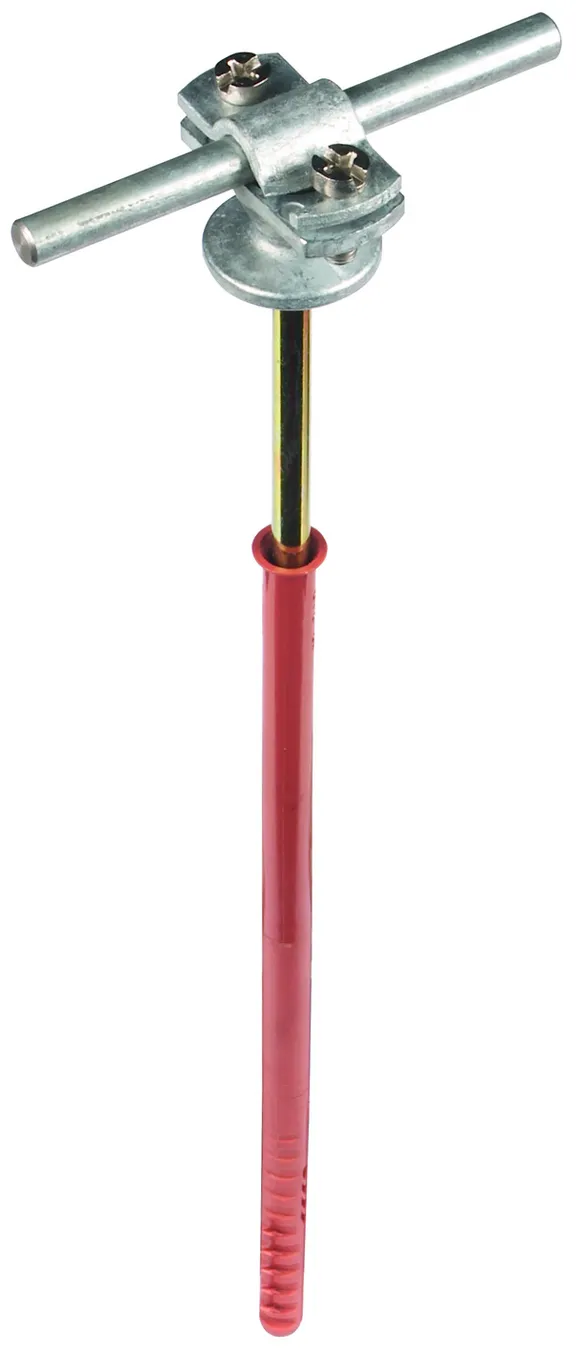

Part No. 273742 LH ZS 7.10 AB D10X240 STTZN ZG

GTIN 4013364096738, Customs tariff No. (EU): 85389099, Gross weight: 154.76 g, PU: 50.00 Stk

Images

Open PDF

Additional information

CAD files

Conductor holder for external thermal insulation composite systems
Conductor holder for external thermal insulation composite systems
Two-screw clamp with M6 screws,
fixed conductor routing
Clamping length: 160 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 240 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X240 STTZN ZG
Part No.: 273742
or equivalent.

Certificates

Technical data

Clamping length	160 mm
Total length	230 mm
Conductor support Rd	7-10 mm
Material of base part	ZDC
Material of clamp	St/tZn
Height of conductor holder	20 mm
Screw, plug	bl (TX40) 7 x 240 mm
Standard	EN 62561-4

Type of conductor holder	two-screw clamp
Clamping length	160 mm
Total length	230 mm
Conductor support Rd	7-10 mm
Material of base part	ZDC
Material of clamp	St/tZn
Height of conductor holder	20 mm
Conductor routing	fixed
Conductor holder screw	dm M6 x 16 mm
Screw, plug	bl (TX40) 7 x 240 mm
Length	240 mm
Hole Ø	10 mm
Standard	EN 62561-4
