Conductor Holders with Saddle Clamp and Pin

Two-screw clamp with M6 screws, for round and flat conductors.

With square pin

3 Products

Part No. 260708 LH ZS 7.10 FL20 VKS70 STTZN

GTIN 4013364023406, Customs tariff No. (EU): 85389099, Gross weight: 82.00 g, PU: 50.00 Stk

Images

Additional information

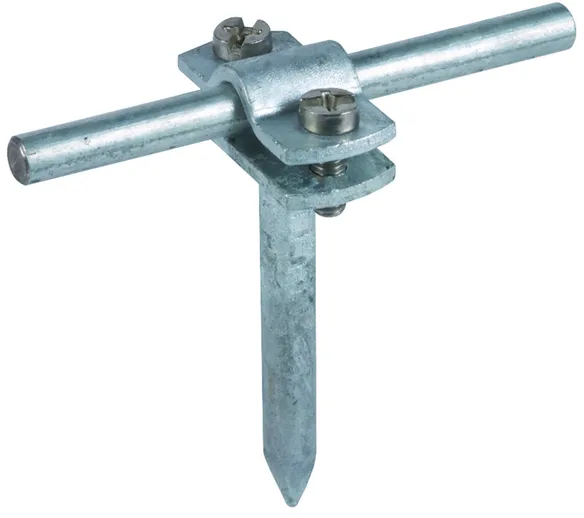

Conductor holder with saddle clamp and pin (square pin), St/tZn
Conductor holder, with saddle clamp and pin
Two-screw clamp with M6 screws, for round and flat conductors
Conductor support Rd: 7-10 mm
Conductor support Fl: 20 mm
Material of saddle clamp: St/tZn
Material of base part: St/tZn
Fixing: square pin 70 mm

Brand: DEHN
Type: LH ZS 7.10 FL20 VKS70 STTZN
Part No.: 260708
or equivalent.

Certificates



Technical data

Conductor support Rd 7-10 mm
Conductor support Fl 20 mm
Material of saddle clamp St/tZn
Material of base part St/tZn

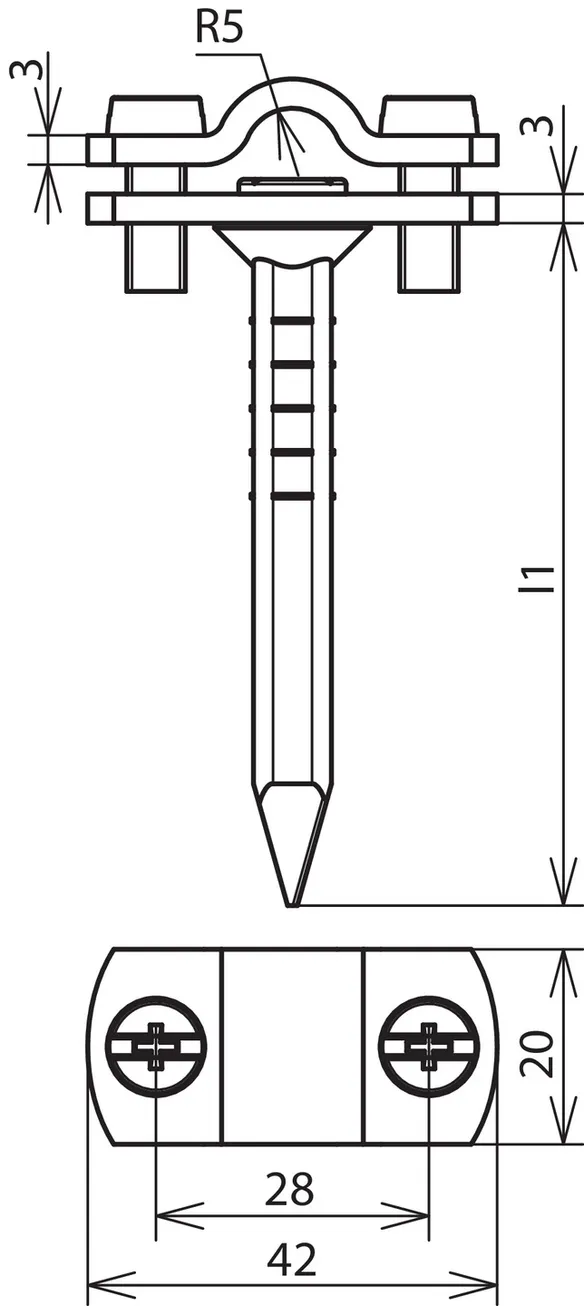

Fixing (l1) square pin 70 mm

Product 260708 was added to Notepad.

Go to Notepad

Product 260708 was added to the cart.

Go to Web-Shop

Part No. 260108 LH ZS 7.10 FL20 VKS100 STTZN

GTIN 4013364023413, Customs tariff No. (EU): 85389099, Gross weight: 98.00 g, PU: 50.00 Stk

Predecessor

Images

Additional information

Conductor holder with saddle clamp and pin (square pin), St/tZn
Conductor holder, with saddle clamp and pin
Two-screw clamp with M6 screws, for round and flat conductors
Conductor support Rd: 7-10 mm
Conductor support Fl: 20 mm
Material of saddle clamp: St/tZn
Material of base part: St/tZn
Fixing: square pin 100 mm

Brand: DEHN
Type: LH ZS 7.10 FL20 VKS100 STTZN
Part No.: 260108
or equivalent.

Certificates



Technical data

Conductor support Rd 7-10 mm
Conductor support Fl 20 mm
Material of saddle clamp St/tZn
Material of base part St/tZn
Fixing (l1) square pin 100 mm

Product 260108 was added to Notepad.

Go to Notepad

Product 260108 was added to the cart.

Go to Web-Shop

Part No. 260158 LH ZS 7.10 FL20 VKS150 STTZN

GTIN 4013364023420, Customs tariff No. (EU): 85389099, Gross weight: 119.40 g, PU: 1.00 Stk

Images

Additional information

Conductor holder with saddle clamp and pin (square pin), St/tZn
Conductor holder, with saddle clamp and pin
Two-screw clamp with M6 screws, for round and flat conductors
Conductor support Rd: 7-10 mm
Conductor support Fl: 20 mm
Material of saddle clamp: St/tZn
Material of base part: St/tZn
Fixing: square pin 150 mm

Brand: DEHN
Type: LH ZS 7.10 FL20 VKS150 STTZN
Part No.: 260158
or equivalent.

Certificates



Technical data

Conductor support Rd 7-10 mm
Conductor support Fl 20 mm
Material of saddle clamp St/tZn
Material of base part St/tZn
Fixing (l1) square pin 150 mm

Product 260158 was added to Notepad.

Go to Notepad

Product 260158 was added to the cart.

Go to Web-Shop
