Conductor Holders DEHNhold

Conductor holder with a slotted saddle clamp for fixing round conductors, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

With female thread

2 Products

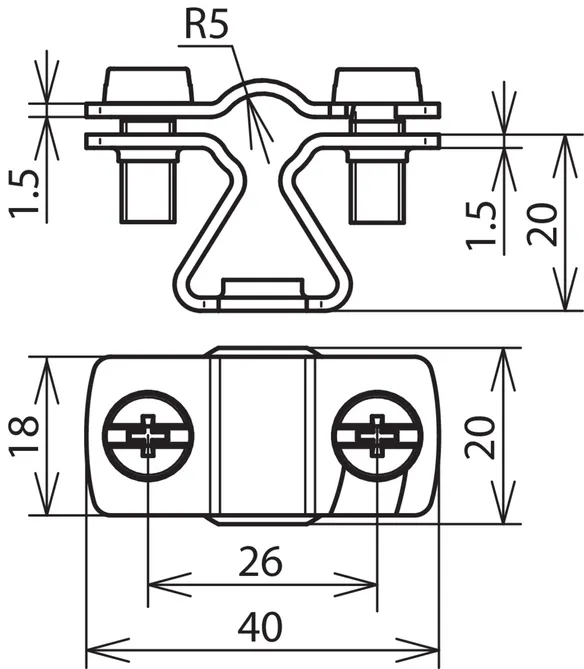

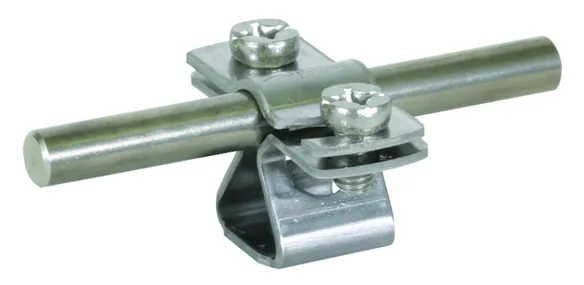

Part No. 274110 LH ZS 8.10 FL20 M8 V2A

GTIN 4013364123434, Customs tariff No. (EU): 85389099, Gross weight: 31.50 g, PU: 50.00 Stk

Predecessor

Images

Additional information

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Material of conductor holder: StSt
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 8.10 FL20 M8 V2A
Part No.: 274110
or equivalent.

Certificates



Technical data

Material of conductor holder StSt
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

Product 274110 was added to Notepad.

Go to Notepad

Product 274110 was added to the cart.

Go to Web-Shop

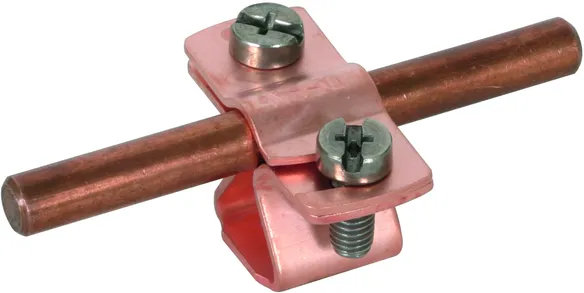

Part No. 274117 LH ZS 8.10 FL20 M8 CU

GTIN 4013364128194, Customs tariff No. (EU): 85389099, Gross weight: 31.70 g, PU: 50.00 Stk

Predecessor

Images

Additional information

DEHNhold conductor holder with female thread, StSt/gal Cu
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Material of conductor holder: StSt / gal Cu
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 8.10 FL20 M8 CU
Part No.: 274117
or equivalent.

Certificates



Technical data

Material of conductor holder StSt / gal Cu
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

Product 274117 was added to Notepad.

Go to Notepad

Product 274117 was added to the cart.

Go to Web-Shop

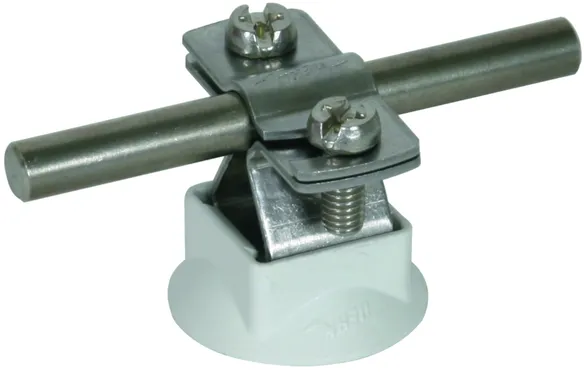

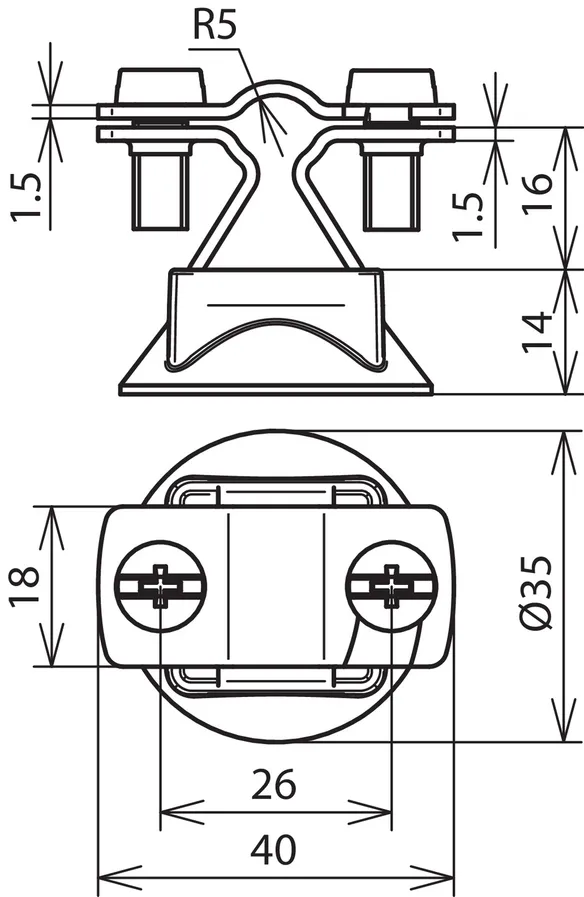

With female thread, pre-assembled with plastic base

1 Product

Part No. 274150 LH ZS 8.10 FL20 M8 KS CU

GTIN 4013364128187, Customs tariff No. (EU): 85389099, Gross weight: 35.00 g, PU: 50.00 Stk

Images

Additional information

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Pre-assembled with plastic base
Material of conductor holder: StSt
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 8.10 FL20 M8 KS CU
Part No.: 274150
or equivalent.



Technical data

Material of conductor holder StSt
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

Product 274150 was added to Notepad.

Go to Notepad

Product 274150 was added to the cart.

Go to Web-Shop

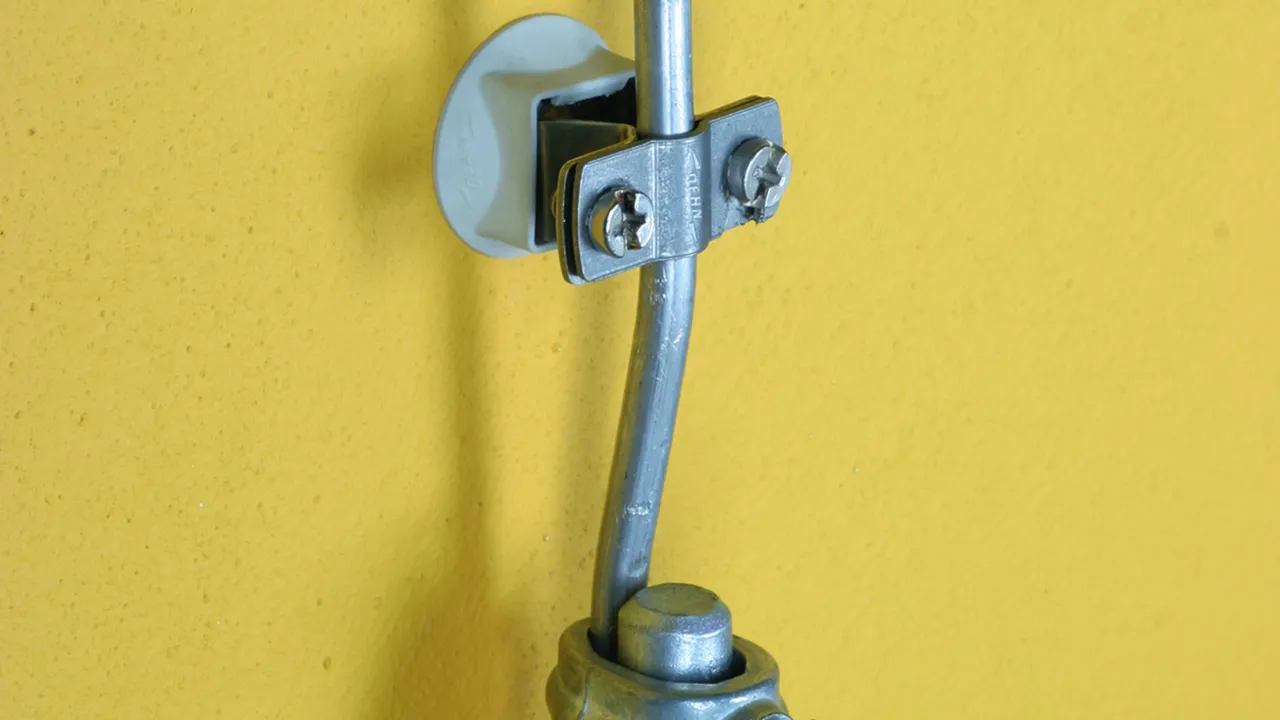

With female thread, pre-assembled with screw, plastic base and plug

2 Products

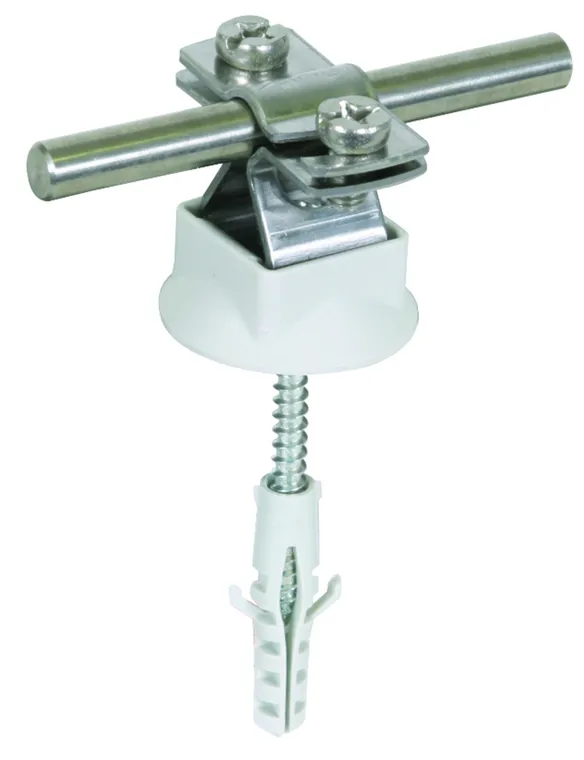

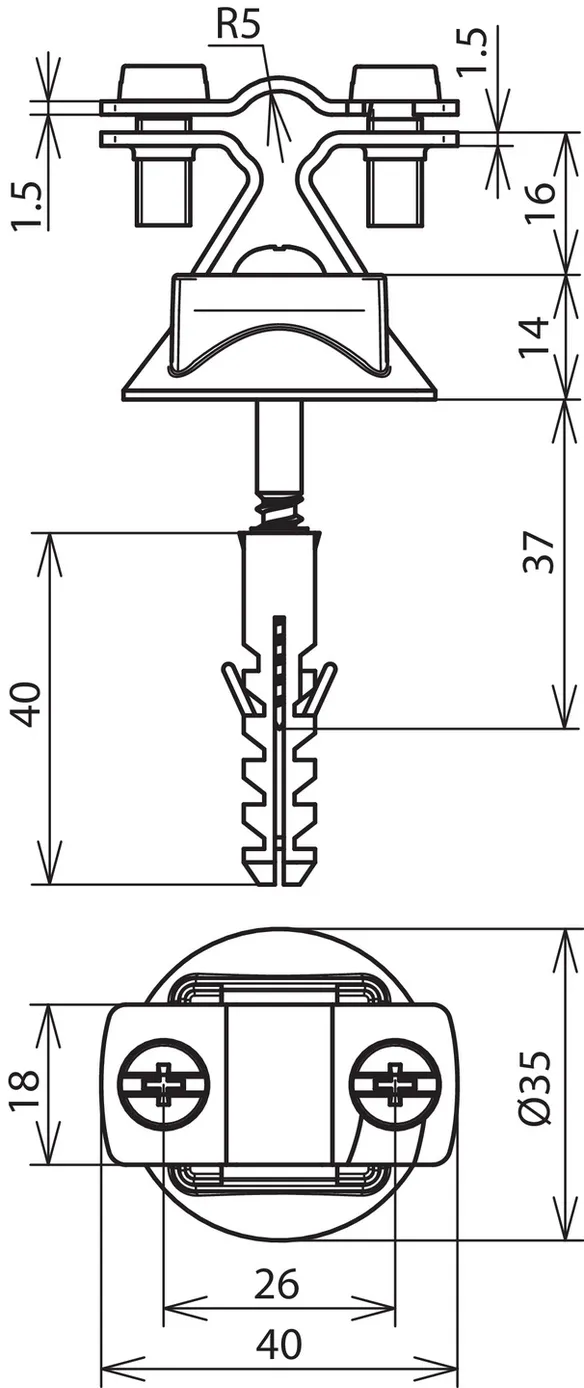

Part No. 274160 LH ZS 8.10 FL20 KS KD8X40 V2A

GTIN 4013364123380, Customs tariff No. (EU): 85389099, Gross weight: 42.00 g, PU: 50.00 Stk

Predecessor

Images

Additional information

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Pre-assembled with screw, plastic base and plug
Material of conductor holder: StSt
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic plug: Ø8 x 40 mm

Brand: DEHN
Type: LH ZS 8.10 FL20 KS KD8X40 V2A
Part No.: 274160
or equivalent.



Technical data

Material of conductor holder StSt
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Plastic base grey ●
Screw ak 5 x 50 mm
Standard EN 62561-4

Product 274160 was added to Notepad.

Go to Notepad

Product 274160 was added to the cart.

Go to Web-Shop

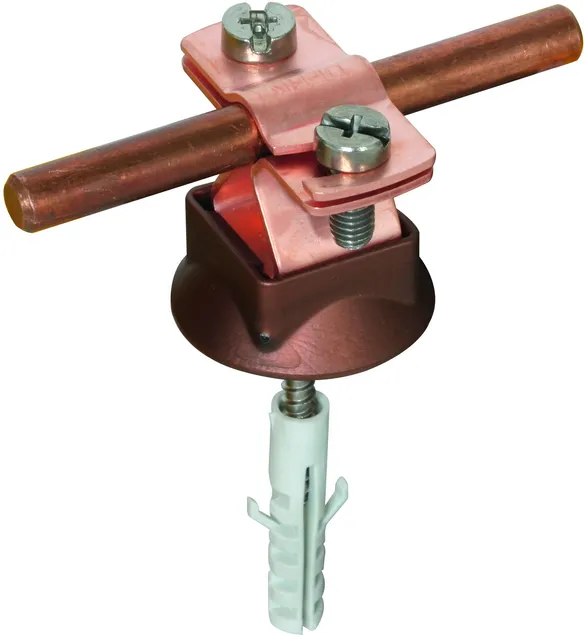

Part No. 274167 LH ZS 8.10 FL20 KS KD8X40 CU

GTIN 4013364128200, Customs tariff No. (EU): 85389099, Gross weight: 42.70 g, PU: 50.00 Stk

Predecessor

Images

Additional information

DEHNhold conductor holder with female thread, StSt/gal Cu
DEHNhold conductor holder for fixing round conductors with a slotted saddle clamp, fixed conductor routing.
Pre-assembled with screw, plastic base and plug
Material of conductor holder: StSt / gal Cu
Conductor support Rd: 8-10 mm
Conductor support Fl: 20 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic plug: Ø8 x 40 mm

Brand: DEHN
Type: LH ZS 8.10 FL20 KS KD8X40 CU
Part No.: 274167
or equivalent.

Certificates



Technical data

Material of conductor holder StSt / gal Cu
Conductor support Rd 8-10 mm
Conductor support Fl 20 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Plastic base brown ●
Screw ak 5 x 50 mm
Standard EN 62561-4

Product 274167 was added to Notepad.

Go to Notepad

Product 274167 was added to the cart.

Go to Web-Shop

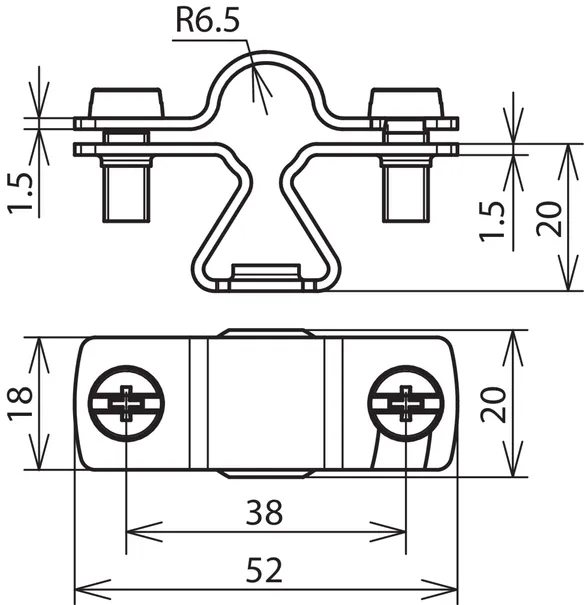

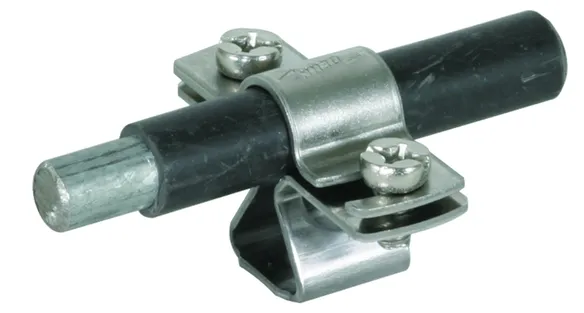

With female thread, e.g. for round wire with plastic sheath

1 Product

Part No. 274113 LH ZS 13 M8 V2A

GTIN 4013364123403, Customs tariff No. (EU): 85389099, Gross weight: 37.60 g, PU: 50.00 Stk

Predecessor

Images

Additional information

DEHNhold conductor holder with female thread, StSt
DEHNhold conductor holder for fixing round conductors
with plastic sheath
with a slotted saddle clamp,
fixed conductor routing.

Material of conductor holder: StSt
Conductor support Rd: 13 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 13 M8 V2A
Part No.: 274113
or equivalent.

Certificates



Technical data

Material of conductor holder StSt
Conductor support Rd 13 mm
Height of conductor holder 20 mm
Thread of conductor holder M8

Product 274113 was added to Notepad.

Go to Notepad

Product 274113 was added to the cart.

Go to Web-Shop
