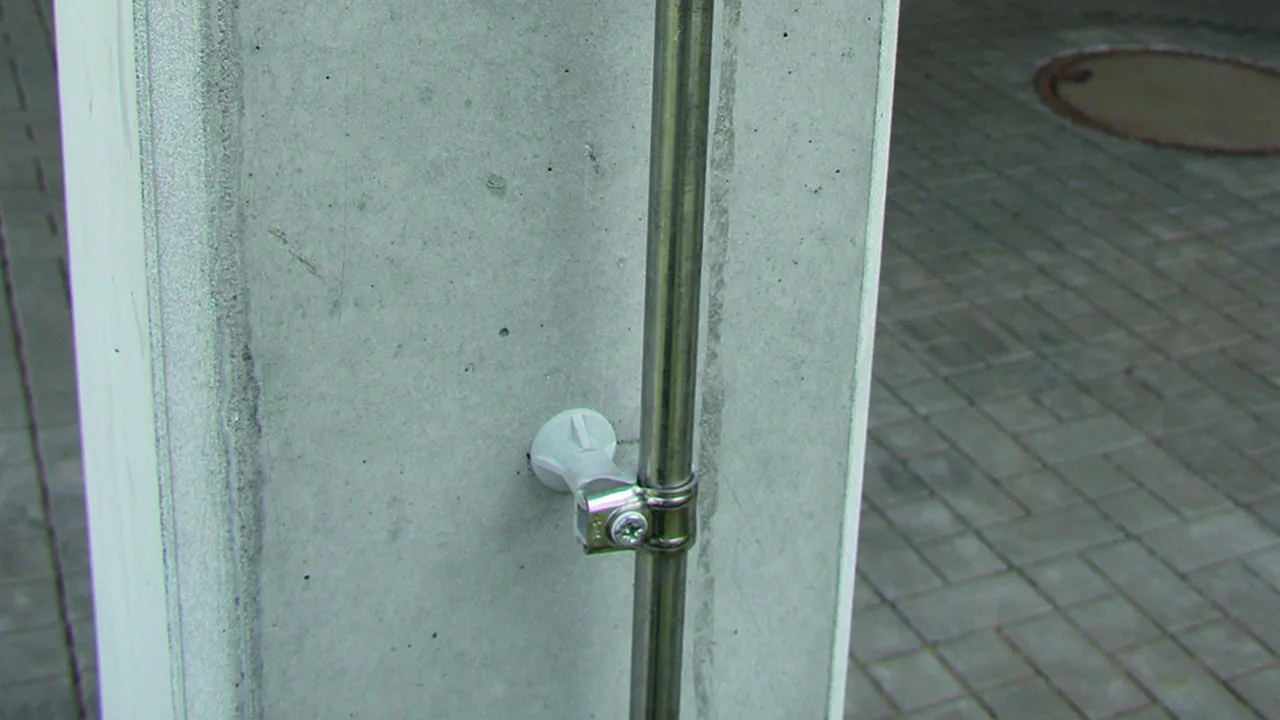

Conductor Holders DEHNfix

Two-in-one system (fixes the holder and the conductor) with conductor holder DEHNquick, fixed conductor routing, UV-stabilised.

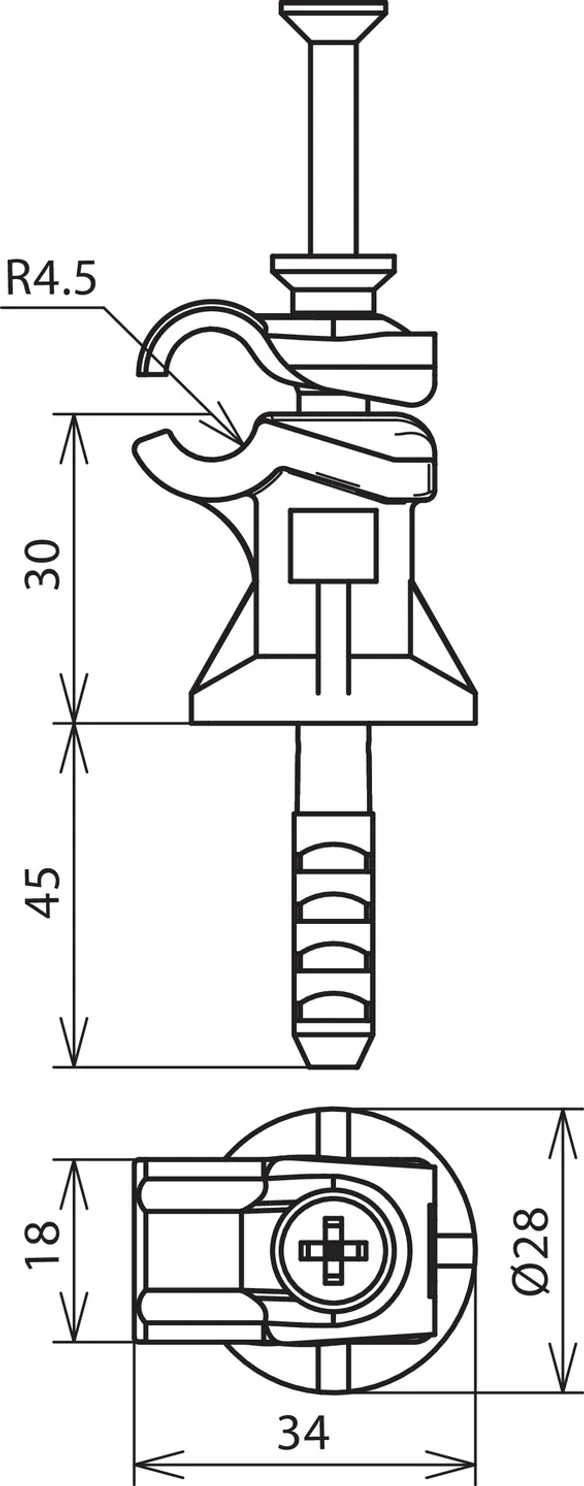

Height 30 mm, drilling depth 45 mm, hole Ø8 mm.

Easy mounting:
– Pre-drill the holes
– Push in the holder with inserted conductor
– Fix with a few hammer blows

Advantages:
– Clamp, spacer and dowel form a single unit
– Pre-assembled, ready for mounting

Height 30 mm

3 Products

Part No. 250000 LH DFI DQ 6.10 STTZN H30 GR

GTIN 4013364023871, Customs tariff No. (EU): 85389099, Gross weight: 31.60 g, PU: 50.00 Stk

Predecessor

Images

Additional information

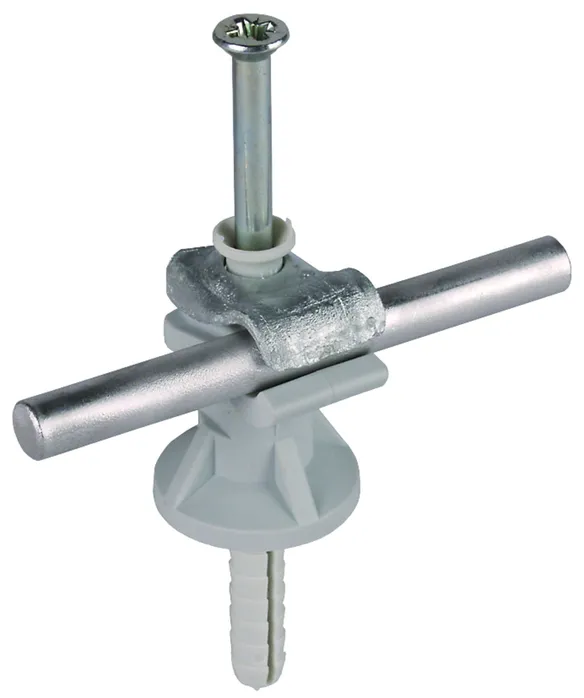

DEHNfix conductor holder, height: 30 mm, grey, St/tZn
DEHNfix conductor holder
Two-in-one holder system (fixes the holder and the conductor)
with DEHNQUICK conductor holder, fixed
conductor routing, UV-stabilised
Material of clamp: St/tZn
Material of base part: plastic
Height of base part: 30 mm
Conductor support Rd: 6-10 mm
Colour of conductor holder: grey ●
Nail plug: Ø8 x 80 mm

Brand: DEHN
Type: LH DFI DQ 6.10 STTZN H30 GR
Part No.: 250000
or equivalent.



Technical data

Material of clamp St/tZn
Material of base part plastic
Conductor support Rd 6-10 mm
Colour of conductor holder grey ●
Nail plug Ø8 x 80 mm
Drilling depth 45 mm

Product 250000 was added to Notepad.

Go to Notepad

Product 250000 was added to the cart.

Go to Web-Shop

Part No. 250001 LH DFI DQ 6.10 V2A H30 GR

GTIN 4013364023888, Customs tariff No. (EU): 85389099, Gross weight: 30.60 g, PU: 50.00 Stk

Predecessor

Images

Additional information

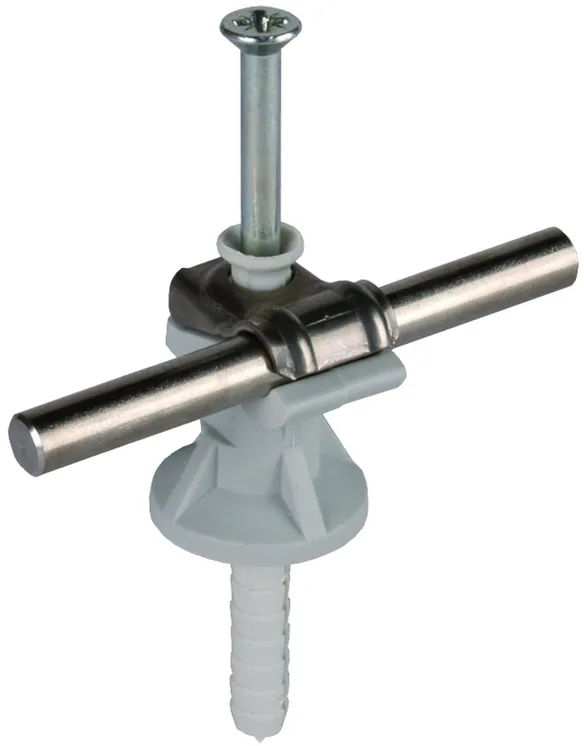

DEHNfix conductor holder, height: 30 mm, grey, StSt
DEHNfix conductor holder
Two-in-one holder system (fixes the holder and the conductor)
with DEHNQUICK conductor holder, fixed
conductor routing, UV-stabilised
Material of clamp: StSt
Material of base part: plastic
Height of base part: 30 mm
Conductor support Rd: 6-10 mm
Colour of conductor holder: grey ●
Nail plug: Ø8 x 80 mm

Brand: DEHN
Type: LH DFI DQ 6.10 V2A H30 GR
Part No.: 250001
or equivalent.



Technical data

Material of clamp StSt
Material of base part plastic
Conductor support Rd 6-10 mm
Colour of conductor holder grey ●
Nail plug Ø8 x 80 mm
Drilling depth 45 mm

Product 250001 was added to Notepad.

Go to Notepad

Product 250001 was added to the cart.

Go to Web-Shop

Part No. 250007 LH DFI DQ 6.10 CU H30 BR

GTIN 4013364023895, Customs tariff No. (EU): 85389099, Gross weight: 31.30 g, PU: 50.00 Stk

Predecessor

Images

Additional information

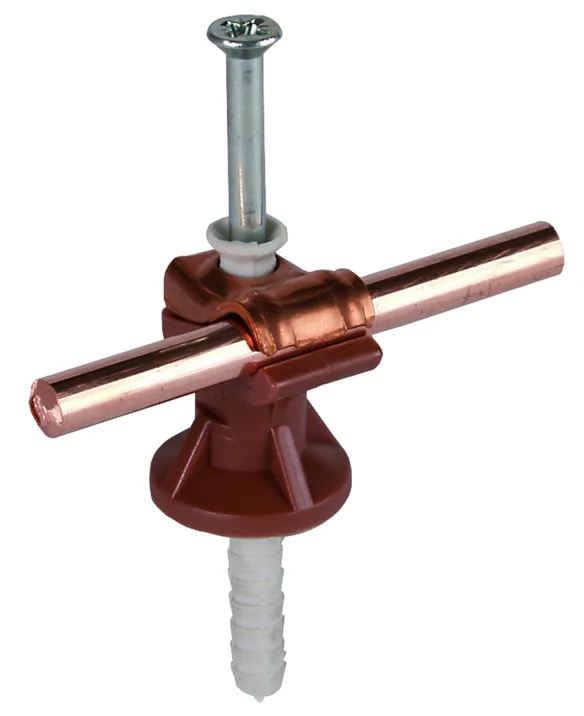

DEHNfix conductor holder, height: 30 mm, brown, Cu
DEHNfix conductor holder
Two-in-one holder system (fixes the holder and the conductor)
with DEHNQUICK conductor holder, fixed
conductor routing, UV-stabilised
Material of clamp: Cu
Material of base part: plastic
Height of base part: 30 mm
Conductor support Rd: 6-10 mm
Colour of conductor holder: brown ●
Nail plug: Ø8 x 80 mm

Brand: DEHN
Type: LH DFI DQ 6.10 CU H30 BR
Part No.: 250007
or equivalent.



Technical data

Material of clamp Cu
Material of base part plastic
Conductor support Rd 6-10 mm
Colour of conductor holder brown ●
Nail plug Ø8 x 80 mm
Drilling depth 45 mm
