Gas Discharge Tube for DEHNgate

Replacement gas discharge tube for DGA arresters
Available in different voltages
Gas discharge tube with extremely low capacitance

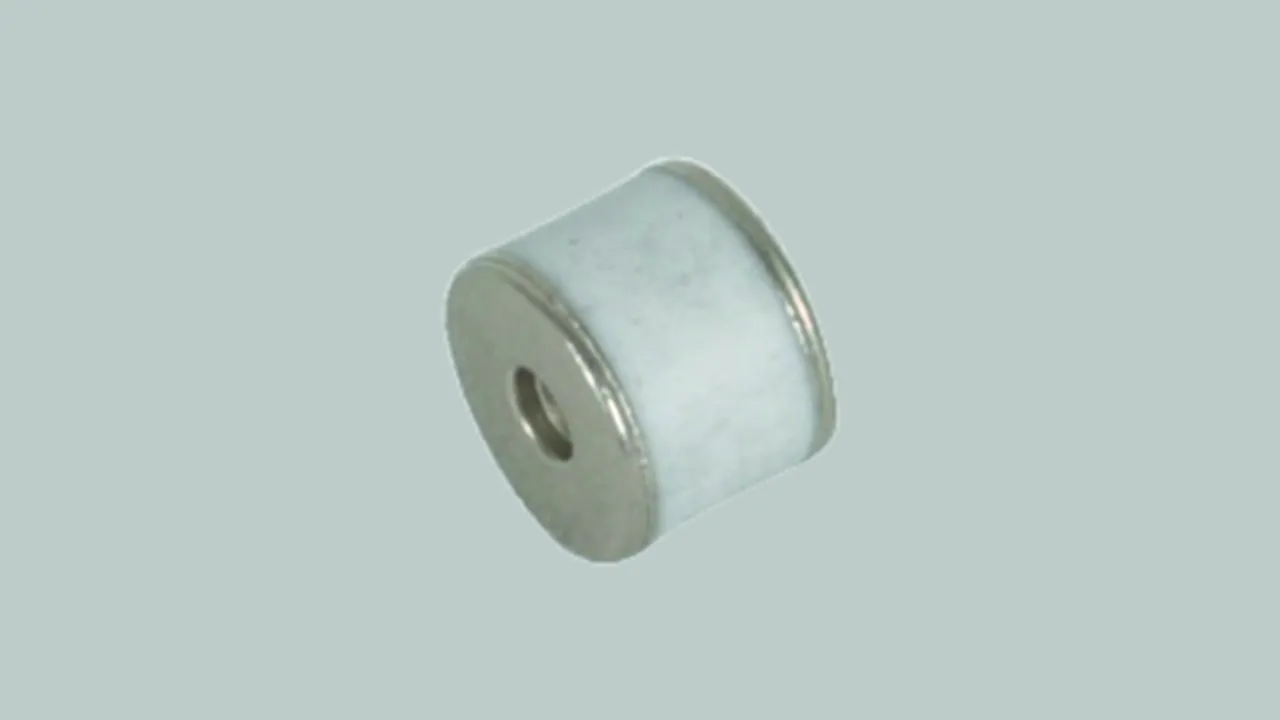

Gas Discharge Tube

Lightning current carrying replacement gas discharge tube for DEHNgate arresters. High quality with extremely low capacitance.
In case of a higher transmission power (up to 500 W) a 470 V gas discharge tube (Part No. 929 499) can be alternatively mounted into a DEHNgate arrester of Part No. 929 043, 929 045 or 929 057. Observe the rise of the static / dynamic sparkover voltage!

3 Products

Part No. 929497 GDT DGA 90

GTIN 4013364104143, Customs tariff No. (EU): 85363090, Gross weight: 1.50 g, PU: 1.00 Stk

Images

Additional information

DEHNgate GDT DGA 90 gas discharge tube
Gas discharge tube for DEHNgate, design H,
8 x 6 mm, extreme low capacitance,
sparkover voltage 90 V dc

Brand: DEHN
Type: GDT DGA 90
Part No.: 929497
or equivalent.

Technical data

Lightning impulse current carrying capability (10/350 µs)

5 kA

Product 929497 was added to Notepad.

Go to Notepad

Product 929497 was added to the cart.

Go to Web-Shop

Part No. 929498 GDT DGA 230

GTIN 4013364104136, Customs tariff No. (EU): 85363090, Gross weight: 1.50 g, PU: 1.00 Stk

Images

Additional information

DEHNgate GDT DGA 230 gas discharge tube
Gas discharge tube for DEHNgate, design H,
8 x 6 mm, extreme low capacitance,
sparkover voltage 230 V dc

Brand: DEHN
Type: GDT DGA 230
Part No.: 929498
or equivalent.

Technical data

Lightning impulse current carrying capability (10/350 µs)

5 kA

Product 929498 was added to Notepad.

Go to Notepad

Product 929498 was added to the cart.

Go to Web-Shop

Part No. 929499 GDT DGA 470

GTIN 4013364104129, Customs tariff No. (EU): 85363090, Gross weight: 1.50 g, PU: 1.00 Stk

Images

Additional information

DEHNgate GDT DGA 470 gas discharge tube
Gas discharge tube for DEHNgate, design H,
8 x 6 mm, extreme low capacitance,
sparkover voltage 470 V dc

Brand: DEHN
Type: GDT DGA 470
Part No.: 929499
or equivalent.

Technical data

Lightning impulse current carrying capability (10/350 µs)

5 kA

Product 929499 was added to Notepad.

Go to Notepad

Product 929499 was added to the cart.

Go to Web-Shop

Static response voltage	90 +- 18 V
Lightning impulse current carrying capability (10/350 µs)	5 kA
Design	H 8 x 6 mm
Max. continuous operating voltage (d.c.)	65 V
Max. transmission capacity	25 W
Sparkover voltage at 1 kV/µs	500 V
Integrated into Part No.	929 046, 929 146

Static response voltage	230 +- 35 V
Lightning impulse current carrying capability (10/350 µs)	5 kA
Design	H 8 x 6 mm
Max. continuous operating voltage (d.c.)	180 V
Max. transmission capacity	150 W
Sparkover voltage at 1 kV/µs	675 V
Integrated into Part No.	929 043, 929 045

Static response voltage	470 +-70 V
Lightning impulse current carrying capability (10/350 µs)	5 kA
Design	H 8 x 6 mm
Max. continuous operating voltage (d.c.)	360 V
Max. transmission capacity	500 W
Sparkover voltage at 1 kV/µs	1000 V
