SFL Protector

Surge protection with monitoring device and disconnector
Interference suppressor filter
Enhanced safety due to fault-proof Y protective circuit
Mains switch with operating state indication (SFL PRO 6X only)
2 m connecting cable for flexible use in a wide range of applications
Visual operating state (green) and fault indication (red)

Details

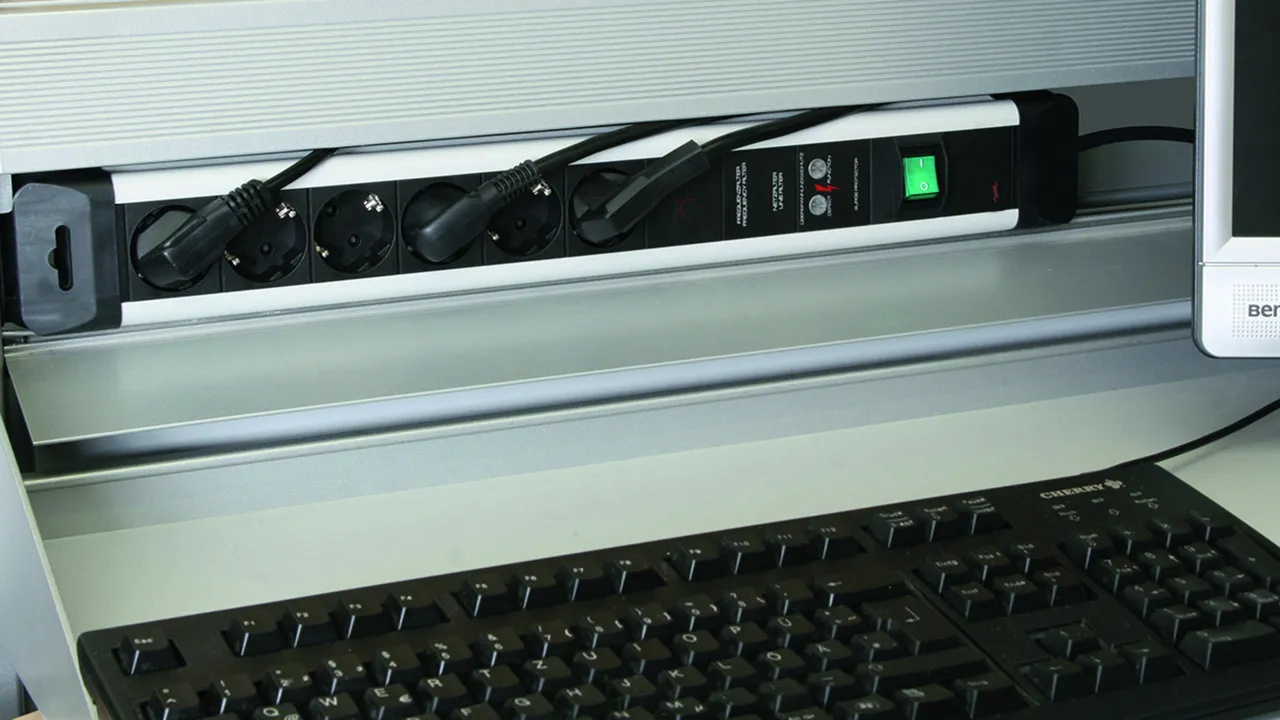

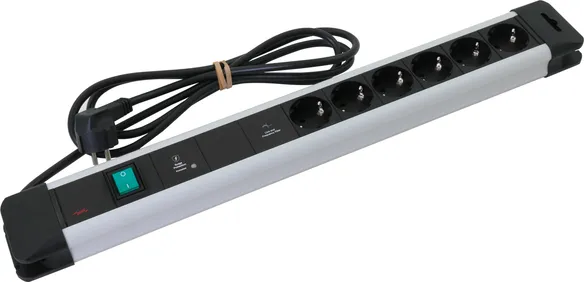

SFL PRO 6X

Surge protective multiple socket outlet with mains filter.

1 Product

Part No. 909250 SFL PRO 6X

GTIN 4013364132566, Customs tariff No. (EU): 85363010, Gross weight: 970.00 g, PU: 1.00 Stk

Predecessor

Images

Additional information

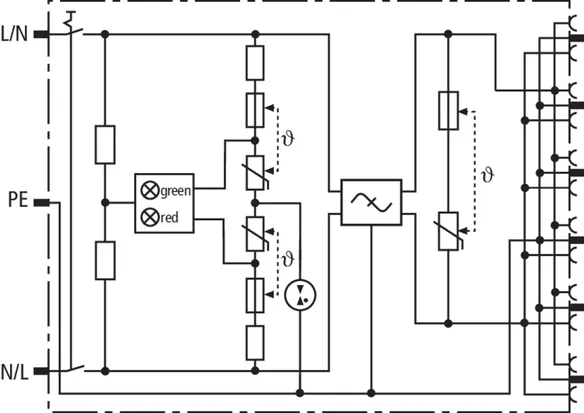

SFL PRO6X multiple socket outlet with surge protection
Six-way socket outlet with
integrated surge protection and filter
Type 3 SPD according to EN 61643-11
Interference suppressor filter according
to DIN VDE 0565 Part 3
Mains switch with operating state indication: green
Visual fault indication: red
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.6 kV
Total discharge current: 5 kA
Max. mains-side overcurrent protection: 16 A gG or B 16 A
Attenuation at f = 1 MHZ balanced/unbalanced
>= 32 dB / >= 30 dB
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: SFL PRO 6X
Part No.: 909250
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level (U_P )	≤ 1.6 kV
Max. mains-side overcurrent protection	B 16 A
Number of socket outlets	6

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal a.c. voltage (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal load current (a.c.) (I_L )	16 A
Voltage drop in percent for U_C/I_L (∆U)	≤ 0.5 %
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combined wave (U_OC )	6 kV
Combined wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level (U_P )	≤ 1.6 kV
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	1.5 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Fault indication	red light
Operating state indication	green light
Number of ports	2
Operating temperature range (T_U )	-20 °C ... +40 °C
Connecting cable	approx. 2000 mm
Number of socket outlets	6
For mounting on	earthed socket outlets DIN 49440 / DIN 49441
Enclosure material	thermoplastic, black / silver, UL 94 V-1
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	571 x 72 x 43 mm
Mains filter	acc. to EN 60393-1 (DIN VDE 0565-3)
Attenuation for f = 1 MHz, balanced	≥ 32 dB
Attenuation for f = 1 MHz, unbalanced	≥ 30 dB

Product 909250 was added to Notepad.

Go to Notepad

Product 909250 was added to the cart.

Go to Web-Shop

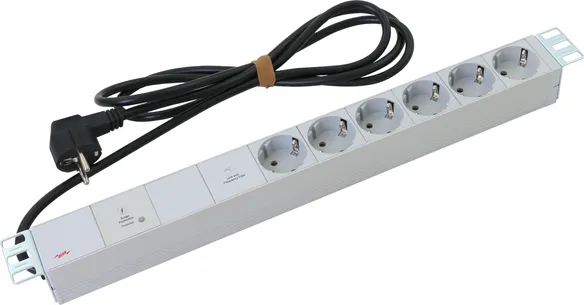

SFL PRO 19"

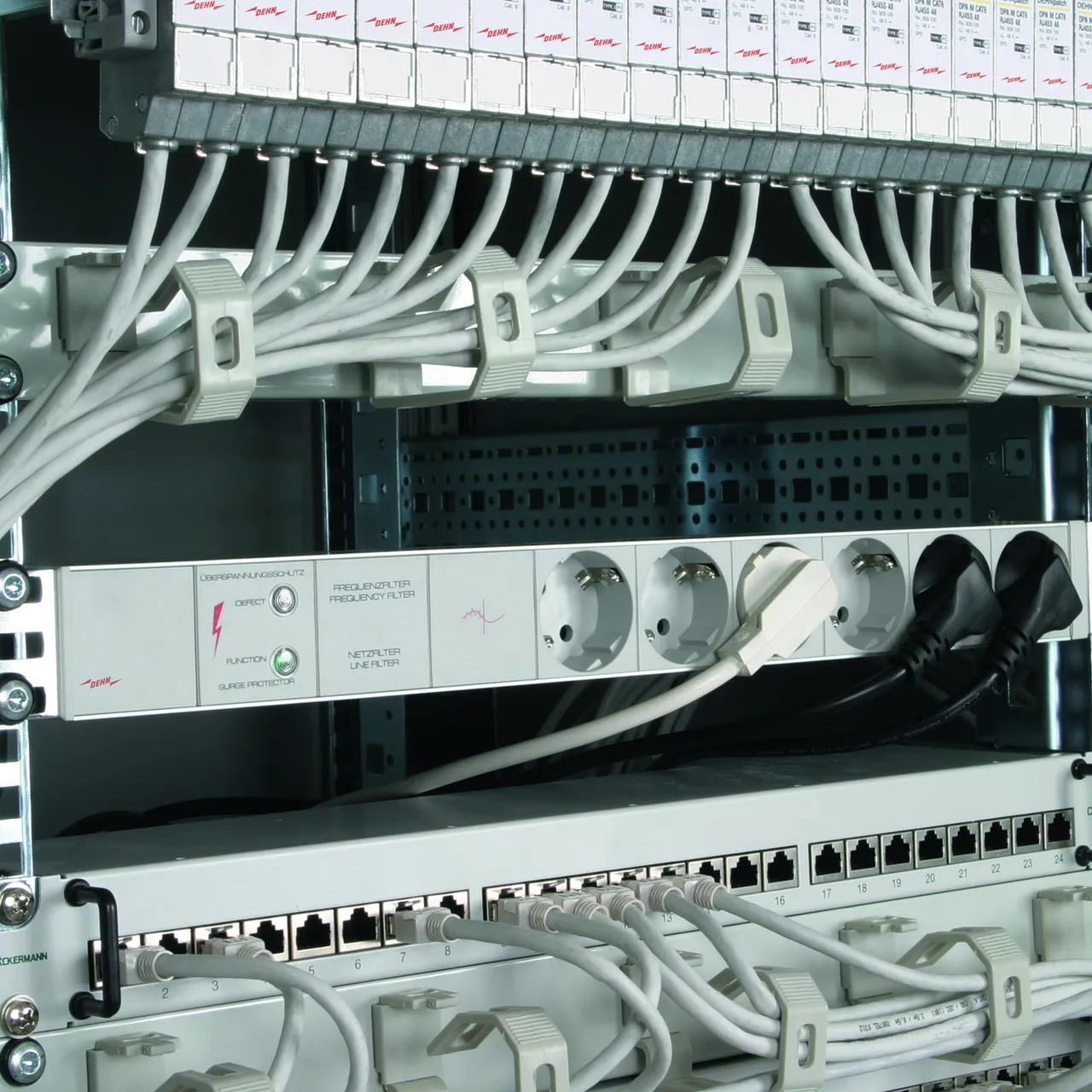

Surge protective multiple socket outlet with mains filter for 482.6 mm (19 inches) data cabinets.

1 Product

Part No. 909251 SFL PRO 6X 19"

GTIN 4013364132573, Customs tariff No. (EU): 85363010, Gross weight: 877.00 g, PU: 1.00 Stk

Images

Additional information

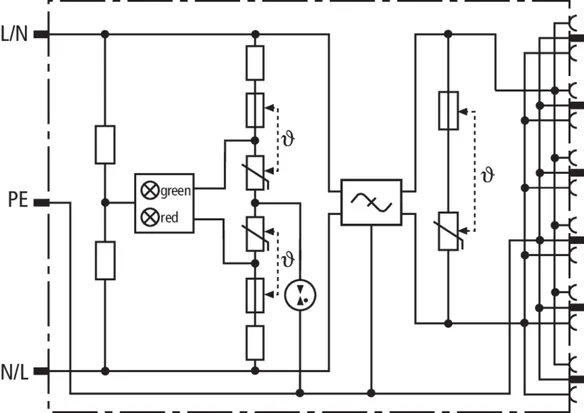

SFL PRO6X 19" multiple socket outlet with surge protection
Six-way socket outlet with
integrated surge protection and filter
Type 3 SPD according to EN 61643-11
Interference suppressor filter according to DIN VDE 0565 Part 3
Operating state indication: green
Visual fault indication: red
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.6 kV
Total discharge current: 5 kA
Max. mains-side overcurrent protection:
16 A gG or B 16 A
Attenuation at f = 1 MHZ balanced/unbalanced
>= 32 dB / >= 30 dB
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: SFL PRO 6X 19"
Part No.: 909251
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level (U_P )	≤ 1.6 kV
Max. mains-side overcurrent protection	B 16 A
Number of socket outlets	6

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal a.c. voltage (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal load current (a.c.) (I_L )	16 A
Voltage drop in percent for U_C/I_L (∆U)	≤ 0.5 %
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combined wave (U_OC )	6 kV
Combined wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level (U_P )	≤ 1.6 kV
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	1.5 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Fault indication	red light
Operating state indication	green light
Number of ports	2
Operating temperature range (T_U )	-20 °C ... +40 °C
Connecting cable	approx. 2000 mm
Number of socket outlets	6
For mounting on	earthed socket outlets DIN 49440 / DIN 49441
Enclosure material	anodised aluminium profile, silver
Place of installation	indoor installation
Degree of protection	IP 20

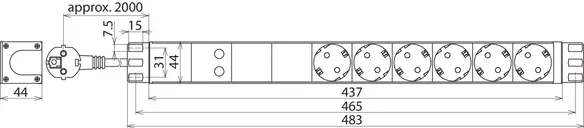

Dimensions	483 x 44 x 44 mm
Mains filter	acc. to EN 60393-1 (DIN VDE 0565-3)
Attenuation for f = 1 MHz, balanced	≥ 32 dB
Attenuation for f = 1 MHz, unbalanced	≥ 30 dB
