Air-Termination Rods for Metal Roofs

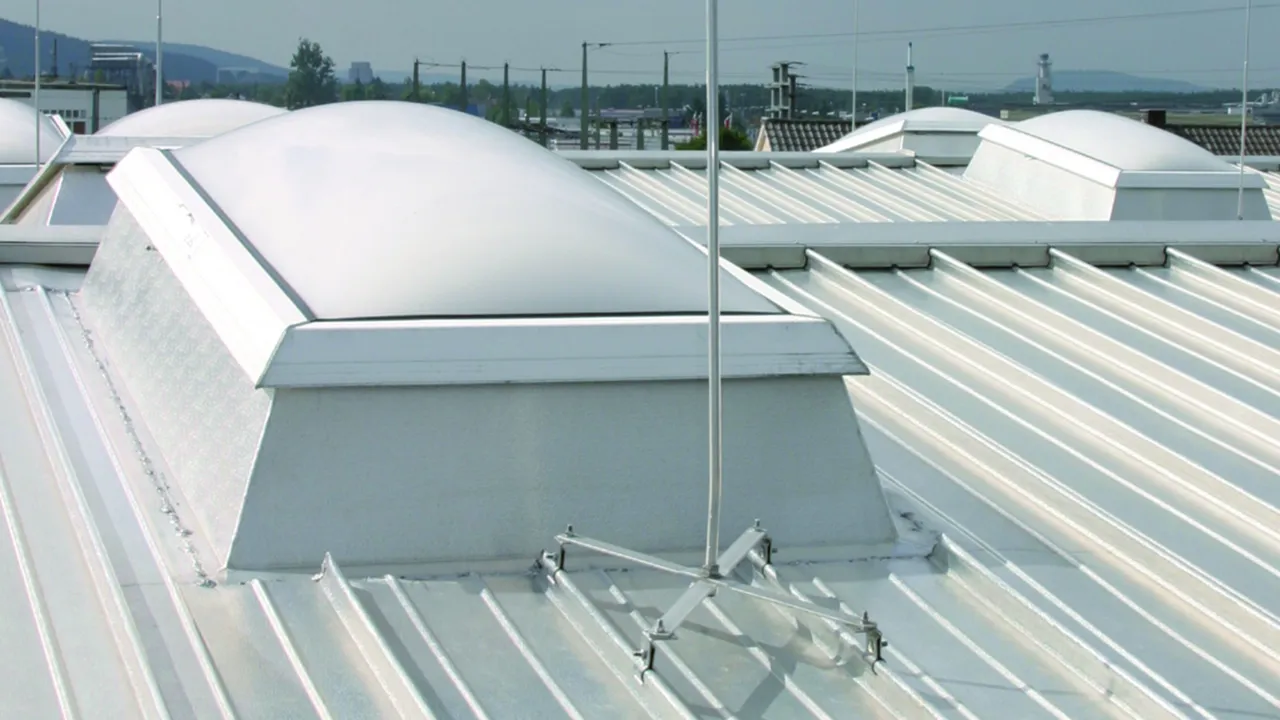

For protecting roof-mounted structures, domelights, etc.
The air-termination rod is fixed at the end of the braces (holes Ø11 mm) by means of four roof conductor holders.
The roof conductor holders must be chosen according to the roof profile (e.g round standing seam No. 223 010 or standing seam Part No. 365 059).

If these four roof conductor holders (clamps) are used for the relevant roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is ensured.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).

Height 2000 mm

With M16 threaded bolts.

1 Product

Part No. 123021 FS 16 10 2000 MD AL V2A

GTIN 4013364092822, Customs tariff No. (EU): 85389099, Gross weight: 2.20 kg, PU: 1.00 Stk

Images

Additional information

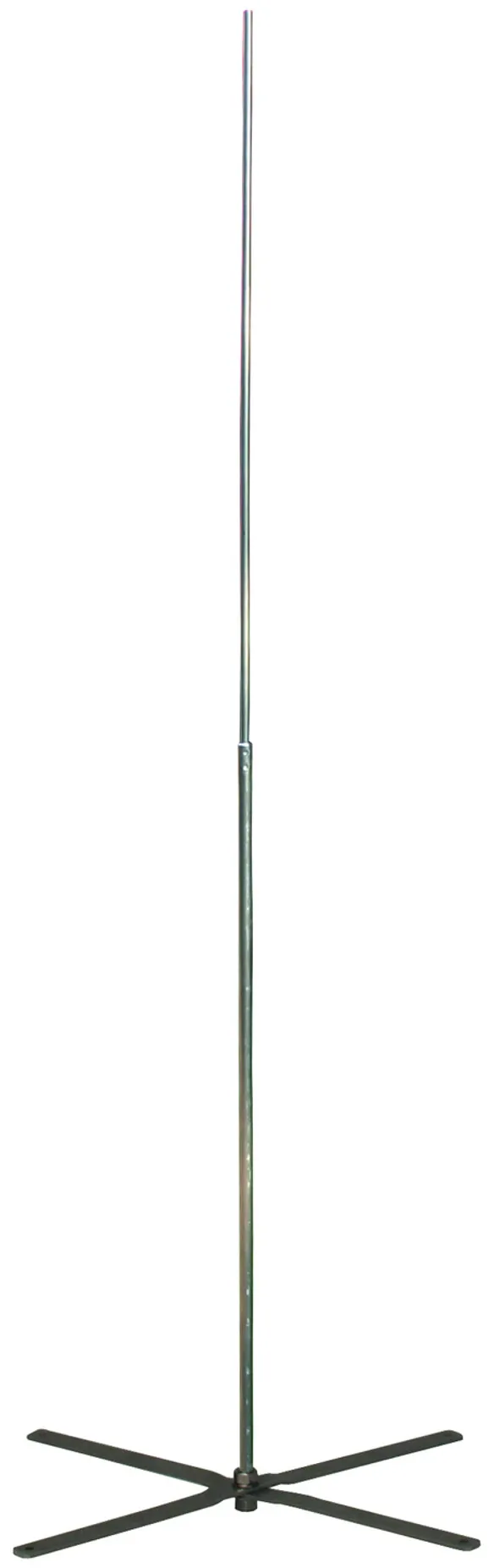

Air-termination rods for metal roofs, height: 2000 mm
Air-termination rods for metal roofs for protecting domelights or roof-mounted
structures on metal roofs
Dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed up to 185 km/h.
Fixed on roofs with standing seam or round standing seam by means of four conductor holders,
e.g. Part No. 365 059, 223 010 or 223 070 (to be ordered separately).
Braces made of stainless steel for 4 roof conductor holders.
If these four roof conductor holders (clamps) are used for
the relevant roof profile, a lightning current carrying capability of 100 kA (10/350) is ensured.

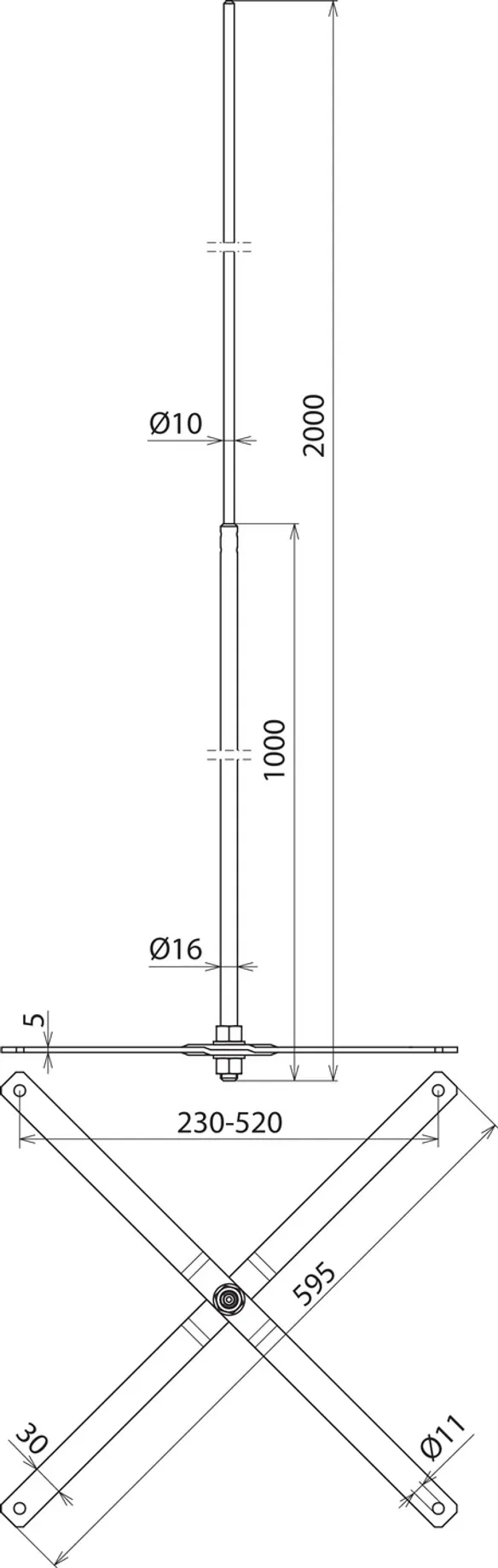

Total length (Ø16 / 10 mm): 2000 mm
Profile distance: 230-520 mm
Fixing : [4x] Ø11 mm
Material of braces: StSt
Material of air-termination rod: Al
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 16 10 2000 MD AL V2A
Part No.: 123021
or equivalent.

Certificates



Technical data

Total length (Ø16 / 10 mm) 2000 mm
Max. gust wind speed 187 km/h
Profile distance 230-520 mm
Fixing [4x] Ø11 mm
Material of braces StSt
Material of air-termination rod Al
Standard EN 62561-(1+2)

Product 123021 was added to Notepad.

Go to Notepad

Product 123021 was added to the cart.

Go to Web-Shop

Height up to 3500 mm

Adjustable to a roof inclination up to max. 10°.

3 Products

Part No. 123425 FS 22 16 10 2500 SK AL V2A

GTIN 4013364129009, Customs tariff No. (EU): 85389099, Gross weight: 2.82 kg, PU: 1.00 Stk

Images

Additional information

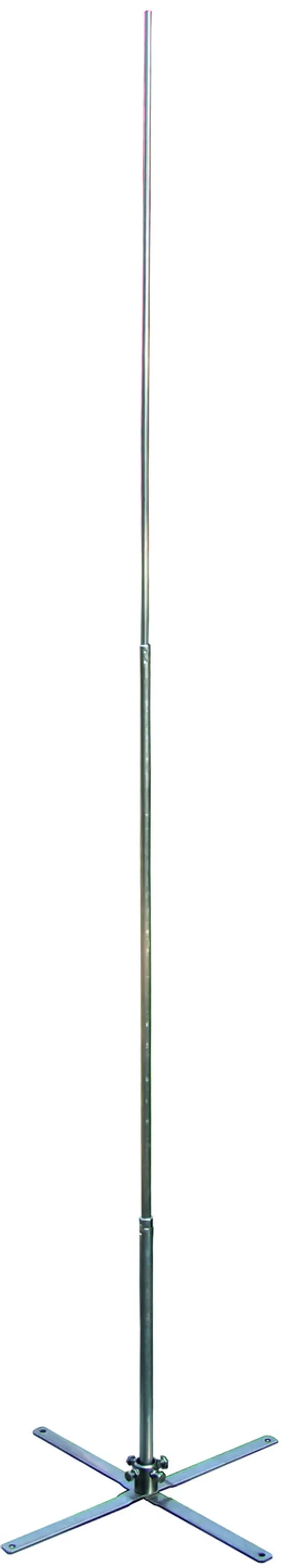

Air-termination rods for metal roofs, 2500 mm high
Air-termination rods for metal roofs for protecting domelights or roof-mounted
structures on metal roofs.
Adaptation to roof inclinations up to max. 10 degrees.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed up to 187 km/h.
To be fixed on roofs with standing seam or round standing seam by means of four conductor holders, e.g. Part No. 365 059, 223 010 or 223 070 (to be ordered separately).
Braces made of stainless steel for supporting 4 conductor holders.
If these four conductor holders (clamps) are used for
the relevant roof profile, a lightning current carrying capability of 100 kA (10/350) is ensured.

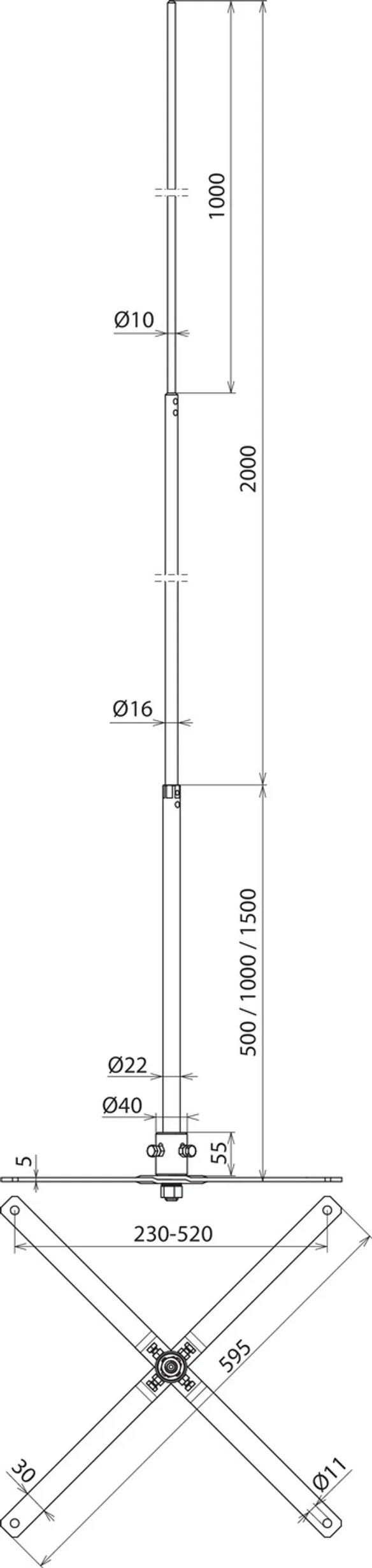

Total length (Ø22 / 16 / 10 mm): 2500 mm
Profile distance: 230-520 mm
Fixing : [4x] Ø11 mm
Material of braces: StSt
Material of air-termination rod: Al
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 2500 SK AL V2A
Part No.: 123425
or equivalent.

Certificates



Technical data

Total length (Ø22 / 16 / 10 mm) 2500 mm
Max. gust wind speed 187 km/h
Profile distance 230-520 mm
Fixing [4x] Ø11 mm
Material of braces StSt
Material of air-termination rod Al
Standard EN 62561-(1+2)

Product 123425 was added to Notepad.

Go to Notepad

Product 123425 was added to the cart.

Go to Web-Shop

Part No. 123430 FS 22 16 10 3000 SK AL V2A

GTIN 4013364129016, Customs tariff No. (EU): 85389099, Gross weight: 3.22 kg, PU: 1.00 Stk

Images

Additional information

Air-termination rods for metal roofs, 3000 mm high
Air-termination rods for metal roofs for protecting domelights or roof-mounted
structures on metal roofs.
Adaptation to roof inclinations up to max. 10 degrees.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed up to 172 km/h.
To be fixed on roofs with standing seam or round standing seam by means of four conductor holders, e.g. Part No. 365 059, 223 010 or 223 070 (to be ordered separately).
Braces made of stainless steel for supporting 4 conductor holders.
If these four conductor holders (clamps) are used for
the relevant roof profile, a lightning current carrying capability of 100 kA (10/350) is ensured.
Total length (Ø22 / 16 / 10 mm): 3000 mm
Profile distance: 230-520 mm
Fixing : [4x] Ø11 mm
Material of braces: StSt
Material of air-termination rod: Al
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 3000 SK AL V2A
Part No.: 123430
or equivalent.

Certificates



Technical data

Total length (Ø22 / 16 / 10 mm) 3000 mm
Max. gust wind speed 168 km/h
Profile distance 230-520 mm
Fixing [4x] Ø11 mm
Material of braces StSt
Material of air-termination rod Al
Standard EN 62561-(1+2)

Product 123430 was added to Notepad.

Go to Notepad

Product 123430 was added to the cart.

Go to Web-Shop

Part No. 123435 FS 22 16 10 3500 SK AL V2A

GTIN 4013364129023, Customs tariff No. (EU): 85389099, Gross weight: 3.42 kg, PU: 1.00 Stk

Images

Additional information

Air-termination rods for metal roofs, 3500 mm high
Air-termination rods for metal roofs for protecting domelights or roof-mounted
structures on metal roofs.
Adaptation to roof inclinations up to max. 10 degrees.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed up to 159 km/h.
To be fixed on roofs with standing seam or round standing seam by means of four conductor holders, e.g. Part No. 365 059, 223 010 or 223 070 (to be ordered separately).
Braces made of stainless steel for supporting 4 conductor holders.
If these four conductor holders (clamps) are used for
the relevant roof profile, a lightning current carrying capability of 100 kA (10/350) is ensured.
Total length (Ø22 / 16 / 10 mm): 3500 mm
Profile distance: 230-520 mm
Fixing : [4x] Ø11 mm
Material of braces: StSt
Material of air-termination rod: Al / StSt
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 3500 SK AL V2A
Part No.: 123435
or equivalent.

Certificates



Technical data

Total length (Ø22 / 16 / 10 mm) 3500 mm
Max. gust wind speed 167 km/h
Profile distance 230-520 mm
Fixing [4x] Ø11 mm
Material of braces StSt
Material of air-termination rod Al / StSt
Standard EN 62561-(1+2)

Product 123435 was added to Notepad.

Go to Notepad

Product 123435 was added to the cart.

Go to Web-Shop
