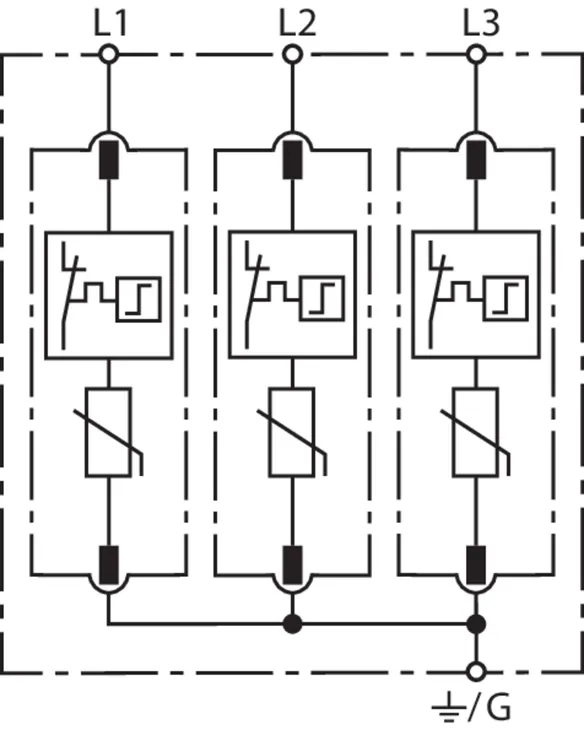

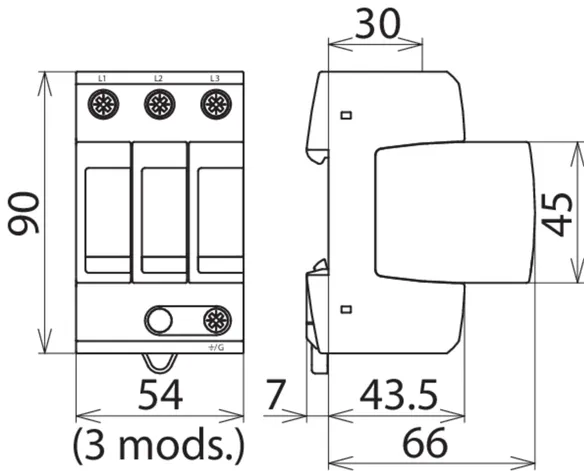

Part No. 908300 DG MU 3PY 208 3W+G

GTIN 4013364148680, Customs tariff No. (EU): 85363030, Gross weight: 323.70 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 208 3W+G surge arrester
3-pole, modular surge arrester for wye 120/208 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/208 V Wye
Voltage Protection Rating [L-G]/[L-L]: 600 Vpk / 1200 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication

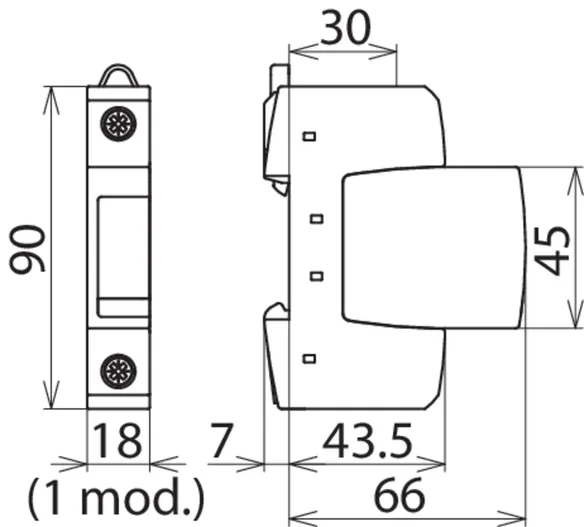

Width: 3 mod.

Brand: DEHN
Type: DG MU 3PY 208 3W+G
Part No.: 908300
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	180 V a.c. / 360 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	600 V_pk / 1200 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	120 V a.c. / 208 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	180 V a.c. / 360 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	600 V_pk / 1200 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA

Product 908300 was added to Notepad.

Go to Notepad

Product 908300 was added to the cart.

Go to Web-Shop

Part No. 908314 DG MU 3PY 480 3W+G

GTIN 4013364148703, Customs tariff No. (EU): 85363030, Gross weight: 360.30 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 480 3W+G surge arrester
3-pole, modular surge arrester for wye 277/480 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 277/480 V Wye
Voltage Protection Rating [L-G]/[L-L]: 1200 Vpk / 2400 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PY 480 3W+G
Part No.: 908314
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	277 V a.c. / 480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA

Product 908314 was added to Notepad.

Go to Notepad

Product 908314 was added to the cart.

Go to Web-Shop

Part No. 908301 DG MU 3PY 600 3W+G

GTIN 4013364148727, Customs tariff No. (EU): 85363030, Gross weight: 383.70 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 600 3W+G surge arrester
3-pole, modular surge arrester for wye 347/600 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 347/600 V Wye
Voltage Protection Rating [L-G]/[L-L]: 1500 Vpk/3000 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PY 600 3W+G
Part No.: 908301
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 V a.c. / 1020 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1500 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	347 V a.c. / 600 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 V a.c. / 1020 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1500 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA

Product 908301 was added to Notepad.

Go to Notepad

Product 908301 was added to the cart.

Go to Web-Shop

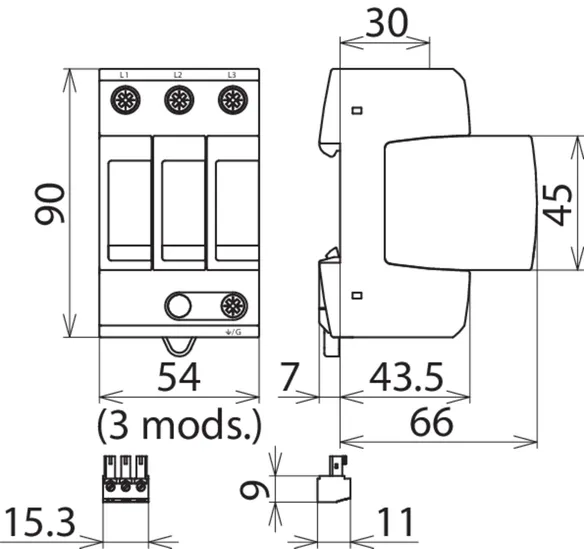

Part No. 908305 DG MU 3PY 208 3W+G R

GTIN 4013364148697, Customs tariff No. (EU): 85363030, Gross weight: 330.90 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 208 3W+G R surge arrester
3-pole, modular surge arrester for wye 120/208 V systems
with floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/208 V Wye
Voltage Protection Rating [L-G]/[L-L]: 600 Vpk / 1200 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PY 208 3W+G R
Part No.: 908305
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	180 V a.c. / 360 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	600 V_pk / 1200 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	120 V a.c. / 208 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	180 V a.c. / 360 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	600 V_pk / 1200 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908305 was added to Notepad.

Go to Notepad

Product 908305 was added to the cart.

Go to Web-Shop

Part No. 908319 DG MU 3PY 480 3W+G R

GTIN 4013364148710, Customs tariff No. (EU): 85363030, Gross weight: 368.10 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 480 3W+G R surge arrester
3-pole, modular surge arrester for wye 277/480 V systems
with floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 277/480 V Wye
Voltage Protection Rating [L-G]/[L-L]: 1200 Vpk / 2500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PY 480 3W+G R
Part No.: 908319
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	277 V a.c. / 480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908319 was added to Notepad.

Go to Notepad

Product 908319 was added to the cart.

Go to Web-Shop

Part No. 908306 DG MU 3PY 600 3W+G R

GTIN 4013364148734, Customs tariff No. (EU): 85363030, Gross weight: 391.20 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 600 3W+G R surge arrester
3-pole, modular surge arrester for wye 347/600 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 347/600 V Wye
Voltage Protection Rating [L-G]/[L-L]: 1500 Vpk/3000 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PY 600 3W+G R
Part No.: 908306
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 V a.c. / 1020 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1500 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	347 V a.c. / 600 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 V a.c. / 1020 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1500 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908306 was added to Notepad.

Go to Notepad

Product 908306 was added to the cart.

Go to Web-Shop

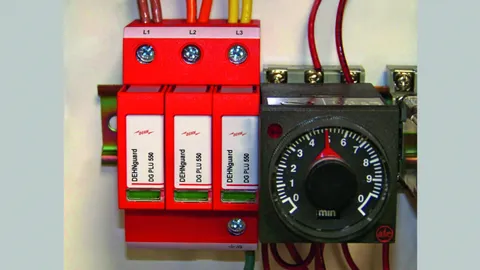

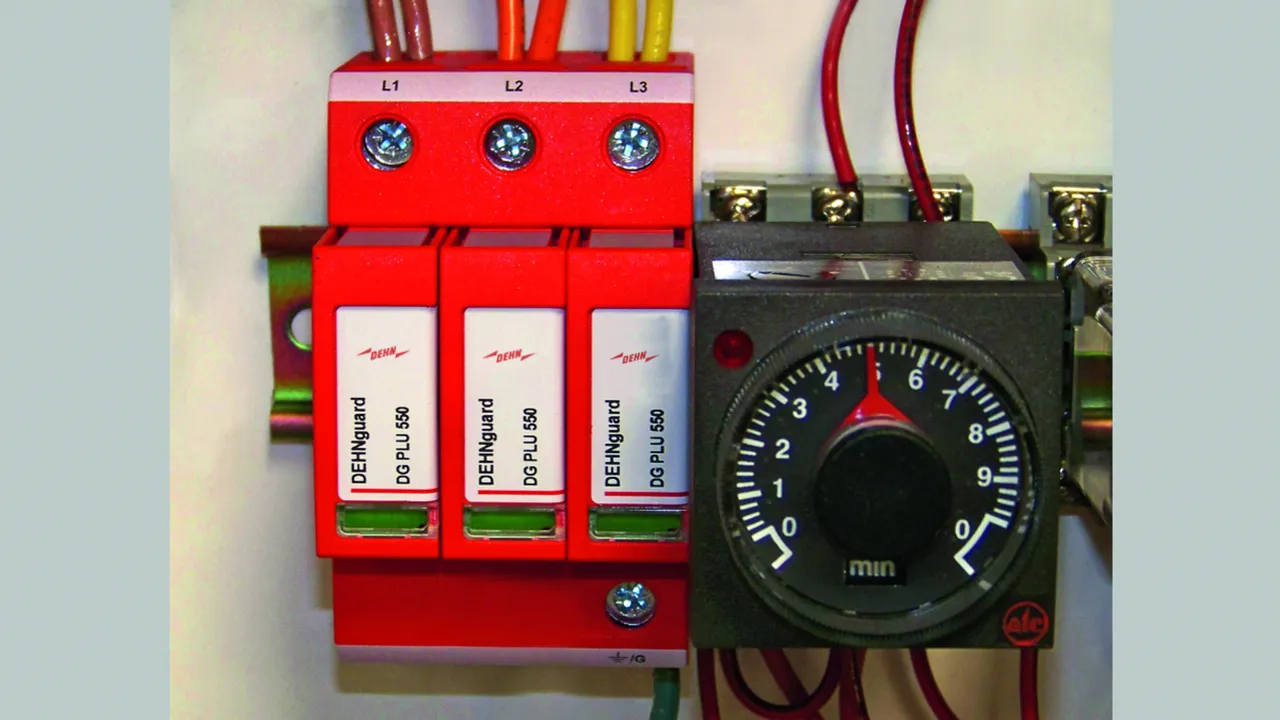

Part No. 908350 DG MU 3PD 480 3W+G

GTIN 4013364148741, Customs tariff No. (EU): 85363030, Gross weight: 393.70 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PD 480 3W+G surge arrester
3-pole, modular surge arrester for delta 480 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 480 V Delta
Voltage Protection Rating [L-G]/[L-L]: 1800 Vpk/3000 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PD 480 3W+G
Part No.: 908350
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	480 V a.c. / 480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA

Product 908350 was added to Notepad.

Go to Notepad

Product 908350 was added to the cart.

Go to Web-Shop

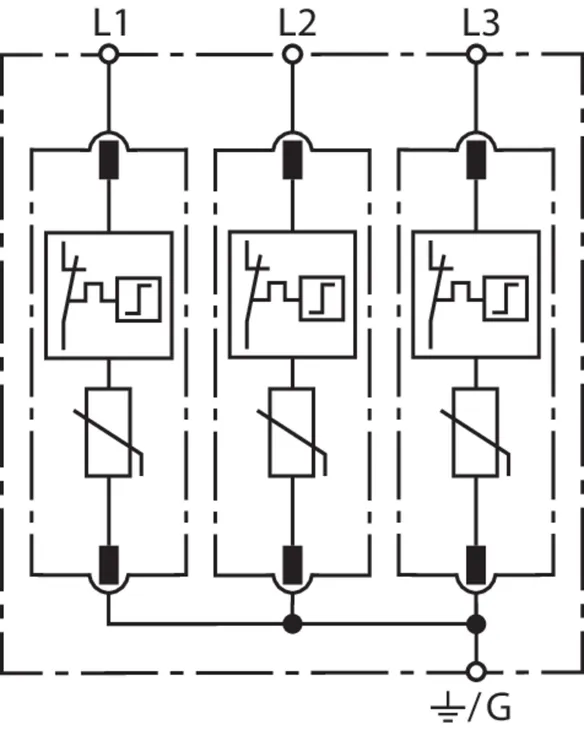

Part No. 908351 DG MU 3PD 240 3W+G

GTIN 4013364148826, Customs tariff No. (EU): 85363030, Gross weight: 339.90 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard DG MU 3PD 240 3W+G surge arrester
3-pole, modular surge arrester for delta 240 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240 V Delta
Voltage Protection Rating [L-G]/[L-L]: 800 Vpk / 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PD 240 3W+G
Part No.: 908351
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	240 V a.c. / 240 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA

Product 908351 was added to Notepad.

Go to Notepad

Product 908351 was added to the cart.

Go to Web-Shop

Part No. 908355 DG MU 3PD 480 3W+G R

GTIN 4013364148758, Customs tariff No. (EU): 85363030, Gross weight: 400.50 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PD 480 3W+G R surge arrester
3-pole, modular surge arrester for delta 480 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 480 V Delta
Voltage Protection Rating [L-G]/[L-L]: 1800 Vpk/3000 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU 3PD 480 3W+G R
Part No.: 908355
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	480 V a.c. / 480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908355 was added to Notepad.

Go to Notepad

Product 908355 was added to the cart.

Go to Web-Shop

Part No. 908356 DG MU 3PD 240 3W+G R

GTIN 4013364148833, Customs tariff No. (EU): 85363030, Gross weight: 346.30 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard DG MU 3PD 240 3W+G R surge arrester
3-pole, modular surge arrester for delta 240 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240 V Delta
Voltage Protection Rating [L-G]/[L-L]: 800 Vpk / 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication

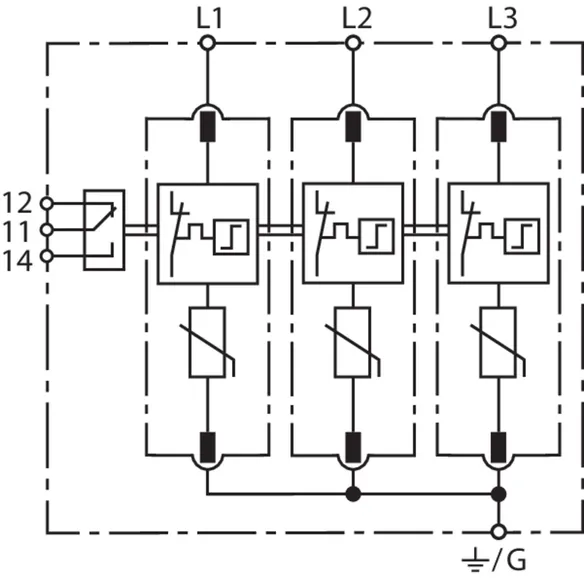

Width: 3 mod.

Brand: DEHN
Type: DG MU 3PD 240 3W+G R
Part No.: 908356
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	240 V a.c. / 240 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908356 was added to Notepad.

Go to Notepad

Product 908356 was added to the cart.

Go to Web-Shop

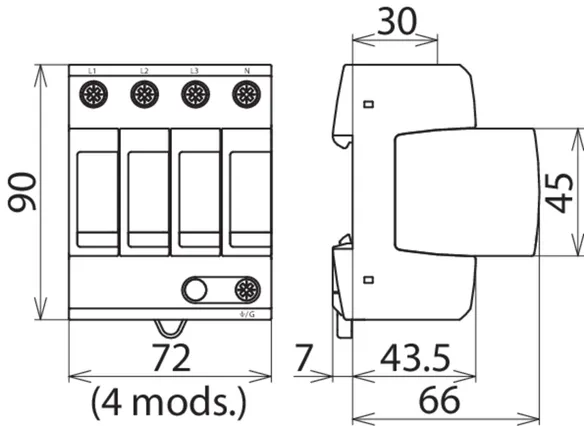

Part No. 908340 DG MU 3PY 208 4W+G

GTIN 4013364148840, Customs tariff No. (EU): 85363030, Gross weight: 412.30 g, PU: 1.00 Stk

Images

Additional information

CAD files

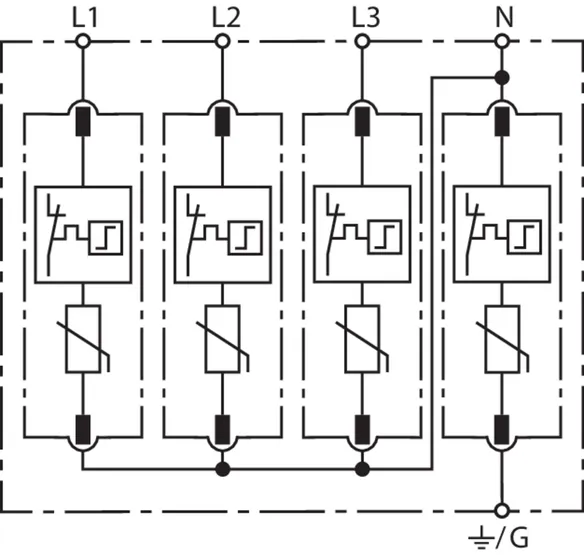

DEHNguard MU 3PY 208 4W+G surge arrester
4-pole, modular surge arrester for wye 120/208 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/208 V Wye
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
600 Vpk / 1200 Vpk / 1200 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PY 208 4W+G
Part No.: 908340
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk / 1200 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	120 V a.c. / 120 V a.c. / 208 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk / 1200 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA

Product 908340 was added to Notepad.

Go to Notepad

Product 908340 was added to the cart.

Go to Web-Shop

Part No. 908341 DG MU 3PY 480 4W+G

GTIN 4013364148864, Customs tariff No. (EU): 85363030, Gross weight: 449.40 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 480 4W+G surge arrester
4-pole, modular surge arrester for wye 277/480 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 277/480 V Wye
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
1200 Vpk / 1800 Vpk / 2500 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PY 480 4W+G
Part No.: 908341
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 V a.c. / 565 V a.c. / 770 V a.c./ 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1200 V_pk / 1800 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	277 V a.c. / 277 V a.c. / 480 V a.c.V / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 V a.c. / 565 V a.c. / 770 V a.c./ 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1200 V_pk / 1800 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA

Product 908341 was added to Notepad.

Go to Notepad

Product 908341 was added to the cart.

Go to Web-Shop

Part No. 908342 DG MU 3PY 600 4W+G

GTIN 4013364148765, Customs tariff No. (EU): 85363030, Gross weight: 473.60 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 600 4W+G surge arrester
4-pole, modular surge arrester for wye 347/600 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 347/600 V Wye
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
1500 Vpk / 2000 Vpk / 3000 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PY 600 4W+G
Part No.: 908342
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	510 V a.c. / 690 V a.c. / 1020 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1500 V_pk / 2000 V_pk / 3000 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	347 V a.c. / 347 V a.c. / 600 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	510 V a.c. / 690 V a.c. / 1020 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1500 V_pk / 2000 V_pk / 3000 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA

Product 908342 was added to Notepad.

Go to Notepad

Product 908342 was added to the cart.

Go to Web-Shop

Part No. 908345 DG MU 3PY 208 4W+G R

GTIN 4013364148857, Customs tariff No. (EU): 85363030, Gross weight: 419.50 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 208 4W+G R surge arrester
4-pole, modular surge arrester for wye 120/208 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/208 V Wye
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
600 Vpk / 1200 Vpk / 1200 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PY 208 4W+G R
Part No.: 908345
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk / 1200 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	120 V a.c. / 120 V a.c. / 208 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk / 1200 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908345 was added to Notepad.

Go to Notepad

Product 908345 was added to the cart.

Go to Web-Shop

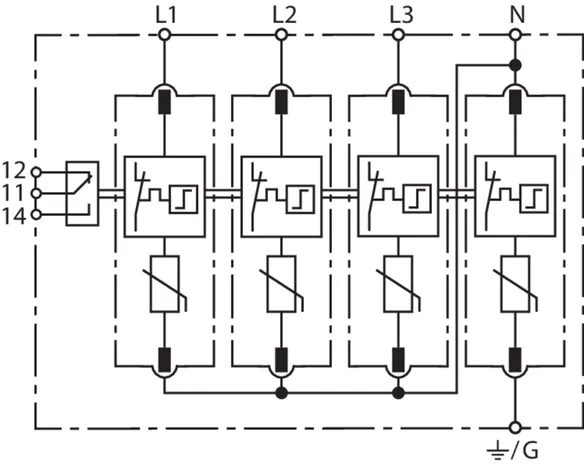

Part No. 908346 DG MU 3PY 480 4W+G R

GTIN 4013364148871, Customs tariff No. (EU): 85363030, Gross weight: 458.30 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 480 4W+G R surge arrester
4-pole, modular surge arrester for wye 277/480 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 277/480 V Wye
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
1200 Vpk / 1800 Vpk / 2500 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PY 480 4W+G R
Part No.: 908346
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 V a.c. / 565 V a.c. / 770 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1200 V_pk / 1800 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	277 V a.c. / 277 V a.c. / 480 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 V a.c. / 565 V a.c. / 770 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1200 V_pk / 1800 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908346 was added to Notepad.

Go to Notepad

Product 908346 was added to the cart.

Go to Web-Shop

Part No. 908347 DG MU 3PY 600 4W+G R

GTIN 4013364148772, Customs tariff No. (EU): 85363030, Gross weight: 481.50 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PY 600 4W+G R surge arrester
4-pole, modular surge arrester for wye 347/600 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 347/600 V Wye
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
1500 Vpk / 2000 Vpk / 3000 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PY 600 4W+G R
Part No.: 908347
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	510V a.c. / 690 V a.c. / 1020 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1500 V_pk / 2000_pk V / 3000_pk V / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	347 V a.c. / 347 V a.c. / 600 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	510V a.c. / 690 V a.c. / 1020 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1500 V_pk / 2000_pk V / 3000_pk V / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908347 was added to Notepad.

Go to Notepad

Product 908347 was added to the cart.

Go to Web-Shop

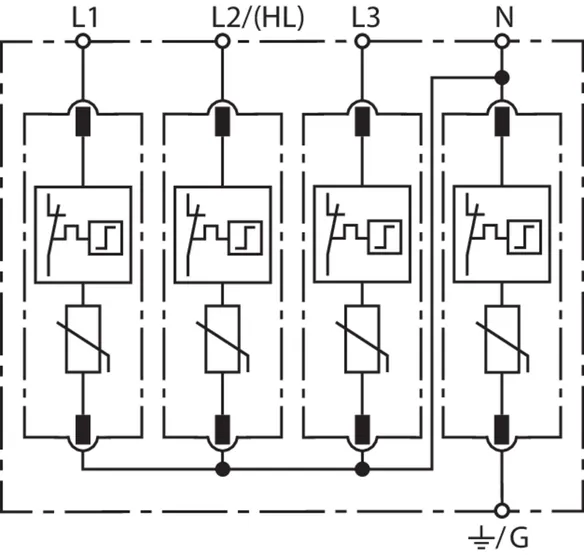

Part No. 908343 DG MU 3PH 240 4W+G

GTIN 4013364148789, Customs tariff No. (EU): 85363030, Gross weight: 424.80 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PH 240 4W+G surge arrester
4-pole, modular surge arrester for high leg delta 120/240 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/240 V High Leg Delta
Voltage Protection Rating [L-N]/[H-N]/[L-G]/[H-G]/[L-L]/[L-H]/[N-G]:
700 Vpk / 800 Vpk / 1200 Vpk / 1500 Vpk / 1500 Vpk / 1500 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PH 240 4W+G
Part No.: 908343
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	230 V a.c. / 275 V a.c. / 410 V a.c. / 455 V a.c. / 460 V a.c. / 505 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	700 V_pk / 800 V_pk / 1200 V_pk / 1500 V_pk / 1500 V_pk / 1500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (U_N )	120 V a.c. / 208 V a.c. / 120 V a.c. / 208 V a.c. / 240 V a.c. / 240 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	230 V a.c. / 275 V a.c. / 410 V a.c. / 455 V a.c. / 460 V a.c. / 505 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	700 V_pk / 800 V_pk / 1200 V_pk / 1500 V_pk / 1500 V_pk / 1500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase High Leg Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA

Product 908343 was added to Notepad.

Go to Notepad

Product 908343 was added to the cart.

Go to Web-Shop

Part No. 908344 DG MU 3PH 480 4W+G

GTIN 4013364148802, Customs tariff No. (EU): 85363030, Gross weight: 456.50 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PH 480 4W+G surge arrester
4-pole, modular surge arrester for high leg delta 240/480 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240/480 V High Leg Delta
Voltage Protection Rating [L-N]/[H-N]/[L-G]/[H-G]/[L-L]/[L-H]/[N-G]:
1200 Vpk / 1500 Vpk / 1800 Vpk / 2000 Vpk / 2500 Vpk / 2500 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PH 480 4W+G
Part No.: 908344
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	385V a.c. / 510 V a.c. / 565 V a.c. / 690 V a.c. / 770 V a.c. / 895 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	1200 V_pk / 1500 V_pk / 1800 V_pk / 2000 V_pk / 2500 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (U_N )	240 V a.c. / 416 V a.c. / 240 V a.c. / 416 V a.c. / 480 V a.c. / 480 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	385V a.c. / 510 V a.c. / 565 V a.c. / 690 V a.c. / 770 V a.c. / 895 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	1200 V_pk / 1500 V_pk / 1800 V_pk / 2000 V_pk / 2500 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase High Leg Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA

Product 908344 was added to Notepad.

Go to Notepad

Product 908344 was added to the cart.

Go to Web-Shop

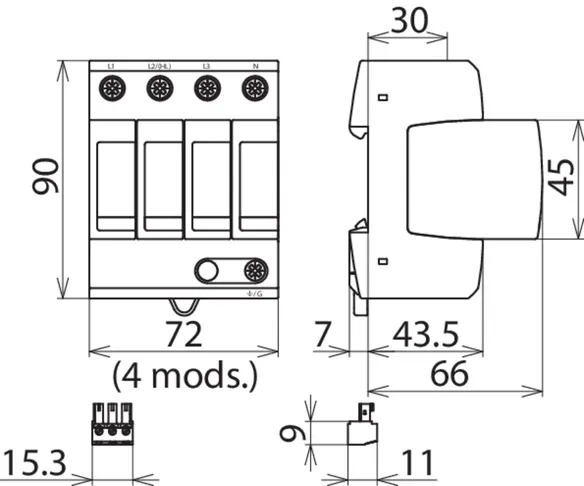

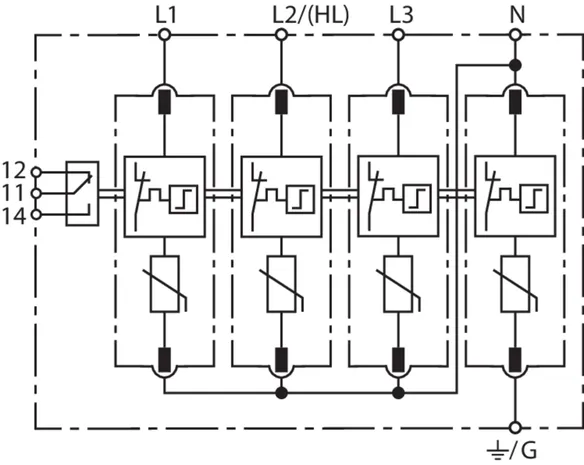

Part No. 908348 DG MU 3PH 240 4W+G R

GTIN 4013364148796, Customs tariff No. (EU): 85363030, Gross weight: 432.50 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PH 240 4W+G R surge arrester
4-pole, modular surge arrester for high leg delta 120/240 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/240 V High Leg Delta
Voltage Protection Rating [L-N]/[H-N]/[L-G]/[H-G]/[L-L]/[L-H]/[N-G]:
700 Vpk / 800 Vpk / 1200 Vpk / 1500 Vpk / 1500 Vpk / 1500 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PH 240 4W+G R
Part No.: 908348
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	230 V a.c. / 275 V a.c. / 410 V a.c. / 455 V a.c. / 460 V a.c. / 505 V a.c. / 180V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	700 V_pk / 800 V_pk / 1200 V_pk / 1500 V_pk / 1500 V_pk / 1500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (U_N )	120 V a.c. / 208 V a.c. / 120 V a.c. / 208 V a.c. / 240 V a.c. / 240 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	230 V a.c. / 275 V a.c. / 410 V a.c. / 455 V a.c. / 460 V a.c. / 505 V a.c. / 180V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	700 V_pk / 800 V_pk / 1200 V_pk / 1500 V_pk / 1500 V_pk / 1500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase High Leg Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908348 was added to Notepad.

Go to Notepad

Product 908348 was added to the cart.

Go to Web-Shop

Part No. 908349 DG MU 3PH 480 4W+G R

GTIN 4013364148819, Customs tariff No. (EU): 85363030, Gross weight: 464.40 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU 3PH 480 4W+G R surge arrester
4-pole, modular surge arrester for high leg delta 240/480 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240/480 V High Leg Delta
Voltage Protection Rating [L-N]/[H-N]/[L-G]/[H-G]/[L-L]/[L-H]/[N-G]:
1200 Vpk / 1500 Vpk / 1800 Vpk / 2000 Vpk / 2500 Vpk / 2500 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 4 mod.

Brand: DEHN
Type: DG MU 3PH 480 4W+G R
Part No.: 908349
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	385 V a.c. / 510 V a.c. / 565 V a.c. / 690 V a.c. / 770 V a.c. / 895 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	1200 V_pk / 1500 V_pk / 1800 V_pk / 2000 V_pk / 2500 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (U_N )	240 V a.c. / 416 V a.c. / 240 V a.c. / 416 V a.c. / 480 V a.c. / 480 V a.c. / 0 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G]	385 V a.c. / 510 V a.c. / 565 V a.c. / 690 V a.c. / 770 V a.c. / 895 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [H-N] / [L-G] / [H-G] / [L-L] / [L-H] / [N-G] (VPR)	1200 V_pk / 1500 V_pk / 1800 V_pk / 2000 V_pk / 2500 V_pk / 2500 V_pk / 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase High Leg Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908349 was added to Notepad.

Go to Notepad

Product 908349 was added to the cart.

Go to Web-Shop

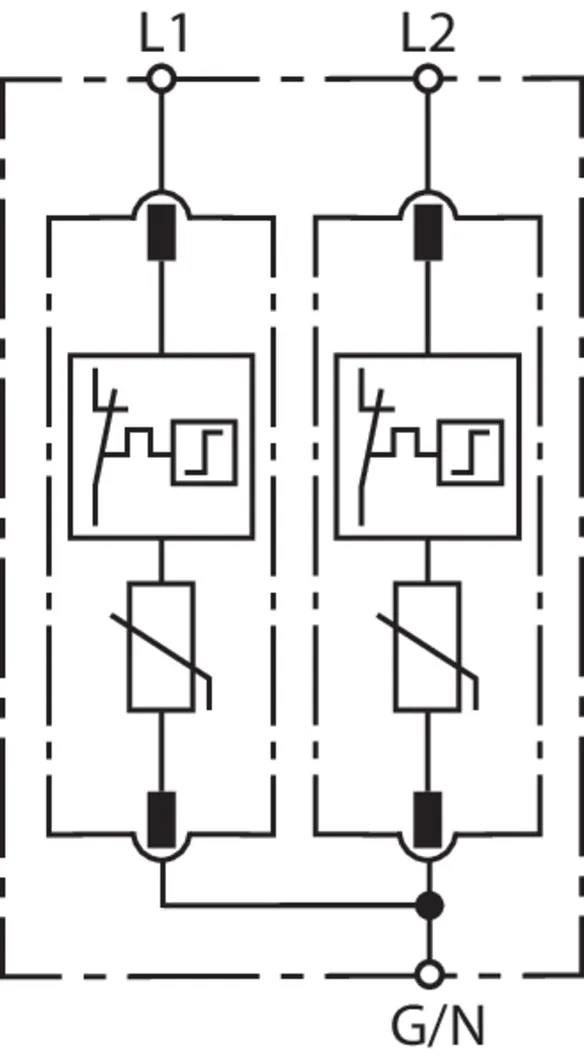

Part No. 908190 DG MU SP 240 3W+G

GTIN 4013364148604, Customs tariff No. (EU): 85363030, Gross weight: 235.10 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU SP 240 3W+G surge arrester
2-pole, modular surge arrester for split phase 120/240 V
- 127/254 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/240 V – 127/254 V
Split Phase
Voltage Protection Rating [L-G]/[L-L]: 700 Vpk / 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU SP 240 3W+G
Part No.: 908190
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	230 V a.c. / 460 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	700 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	127 V a.c. / 254 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	230 V a.c. / 460 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	700 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA

Product 908190 was added to Notepad.

Go to Notepad

Product 908190 was added to the cart.

Go to Web-Shop

Part No. 908192 DG MU SP 480 3W+G

GTIN 4013364148628, Customs tariff No. (EU): 85363030, Gross weight: 254.10 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU SP 480 3W+G surge arrester
2-pole, modular surge arrester for split phase 240/480 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240/480 V Split Phase
Voltage Protection Rating [L-G]/[L-L]: 1200 Vpk / 2500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU SP 480 3W+G
Part No.: 908192
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	240 V a.c. / 480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA

Product 908192 was added to Notepad.

Go to Notepad

Product 908192 was added to the cart.

Go to Web-Shop

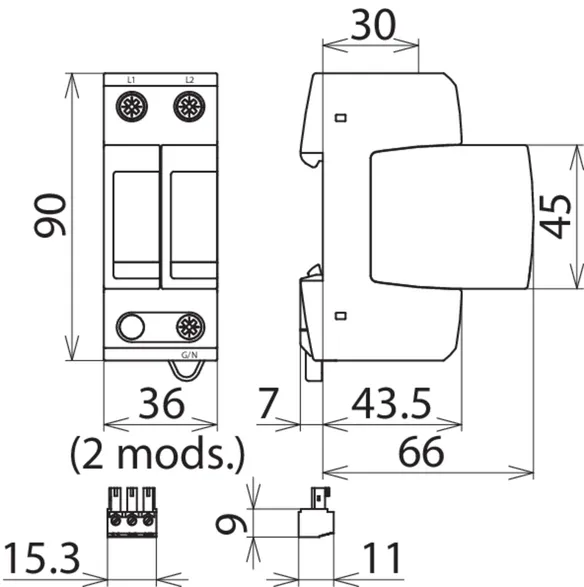

Part No. 908195 DG MU SP 240 3W+G R

GTIN 4013364148611, Customs tariff No. (EU): 85363030, Gross weight: 241.00 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU SP 240 3W+G R surge arrester
2-pole, modular surge arrester for split phase 120/240 V
- 127/254 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/240 V Split Phase
Voltage Protection Rating [L-G]/[L-L]: 700 Vpk / 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU SP 240 3W+G R
Part No.: 908195
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	230 V a.c. / 460 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	700 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	127 V a.c. / 254 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	230 V a.c. / 460 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	700 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908195 was added to Notepad.

Go to Notepad

Product 908195 was added to the cart.

Go to Web-Shop

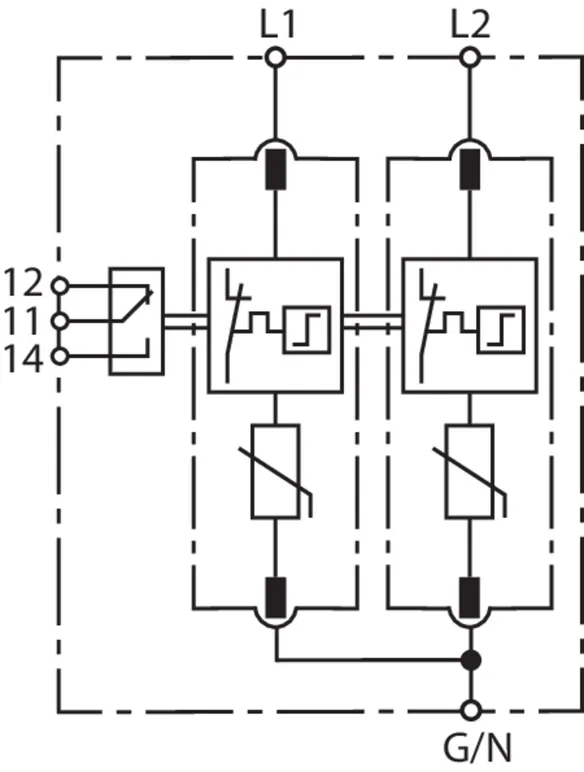

Part No. 908197 DG MU SP 480 3W+G R

GTIN 4013364148635, Customs tariff No. (EU): 85363030, Gross weight: 259.30 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU SP 480 3W+G R surge arrester
2-pole, modular surge arrester for split phase 240/480 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240/480 V Split Phase
Voltage Protection Rating [L-G]/[L-L]: 1200 Vpk / 2500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU SP 480 3W+G R
Part No.: 908197
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	240 V a.c. / 480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	385 V a.c. / 770 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1200 V_pk / 2500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908197 was added to Notepad.

Go to Notepad

Product 908197 was added to the cart.

Go to Web-Shop

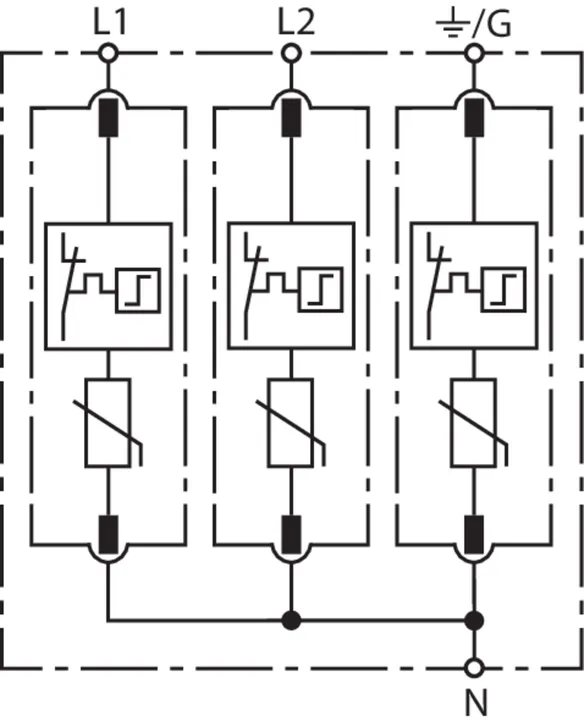

Part No. 908214 DG MU SPN 240 3W+G

GTIN 4013364267961, Customs tariff No. (EU): 85363030, Gross weight: 331.00 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU SPN 240 3W+G surge arrester
3-pole, modular surge arrester for split phase 127/254 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 127/254 V Split Phase
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
600 Vpk / 1200 Vpk / 1200 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU SPN 240 3W+G
Part No.: 908214
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk/ 1200 V_pk/ 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	127 V a.c. / 254 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk/ 1200 V_pk/ 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase with N protected
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA

Product 908214 was added to Notepad.

Go to Notepad

Product 908214 was added to the cart.

Go to Web-Shop

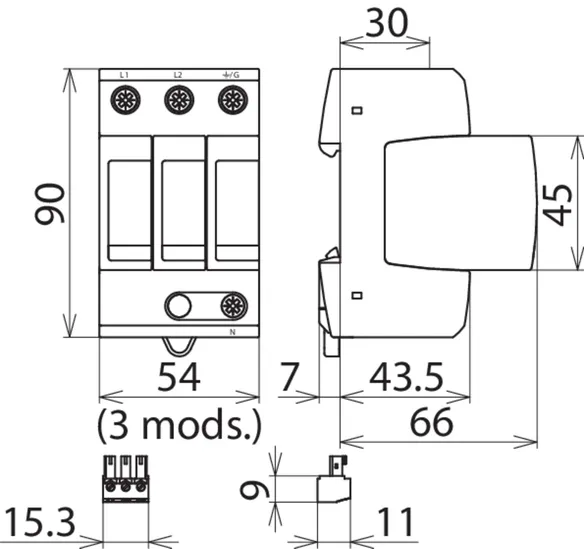

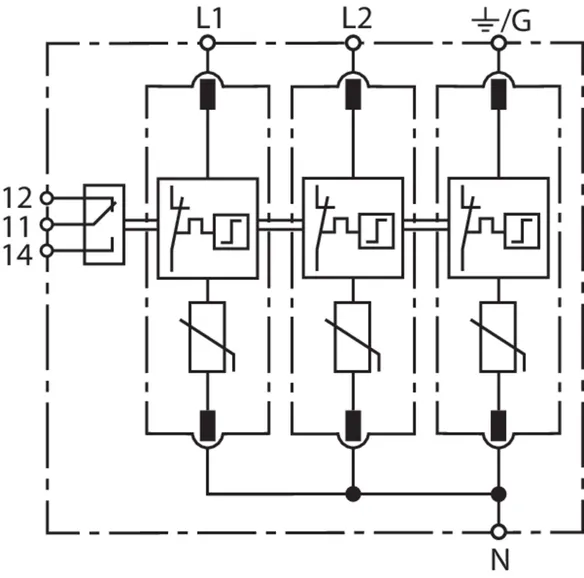

Part No. 908219 DG MU SPN 240 3W+G R

GTIN 4013364267978, Customs tariff No. (EU): 85363030, Gross weight: 338.00 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU SPN 240 3W+G R surge arrester
3-pole, modular surge arrester for split phase 127/254 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 127/254 V Split Phase
Voltage Protection Rating [L-N]/[L-G]/[L-L]/[N-G]:
600 Vpk / 1200 Vpk / 1200 Vpk / 600 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 3 mod.

Brand: DEHN
Type: DG MU SPN 240 3W+G R
Part No.: 908219
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk/ 1200 V_pk/ 600 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	127 V a.c. / 254 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 V a.c. / 360 V a.c. / 360 V a.c. / 180 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	600 V_pk / 1200 V_pk/ 1200 V_pk/ 600 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase with N protected
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908219 was added to Notepad.

Go to Notepad

Product 908219 was added to the cart.

Go to Web-Shop

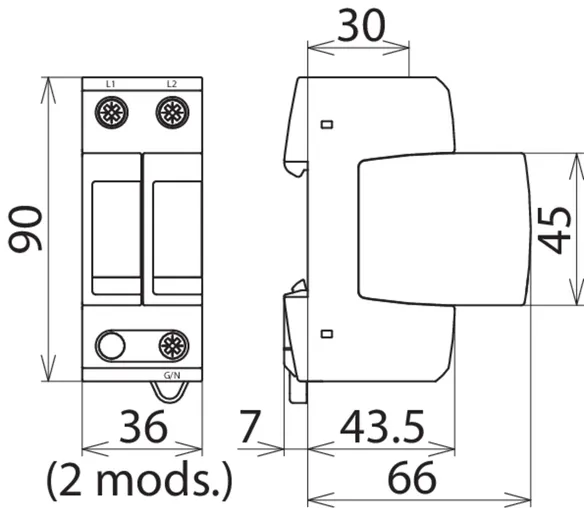

Part No. 908203 DG MU CGD 240 3W+G

GTIN 4013364148642, Customs tariff No. (EU): 85363030, Gross weight: 240.80 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU CGD 240 3W+G surge arrester
2-pole, modular surge arrester for corner grounded delta
120/240 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/240 V Corner Grounded Delta
Voltage Protection Rating [L-G]/[L-L]: 800 Vpk / 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU CGD 240 3W+G
Part No.: 908203
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	240 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Corner Grounded Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA

Product 908203 was added to Notepad.

Go to Notepad

Product 908203 was added to the cart.

Go to Web-Shop

Part No. 908204 DG MU CGD 480 3W+G

GTIN 4013364148666, Customs tariff No. (EU): 85363030, Gross weight: 275.10 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU CGD 480 3W+G surge arrester
2-pole, modular surge arrester for corner grounded delta
240/480 V systems
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240/480 V Corner Grounded Delta
Voltage Protection Rating [L-G]/[L-L]: 1800 Vpk/3000 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU CGD 480 3W+G
Part No.: 908204
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Corner Grounded Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm Hutschiene nach EN 60715
Enclosure material	Thermoplast, Farbe rot, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA

Product 908204 was added to Notepad.

Go to Notepad

Product 908204 was added to the cart.

Go to Web-Shop

Part No. 908208 DG MU CGD 240 3W+G R

GTIN 4013364148659, Customs tariff No. (EU): 85363030, Gross weight: 246.40 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU CGD 240 3W+G R surge arrester
2-pole, modular surge arrester for corner grounded delta
120/240 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 120/240 V Corner Grounded Delta
Voltage Protection Rating [L-G] / [L-L]: 800 Vpk/1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU CGD 240 3W+G R
Part No.: 908208
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	240 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	275 V a.c. / 550 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	800 V_pk / 1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Corner Grounded Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908208 was added to Notepad.

Go to Notepad

Product 908208 was added to the cart.

Go to Web-Shop

Part No. 908209 DG MU CGD 480 3W+G R

GTIN 4013364148673, Customs tariff No. (EU): 85363030, Gross weight: 282.00 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard MU CGD 480 3W+G R surge arrester
2-pole, modular surge arrester for corner grounded delta
240/480 V systems
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240/480 V Corner Grounded Delta
Voltage Protection Rating [L-G]/[L-L]: 1800 Vpk / 3000 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 2 mod.

Brand: DEHN
Type: DG MU CGD 480 3W+G R
Part No.: 908209
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V / 3000 V
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage [L-G] / [L-L] (U_N )	480 V a.c.
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 V a.c. / 1100 V a.c.
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V / 3000 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Corner Grounded Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	4 AWG / 25 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908209 was added to Notepad.

Go to Notepad

Product 908209 was added to the cart.

Go to Web-Shop

Part No. 908070 DG SU 1P 120

GTIN 4013364148499, Customs tariff No. (EU): 85363030, Gross weight: 123.80 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard SU 1P 120 surge arrester
Single-pole, modular surge arrester
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 127 V Single Phase
Voltage protection rating: 700 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 1 mod.

Brand: DEHN
Type: DG SU 1P 120
Part No.: 908070
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	700 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage (U_N )	127 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	700 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	2 AWG / 35 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL, CSA

Product 908070 was added to Notepad.

Go to Notepad

Product 908070 was added to the cart.

Go to Web-Shop

Part No. 908074 DG SU 1P 240

GTIN 4013364148567, Customs tariff No. (EU): 85363030, Gross weight: 133.30 g, PU: 1.00 Stk

Images

Additional information

CAD files

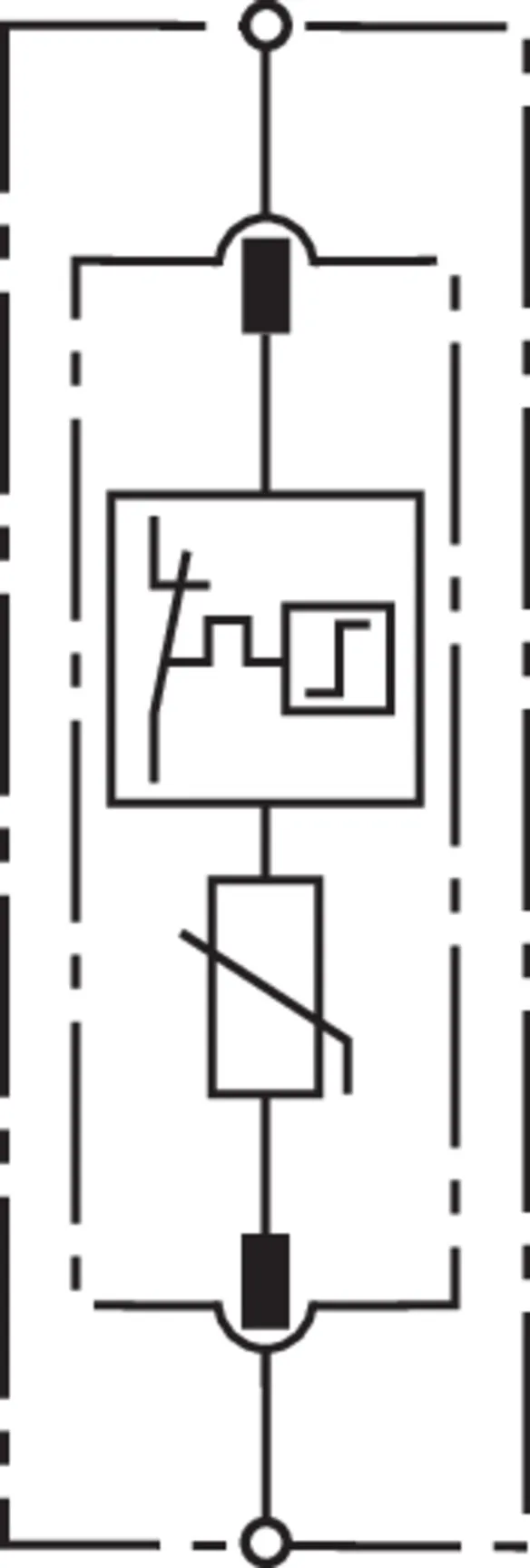

DEHNguard SU 1P 240 surge arrester
Single-pole, modular surge arrester
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 277 V
Single Phase
Voltage protection rating: 1200 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 1 mod.

Brand: DEHN
Type: DG SU 1P 240
Part No.: 908074
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)	385 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1200 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
SPD according to EN 61643-11 / IEC 61643-11	Type 2 / Class II
Nominal System Voltage (U_N )	277 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	385 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1200 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	2 AWG / 35 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL, CSA

Product 908074 was added to Notepad.

Go to Notepad

Product 908074 was added to the cart.

Go to Web-Shop

Part No. 908076 DG SU 1P 347

GTIN 4013364148581, Customs tariff No. (EU): 85363030, Gross weight: 140.80 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard SU 1P 347 surge arrester
Single-pole, modular surge arrester
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 240 V / 254 / 277 V
Single Phase
Voltage protection rating: 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 1 mod.

Brand: DEHN
Type: DG SU 1P 347
Part No.: 908076
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)	510 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage (U_N )	347 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	510 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	2 AWG / 35 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL, CSA

Product 908076 was added to Notepad.

Go to Notepad

Product 908076 was added to the cart.

Go to Web-Shop

Part No. 908090 DG SU 1P 120 R

GTIN 4013364148550, Customs tariff No. (EU): 85363030, Gross weight: 127.70 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard SU 1P 120 R surge arrester
Single-pole, modular surge arrester
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 127 V Single Phase
Voltage protection rating: 700 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 1 mod.

Brand: DEHN
Type: DG SU 1P 120 R
Part No.: 908090
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	700 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage (U_N )	127 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	700 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	2 AWG / 35 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908090 was added to Notepad.

Go to Notepad

Product 908090 was added to the cart.

Go to Web-Shop

Part No. 908094 DG SU 1P 240 R

GTIN 4013364148574, Customs tariff No. (EU): 85363030, Gross weight: 136.60 g, PU: 1.00 Stk

Images

Additional information

CAD files

DEHNguard SU 1P 240 R surge arrester
Single-pole, modular surge arrester
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 277 V
Single Phase
Voltage protection rating: 1200 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 1 mod.

Brand: DEHN
Type: DG SU 1P 240 R
Part No.: 908094
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)	385 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1200 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
SPD according to EN 61643-11 / IEC 61643-11	Type 2 / Class II
Nominal System Voltage (U_N )	277 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	385 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1200 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	2 AWG / 35 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908094 was added to Notepad.

Go to Notepad

Product 908094 was added to the cart.

Go to Web-Shop

Part No. 908096 DG SU 1P 347 R

GTIN 4013364148598, Customs tariff No. (EU): 85363030, Gross weight: 144.60 g, PU: 1.00 Stk

Images

Additional information

CAD files

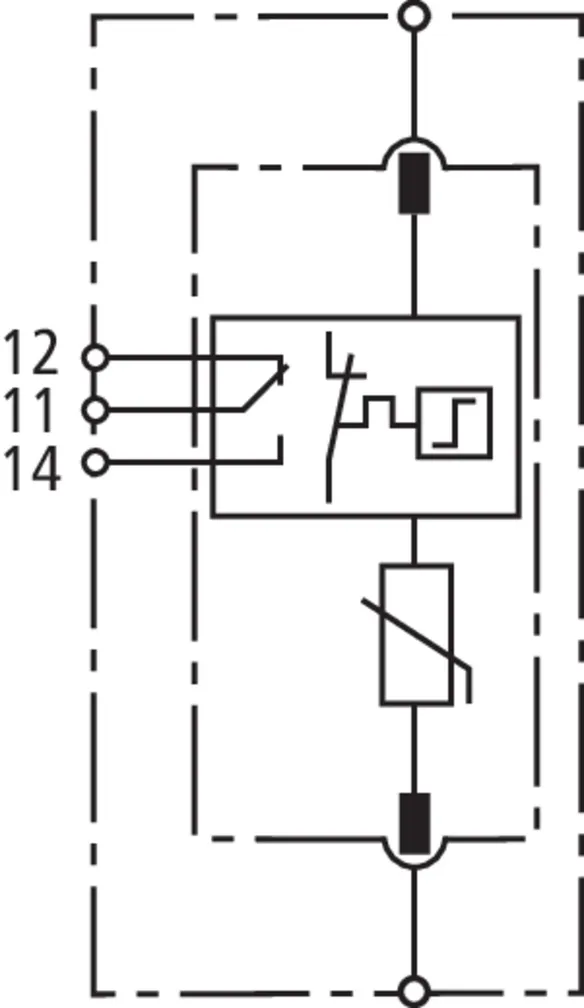

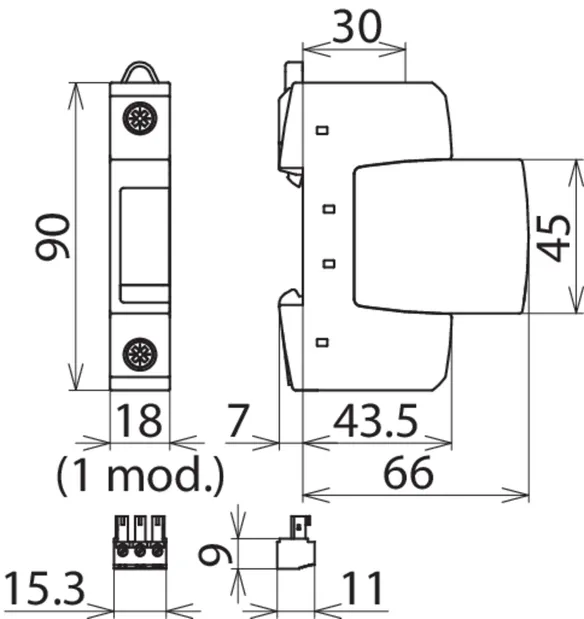

DEHNguard SU 1P 347 R surge arrester
Single-pole, modular surge arrester
With floating Form C (SPDT) remote status contact
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
No need for additional overcurrent protection devices
Nominal system voltage: 347 V Single Phase
Voltage protection rating: 1500 Vpk
Nominal discharge current (8/20): 20 kA
Maximal discharge current (8/20): 50 kA
Short circuit current rating (SCCR): 200 kA
Fault indication
Width: 1 mod.

Brand: DEHN
Type: DG SU 1P 347 R
Part No.: 908096
or equivalent.

Certificates

Technical data

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)	510 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1500 V_pk
Max. mains-side overcurrent protection	Not needed
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)

SPD classification acc. to ANSI/UL 1449 4^th Ed.	Open-Type 1 SPD
SPD classification acc. to CSA - C22.2 No. 269.1-14	Type 4-1 Component Assembly
Nominal System Voltage (U_N )	347 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	510 Vac
Nominal discharge current (8x 20 µs) (I_n )	20 kA
Max. discharge current (8/20) (I_max )	50 kA
Voltage protection rating (VPR)	1500 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Operating state / fault indication	Green = Good ; Red = Replace Module
Cross-sectional area (min.)	14 AWG / 2.5 mm²
Cross-sectional area (max.)	2 AWG / 35 mm²
Terminal Torque Ratings	35-45 Lbs-in
Mounting	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL, CSA
Remote status contact	Floating (dry), Form C (SPDT)
Remote Status NEC Circuits	NEC Class 2 circuits only
Remote Status Wire Sizes	AWG 16-22 / 1.5 mm² - 0.34mm²
Remote Status Terminal Torque Ratings	3 Lbs-in

Product 908096 was added to Notepad.

Go to Notepad

Product 908096 was added to the cart.

Go to Web-Shop

DEHNguard Modular for North America

DEHNguard MU 3PY ... 3W+G

Part No. 908300 DG MU 3PY 208 3W+G

You are not authorized to download 908214.stp

You are not authorized to download 908214.igs

You are not authorized to download 908214.jt

You are not authorized to download 908214.dwg

You are not authorized to download 908300m_E.dxf

You are not authorized to download DEHN.908300.wspak

You are not authorized to download 908300_eplan.zip

Product 908300 was added to Notepad.

Product 908300 was added to the cart.

Part No. 908314 DG MU 3PY 480 3W+G

You are not authorized to download 908214.stp

You are not authorized to download 908214.igs

You are not authorized to download 908214.jt

You are not authorized to download 908214.dwg

You are not authorized to download 908314m_E.dxf

You are not authorized to download DEHN.908314.wspak

You are not authorized to download 908314_eplan.zip

Product 908314 was added to Notepad.

Product 908314 was added to the cart.

Part No. 908301 DG MU 3PY 600 3W+G

You are not authorized to download 908214.stp

You are not authorized to download 908214.igs

You are not authorized to download 908214.jt

You are not authorized to download 908214.dwg

You are not authorized to download 908301m_E.dxf

You are not authorized to download DEHN.908301.wspak

You are not authorized to download 908301_eplan.zip

Product 908301 was added to Notepad.

Product 908301 was added to the cart.

DEHNguard MU 3PY ... 3W+G R

Part No. 908305 DG MU 3PY 208 3W+G R

You are not authorized to download 908219.stp

You are not authorized to download 908219.igs

You are not authorized to download 908219.jt

You are not authorized to download 908219.dwg

You are not authorized to download 908305m_E.dxf

You are not authorized to download DEHN.908305.wspak

You are not authorized to download 908305_eplan.zip

Product 908305 was added to Notepad.

Product 908305 was added to the cart.

Part No. 908319 DG MU 3PY 480 3W+G R

You are not authorized to download 908219.stp

You are not authorized to download 908219.igs

You are not authorized to download 908219.jt

You are not authorized to download 908219.dwg

You are not authorized to download 908319m_E.dxf

You are not authorized to download DEHN.908319.wspak

You are not authorized to download 908319_eplan.zip

Product 908319 was added to Notepad.

Product 908319 was added to the cart.

Part No. 908306 DG MU 3PY 600 3W+G R

You are not authorized to download 908219.stp

You are not authorized to download 908219.igs

You are not authorized to download 908219.jt

You are not authorized to download 908219.dwg

You are not authorized to download 908306m_E.dxf

You are not authorized to download DEHN.908306.wspak

You are not authorized to download 908306_eplan.zip

Product 908306 was added to Notepad.

Product 908306 was added to the cart.

DEHNguard MU 3PD ... 3W+G

Part No. 908350 DG MU 3PD 480 3W+G

You are not authorized to download 908214.stp

You are not authorized to download 908214.igs

You are not authorized to download 908214.jt

You are not authorized to download 908214.dwg

You are not authorized to download 908350m_E.dxf

You are not authorized to download DEHN.908350.wspak

You are not authorized to download 908350_eplan.zip

Product 908350 was added to Notepad.

Product 908350 was added to the cart.

Part No. 908351 DG MU 3PD 240 3W+G

You are not authorized to download 908214.stp

You are not authorized to download 908214.igs

You are not authorized to download 908214.jt

You are not authorized to download 908214.dwg

You are not authorized to download 908351m_E.dxf
