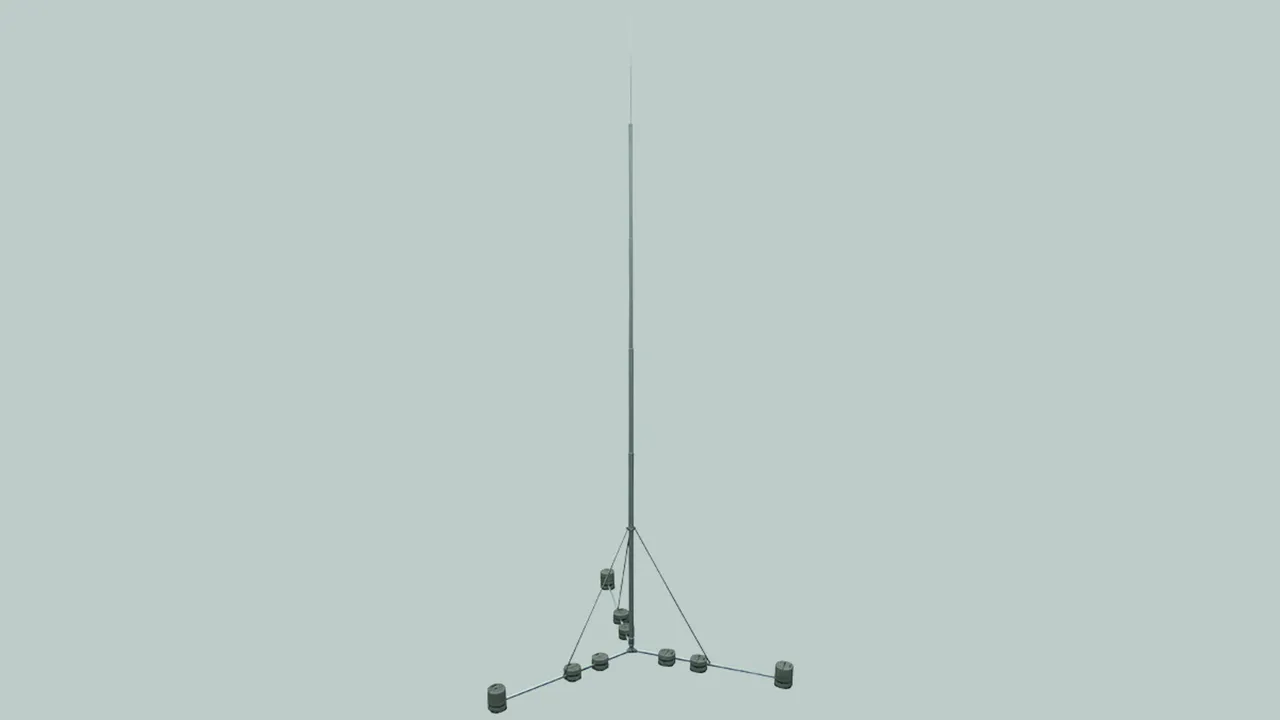

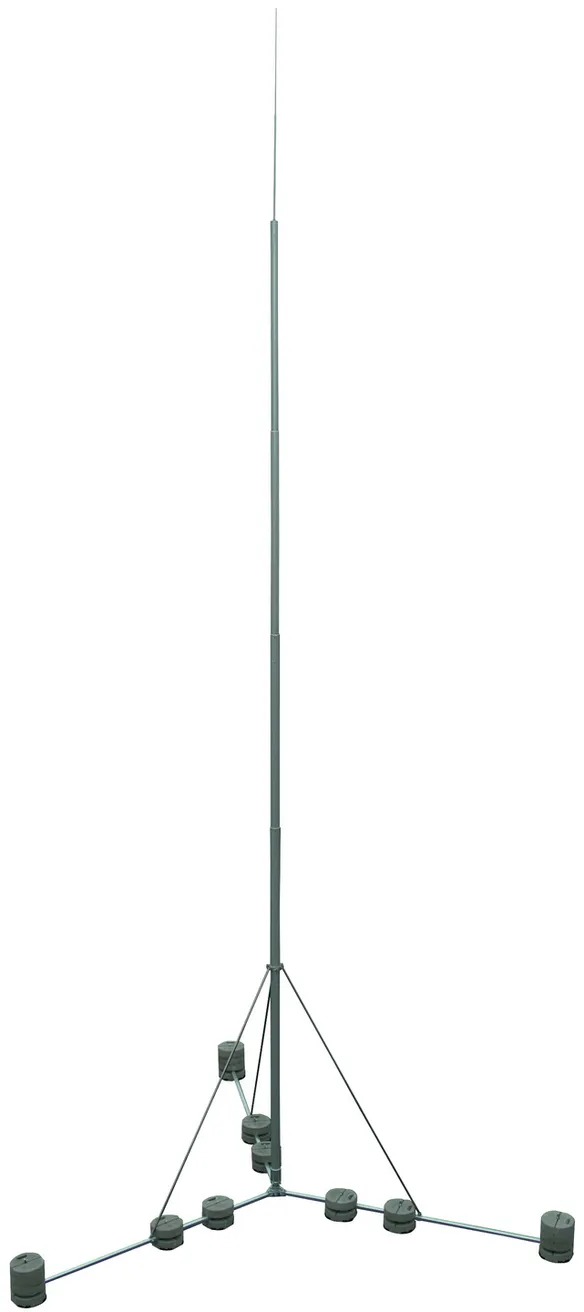

Self-supporting Air-Termination Rods 12 to 14 m

With hinged tripod for protecting larger roof-mounted structures or for erection on compacted ground without foundation works, adjustable to a roof inclination of max. 5°
The stackable concrete base (Part No. 102 010) and the base plate (Part No. 102 050) have to be ordered separately.

The tapered tubes are fitted into each other and then screwed together.
The transport length is approx. 4500 mm.

Components:
Aluminium tube, tapered:
– Tube Ø100 x 5 mm, length approx. 4000 mm
– Tube Ø90 x 3 mm, length approx. 2000 mm
– Tube Ø80 x 3 mm + Ø70x3 mm, length approx. 2000 mm each
– Optionally tube Ø40 x 5 mm, length approx. 2000 mm
– Air-termination rod Al
– Double cleat for 2x Rd 8-10 mm
– Tripod for wedge mounting concrete bases including StSt braces 20 x 20 x 2 mm

Note: Permissible roof loads have to be considered and checked with the constructor where required.

Free height 12 m

1 Product

Part No. 105922 FS D100 10 12M AL DBS STTZN

GTIN 4013364240520, Customs tariff No. (EU): 85389099, Gross weight: 97.42 kg, PU: 1.00 Stk

Predecessor

Images

Additional information

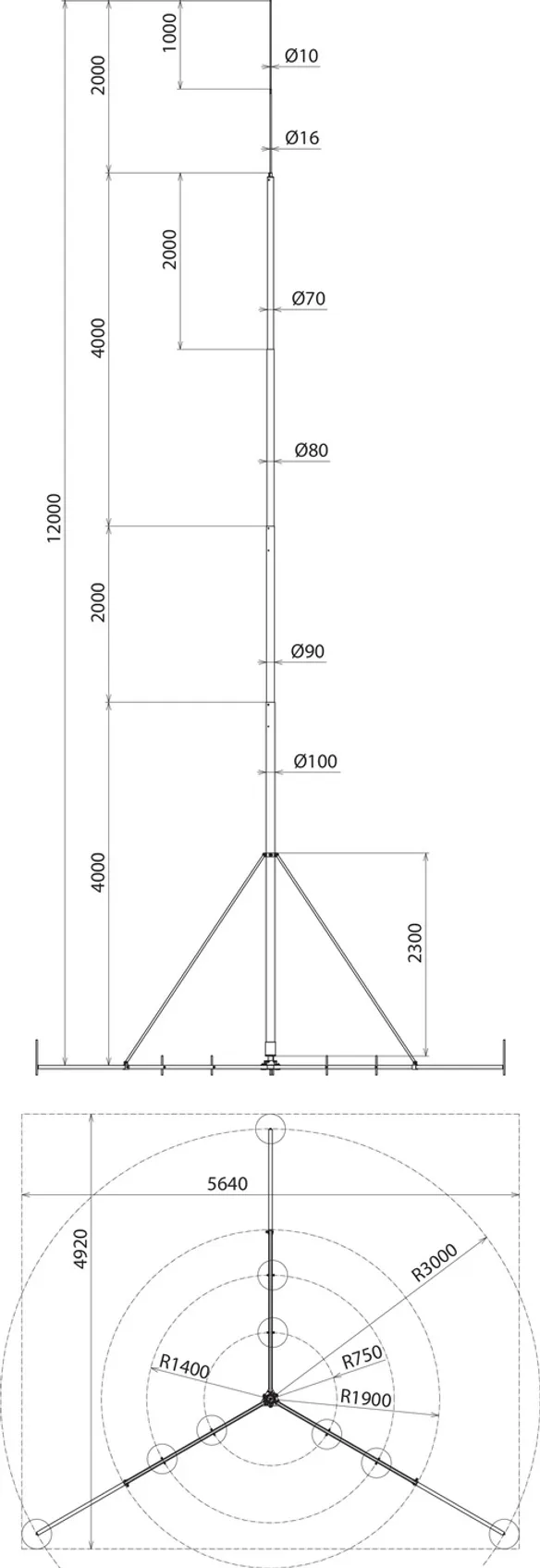

Self-supporting air-termination rod height 12m
Self-supporting air-termination rod 12 m with hinged tripod for protecting larger roof-mounted structures
or for erection on compacted ground without foundation works. Adjustable to a roof inclination up to max. 5°.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 175 km/h.
The stackable concrete block (Part No. 102 010) and the base plate (Part No. 102 050) have to be ordered separately.
Height: 12000 mm
Radius: 3000 mm
Max. gust wind speed for 18 bases, 17 kg each: 134 km/h
Max. gust wind speed for 21 bases, 17 kg each: 159 km/h
Max. gust wind speed for 24 bases, 17 kg each: 175 km/h
Space required for tripod: 4920 x 5640 mm
Material of tripod: St/tZn
Material of air-termination mast /air-termination rod: Al
Standard: EN 62561-(1+2)
Surface load with 18 bases, 17 kg each: approx. 420 kg
Surface load with 21 bases, 17 kg each: approx. 475 kg
Surface load with 24 bases, 17 kg each: approx. 525 kg

Brand: DEHN
Type: FS D100 10 12M AL DBS STTZN
Part No.: 105922
or equivalent.

Certificates



Technical data

Height 12000 mm
Radius 3000 mm
Max. gust wind speed for 18 bases, 17 kg each 134 km/h
Max. gust wind speed for 21 bases, 17 kg each 159 km/h
Max. gust wind speed for 24 bases, 17 kg each 175 km/h
Space required for tripod 4920 x 5640 mm
Material of tripod St/tZn
Material of air-termination mast /air-termination rod Al
Standard EN 62561-(1+2)
Surface load with 18 bases, 17 kg each approx. 420 kg
Surface load with 21 bases, 17 kg each approx. 475 kg
Surface load with 24 bases, 17 kg each approx. 525 kg

Product 105922 was added to Notepad.

Go to Notepad

Product 105922 was added to the cart.

Go to Web-Shop

Free height 13 m

1 Product

Part No. 105923 FS D100 10 13M AL DBS STTZN

GTIN 4013364242081, Customs tariff No. (EU): 85389099, Gross weight: 98.42 kg, PU: 1.00 Stk

Images

Additional information

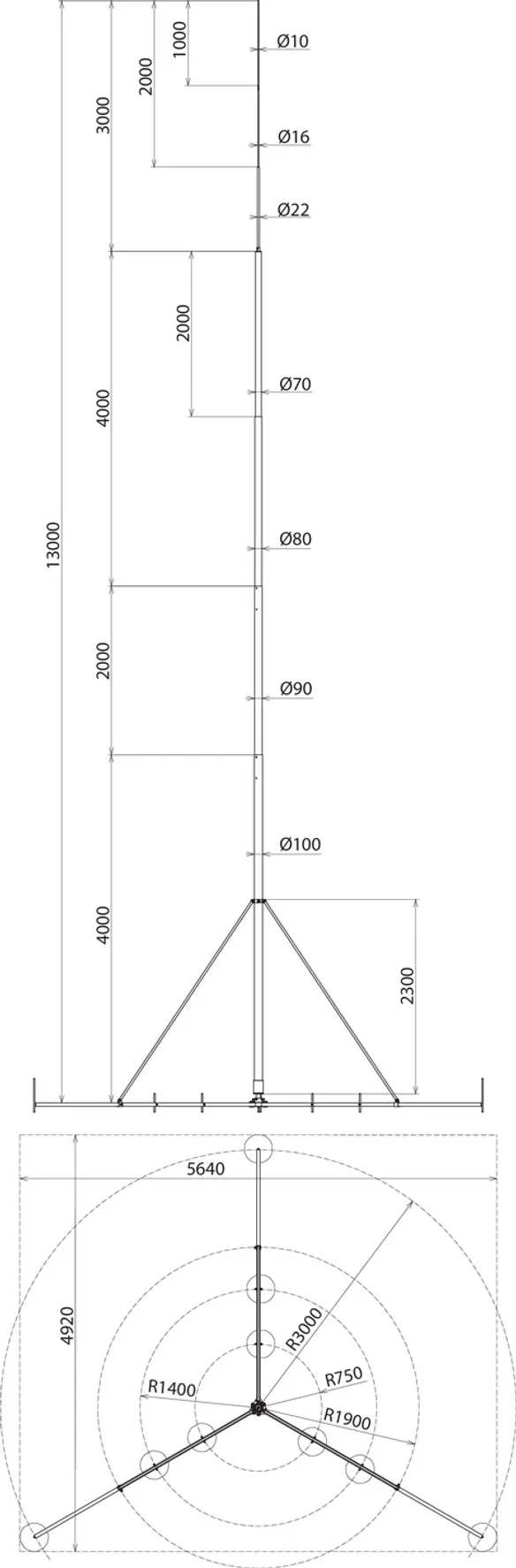

Self-supporting air-termination rod height 13m
Self-supporting air-termination rod 13 m with hinged tripod for protecting larger roof-mounted structures
or for erection on compacted ground without foundation works. Adjustable to the roof inclination up to max. 5°.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 162 km/h.
The stackable concrete block (Part No. 102 010) and the base plate (Part No. 102 050) have to be ordered separately.
Height: 13000 mm
Radius: 3000 mm
Max. gust wind speed for 18 bases, 17 kg each: 130 km/h
Max. gust wind speed for 21 bases, 17 kg each: 150 km/h
Max. gust wind speed for 24 bases, 17 kg each: 162 km/h
Space required for tripod: 4920 x 5640 mm
Material of tripod: St/tZn
Material of air-termination mast /air-termination rod: Al
Standard: EN 62561-(1+2)
Surface load with 18 bases, 17 kg each: approx. 421 kg
Surface load with 21 bases, 17 kg each: approx. 476 kg
Surface load with 24 bases, 17 kg each: approx. 526 kg

Brand: DEHN
Type: FS D100 10 13M AL DBS STTZN
Part No.: 105923
or equivalent.

Certificates



Technical data

Height 13000 mm
Radius 3000 mm
Max. gust wind speed for 18 bases, 17 kg each 130 km/h
Max. gust wind speed for 21 bases, 17 kg each 150 km/h
Max. gust wind speed for 24 bases, 17 kg each 162 km/h
Space required for tripod 4920 x 5640 mm
Material of tripod St/tZn
Material of air-termination mast /air-termination rod Al
Standard EN 62561-(1+2)
Surface load with 18 bases, 17 kg each approx. 421 kg
Surface load with 21 bases, 17 kg each approx. 476 kg
Surface load with 24 bases, 17 kg each approx. 526 kg

Product 105923 was added to Notepad.

Go to Notepad

Product 105923 was added to the cart.

Go to Web-Shop

Free height 14 m

1 Product

Part No. 105924 FS D100 10 14M AL DBS STTZN

GTIN 4013364242104, Customs tariff No. (EU): 85389099, Gross weight: 103.42 kg, PU: 1.00 Stk

Predecessor

Images

Additional information

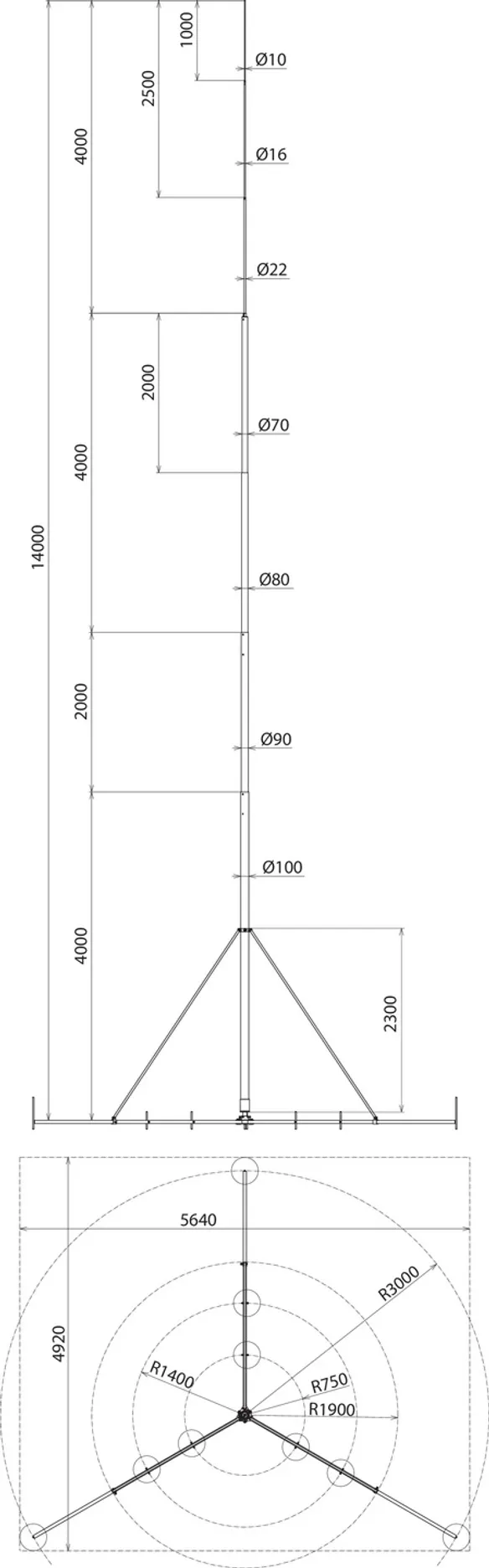

Self-supporting air-termination rod height 14m
Self-supporting air-termination rod 14 m with hinged tripod for protecting larger roof-mounted structures
or for erection on compacted ground without foundation works. Adjustable to the roof inclination up to max. 5°.
The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 139 km/h.
The stackable concrete base (Part No. 102 010) and base plate (Part No. 102 050) have to be ordered separately.
Height: 14000 mm
Radius: 3000 mm
Max. gust wind speed for 18 bases, 17 kg each: 121 km/h
Max. gust wind speed for 21 bases, 17 kg each: 135 km/h
Max. gust wind speed for 24 bases, 17 kg each: 139 km/h
Space required for tripod: 4920 x 5640 mm
Material of tripod: St/tZn
Material of air-termination mast /air-termination rod: Al
Standard: EN 62561-(1+2)
Surface load with 18 bases, 17 kg each: approx. 430 kg
Surface load with 21 bases, 17 kg each: approx. 481 kg
Surface load with 24 bases, 17 kg each: approx. 532 kg

Brand: DEHN
Type: FS D100 10 14M AL DBS STTZN
Part No.: 105924
or equivalent.

Certificates



Technical data

Height 14000 mm
Radius 3000 mm
Max. gust wind speed for 18 bases, 17 kg each 121 km/h
Max. gust wind speed for 21 bases, 17 kg each 135 km/h
Max. gust wind speed for 24 bases, 17 kg each 139 km/h
Space required for tripod 4920 x 5640 mm
Material of tripod St/tZn
Material of air-termination mast /air-termination rod Al
Standard EN 62561-(1+2)
Surface load with 18 bases, 17 kg each approx. 430 kg
Surface load with 21 bases, 17 kg each approx. 481 kg
Surface load with 24 bases, 17 kg each approx. 532 kg
