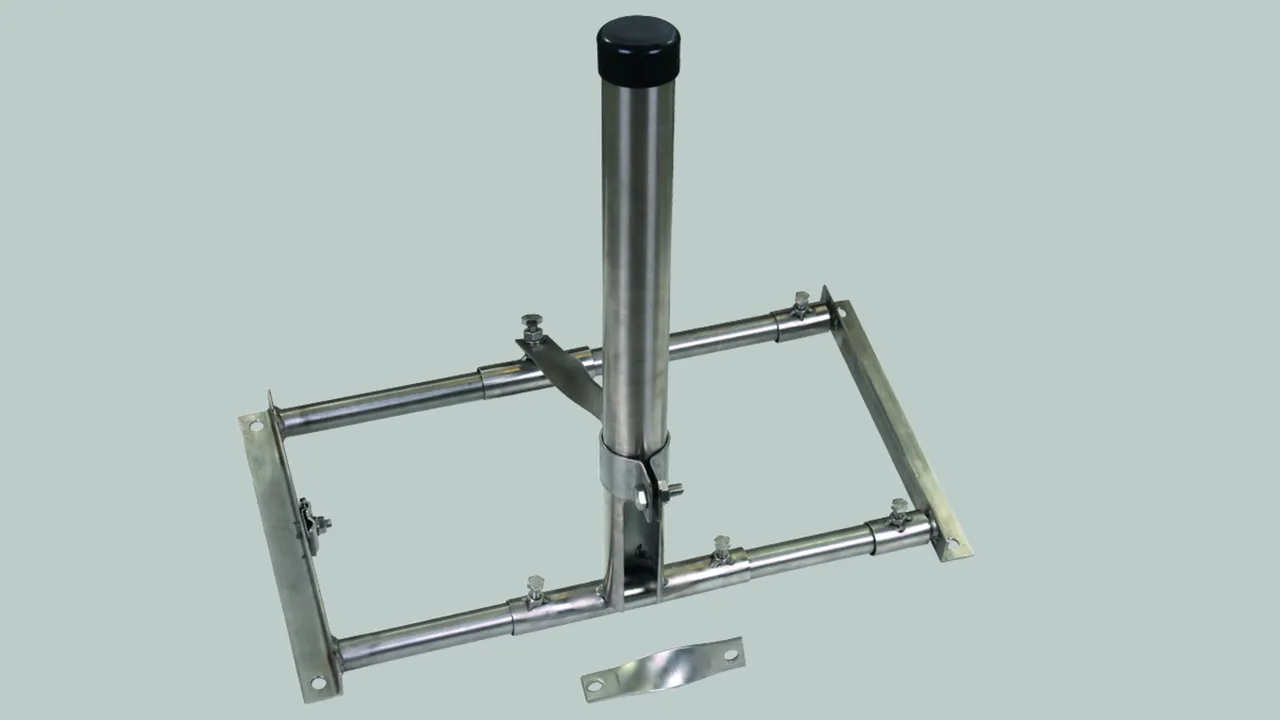

Mounting Bracket for Air-Termination Systems on Metal Roofs

Mounting bracket (StSt) for installing HVI air-termination systems or air-termination rods on metal roofs:

Mounting bracket for vertical mounting of air-termination systems on metal roofs with an inclination of max. 53°.

For fixing air-termination rods D40 in place and mounting DEHNcon-H systems, e.g. Part No. 819 243 or 819 247, with the conductor inside the supporting tube.

Note: Mounting conditions on site must be clarified with the constructor.

Further information

Similar topics

1 Product

Part No. 105241 MDH D48 VB550.900 V2A

GTIN 4013364361225, Customs tariff No. (EU): 73089098, Gross weight: 5.26 kg, PU: 1.00 Stk

Images

Additional information

Mounting bracket (StSt) for air-termination systems on metal roofs
Mounting bracket for vertical installation of
HVI air-termination systems or air-termination rods
Material: StSt
Adjustment range: 550-900 mm
Roof inclination: 5-53°

Brand: DEHN
Type: MDH D48 VB550.900 V2A
Part No.: 105241
or equivalent.



Technical data

Material StSt
Adjustment range 550-900 mm
Roof inclination 5-53°
Standard EN 62561-1
