Protective Spark Gap

  • For indirect connection of an overhead line roof pole to the external lightning protection system
  • Corrosion-resistant stainless steel connections

DSFS

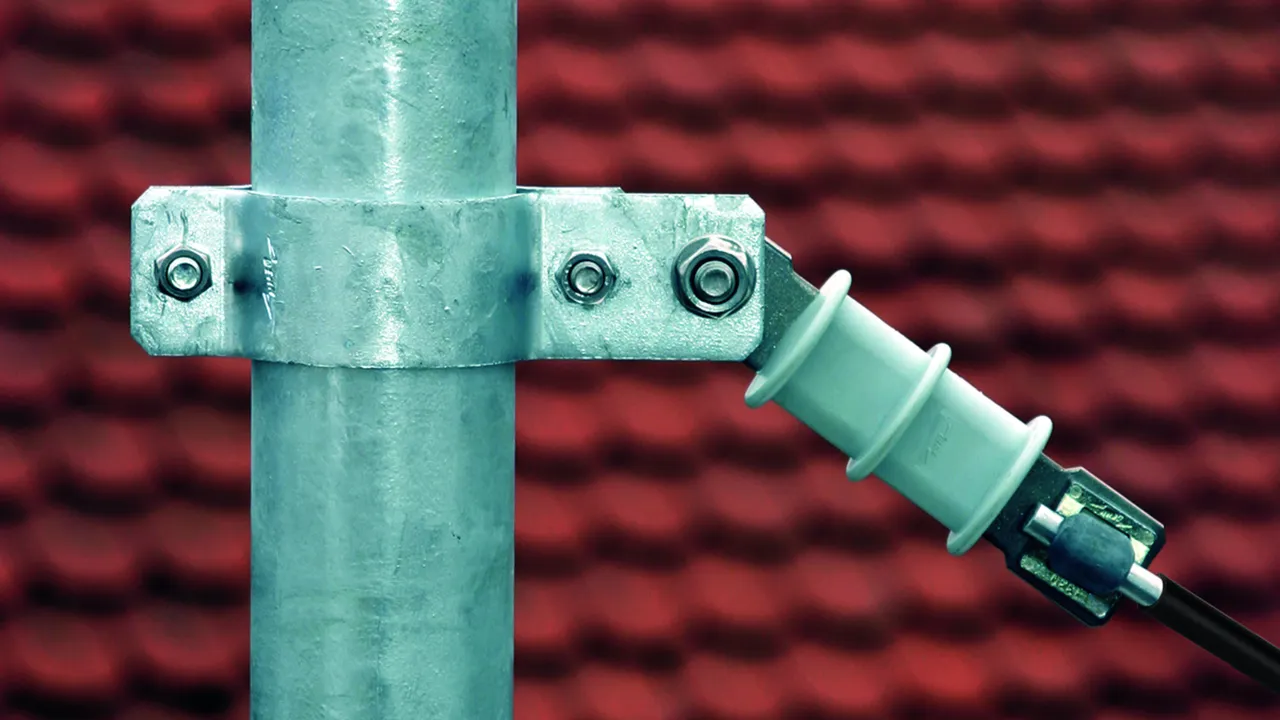

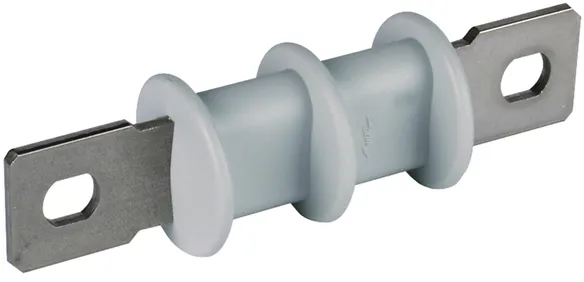

Plastic-insulated protective spark gap for indirect connection of an overhead line roof pole to the external lightning protection system.

1 Product

Part No. 920000 DSFS

GTIN 4013364057494, Customs tariff No. (EU): 85369095, Gross weight: 127.00 g, PU: 1.00 Stk

Images

Additional information



Brand: DEHN
Type: DSFS
Part No.: 920000
or equivalent.



Technical data

100% lightning impulse sparkover voltage (1.2/50 µs) (Urimp ) ~ 25 kV
Nominal discharge current (8/20 µs) (In ) 25 kA
Power frequency sparkover voltage (50 Hz) (Uaw ) ~ 10 kV
