Part No. 783003 PHE4 3 S

GTIN 4013364310179, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783003 was added to Notepad.

Go to Notepad

Product 783003 was added to the cart.

Go to Web-Shop

Part No. 783006 PHE4 6 S

GTIN 4013364310155, Customs tariff No. (EU): 90303370, Gross weight: 2.19 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783006 was added to Notepad.

Go to Notepad

Product 783006 was added to the cart.

Go to Web-Shop

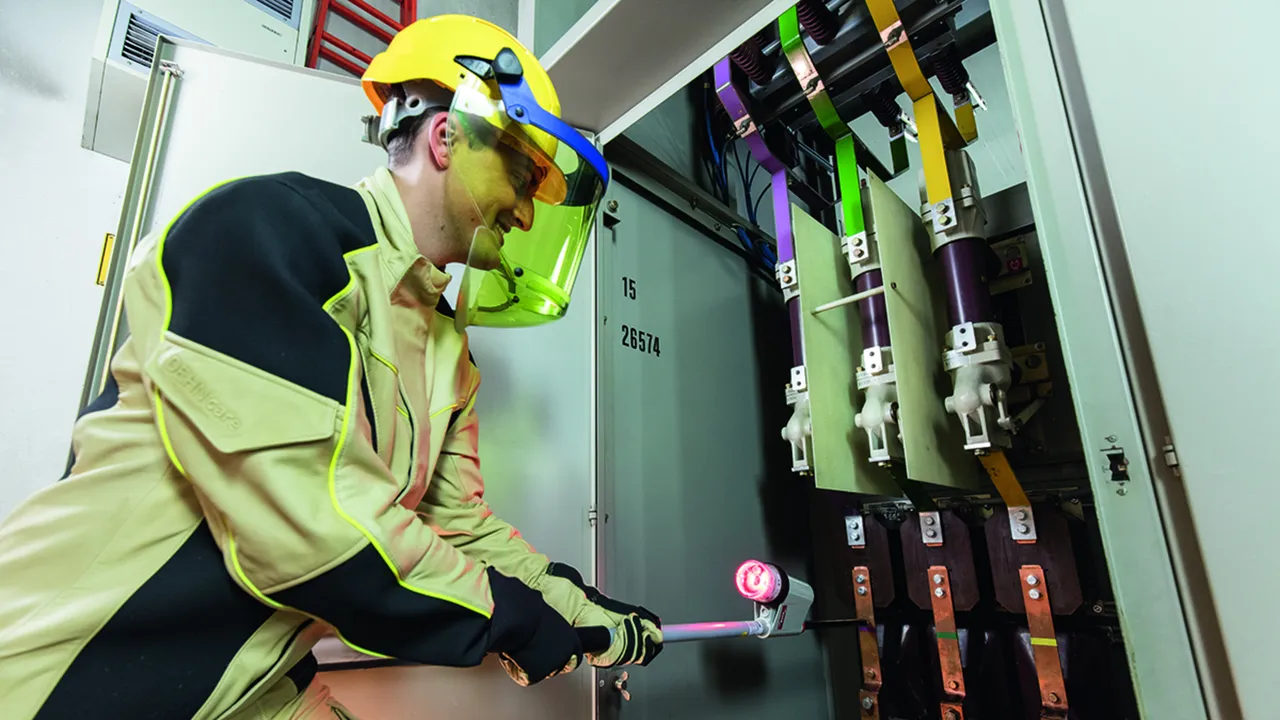

Part No. 783010 PHE4 10 S

GTIN 4013364297869, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783010 was added to Notepad.

Go to Notepad

Product 783010 was added to the cart.

Go to Web-Shop

Part No. 783020 PHE4 20 S

GTIN 4013364310124, Customs tariff No. (EU): 90303370, Gross weight: 2.27 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 kV
Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783020 was added to Notepad.

Go to Notepad

Product 783020 was added to the cart.

Go to Web-Shop

Part No. 783030 PHE4 30 S

GTIN 4013364310100, Customs tariff No. (EU): 90303370, Gross weight: 2.75 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783030 was added to Notepad.

Go to Notepad

Product 783030 was added to the cart.

Go to Web-Shop

Part No. 783013 PHE4 1 3 S

GTIN 4013364310186, Customs tariff No. (EU): 90303370, Gross weight: 2.60 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	1 ... 3 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	1 ... 3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783013 was added to Notepad.

Go to Notepad

Product 783013 was added to the cart.

Go to Web-Shop

Part No. 783231 PHE4 3 10 S

GTIN 4013364310087, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783231 was added to Notepad.

Go to Notepad

Product 783231 was added to the cart.

Go to Web-Shop

Part No. 783235 PHE4 6 20 S

GTIN 4013364310049, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783235 was added to Notepad.

Go to Notepad

Product 783235 was added to the cart.

Go to Web-Shop

Part No. 783240 PHE4 10 20 S

GTIN 4013364310056, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 20 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783240 was added to Notepad.

Go to Notepad

Product 783240 was added to the cart.

Go to Web-Shop

Part No. 783250 PHE4 10 30 S

GTIN 4013364309999, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783250 was added to Notepad.

Go to Notepad

Product 783250 was added to the cart.

Go to Web-Shop

Part No. 783245 PHE4 20 36 S

GTIN 4013364310032, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 ... 36 kV
Type of voltage	AC
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Cu alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783245 was added to Notepad.

Go to Notepad

Product 783245 was added to the cart.

Go to Web-Shop

Part No. 783520 PHE4 U 2 20 S

GTIN 4013364309913, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	2 ... 6 / 6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	2 ... 6 / 6 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783520 was added to Notepad.

Go to Notepad

Product 783520 was added to the cart.

Go to Web-Shop

Part No. 783530 PHE4 U 3 30 S

GTIN 4013364309968, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783530 was added to Notepad.

Go to Notepad

Product 783530 was added to the cart.

Go to Web-Shop

Part No. 783536 PHE4 U 6 36 S

GTIN 4013364309944, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 15 / 15 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 15 / 15 ... 36 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783536 was added to Notepad.

Go to Notepad

Product 783536 was added to the cart.

Go to Web-Shop

Part No. 783103 PHE4 3 S ZK

GTIN 4013364317277, Customs tariff No. (EU): 90303370, Gross weight: 2.19 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 kV
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783103 was added to Notepad.

Go to Notepad

Product 783103 was added to the cart.

Go to Web-Shop

Part No. 783106 PHE4 6 S ZK

GTIN 4013364317260, Customs tariff No. (EU): 90303370, Gross weight: 2.19 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 kV
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783106 was added to Notepad.

Go to Notepad

Product 783106 was added to the cart.

Go to Web-Shop

Part No. 783110 PHE4 10 S ZK

GTIN 4013364317253, Customs tariff No. (EU): 90303370, Gross weight: 2.19 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 kV
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1070 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783110 was added to Notepad.

Go to Notepad

Product 783110 was added to the cart.

Go to Web-Shop

Part No. 783120 PHE4 20 S ZK

GTIN 4013364317246, Customs tariff No. (EU): 90303370, Gross weight: 2.27 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 kV
Total length (l_G )	1240 mm
Insertion depth (l_O )	400 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1240 mm
Insertion depth (l_O )	400 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783120 was added to Notepad.

Go to Notepad

Product 783120 was added to the cart.

Go to Web-Shop

Part No. 783130 PHE4 30 S ZK

GTIN 4013364317239, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	30 kV
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783130 was added to Notepad.

Go to Notepad

Product 783130 was added to the cart.

Go to Web-Shop

Part No. 783141 PHE4 3 10 S ZK

GTIN 4013364317222, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1450 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1450 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783141 was added to Notepad.

Go to Notepad

Product 783141 was added to the cart.

Go to Web-Shop

Part No. 783151 PHE4 6 20 S ZK

GTIN 4013364317215, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1640 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1640 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783151 was added to Notepad.

Go to Notepad

Product 783151 was added to the cart.

Go to Web-Shop

Part No. 783161 PHE4 10 30 S ZK

GTIN 4013364317208, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1760 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783161 was added to Notepad.

Go to Notepad

Product 783161 was added to the cart.

Go to Web-Shop

Part No. 783332 PHE4 3 10 S 60

GTIN 4013364310070, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783332 was added to Notepad.

Go to Notepad

Product 783332 was added to the cart.

Go to Web-Shop

Part No. 783335 PHE4 6 20 S 60

GTIN 4013364310001, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783335 was added to Notepad.

Go to Notepad

Product 783335 was added to the cart.

Go to Web-Shop

Part No. 783345 PHE4 10 30 S 60

GTIN 4013364309975, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783345 was added to Notepad.

Go to Notepad

Product 783345 was added to the cart.

Go to Web-Shop

Part No. 783342 PHE4 20 36 S 60

GTIN 4013364310025, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	20 ... 36 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783342 was added to Notepad.

Go to Notepad

Product 783342 was added to the cart.

Go to Web-Shop

Part No. 783395 PHE4 U 3 36 S 60

GTIN 4013364309951, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3 ... 10 / 12 ... 36 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3 ... 10 / 12 ... 36 kV
Type of voltage	a.c.
Frequency	60 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783395 was added to Notepad.

Go to Notepad

Product 783395 was added to the cart.

Go to Web-Shop

Part No. 783430 PHE4 U 6 20 S 16.7 50

GTIN 4013364309906, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	50 / 16.7 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783430 was added to Notepad.

Go to Notepad

Product 783430 was added to the cart.

Go to Web-Shop

Part No. 783420 PHE4 6 20 S 16.7

GTIN 4013364309890, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783420 was added to Notepad.

Go to Notepad

Product 783420 was added to the cart.

Go to Web-Shop

PHE4 Voltage Detector Medium Voltage

Nominal Voltages up to 30 kV / 50 Hz, M12 Thread

Part No. 783003 PHE4 3 S

Product 783003 was added to Notepad.

Product 783003 was added to the cart.

Part No. 783006 PHE4 6 S

Product 783006 was added to Notepad.

Product 783006 was added to the cart.

Part No. 783010 PHE4 10 S

Product 783010 was added to Notepad.

Product 783010 was added to the cart.

Part No. 783020 PHE4 20 S

Product 783020 was added to Notepad.

Product 783020 was added to the cart.

Part No. 783030 PHE4 30 S

Product 783030 was added to Notepad.

Product 783030 was added to the cart.

Nominal Voltages up to 36 kV / 50 Hz, M12 Thread

Part No. 783013 PHE4 1 3 S

Product 783013 was added to Notepad.

Product 783013 was added to the cart.

Part No. 783231 PHE4 3 10 S

Product 783231 was added to Notepad.

Product 783231 was added to the cart.

Part No. 783235 PHE4 6 20 S

Product 783235 was added to Notepad.

Product 783235 was added to the cart.

Part No. 783240 PHE4 10 20 S

Product 783240 was added to Notepad.

Product 783240 was added to the cart.

Part No. 783250 PHE4 10 30 S

Product 783250 was added to Notepad.

Product 783250 was added to the cart.

Part No. 783245 PHE4 20 36 S

Product 783245 was added to Notepad.

Product 783245 was added to the cart.

Nominal Voltages up to 36 kV / 50 Hz, switchable, M12 Thread

Part No. 783520 PHE4 U 2 20 S

Product 783520 was added to Notepad.

Product 783520 was added to the cart.

Part No. 783530 PHE4 U 3 30 S

Product 783530 was added to Notepad.

Product 783530 was added to the cart.

Part No. 783536 PHE4 U 6 36 S

Product 783536 was added to Notepad.

Product 783536 was added to the cart.

Nominal Voltages up to 30 kV / 50 Hz, Gear Coupling

Part No. 783103 PHE4 3 S ZK

Product 783103 was added to Notepad.

Product 783103 was added to the cart.

Part No. 783106 PHE4 6 S ZK

Product 783106 was added to Notepad.

Product 783106 was added to the cart.

Part No. 783110 PHE4 10 S ZK

Product 783110 was added to Notepad.

Product 783110 was added to the cart.

Part No. 783120 PHE4 20 S ZK

Product 783120 was added to Notepad.

Product 783120 was added to the cart.

Part No. 783130 PHE4 30 S ZK

Product 783130 was added to Notepad.

Product 783130 was added to the cart.

Nominal Voltages up to bis 30 kV / 50 Hz, Gear Coupling

Part No. 783141 PHE4 3 10 S ZK

Product 783141 was added to Notepad.

Product 783141 was added to the cart.

Part No. 783151 PHE4 6 20 S ZK

Product 783151 was added to Notepad.

Product 783151 was added to the cart.

Part No. 783161 PHE4 10 30 S ZK

Product 783161 was added to Notepad.

Product 783161 was added to the cart.

Nominal Voltages up to 36 kV / 60 Hz, M12 Thread

Part No. 783332 PHE4 3 10 S 60

Product 783332 was added to Notepad.

Product 783332 was added to the cart.

Part No. 783335 PHE4 6 20 S 60

Product 783335 was added to Notepad.

Product 783335 was added to the cart.

Part No. 783345 PHE4 10 30 S 60
