Disconnector

  • Disconnects overloaded arresters from the supply
  • Prevents potential earth faults
  • Ensures faultless operation of medium-voltage systems
  • Spark gap/thermal effect principle
  • No ignition of a small explosive device
  • Maintenance-free

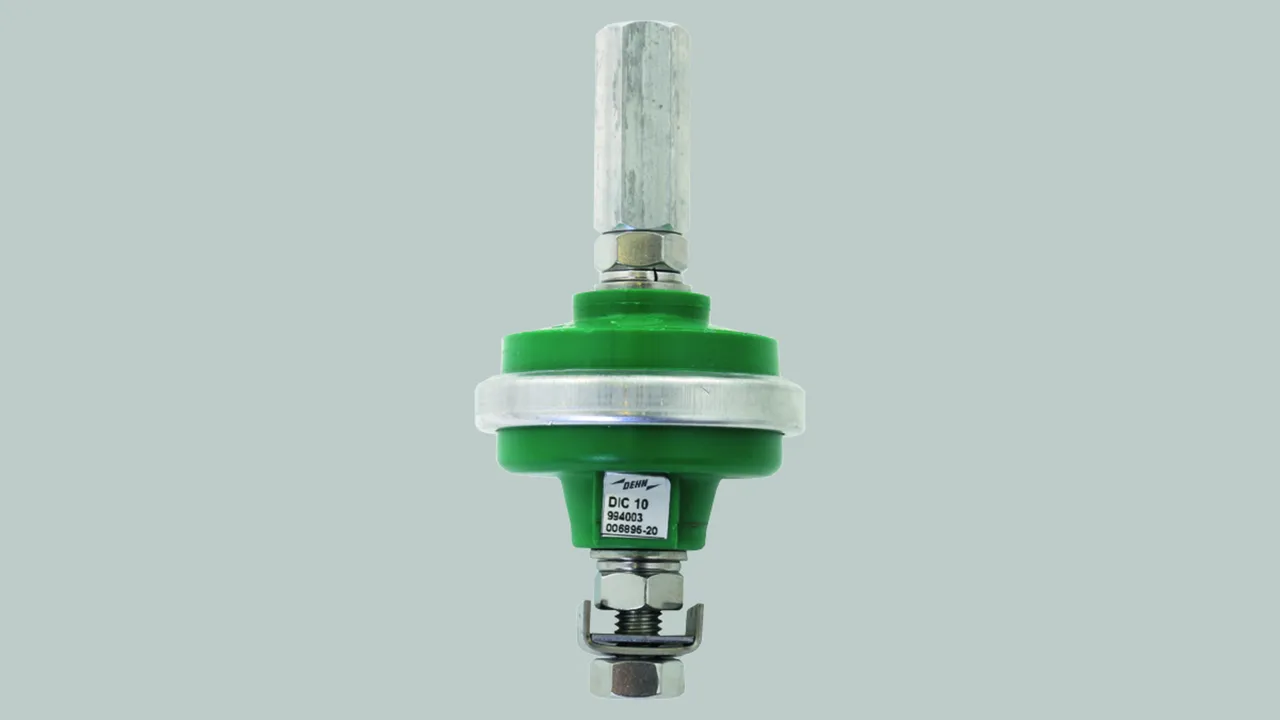

DIC 10: Disconnector for DEHNmid Surge Arresters

1 Product

Part No. 994003 DIC 10

GTIN 4013364103146, Customs tariff No. (EU): 85389099, Gross weight: 180.00 g, PU: 1.00 Stk


Images

Additional information

Disconnection unit for DEHNmid arrester DIC 10
Disconnection unit for DEHNmid arrester
to disconnect overloaded
DEHNmid arresters from the system
Ground-fault clearing
Spark gap/Thermo effect principle
Rated frequency: (48...62) Hz
Ambient temperature: (-40...+50) °C
Terminal bolt: M10
PE-enclosure: resistant to ultraviolet rays; green
Supply and mount

Brand: DEHN
Type: DIC 10
Part No.: 994003
or equivalent.



Technical data

Weight 0.18 kg
Ambient temperature (TU ) -40 °C ... +55 °C
Altitude 3000 m above sea level
Power frequency (fN ) 48-62 Hz
