Part No. 990301 DTR 1.2 10 3

GTIN 4013364103085, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

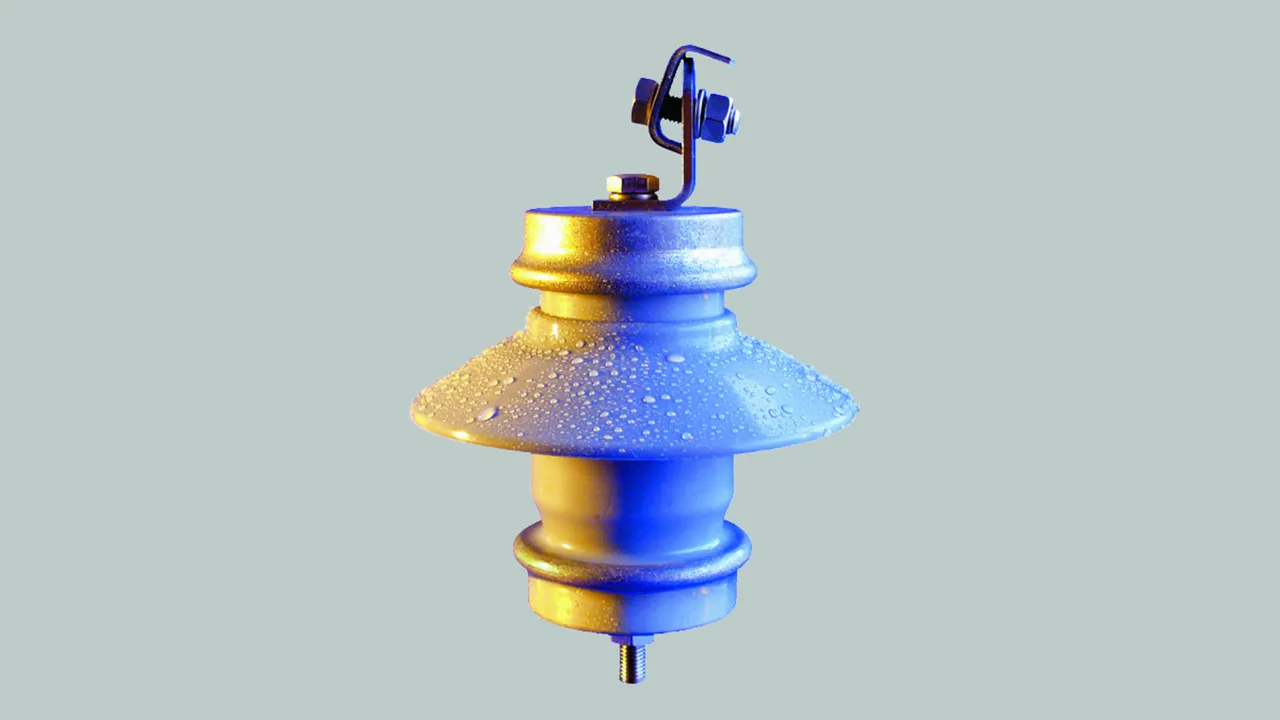

Surge arrester DTR 1.2 10 3
Surge arrester
for protection of dc networks and
rectifiers against atmospheric
and switching surges
according to IEC 99-4 / EN 60099-4
High temperature vulcanised (HTV), hydrophobic
silicon enclosure
Pregreg sheet
High bending resistance
Unbreakable at overloads
Rated voltage: Ur = 1.2 kV
Continuous operating voltage: Uc = 1 kV
Nominal discharge current: In = 10 kA (8/20)
Line discharge class: 3
Ambient temperature: (-55...+55) °C
Creepage distance: 230 mm
HTV-silicon enclosure:: h = 173 mm;
RAL 7040

Brand: DEHN
Type: DTR 1.2 10 3
Part No.: 990301
or equivalent.

Technical data

Rated voltage (d.c.) (U_r )	1.2 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	1.0 kV
Height (H)	173 mm
Creepage distance (+/- 5%)	230 mm

Nominal discharge current (8/20 µs) (I_n )	10 kA
High current impulse (4/10 µs)	100 kA
Long duration current impulse	1000 A / 2000 µs
Line discharge class	4 (10 kJ/kV_Ur)
Rated voltage (d.c.) (U_r )	1.2 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	1.0 kV
Residual voltage at 10 kA (1/2 µs) (û_res )	2.9 kV
Residual voltage at 5 kA (8/20 µs) (û_res )	2.5 kV
Residual voltage at 10 kA (8/20 µs) (û_res )	2.6 kV
Residual voltage at 20 kA (8/20 µs) (û_res )	2.9 kV
Residual voltage at 250 A (30/70 µs) (û_res )	2.1 kV
Residual voltage at 500 A (30/70 µs) (û_res )	2,2 kV
Residual voltage at 1000 A (30/70 µs) (û_res )	2.3 kV
Insulation of arrester housing / nominal power frequency withstand voltage (wet) (U_PFWL )	≥ 40 kV
Insulation of arrester housing / nominal switching withstand voltage (wet) (U_SIWL )	≥ 50 kV
Height (H)	173 mm
Weight (M)	3 kg
Creepage distance (+/- 5%)	230 mm
Mechanical shock resistance acc. to IEC 68 Part 2-29	15 g
Vibration resistance acc. to IEC 68 Part 2-6	3 g (10-500 Hz)
Ambient temperature (T_A )	-40 °C ... +55 °C
Housing material	silicone
Colour	grey, RAL 7040
Fittings	Al cast alloy
Connections	stainless steel terminals and screws

Product 990301 was added to Notepad.

Go to Notepad

Product 990301 was added to the cart.

Go to Web-Shop

Part No. 990302 DTR 2.4 10 3

GTIN 4013364103092, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Surge arrester DTR 2.4 10 3
Surge arrester
for protection of d.c. networks and
rectifiers against atmospheric
and switching surges
according to IEC 99-4 / EN 60099-4
High temperature vulcanised (HTV), hydrophobic
silicon enclosure
Pregreg sheet
High bending resistance
Unbreakable at overloads
Rated voltage: Ur = 2.4 kV
Continuous operating voltage: Uc = 2.0 kV
Nominal discharge current: In = 10 kA (8/20)
Line discharge class: 3
Ambient temperature: (-55...+55) °C
Creepage distance: 237 mm
HTV-silicon enclosure:: h = 180 mm;
RAL 7040

Brand: DEHN
Type: DTR 2.4 10 3
Part No.: 990302
or equivalent.

Technical data

Rated voltage (d.c.) (U_r )	2.4 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	2.0 kV
Height (H)	180 mm
Creepage distance (+/- 5%)	237 mm

Nominal discharge current (8/20 µs) (I_n )	10 kA
High current impulse (4/10 µs)	100 kA
Long duration current impulse	1000 A / 2000 µs
Line discharge class	4 (10 kJ/kV_Ur)
Rated voltage (d.c.) (U_r )	2.4 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	2.0 kV
Residual voltage at 10 kA (1/2 µs) (û_res )	5.5 kV
Residual voltage at 5 kA (8/20 µs) (û_res )	4.8 kV
Residual voltage at 10 kA (8/20 µs) (û_res )	5.0 kV
Residual voltage at 20 kA (8/20 µs) (û_res )	5.5 kV
Residual voltage at 250 A (30/70 µs) (û_res )	4.0 kV
Residual voltage at 500 A (30/70 µs) (û_res )	4.1 kV
Residual voltage at 1000 A (30/70 µs) (û_res )	4.2 kV
Insulation of arrester housing / nominal power frequency withstand voltage (wet) (U_PFWL )	≥ 40 kV
Insulation of arrester housing / nominal switching withstand voltage (wet) (U_SIWL )	≥ 50 kV
Height (H)	180 mm
Weight (M)	3 kg
Creepage distance (+/- 5%)	237 mm
Mechanical shock resistance acc. to IEC 68 Part 2-29	15 g
Vibration resistance acc. to IEC 68 Part 2-6	3 g (10-500 Hz)
Ambient temperature (T_A )	-40 °C ... +55 °C
Housing material	silicone
Colour	grey, RAL 7040
Fittings	Al cast alloy
Connections	stainless steel terminals and screws

Product 990302 was added to Notepad.

Go to Notepad

Product 990302 was added to the cart.

Go to Web-Shop

Part No. 990303 DTR 3.6 10 3

GTIN 4013364103108, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Surge arrester DTR 3.6 10 3
Surge arrester
for protection of dc networks and
rectifiers against atmospheric
and switching surges
according to IEC 99-4 / EN 60099-4
High temperature vulcanised (HTV), hydrophobic
silicon enclosure
Pregreg sheet
High bending resistance
Unbreakable at overloads
Rated voltage: Ur = 3.6 kV
Continuous operating voltage: Uc = 3.0 kV
Nominal discharge current: In = 10 kA (8/20)
Line discharge class: 3
Ambient temperature: (-55...+55) °C
Creepage distance: 244 mm
HTV-silicon enclosure:: h = 187 mm;
RAL 7040
Shock resistance: 15 g
according to DIN IEC 68 Part 2.29
Vibration resistance: 3 g (10-500 Hz)
according to DIN IEC 68 Part 2-6
Supply and mount

Brand: DEHN
Type: DTR 3.6 10 3
Part No.: 990303
or equivalent.

Technical data

Rated voltage (d.c.) (U_r )	3.6 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	3.0 kV
Height (H)	187 mm
Creepage distance (+/- 5%)	244 mm

Nominal discharge current (8/20 µs) (I_n )	10 kA
High current impulse (4/10 µs)	100 kA
Long duration current impulse	1000 A / 2000 µs
Line discharge class	4 (10 kJ/kV_Ur)
Rated voltage (d.c.) (U_r )	3.6 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	3.0 kV
Residual voltage at 10 kA (1/2 µs) (û_res )	8.3 kV
Residual voltage at 5 kA (8/20 µs) (û_res )	7.3 kV
Residual voltage at 10 kA (8/20 µs) (û_res )	7.6 kV
Residual voltage at 20 kA (8/20 µs) (û_res )	8.3 kV
Residual voltage at 250 A (30/70 µs) (û_res )	6.1 kV
Residual voltage at 500 A (30/70 µs) (û_res )	6.2 kV
Residual voltage at 1000 A (30/70 µs) (û_res )	6.4 kV
Insulation of arrester housing / nominal power frequency withstand voltage (wet) (U_PFWL )	≥ 40 kV
Insulation of arrester housing / nominal switching withstand voltage (wet) (U_SIWL )	≥ 50 kV
Height (H)	187 mm
Weight (M)	3 kg
Creepage distance (+/- 5%)	244 mm
Mechanical shock resistance acc. to IEC 68 Part 2-29	15 g
Vibration resistance acc. to IEC 68 Part 2-6	3 g (10-500 Hz)
Ambient temperature (T_A )	-40 °C ... +55 °C
Housing material	silicone
Colour	grey, RAL 7040
Fittings	Al cast alloy
Connections	stainless steel terminals and screws

Product 990303 was added to Notepad.

Go to Notepad

Product 990303 was added to the cart.

Go to Web-Shop

Part No. 990304 DTR 4.8 10 3

GTIN 4013364103115, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

Surge arrester DTR 4.8 10 3
Surge arrester
for protection of dc systems and
rectifiers against atmospheric
and switching surges
according to IEC 99-4 / EN 60099-4
High temperature vulcanised (HTV), hydrophobic
silicon enclosure
Pregreg sheet
High bending resistance
Unbreakable at overloads
Rated voltage: Ur = 4.8 kV
Continuous operating voltage: Uc = 4.0 kV
Nominal discharge current: In = 10 kA (8/20)
Line discharge class: 3
Ambient temperature: (-55...+55) °C
Creepage distance: 250 mm
HTV-silicon enclosure:: h = 193 mm;
RAL 7040

Brand: DEHN
Type: DTR 4.8 10 3
Part No.: 990304
or equivalent.

Technical data

Rated voltage (d.c.) (U_r )	4.8 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	4.0 kV
Height (H)	193 mm
Creepage distance (+/- 5%)	250 mm

Nominal discharge current (8/20 µs) (I_n )	10 kA
High current impulse (4/10 µs)	100 kA
Long duration current impulse	1000 A / 2000 µs
Line discharge class	4 (10 kJ/kV_Ur)
Rated voltage (d.c.) (U_r )	4.8 kV
Continuous operating voltage (d.c.) (MCOV) (U_C )	4.0 kV
Residual voltage at 10 kA (1/2 µs) (û_res )	10.9 kV
Residual voltage at 5 kA (8/20 µs) (û_res )	9.5 kV
Residual voltage at 10 kA (8/20 µs) (û_res )	10.0 kV
Residual voltage at 20 kA (8/20 µs) (û_res )	10.9 kV
Residual voltage at 250 A (30/70 µs) (û_res )	7.9 kV
Residual voltage at 500 A (30/70 µs) (û_res )	8.1 kV
Residual voltage at 1000 A (30/70 µs) (û_res )	8.3 kV
Insulation of arrester housing / nominal power frequency withstand voltage (wet) (U_PFWL )	≥ 40 kV
Insulation of arrester housing / nominal switching withstand voltage (wet) (U_SIWL )	≥ 50 kV
Height (H)	193 mm
Weight (M)	3 kg
Creepage distance (+/- 5%)	250 mm
Mechanical shock resistance acc. to IEC 68 Part 2-29	15 g
Vibration resistance acc. to IEC 68 Part 2-6	3 g (10-500 Hz)
Ambient temperature (T_A )	-40 °C ... +55 °C
Housing material	silicone
Colour	grey, RAL 7040
Fittings	Al cast alloy
Connections	stainless steel terminals and screws

Product 990304 was added to Notepad.

Go to Notepad

Product 990304 was added to the cart.

Go to Web-Shop
