Two-pole SPN voltage detector for the electrical trade and industry

Direct display system with low stress on the test point
Switchable vibration motor

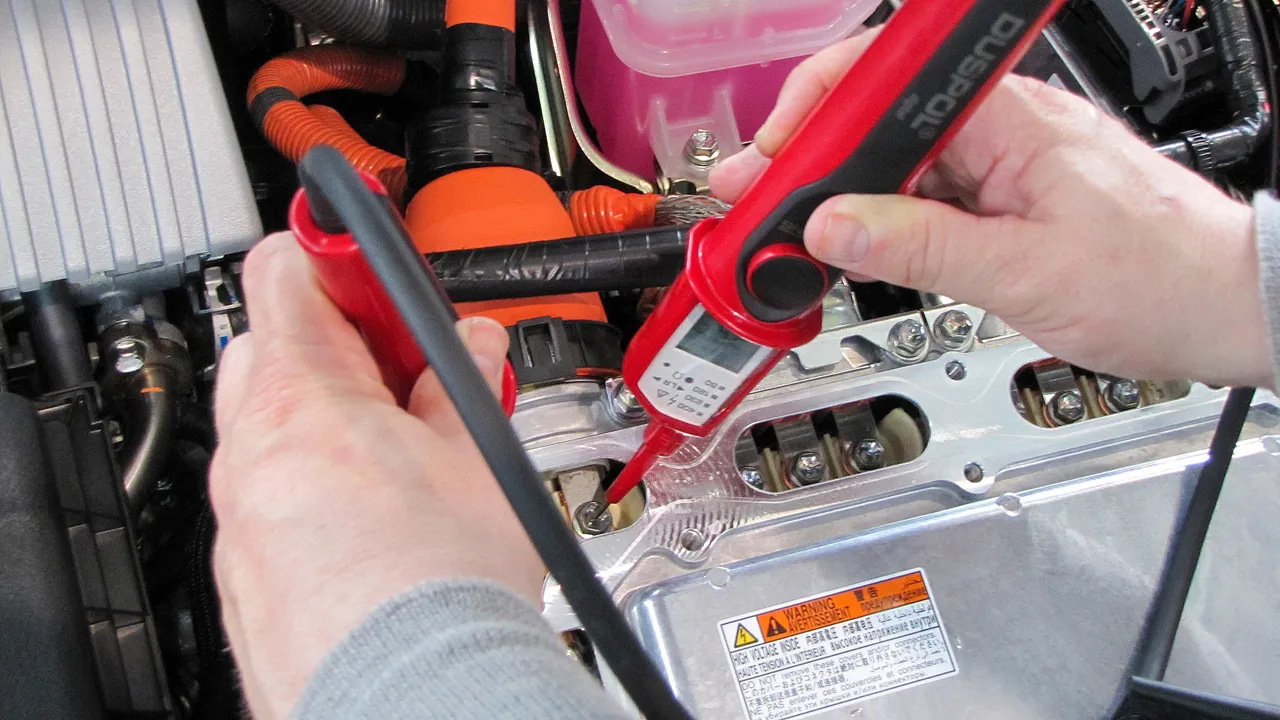

Ideal for voltage testing on photovoltaic and wind power plants; on hybrid vehicles; on high system voltages in industry; in service and in trades

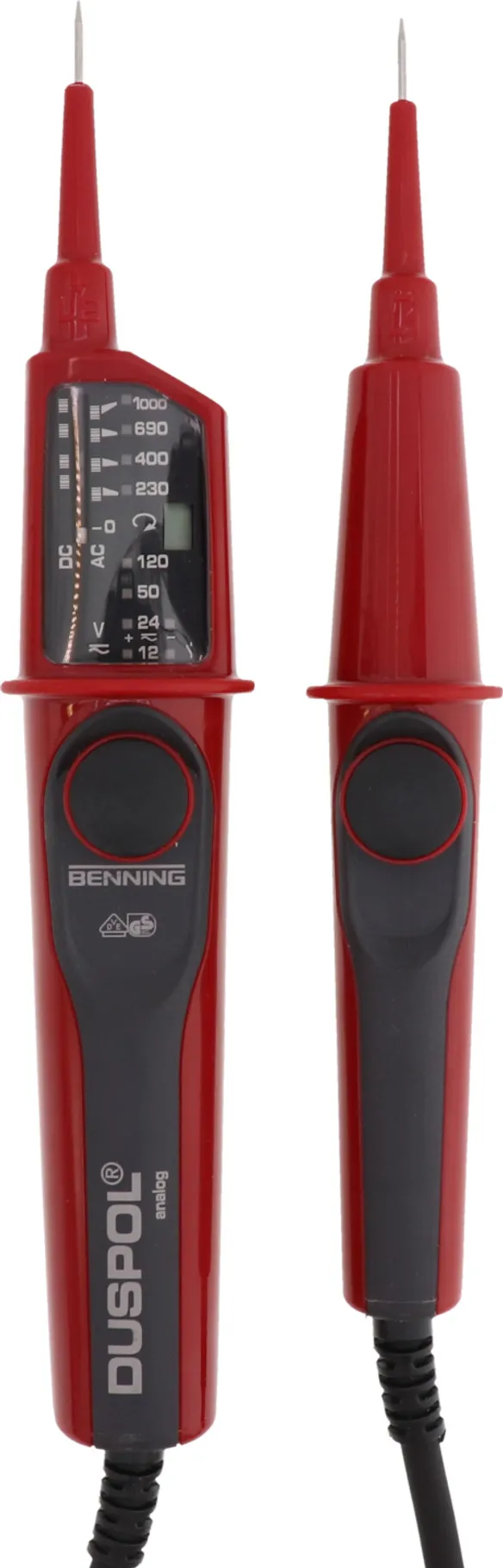

Nominal voltage range 12 to 1,000 V AC/DC, analogue

1 Product

Part No. 700100 SPN 1000 A

GTIN 4013364500280, Customs tariff No. (EU): 90303370, Gross weight: 371.84 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Indicator	Plunger coil (illuminated)/LED
Voltage range	12 V – 1000 V AC/DC
Frequency measurement range	–
Acoustic and visual continuity test	–
Diode test	–
Resistance measuring range	–
Rotating field test	LCD (R icon)
Single-pole line conductor test (phase)	LCD (R icon)
Polarity test	LED (+/-)
Cable break detector	–
Load switching via pushbutton	I_S = 550 mA (1000 V) 30 mA RCD trip
Vibration alarm	yes
Measuring point lighting	–

Indicator	Plunger coil (illuminated)/LED
Voltage range	12 V – 1000 V AC/DC
Frequency measurement range	–
Acoustic and visual continuity test	–
Diode test	–
Resistance measuring range	–
Rotating field test	LCD (R icon)
Single-pole line conductor test (phase)	LCD (R icon)
Polarity test	LED (+/-)
Cable break detector	–
Load switching via pushbutton	I_S = 550 mA (1000 V) 30 mA RCD trip
Vibration alarm	yes
Measuring point lighting	–

Product 700100 was added to Notepad.

Go to Notepad

Product 700100 was added to the cart.

Go to Web-Shop

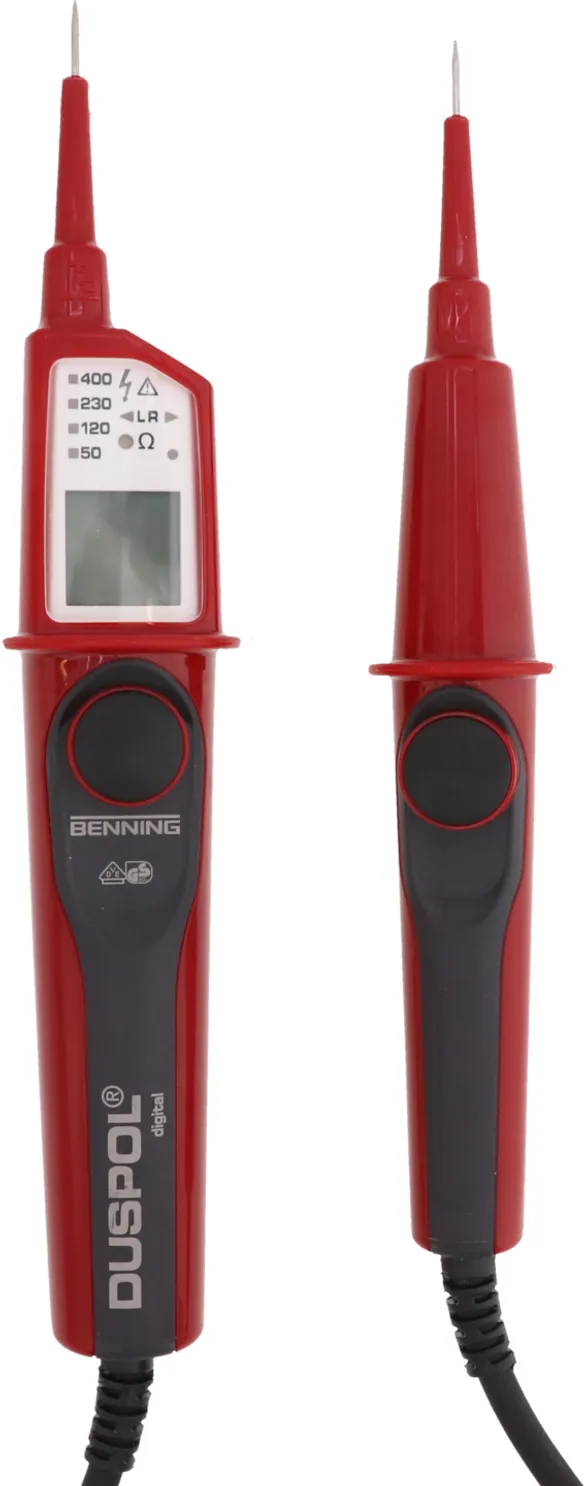

Nominal voltage range 1 to 1000 V AC / 1200 DC, digital

1 Product

Part No. 700102 SPN 1200 D

GTIN 4013364500297, Customs tariff No. (EU): 90303370, Gross weight: 400.25 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Indicator	LED/LCD (lights up)
Voltage range	1.0 V – 1000 V AC / 1200 V DC
Frequency measurement range	1 – 1000 Hz
Acoustic and visual continuity test	Buzzer + yellow LED 0 – 100 kΩ
Diode test	0.3 – 2.0 V
Resistance measuring range	0.1 kΩ – 300 kΩ
Rotating field test	Green LEDs (right/left)
Single-pole line conductor test (phase)	Red "flash" LED
Polarity test	LCD (+/-)
Cable break detector	Yellow LED (flashing)
Load switching via pushbutton	I_S = 550 mA (1000 V) 30 mA RCD trip
Vibration alarm	yes
Measuring point lighting	White LED

Indicator	LED/LCD (lights up)
Voltage range	1.0 V – 1000 V AC / 1200 V DC
Frequency measurement range	1 – 1000 Hz
Acoustic and visual continuity test	Buzzer + yellow LED 0 – 100 kΩ
Diode test	0.3 – 2.0 V
Resistance measuring range	0.1 kΩ – 300 kΩ
Rotating field test	Green LEDs (right/left)
Single-pole line conductor test (phase)	Red "flash" LED
Polarity test	LCD (+/-)
Cable break detector	Yellow LED (flashing)
Load switching via pushbutton	I_S = 550 mA (1000 V) 30 mA RCD trip
Vibration alarm	yes
Measuring point lighting	White LED
