HSA 194 High-Voltage Indicator

Easy and safe testing

For contactlessly verifying that switchgear and high-voltage overhead lines or centre-earthed monophase traction power lines are dead
Cost-effective / space-saving transport

Details

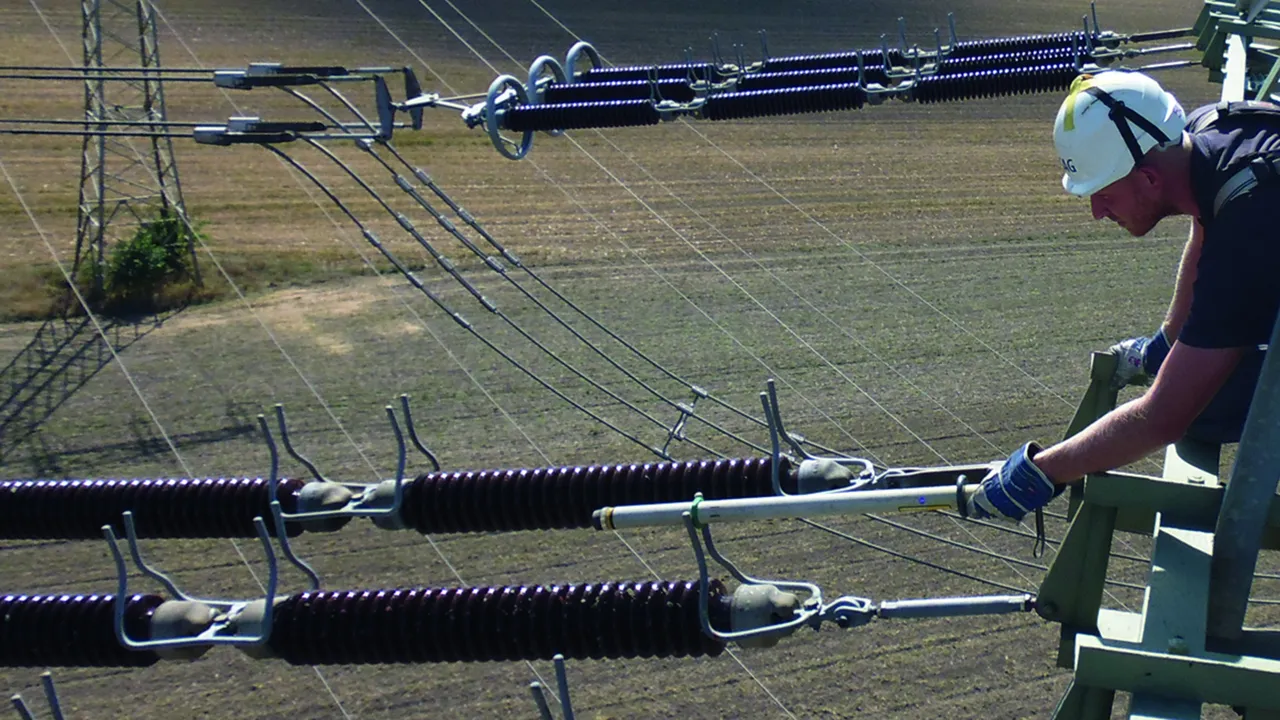

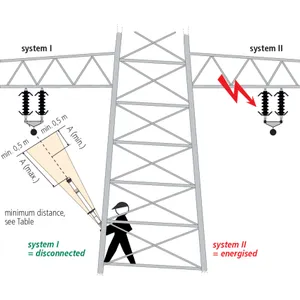

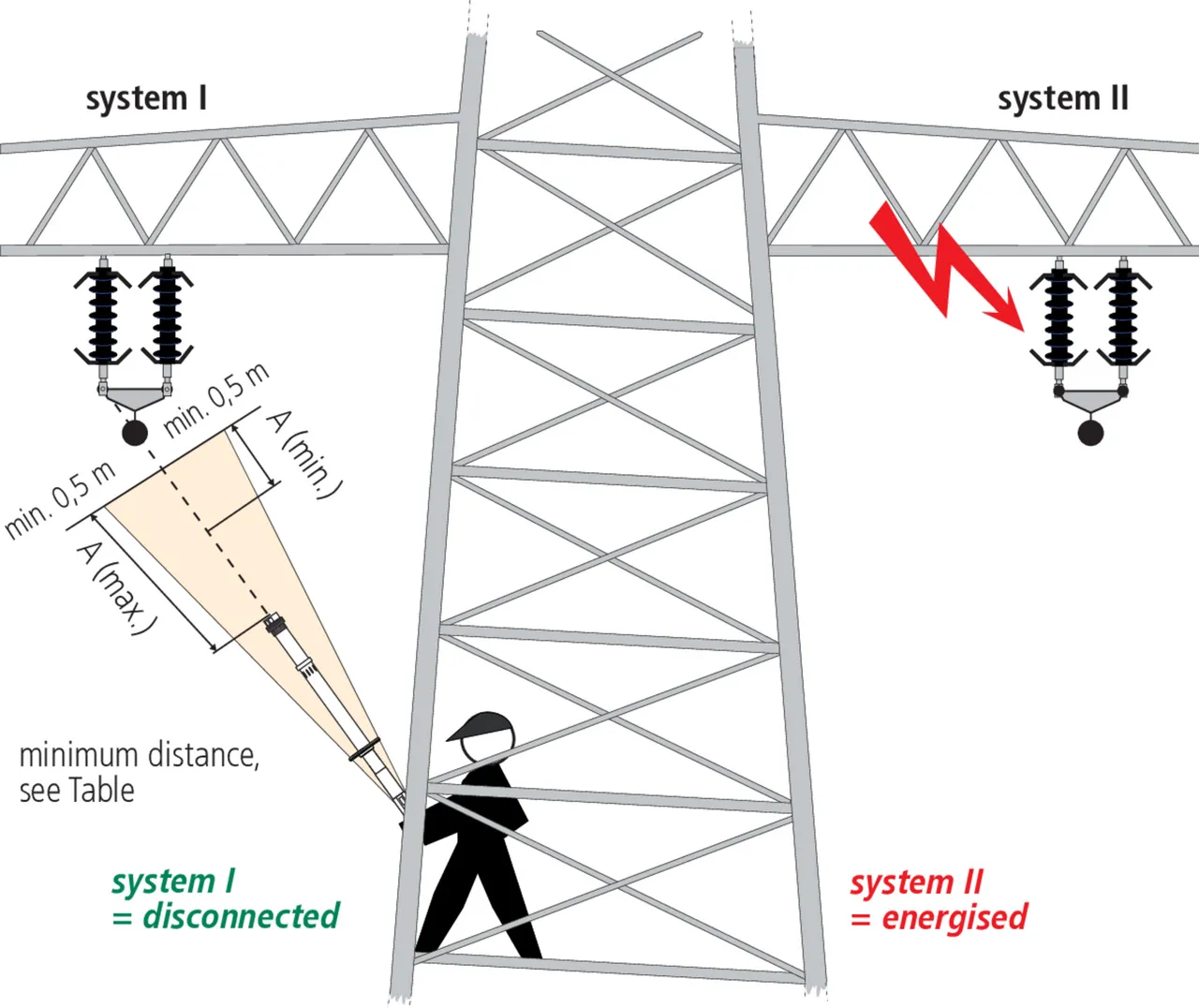

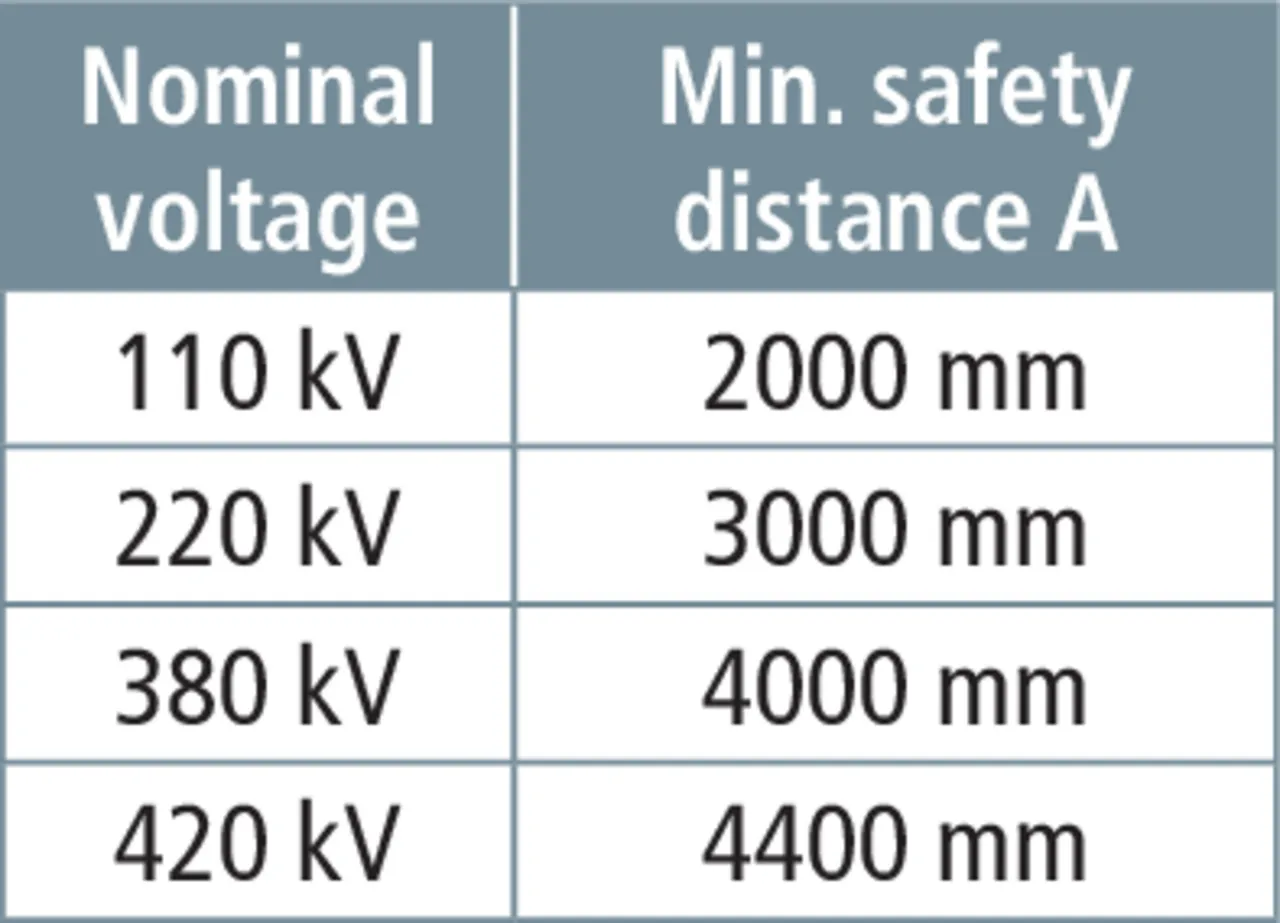

Figure 1: Example of application on the corner leg of a lattice tower with switch position "climbing check“ (only HSA 194 110 420 SN7737)

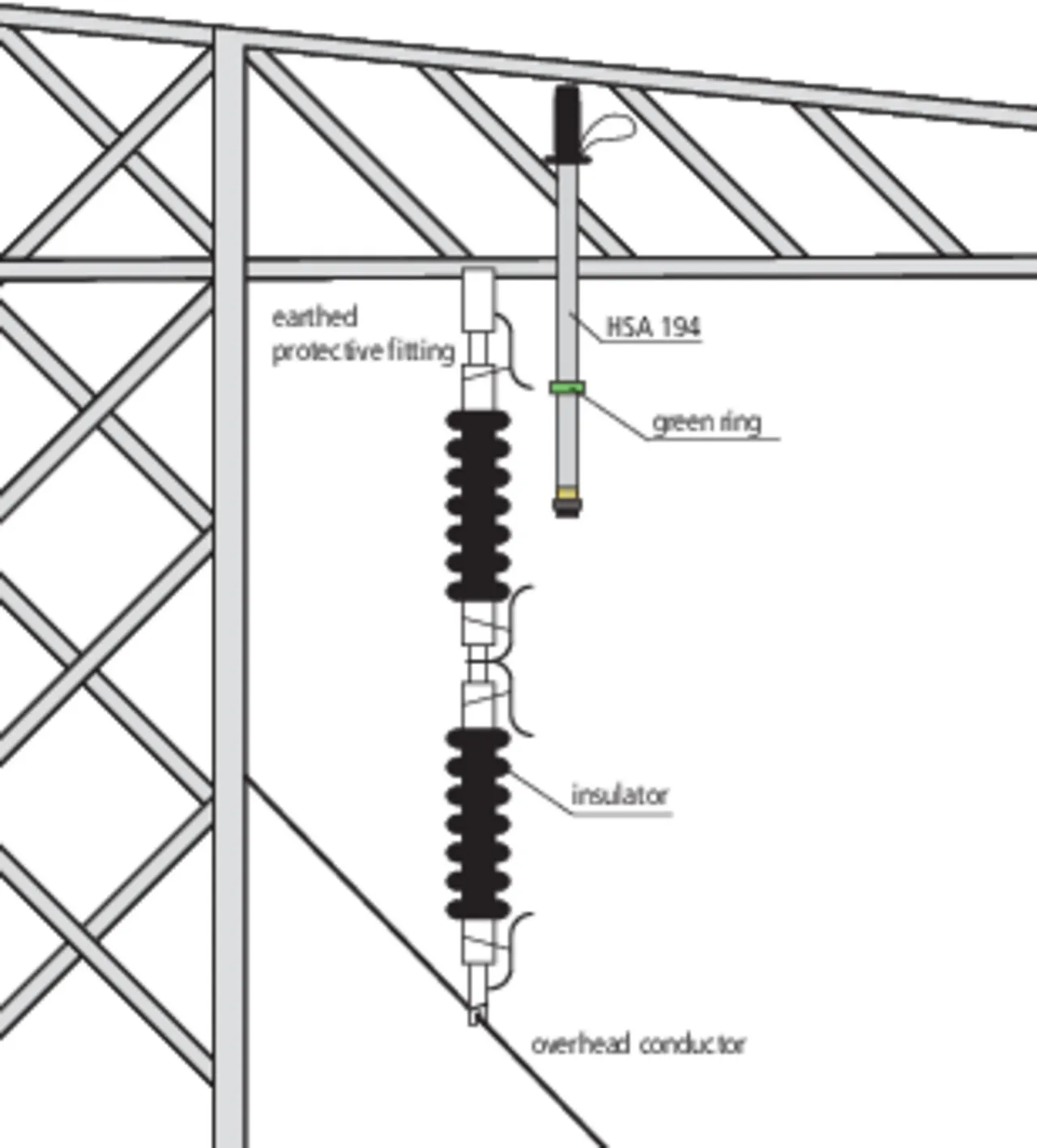

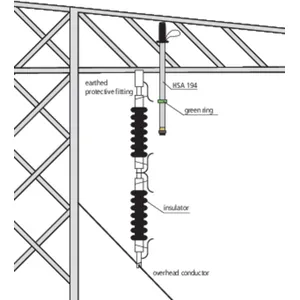

Figure 2: Example of application on the tower cross arm with switch position "110 ... 420 kV“

Nominal Voltage Range 110 ... 420 kV

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

2 Products

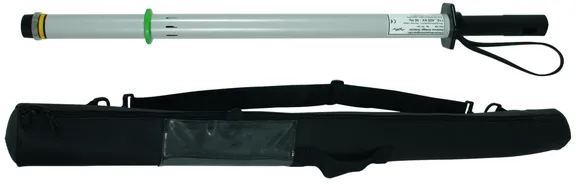

Part No. 767541 HSA194 110 420 STK

GTIN 4013364115712, Customs tariff No. (EU): 90303370, Gross weight: 1.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage range (U_N )	110 ... 420 kV
Frequency	50 Hz

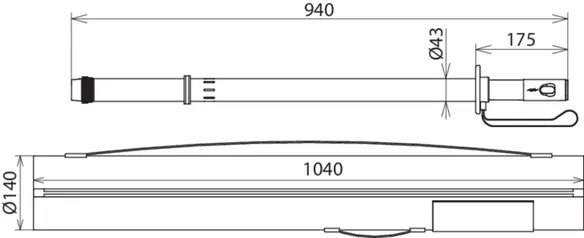

Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Verification while climbing the tower	No

Nominal voltage range (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Type	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
Verification while climbing the tower	No

Product 767541 was added to Notepad.

Go to Notepad

Product 767541 was added to the cart.

Go to Web-Shop

Part No. 767542 HSA194 110 420 16.7

GTIN 4013364086616, Customs tariff No. (EU): 90303370, Gross weight: 5.85 kg, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage range (U_N )	110 ... 420 kV
Frequency	16.7 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
DB drawing No.	3 Ekgw 02.54
Verification while climbing the tower	No

Nominal voltage range (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
DB drawing No.	3 Ekgw 02.54
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Type	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
Verification while climbing the tower	No

Product 767542 was added to Notepad.

Go to Notepad

Product 767542 was added to the cart.

Go to Web-Shop

Nominal Voltage Range 110 ... 420 kV, with verification while climbing the tower

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

1 Product

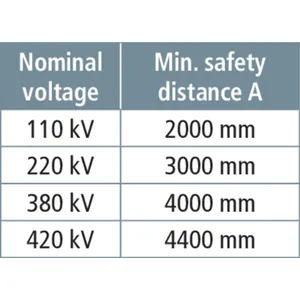

Part No. 767539 HSA 194 110 420 SN7737

GTIN 4013364306769, Customs tariff No. (EU): 90303370, Gross weight: 1.82 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Nominal voltage range (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Verification while climbing the tower	Yes

Nominal voltage range (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	940 mm
Insulating clearance (l_I )	540 mm
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Type	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
Verification while climbing the tower	Yes

Product 767539 was added to Notepad.

Go to Notepad

Product 767539 was added to the cart.

Go to Web-Shop
