Earthing and Short-Circuiting Devices (partly insulated) for Low-Voltage Cable Distribution Cabinets

Complete kit for cable distribution cabinets (CDCs)

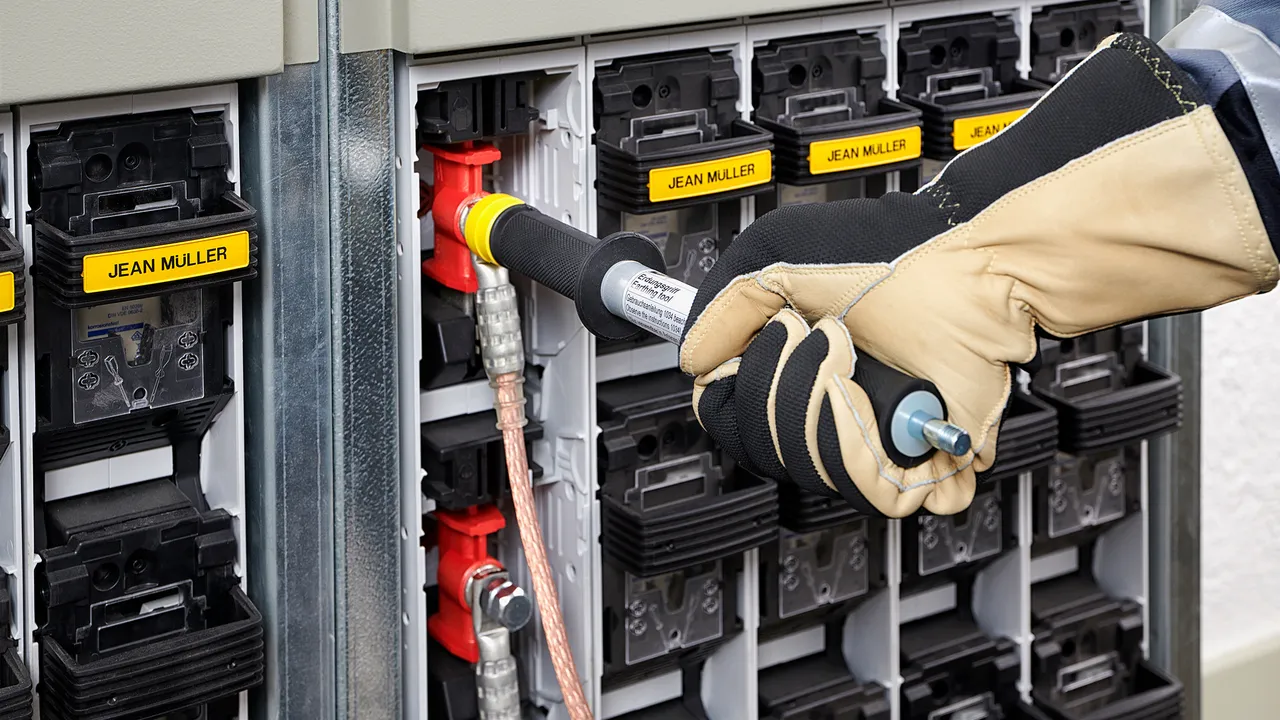

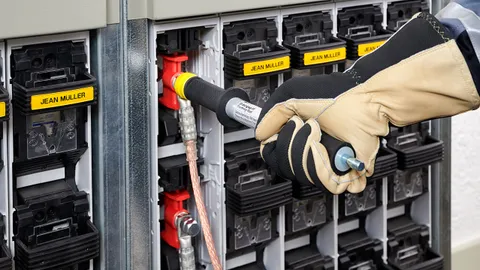

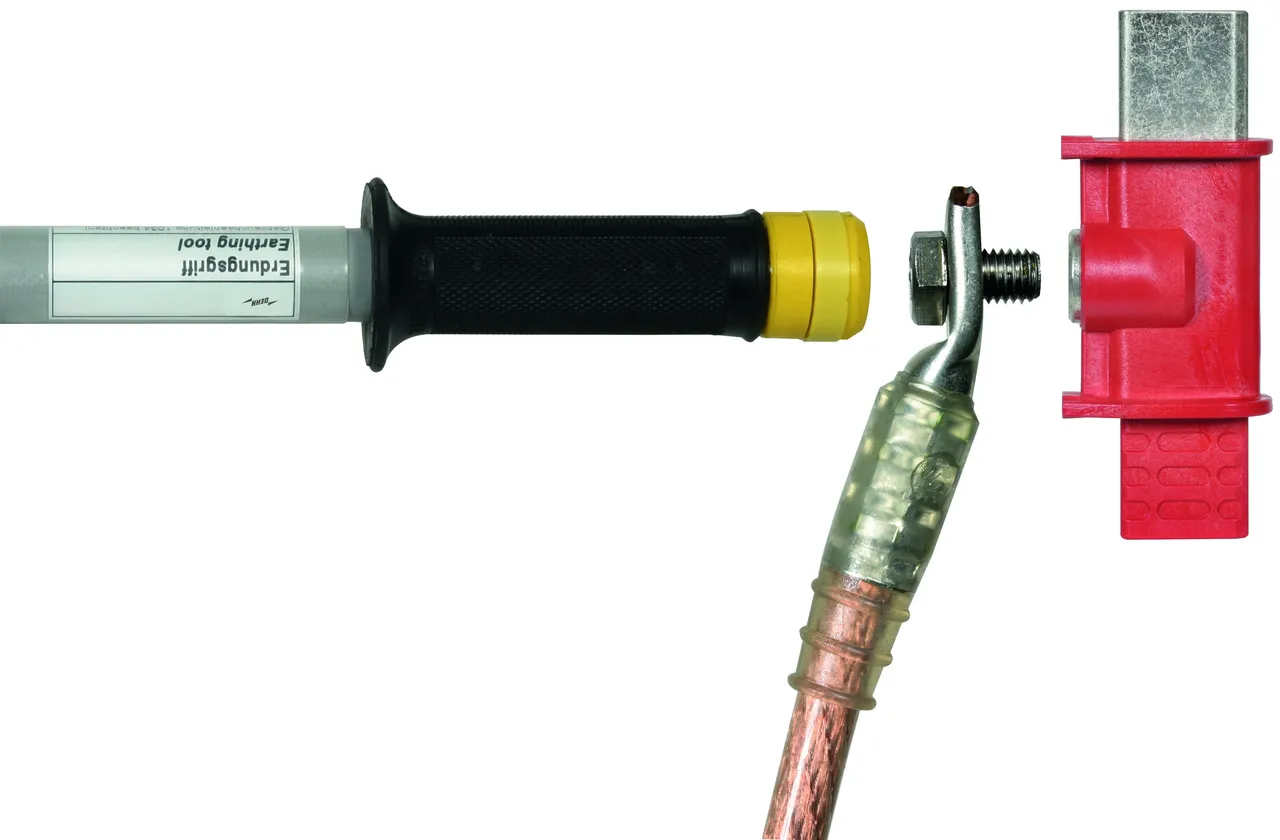

Safe operation with insulated earthing handle of type TI (with dual function), suitable both for installing and removing earthing cartridges with M10 connection as well as for attaching earthing and short-circuiting devices (EaS devices)
Waterproof, plastic-sheathed cable guide and node unit, with additional anti-kink protection
Other cable lengths can be selected online via the earthing and short-circuiting configurator

Details

lorem ipsum

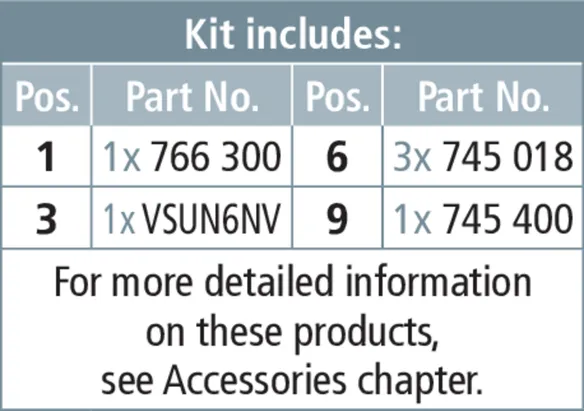

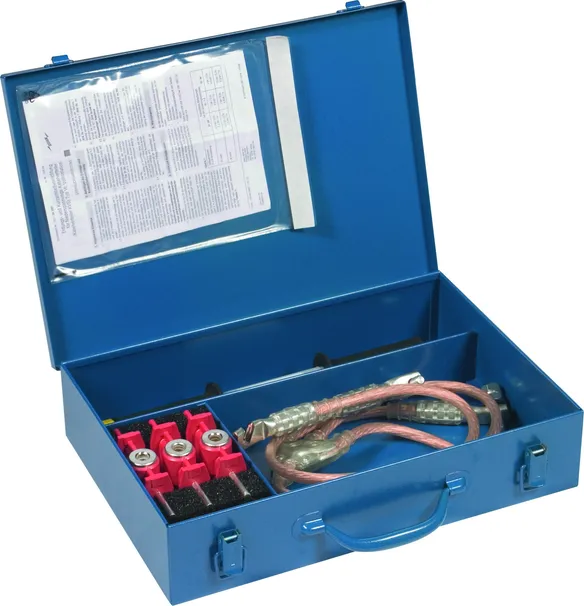

Kit I in Sheet Steel Case

1 Product

Part No. 766302 EKS TI KVS SBK

GTIN 4013364051317, Customs tariff No. (EU): 85369095, Gross weight: 4.38 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Variant No. of EaS device	VSUN6NV
Dimensions	380 x 260 x 80 mm
Attention: Please state the relevant Variant No. when ordering.

Product 766302 was added to Notepad.

Go to Notepad

Product 766302 was added to the cart.

Go to Web-Shop

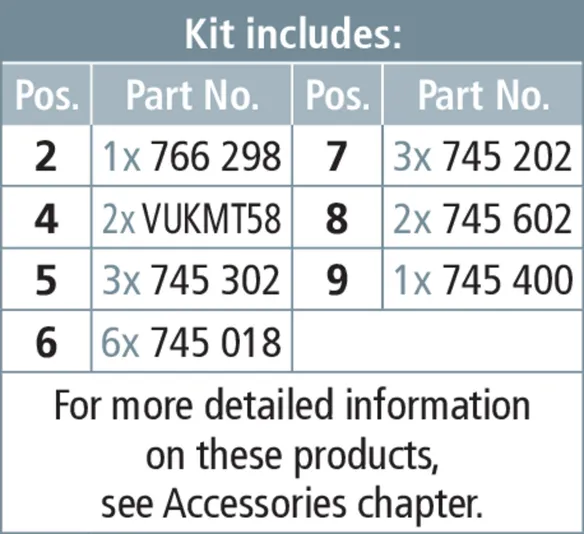

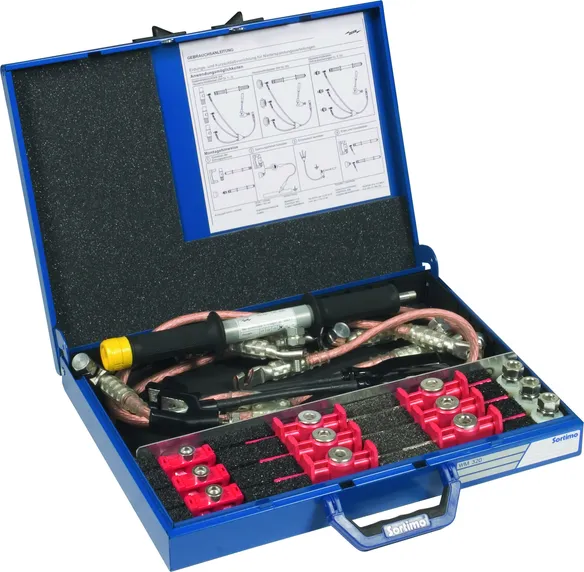

Kit II in Sheet Steel Case

1 Product

Part No. 745500 EKS TI 2F KVS SBK

GTIN 4013364007888, Customs tariff No. (EU): 85369095, Gross weight: 7.57 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Variant No. of EaS device	VUKMT58
Dimensions	440 x 330 x 66 mm
Attention: Please state the relevant Variant No. when ordering.
