Earth Connecting Elements for Switchgear Installations and Overhead Lines

  • For connecting the earth cable end to fixed ball points, T pins, round and flat conductors, connecting elements and flat profiles
  • For wide clamping ranges up to 40 mm
  • Anti-rotation protection of type PK1 or PK2
  • Earthing and short-circuiting devices can be configured online by means of the earthing and short-circuiting configurator

Details

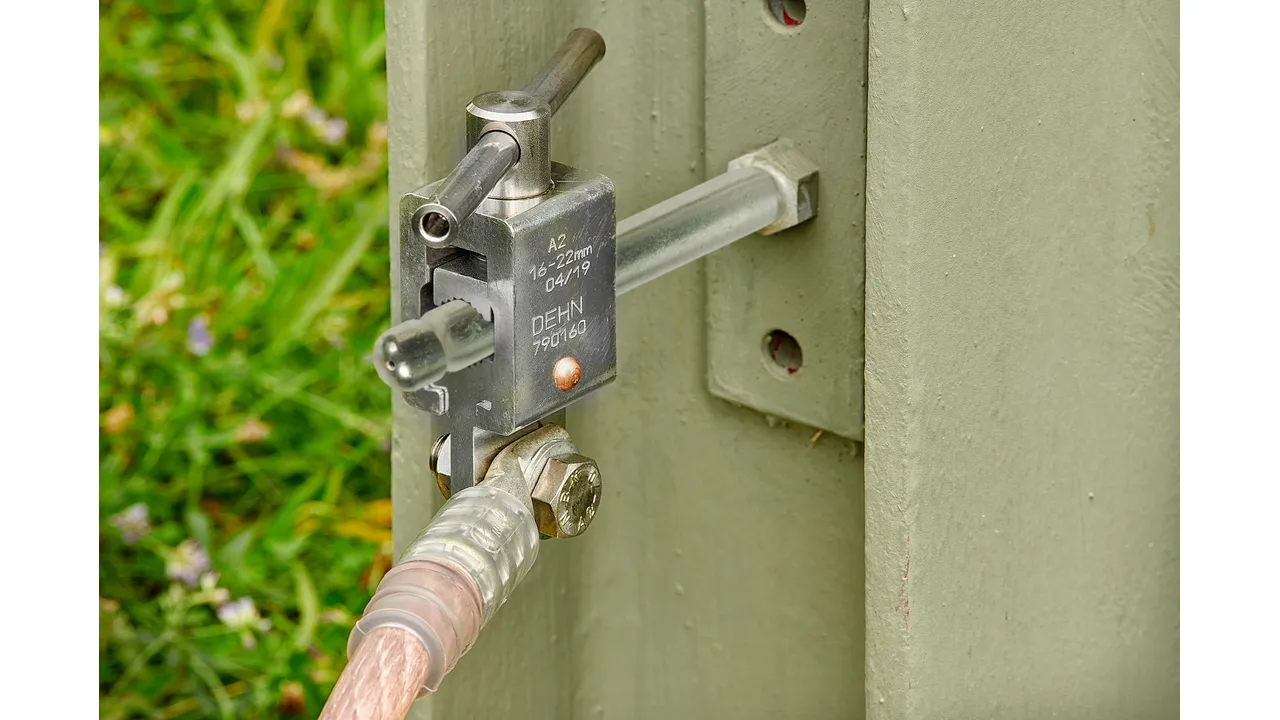

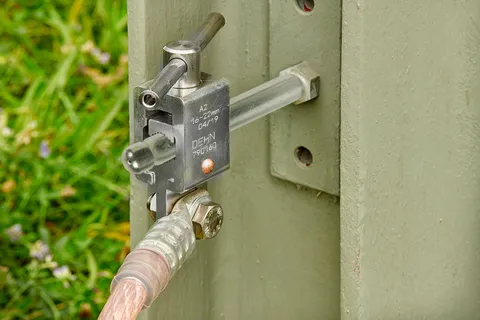

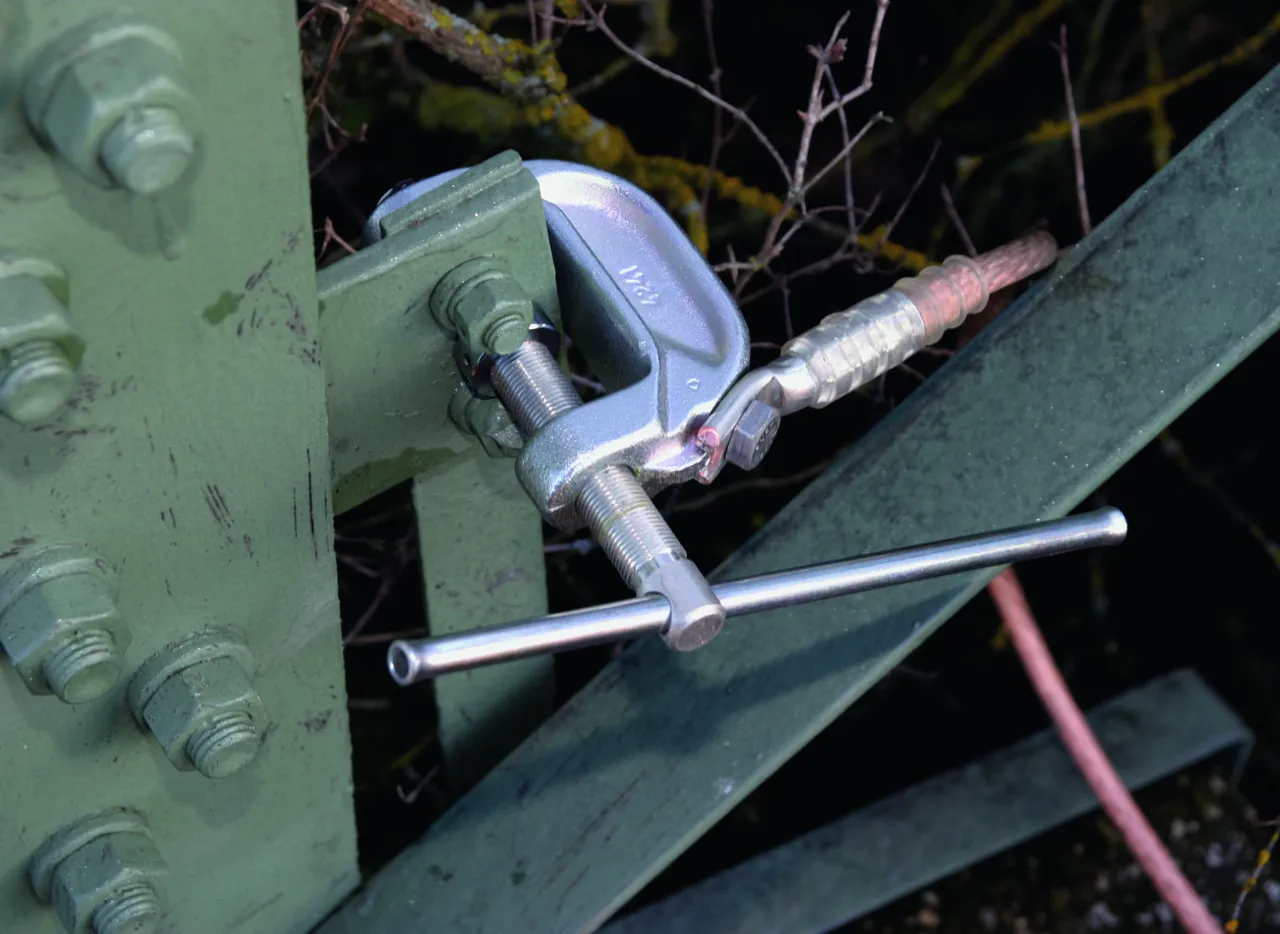

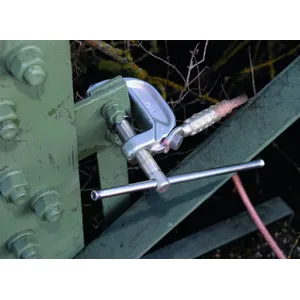

Earth milling clamp attached to a varnished steel mast.
lorem ipsum
lorem ipsum

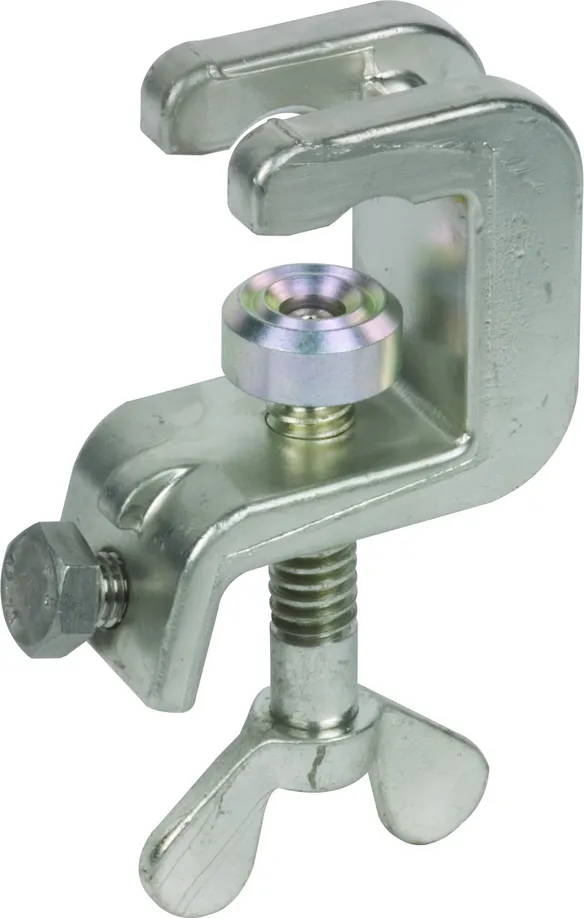

Universal Clamp with Wing Bolt

2 Products

Part No. 774034 UEK 25 FS

GTIN 4013364114586, Customs tariff No. (EU): 85359000, Gross weight: 661.60 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

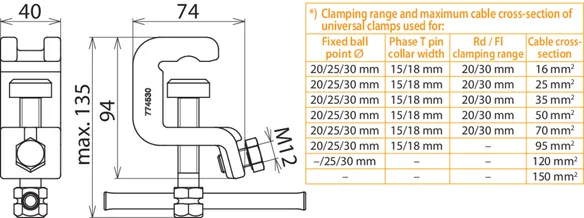

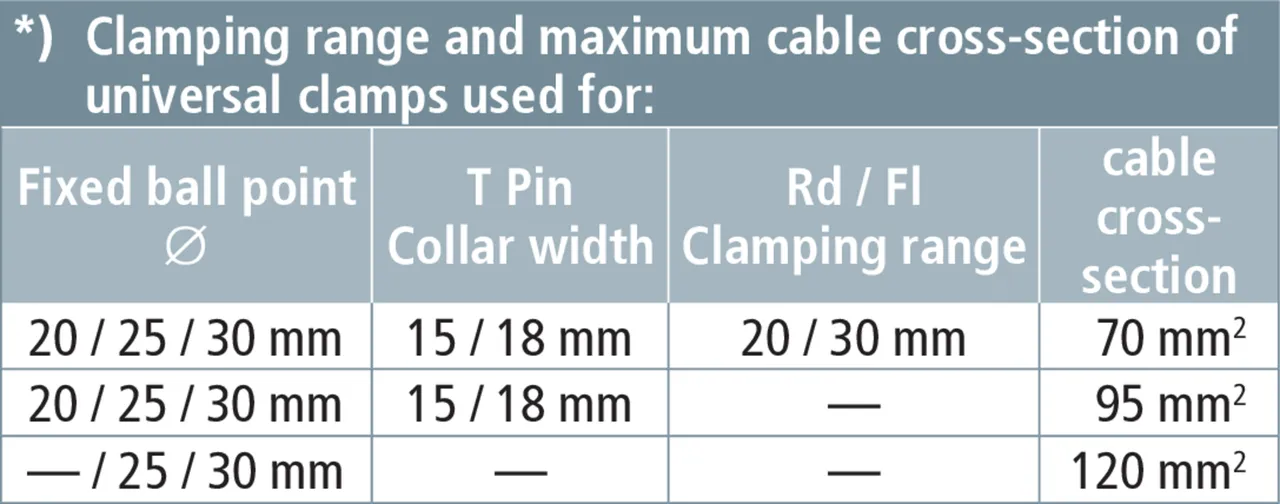

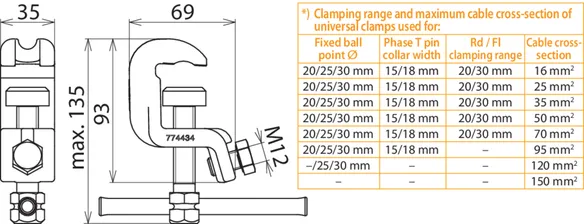

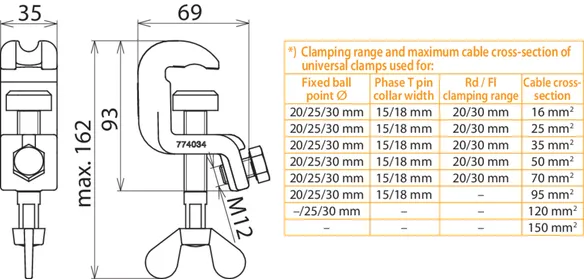

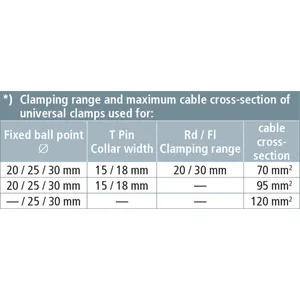

*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 774034 was added to Notepad.

Go to Notepad

Product 774034 was added to the cart.

Go to Web-Shop

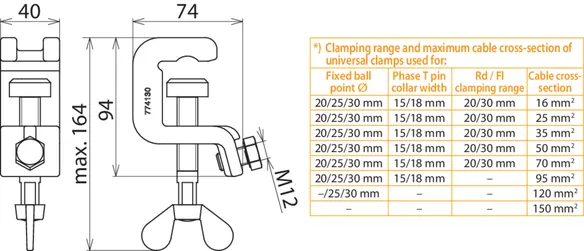

Part No. 774130 UEK 30 FS

GTIN 4013364057739, Customs tariff No. (EU): 85359000, Gross weight: 780.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
For T pins with a collar width of 18 mm
Rd / Fl clamping range 30 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 774130 was added to Notepad.

Go to Notepad

Product 774130 was added to the cart.

Go to Web-Shop

Universal Clamp with Handle

2 Products

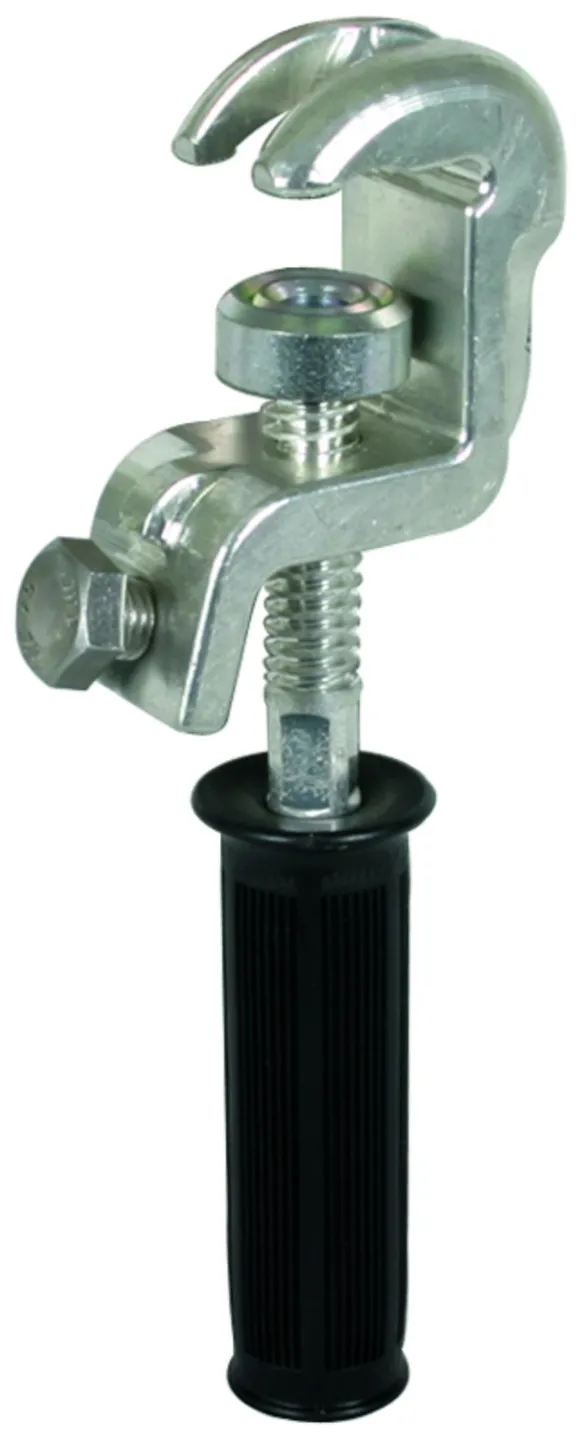

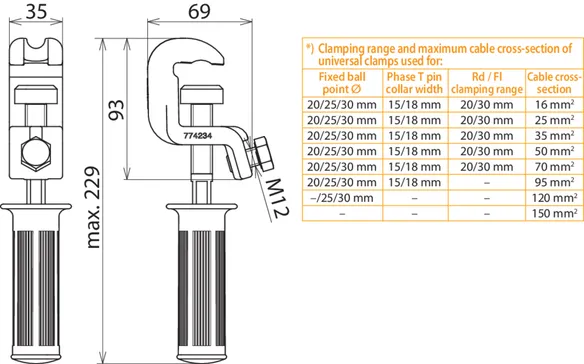

Part No. 774234 UEK 25 HG

GTIN 4013364114593, Customs tariff No. (EU): 85359000, Gross weight: 771.60 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 774234 was added to Notepad.

Go to Notepad

Product 774234 was added to the cart.

Go to Web-Shop

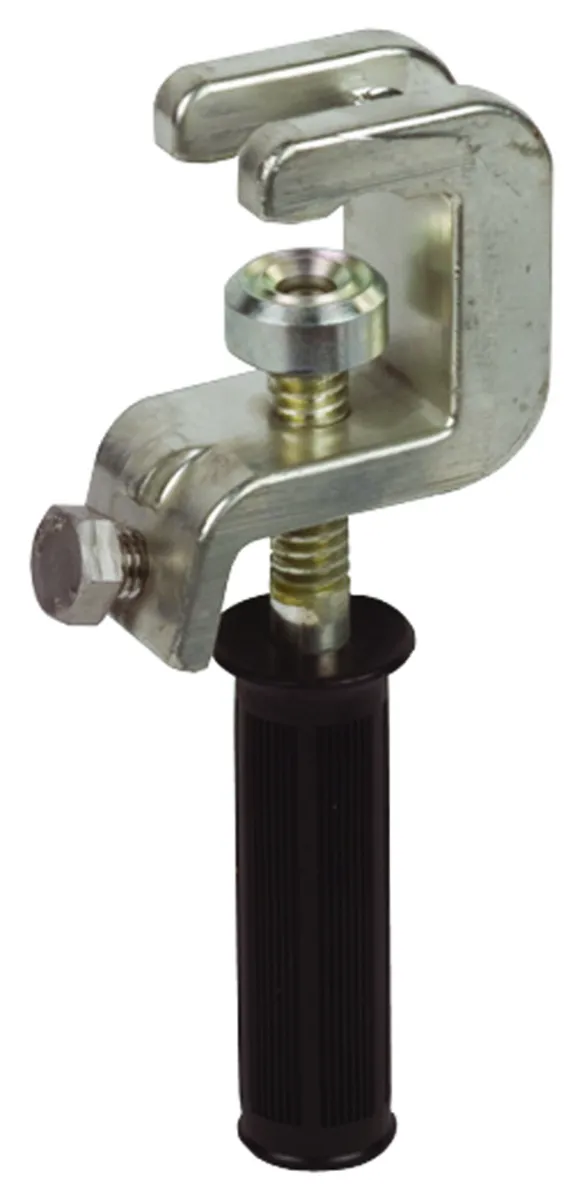

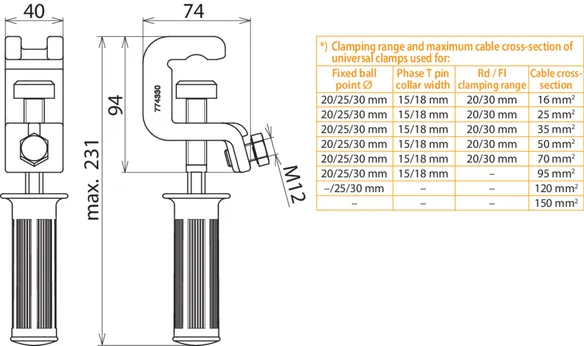

Part No. 774330 UEK 30 HG

GTIN 4013364057715, Customs tariff No. (EU): 85359000, Gross weight: 941.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
For T pins with a collar width of 18 mm
Rd / Fl clamping range 30 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 774330 was added to Notepad.

Go to Notepad

Product 774330 was added to the cart.

Go to Web-Shop

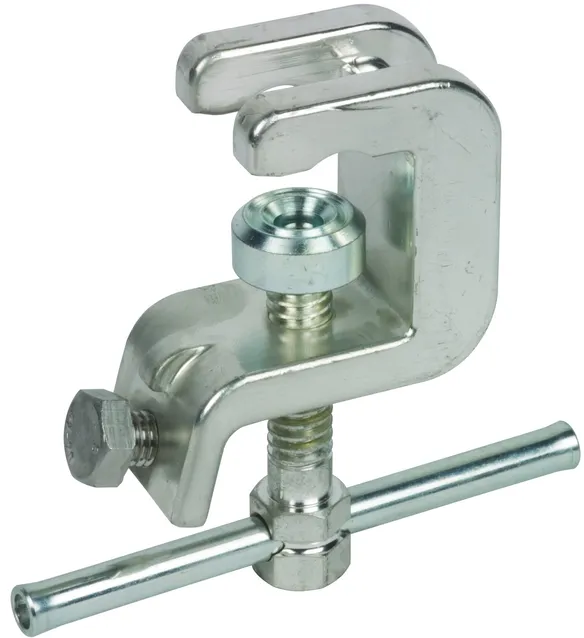

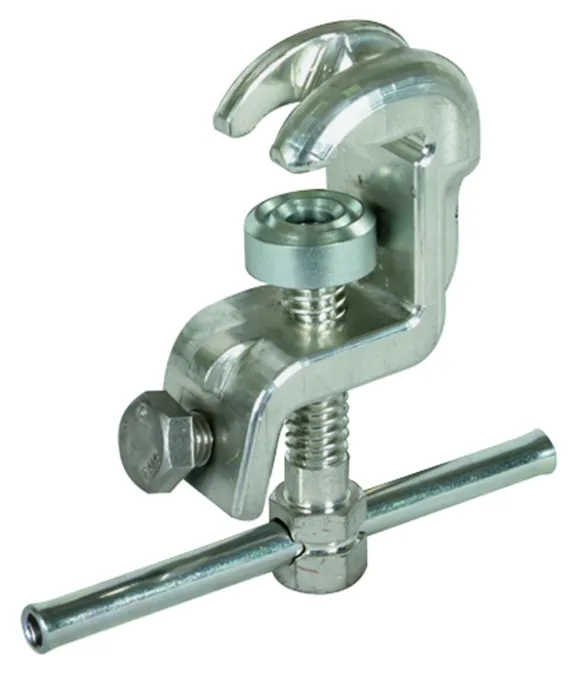

Universal Clamp with Tommy Bar

2 Products

Part No. 774434 UEK 25 SKN

GTIN 4013364114609, Customs tariff No. (EU): 85359000, Gross weight: 712.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 774434 was added to Notepad.

Go to Notepad

Product 774434 was added to the cart.

Go to Web-Shop

Part No. 774530 UEK 30 SKN

GTIN 4013364057746, Customs tariff No. (EU): 85359000, Gross weight: 700.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 30 mm
For T pins with a collar width of 18 mm
Rd / Fl clamping range 30 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 774530 was added to Notepad.

Go to Notepad

Product 774530 was added to the cart.

Go to Web-Shop

Rigid Ball Head Cap with Wing Bolt

2 Products

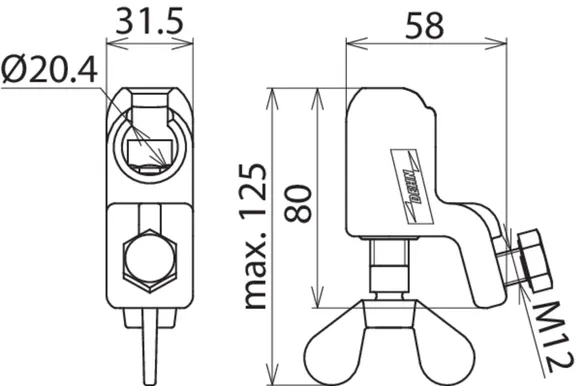

Part No. 772312 KKH 20 FS

GTIN 4013364054431, Customs tariff No. (EU): 85359000, Gross weight: 480.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772312 was added to Notepad.

Go to Notepad

Product 772312 was added to the cart.

Go to Web-Shop

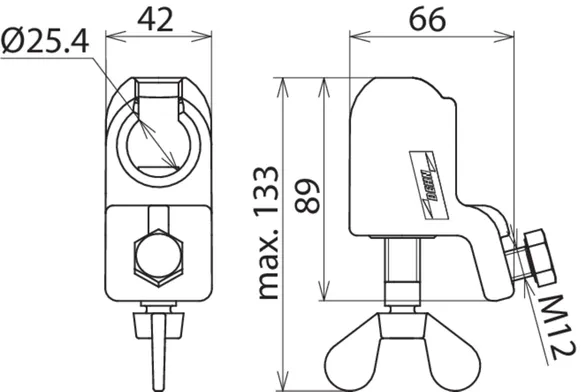

Part No. 772322 KKH 25 FS

GTIN 4013364054455, Customs tariff No. (EU): 85359000, Gross weight: 747.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 772322 was added to Notepad.

Go to Notepad

Product 772322 was added to the cart.

Go to Web-Shop

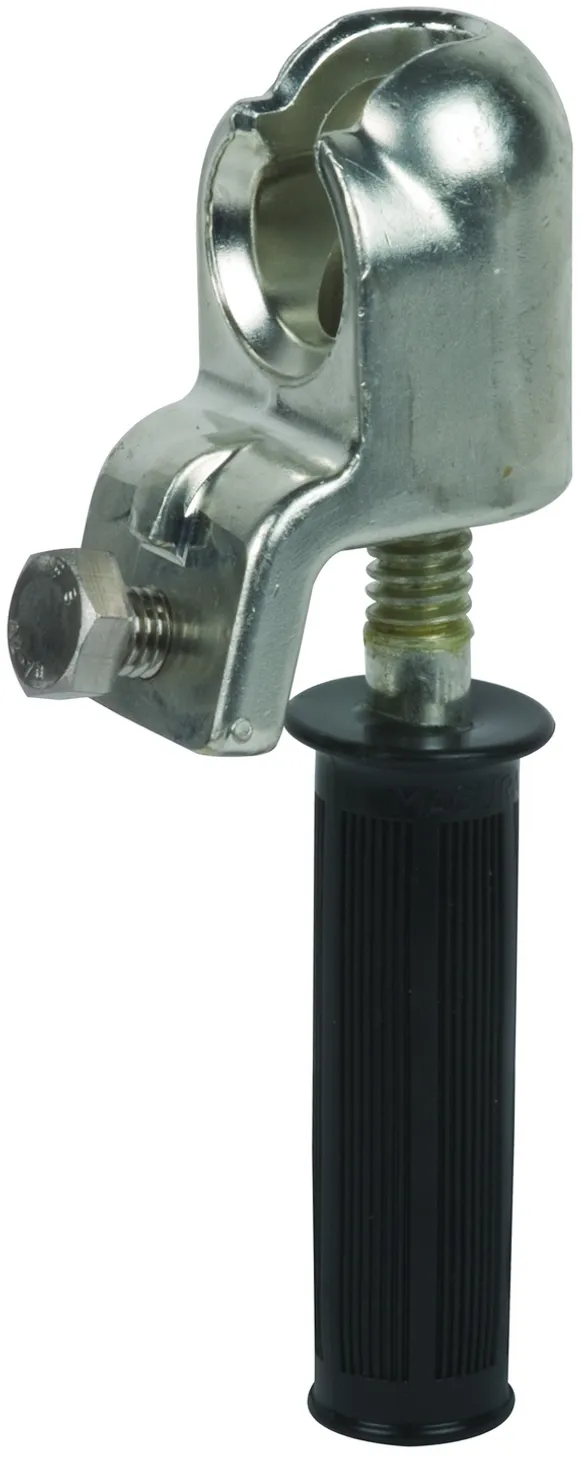

Rigid Ball Head Cap with Handle

2 Products

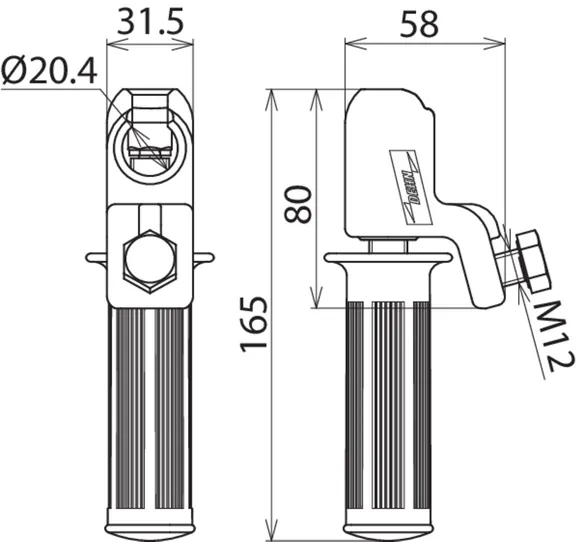

Part No. 772313 KKH 20 HG

GTIN 4013364054448, Customs tariff No. (EU): 85359000, Gross weight: 400.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772313 was added to Notepad.

Go to Notepad

Product 772313 was added to the cart.

Go to Web-Shop

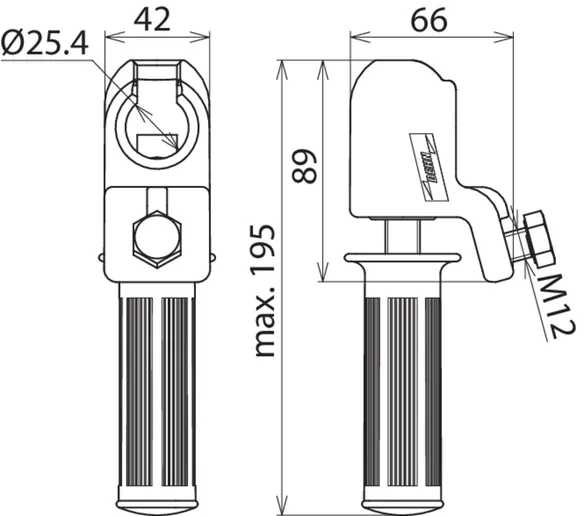

Part No. 772323 KKH 25 HG

GTIN 4013364054462, Customs tariff No. (EU): 85359000, Gross weight: 876.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 772323 was added to Notepad.

Go to Notepad

Product 772323 was added to the cart.

Go to Web-Shop

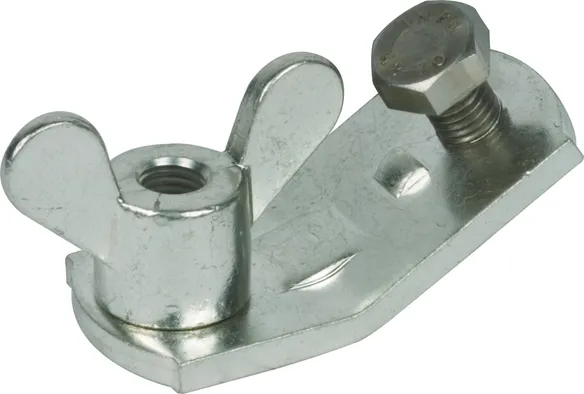

Earth Connecting Element with Wing Nut

2 Products

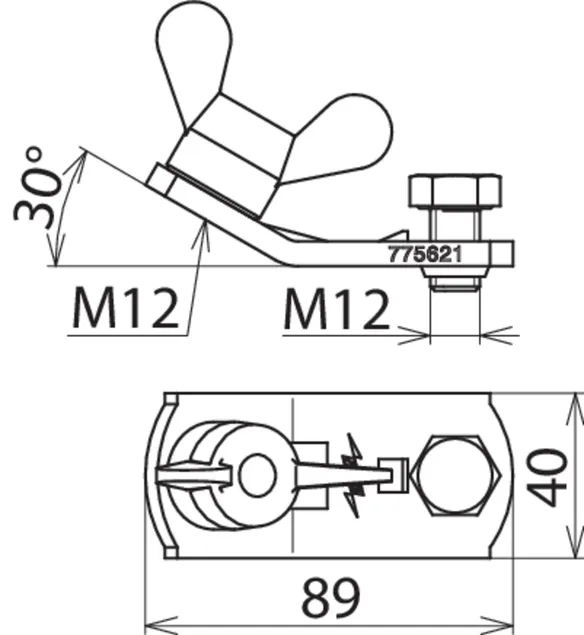

Part No. 775621 EAS EK FM 12

GTIN 4013364102545, Customs tariff No. (EU): 85359000, Gross weight: 311.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions M12
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 775621 was added to Notepad.

Go to Notepad

Product 775621 was added to the cart.

Go to Web-Shop

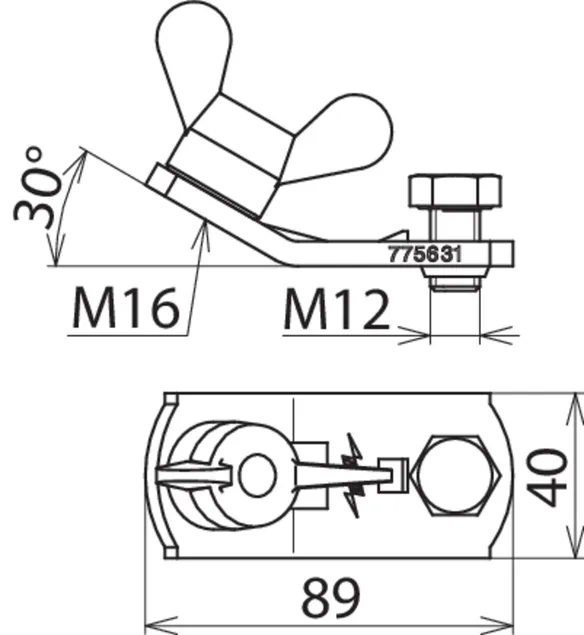

Part No. 775631 EAS EK FM 16

GTIN 4013364102552, Customs tariff No. (EU): 85359000, Gross weight: 290.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions M16
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 775631 was added to Notepad.

Go to Notepad

Product 775631 was added to the cart.

Go to Web-Shop

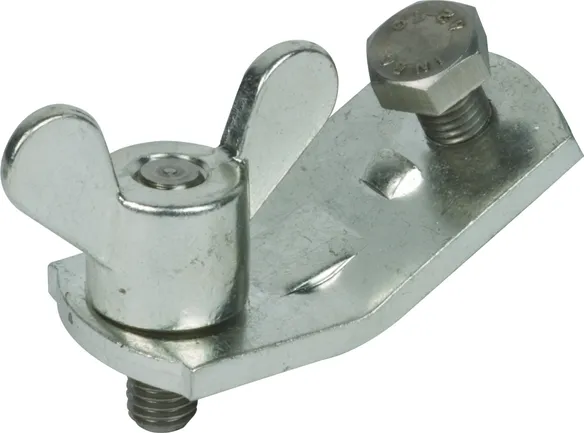

Earth Connecting Element with Wing Bolt

2 Products

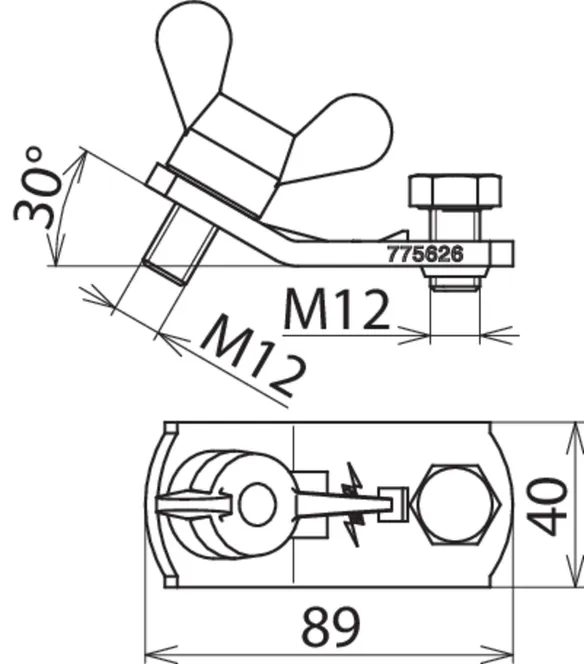

Part No. 775626 EAS EK FS 12

GTIN 4013364102569, Customs tariff No. (EU): 85359000, Gross weight: 343.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions M12 x 15 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 775626 was added to Notepad.

Go to Notepad

Product 775626 was added to the cart.

Go to Web-Shop

Part No. 775636 EAS EK FS 16

GTIN 4013364102576, Customs tariff No. (EU): 85359000, Gross weight: 350.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions M16 x 15 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 775636 was added to Notepad.

Go to Notepad

Product 775636 was added to the cart.

Go to Web-Shop

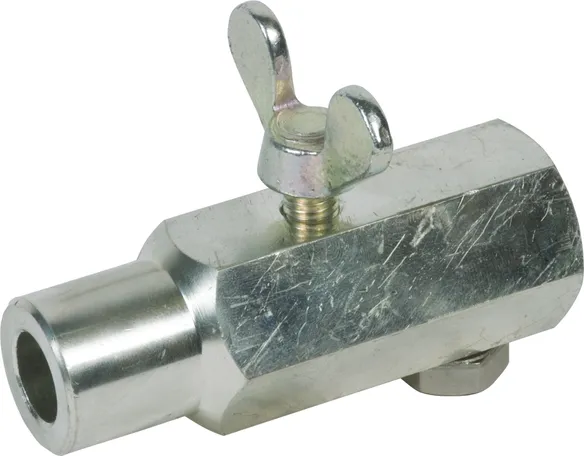

Earth Bushing with Wing Bolt

For fixed earthing points with ring groove

1 Product

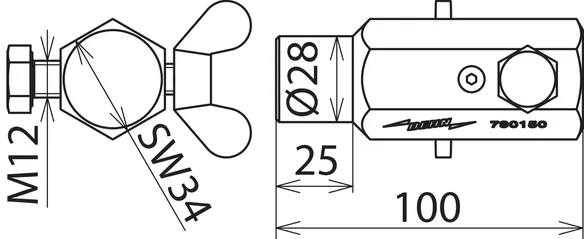

Part No. 790150 EAB RN 16 FS

GTIN 4013364005365, Customs tariff No. (EU): 85359000, Gross weight: 450.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions Ø16 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 150*) mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
*) For cable lengths > 4000 mm: max. up to 95 mm2 (26.5 kA / 0.5 s).

Product 790150 was added to Notepad.

Go to Notepad

Product 790150 was added to the cart.

Go to Web-Shop

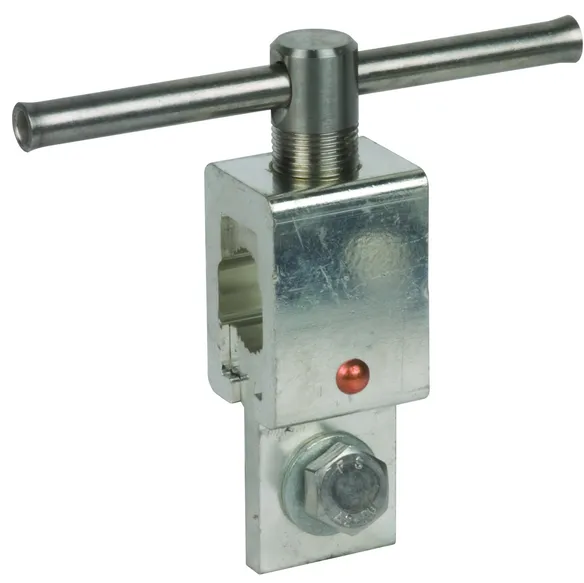

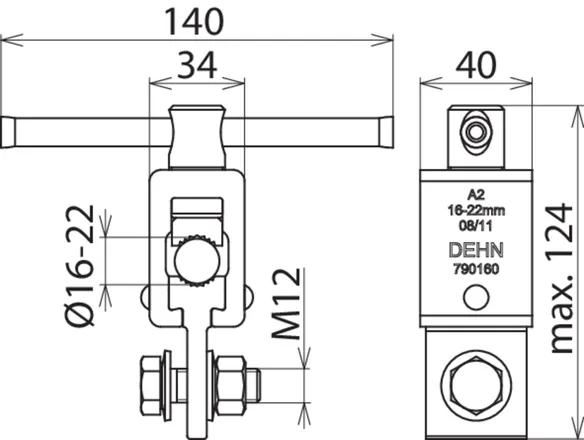

Earth Bushing with Tommy Bar

For fixed earthing points with ring groove

1 Product

Part No. 790160 EAB RN 16 SKN

GTIN 4013364018693, Customs tariff No. (EU): 85359000, Gross weight: 737.40 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions Ø16 mm
Anti-rotation cable lug PK2
For cable cross-section Cu 16 ... 150**) mm2
Max. short-circuit current Ik 0.5 s 29.6 kA
Max. short-circuit current Ik 1 s 29.6 kA
**) Max. short-circuit current of 29.6 kA even in case of a disconnection time Ik of 1 s.

Product 790160 was added to Notepad.

Go to Notepad

Product 790160 was added to the cart.

Go to Web-Shop

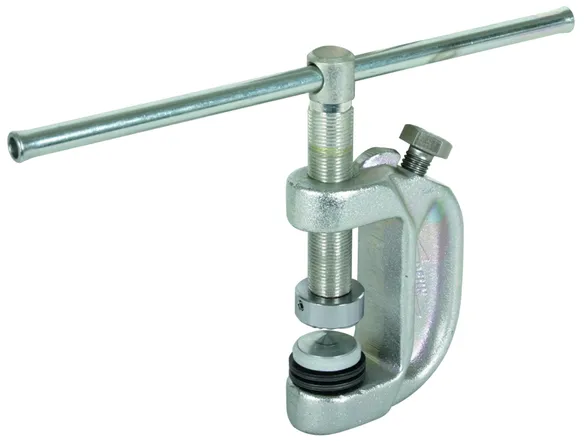

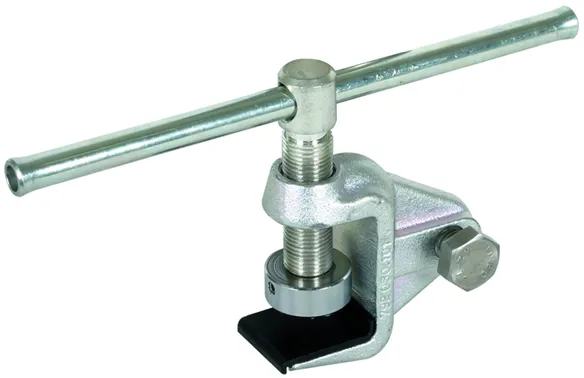

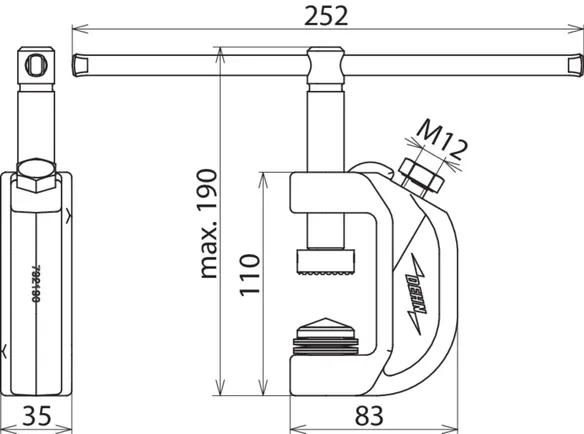

Earth Milling Clamp with Tommy Bar and Disc Springs

Milling plate, disc springs and long tommy bar for reliable contact

1 Product

Part No. 792190 EFK FL40 SKN

GTIN 4013364068315, Customs tariff No. (EU): 85359000, Gross weight: 1.32 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range up to 40 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 792190 was added to Notepad.

Go to Notepad

Product 792190 was added to the cart.

Go to Web-Shop

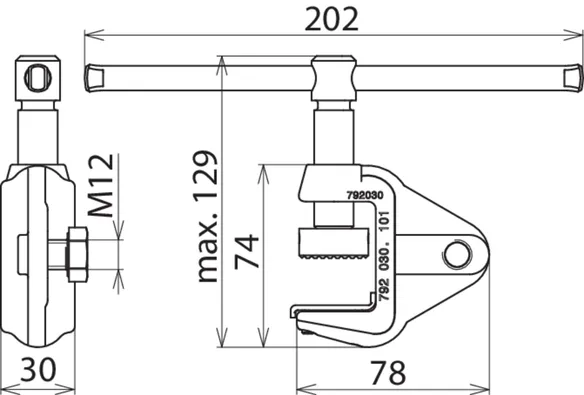

Earth Milling Clamp with Tommy Bar

Milling plate and long tommy bar for reliable contact

1 Product

Part No. 792030 EFK FL30 SKN

GTIN 4013364005853, Customs tariff No. (EU): 85359000, Gross weight: 610.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range Up to 30 mm
Anti-rotation cable lug PK1
For cable cross-section Cu 16 ... 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product 792030 was added to Notepad.

Go to Notepad

Product 792030 was added to the cart.

Go to Web-Shop
