DEHNcare APS with Lever

Fog-free on the inside
Extremely scratch-resistant
Chemical-resistant on the outside
Certified according to PPE regulation (EU) 2016/425

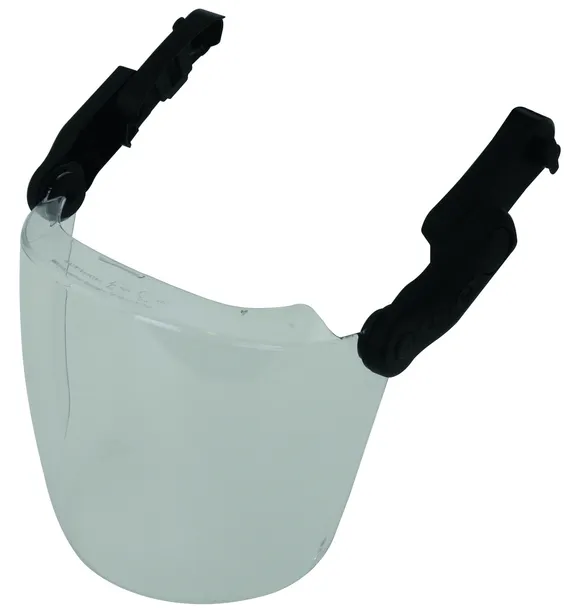

Arc-fault-tested Face Shield with mechanical Lever

1 Product

Part No. 785721 APS CL1 MEHA

GTIN 4013364360198, Customs tariff No. (EU): 39269060, Gross weight: 192.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Certificates

Technical data

Nominal voltage up to (U_N )	1000 V
Colour	Transparent
Material	Polycarbonate
Wall thickness	approx. 2 mm
Arc fault protection class (box test 4 kA / 0.5 s – single-pole)	APC 1
Arc energy (W_arc or W_LBP )	158 kJ
Visible light transmittance (VLT)	≥ 75 %
Standard	GS-ET-29, EN 166, EN 170

Nominal voltage up to (U_N )	1000 V
Colour	Transparent
Material	Polycarbonate
Wall thickness	approx. 2 mm
Arc fault protection class (box test 4 kA / 0.5 s – single-pole)	APC 1
Arc energy (W_arc or W_LBP )	158 kJ
Visible light transmittance (VLT)	≥ 75 %
Standard	GS-ET-29, EN 166, EN 170

Product 785721 was added to Notepad.

Go to Notepad

Product 785721 was added to the cart.

Go to Web-Shop

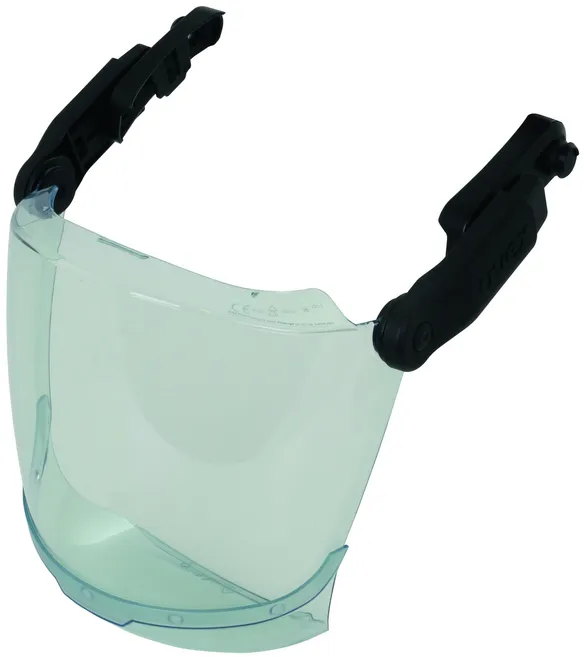

Arc-fault-tested Face Shield with magnetic Lever

1 Product

Part No. 785722 APS CL2 MAHA

GTIN 4013364360242, Customs tariff No. (EU): 39269060, Gross weight: 294.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal voltage up to (U_N )	1000 V
Colour	blue
Material	polycarbonate
Wall thickness	approx. 2 mm
Arc fault protection class (box test 7 kA / 0.5 s – single-pole)	APC 2
Arc energy (W_arc or W_LBP )	318 kJ
Visible light transmittance (VLT)	≥ 74.4 %
Standard	GS-ET-29, EN 166, EN 170

Nominal voltage up to (U_N )	1000 V
Colour	blue
Material	polycarbonate
Wall thickness	approx. 2 mm
Arc fault protection class (box test 7 kA / 0.5 s – single-pole)	APC 2
Arc energy (W_arc or W_LBP )	318 kJ
Visible light transmittance (VLT)	≥ 74.4 %
Standard	GS-ET-29, EN 166, EN 170
