Fixing Elements for Supporting Tubes

Fixing clamp with tensioning strap

1 Product

Part No. 105361 BS D50 DS30 SB50.300 V2A

GTIN 4013364102033, Customs tariff No. (EU): 85389099, Gross weight: 385.00 g, PU: 1.00 pc(s)

Images

Additional information

Fixing clamp with tensioning strap, StSt
Fixing clamp with tensioning strap for fixing supporting tubes to structural elements, e.g. antenna masts
With additional spacer (30 mm) for adjusting, e.g. sector antenna supports to the mast
DEHNGEPRUEFT: no
Material of clip: StSt
Clamping range for supporting tube: 50 mm
Clamping range for pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm
Length of spacer: 30 mm

Brand: DEHN
Type: BS D50 DS30 SB50.300 V2A
Part No.: 105361
or equivalent.



Technical data

Material of clip StSt
Clamping range for supporting tube 50 mm
Clamping range for pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length of spacer 30 mm

Product 105361 was added to Notepad.

Go to Notepad

Product 105361 was added to the cart.

Go to Web-Shop

Railing clamp

1 Product

Part No. 105355 BS D40.50 D70.90 V2A

GTIN 4013364098732, Customs tariff No. (EU): 85389099, Gross weight: 713.20 g, PU: 1.00 pc(s)

Images

Additional information

Railing clamp for pipes, StSt
Railing clamp for fixing supporting tubes or air-termination rods D40
to structural elements, e.g. railing pipes
DEHNGEPRUEFT: no
Material: StSt
Clamping range for pipe Ø: 70-90 mm (2 1/4-3'')
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 D70.90 V2A
Part No.: 105355
or equivalent.

Certificates



Technical data

Material StSt
Clamping range for pipe Ø 70-90 mm (2 1/4-3'')
Clamping range for supporting tube 40-50 mm

Product 105355 was added to Notepad.

Go to Notepad

Product 105355 was added to the cart.

Go to Web-Shop

Wall mounting bracket, adjustable from 230-1300 mm

3 Products

Part No. 105343 WB D40.50 V400.700 STTZN V2A

GTIN 4013364118515, Customs tariff No. (EU): 85389099, Gross weight: 3.60 kg, PU: 1.00 pc(s)

Images

Additional information

Bracket for air-termination rods D40 and DEHNcon-H with adjustment range
Support for air-termination rods D40 and DEHNcon-H
For fixing air-termination rods D40 or supporting tubes to the structure to be protected or the wall
Adjustable from 400-700 mm
DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 400-700 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V400.700 STTZN V2A
Part No.: 105343
or equivalent.

Certificates



Technical data

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 400-700 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Product 105343 was added to Notepad.

Go to Notepad

Product 105343 was added to the cart.

Go to Web-Shop

Part No. 105347 WB D40.50 V230.400 STTZN V2A

GTIN 4013364278554, Customs tariff No. (EU): 85389099, Gross weight: 2.42 kg, PU: 1.00 pc(s)

Images

Additional information


DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 230-400 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V230.400 STTZN V2A
Part No.: 105347
or equivalent.

Certificates



Technical data

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 230-400 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Product 105347 was added to Notepad.

Go to Notepad

Product 105347 was added to the cart.

Go to Web-Shop

Part No. 105349 WB D40.50 V700.1300 STTZN V2A

GTIN 4013364288614, Customs tariff No. (EU): 85389099, Gross weight: 5.80 kg, PU: 1.00 pc(s)

Images

Additional information


DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 700-1300 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V700.1300 STTZN V2A
Part No.: 105349
or equivalent.

Certificates



Technical data

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 700-1300 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Product 105349 was added to Notepad.

Go to Notepad

Product 105349 was added to the cart.

Go to Web-Shop

Railing clamp

2 Products

Part No. 105356 BS D40.50 4K20.50 V2A

GTIN 4013364098749, Customs tariff No. (EU): 85389099, Gross weight: 582.20 g, PU: 5.00 pc(s)

Images

Additional information

Railing clamp for square hollow profiles, StSt
Railing clamp for fixing supporting tubes to structural elements
For square hollow profiles
DEHNGEPRUEFT: no
Material: StSt
Clamping range for square profile: 20 x 20 to 50 x 50 mm
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 4K20.50 V2A
Part No.: 105356
or equivalent.



Technical data

Material StSt
Clamping range for square profile 20 x 20 to 50 x 50 mm
Clamping range for supporting tube 40-50 mm

Product 105356 was added to Notepad.

Go to Notepad

Product 105356 was added to the cart.

Go to Web-Shop

Part No. 105376 BS D40.50 4K60.120 V2A

GTIN 4013364115545, Customs tariff No. (EU): 85389099, Gross weight: 684.40 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Railing clamp for square hollow profiles, StSt
Railing clamp for fixing supporting tubes to structural elements
For square hollow profiles
DEHNGEPRUEFT: no
Material: StSt
Clamping range for square profile: 60 x 120 mm
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 4K60.120 V2A
Part No.: 105376
or equivalent.



Technical data

Material StSt
Clamping range for square profile 60 x 120 mm
Clamping range for supporting tube 40-50 mm

Product 105376 was added to Notepad.

Go to Notepad

Product 105376 was added to the cart.

Go to Web-Shop

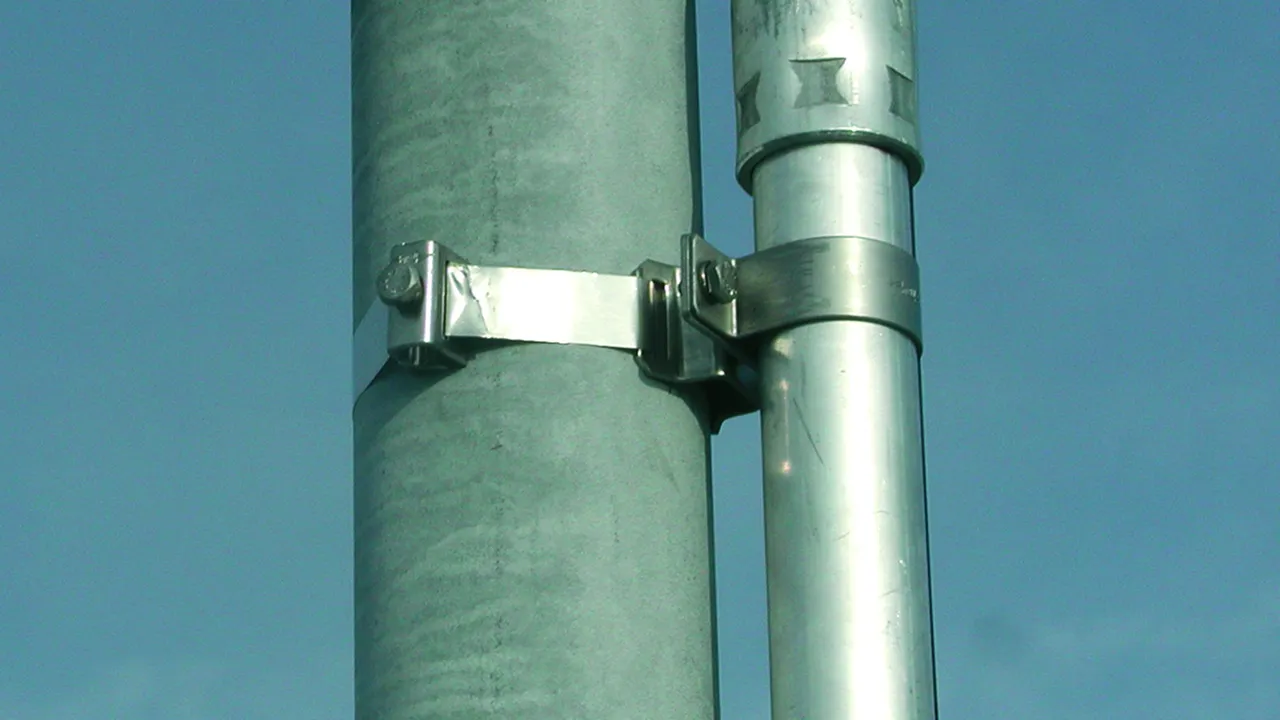

Fixing clamp with tensioning strap

1 Product

Part No. 105360 BS D50 SB50.300 V2A

GTIN 4013364099777, Customs tariff No. (EU): 85389099, Gross weight: 357.50 g, PU: 1.00 pc(s)

Images

Additional information

Fixing clamp with tensioning strap, StSt
Fixing clamp with tensioning strap for
fixing the supporting tubes to structural parts,
e.g. antenna masts
DEHNGEPRUEFT: no
Material of clip: StSt
Clamping range for supporting tube: 50 mm
Clamping range for pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm

Brand: DEHN
Type: BS D50 SB50.300 V2A
Part No.: 105360
or equivalent.



Technical data

Material of clip StSt
Clamping range for supporting tube 50 mm
Clamping range for pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm

Product 105360 was added to Notepad.

Go to Notepad

Product 105360 was added to the cart.

Go to Web-Shop

Wall mounting bracket, adjustable from 150-200 mm

1 Product

Part No. 105344 WB D40.50 V150.200 V2A

GTIN 4013364147300, Customs tariff No. (EU): 85389099, Gross weight: 1.52 kg, PU: 1.00 pc(s)

Images

Additional information

Bracket for air-termination rods D40 and DEHNcon-H, adjustable
Bracket for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes
to structures or walls
adjustable from 150-200 mm
Material of bracket: StSt
Clamping range Rd: 8-10 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 150-200 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing : [4x] 12 x 26 mm
Standard: EN 62561-1

Brand: DEHN
Type: WB D40.50 V150.200 V2A
Part No.: 105344
or equivalent.

Certificates



Technical data

Material of bracket StSt
Clamping range Rd 8-10 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 150-200 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm
Standard EN 62561-1

Product 105344 was added to Notepad.

Go to Notepad

Product 105344 was added to the cart.

Go to Web-Shop

Railing clamp

1 Product

Part No. 105354 BS D40.50 D48.60 V2A

GTIN 4013364098725, Customs tariff No. (EU): 85389099, Gross weight: 637.00 g, PU: 5.00 pc(s)

Images

Additional information

Railing clamp for air-termination rods D40 and DEHNcon-H, StSt
Railing clamp for fixing supporting tubes or air-termination rods D40
to structural elements, e.g. railing pipes
DEHNGEPRUEFT: yes
Material: StSt
Clamping range for pipe Ø: 48-60 mm (11/2-2'')
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 D48.60 V2A
Part No.: 105354
or equivalent.

Certificates



Technical data

Material StSt
Clamping range for pipe Ø 48-60 mm (11/2-2'')
Clamping range for supporting tube 40-50 mm

Product 105354 was added to Notepad.

Go to Notepad

Product 105354 was added to the cart.

Go to Web-Shop

Wall mounting bracket for horizontal mounting, flat

1 Product

Part No. 105340 WB D50 WA V2A

GTIN 4013364098794, Customs tariff No. (EU): 85389099, Gross weight: 617.80 g, PU: 1.00 pc(s)

Images

Additional information

Wall mounting bracket, StSt
Wall mounting bracket for fixing supporting tubes
to the structure to be protected or the wall.
Wall mounting bracket for horizontal mounting
DEHNGEPRUEFT: no
Material: StSt
Clamping range for supporting tube: 50 mm
Distance from wall / corner: 80 mm
Dimensions of fixing: 320 mm
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm

Brand: DEHN
Type: WB D50 WA V2A
Part No.: 105340
or equivalent.



Technical data

Material StSt
Clamping range for supporting tube 50 mm
Distance from wall / corner 80 mm
Dimensions of fixing 320 mm
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm

Product 105340 was added to Notepad.

Go to Notepad

Product 105340 was added to the cart.

Go to Web-Shop

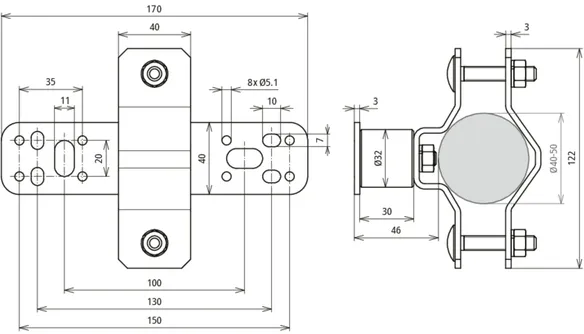

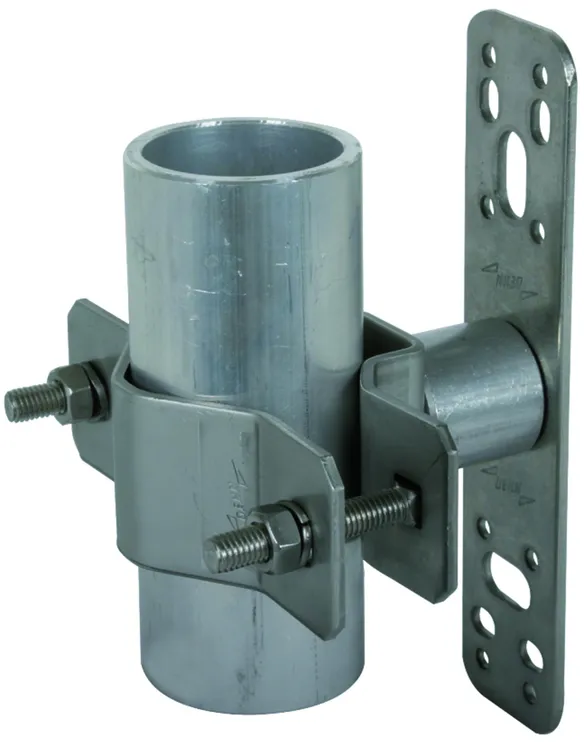

Wall mounting bracket for vertical mounting

2 Products

Part No. 105342 WB D40.50 SE WA46 V2A

GTIN 4013364111141, Customs tariff No. (EU): 85389099, Gross weight: 514.00 g, PU: 1.00 pc(s)

Images

Additional information

Bracket for air-termination rods D40 and DEHNcon-H, StSt, vertical mounting
Bracket for air-termination rods D40 and DEHNcon-H for attaching air-termination rods D40
or supporting tubes to the structure to be protected or to the wall
DEHNGEPRUEFT: no
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 46 mm

Brand: DEHN
Type: WB D40.50 SE WA46 V2A
Part No.: 105342
or equivalent.

Certificates



Technical data

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 46 mm

Product 105342 was added to Notepad.

Go to Notepad

Product 105342 was added to the cart.

Go to Web-Shop

Part No. 105348 WB D40.50 SE WA110 V2A

GTIN 4013364287013, Customs tariff No. (EU): 85389099, Gross weight: 540.00 g, PU: 1.00 pc(s)

Images

Additional information


DEHNGEPRUEFT: no
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 110 mm

Brand: DEHN
Type: WB D40.50 SE WA110 V2A
Part No.: 105348
or equivalent.

Certificates



Technical data

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 110 mm

Product 105348 was added to Notepad.

Go to Notepad

Product 105348 was added to the cart.

Go to Web-Shop

Wall mounting bracket for horizontal mounting, corner

1 Product

Part No. 105341 EB D50 WA V2A

GTIN 4013364098800, Customs tariff No. (EU): 85389099, Gross weight: 606.60 g, PU: 1.00 pc(s)

Images

Additional information

Mounting bracket, StSt
Mounting bracket for fixing supporting tubes (D50 mm)
to the structure to be protected.
Version for corners.
DEHNGEPRUEFT: no
Material: StSt
Clamping range for supporting tube: 50 mm
Distance from wall / corner: 80 mm
Dimensions of fixing: 152 mm
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm

Brand: DEHN
Type: EB D50 WA V2A
Part No.: 105341
or equivalent.



Technical data

Material StSt
Clamping range for supporting tube 50 mm
Distance from wall / corner 80 mm
Dimensions of fixing 152 mm
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm

Product 105341 was added to Notepad.

Go to Notepad

Product 105341 was added to the cart.

Go to Web-Shop

Fixing clamp with tensioning strap

1 Product

Part No. 105362 BS D50 DS90 SB50.300 V2A

GTIN 4013364110496, Customs tariff No. (EU): 85389099, Gross weight: 466.90 g, PU: 1.00 pc(s)

Images

Additional information

Fixing clamp with tensioning strap with long spacer, StSt
Fixing clamp with tensioning strap for fixing supporting tubes to structures
e.g. antenna masts
with additional spacer (95 mm)
for adjusting, e.g. sector antenna supports to the mast
DEHNGEPRUEFT: no
Material of clip: StSt
Clamping range for supporting tube: 50 mm
Clamping range for pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm
Length of spacer: 95 mm

Brand: DEHN
Type: BS D50 DS90 SB50.300 V2A
Part No.: 105362
or equivalent.



Technical data

Material of clip StSt
Clamping range for supporting tube 50 mm
Clamping range for pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length of spacer 95 mm

Product 105362 was added to Notepad.

Go to Notepad

Product 105362 was added to the cart.

Go to Web-Shop
back to top
