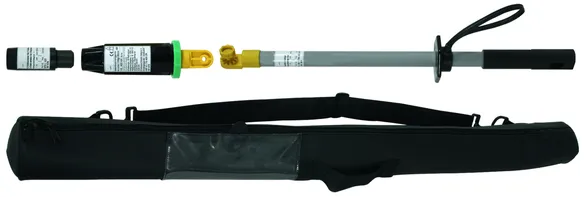

ASP Non-Contact Voltage Detector Kit

Easy and safe testing

Easy to use due to compact design
Cost-effective / space-saving transport

Details

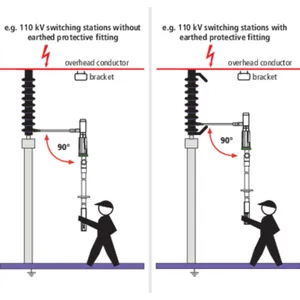

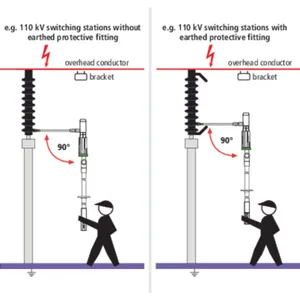

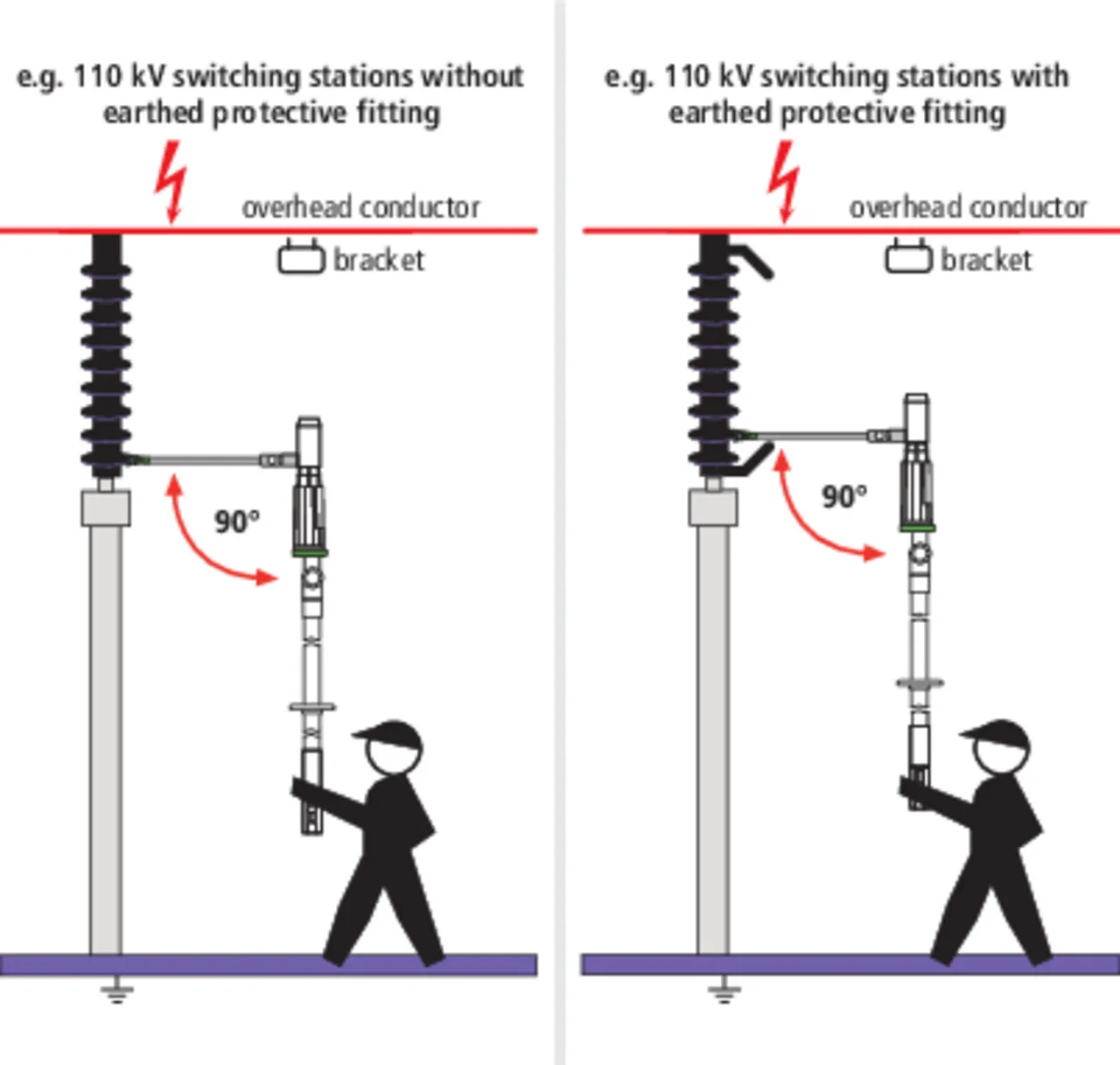

**Use in outdoor switching stations**
The green ring on the arm of the ASP distance voltage detector with category "S" electric field sensor is used to make contact with the lowest insulator plate at a right angle.
If an earthed protective fitting is available, contact is made at the next possible insulator plate above the protective fitting.

lorem ipsum — **Use in outdoor switching stations**
The green ring on the arm of the ASP distance voltage detector with category "S" electric field sensor is used to make contact with the lowest insulator plate at a right angle.
If an earthed protective fitting is available, contact is made at the next possible insulator plate above the protective fitting.

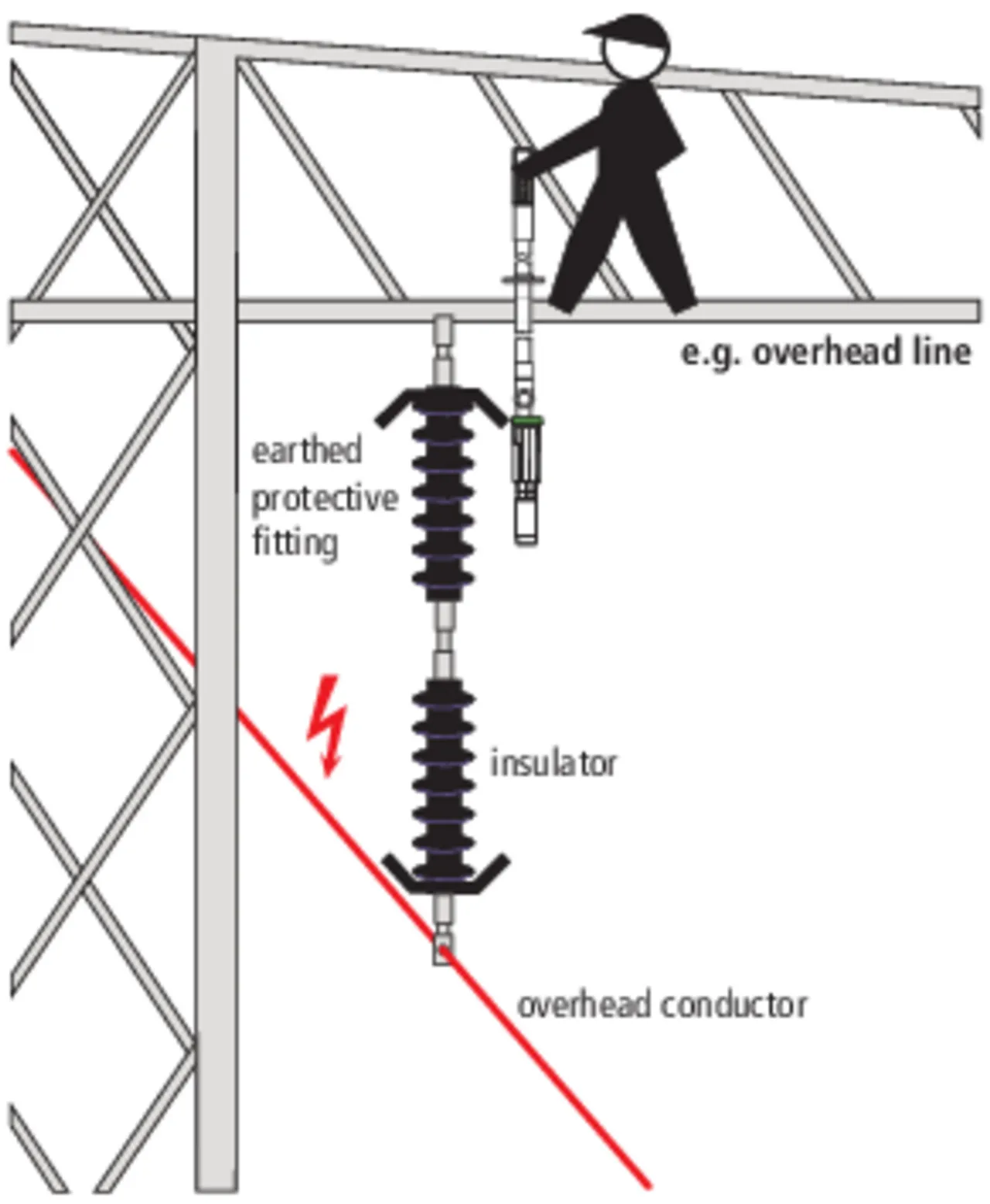

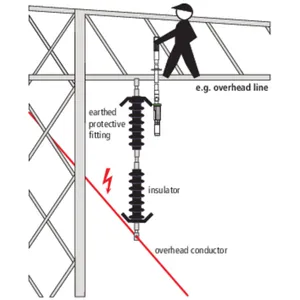

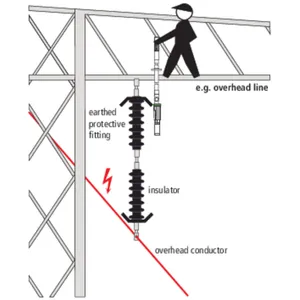

**Use for overhead lines**
The green ring on the ASP distance voltage detector with category "L" electric field sensor is used to make contact with the last earthed protective fitting in such a way that the electric field sensor points in the direction of the overhead conductor fixed at the other end of the insulator.

Category "L", 50 Hz

Category "L" for overhead lines in accordance with the DIN VDE V 0682-417/10.2013 preliminary standard.

1 Product

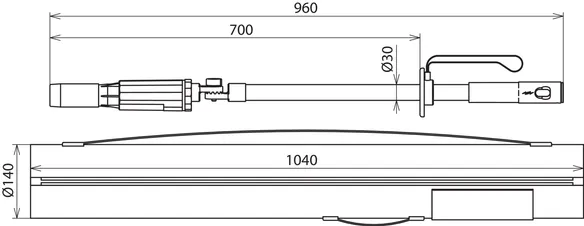

Part No. 767571 ASPS 110 420 L

GTIN 4013364124967, Customs tariff No. (EU): 90303370, Gross weight: 2.23 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	960 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	960 mm
Category	L
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767571 was added to Notepad.

Go to Notepad

Product 767571 was added to the cart.

Go to Web-Shop

Category "L", 16.7 Hz

Category "L" for centre-earthed monophase traction power lines.

1 Product

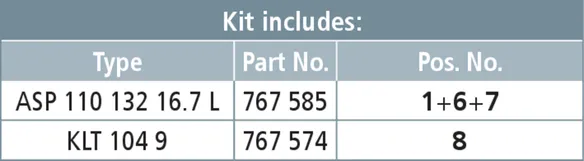

Part No. 767565 ASPS 110 132 16.7 L

GTIN 4013364143760, Customs tariff No. (EU): 90303370, Gross weight: 2.27 kg, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 132 kV
Frequency	16.7 Hz
Total length (l_G )	960 mm
DB drawing no.	3 Eku 710 002

Nominal voltage (U_N )	110 ... 132 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Total length (l_G )	960 mm
Category	L
DB drawing no.	3 Eku 710 002
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767565 was added to Notepad.

Go to Notepad

Product 767565 was added to the cart.

Go to Web-Shop

Category "S", 50 Hz

Category "S" for outdoor switching stations.

2 Products

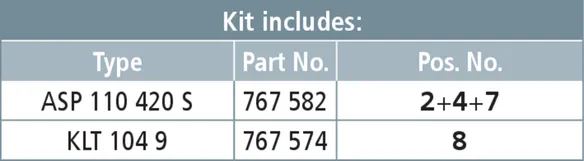

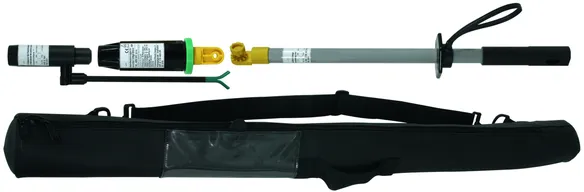

Part No. 767572 ASPS 110 420 S

GTIN 4013364124974, Customs tariff No. (EU): 90303370, Gross weight: 2.21 kg, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	1000 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	1000 mm
Category	S
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767572 was added to Notepad.

Go to Notepad

Product 767572 was added to the cart.

Go to Web-Shop

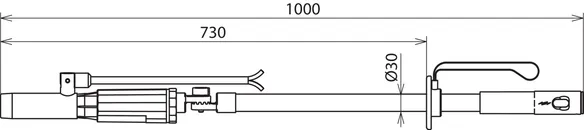

Part No. 767582 ASP 110 420 S

GTIN 4013364144569, Customs tariff No. (EU): 90303370, Gross weight: 1.47 kg, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	1000 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	1000 mm
Category	S
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767582 was added to Notepad.

Go to Notepad

Product 767582 was added to the cart.

Go to Web-Shop

Category "S / L", 50 Hz

Category "S / L" for overhead lines and outdoor switching stations.

1 Product

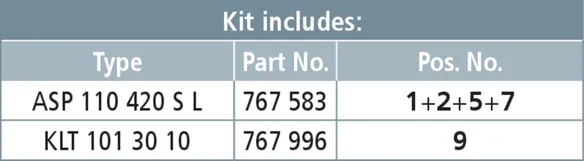

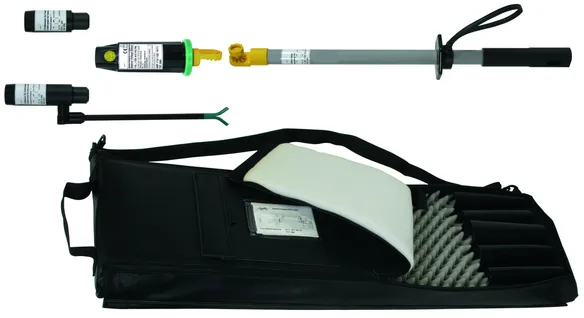

Part No. 767573 ASPS 110 420 S L

GTIN 4013364134270, Customs tariff No. (EU): 90303370, Gross weight: 4.94 kg, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	1000 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	1000 mm
Category	S / L
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767573 was added to Notepad.

Go to Notepad

Product 767573 was added to the cart.

Go to Web-Shop
