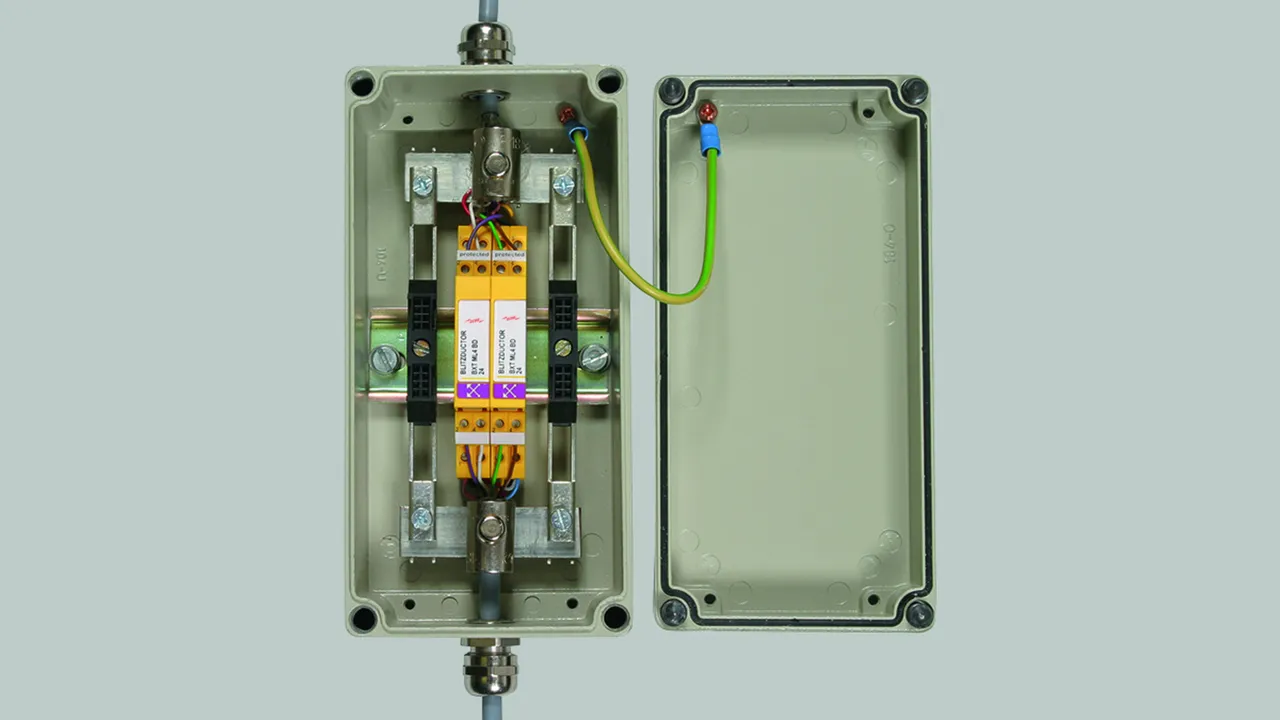

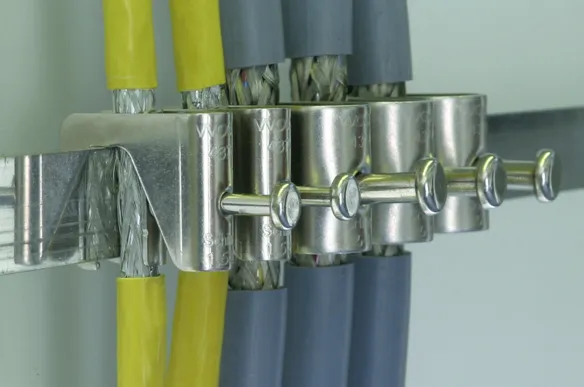

Shield Connection on DIN Rails

  • Lightning-impulse-current-tested up to 5 kA (10/350 µs)
  • Corrosion-resistant stainless steel
  • Spring element ensures permanent shield connection

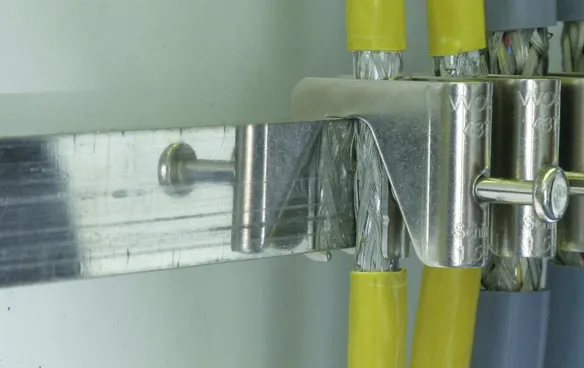

Shield Terminals

Shield terminals for earthing cable shields on busbars (18x3). Suitable for lightning equipotential bonding. Can be subsequently installed without interrupting the cable shield or requiring tools for installation.

2 Products

Part No. 919010 SAK 6.5 SN MS

GTIN 4013364071612, Customs tariff No. (EU): 85369095, Gross weight: 13.00 g, PU: 10.00 pc(s)

Images

Additional information

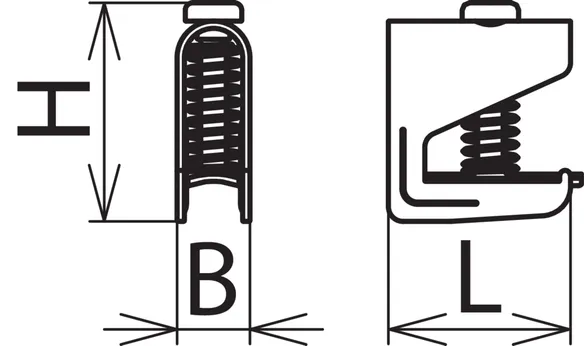

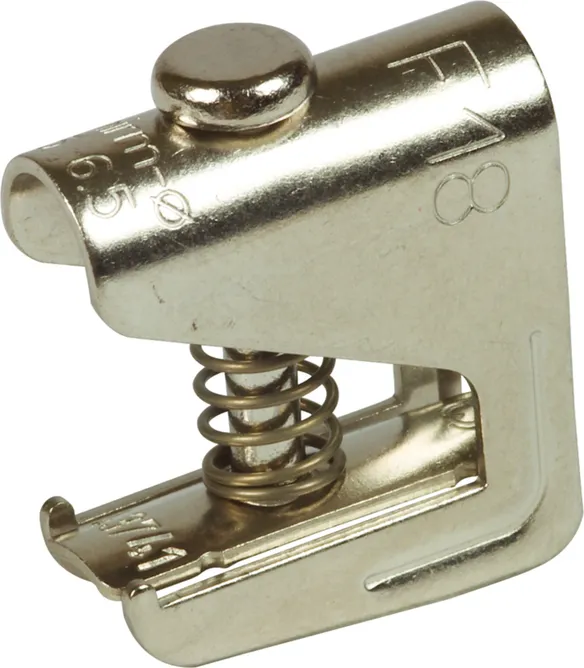

SAK 6.5 SN MS shield terminal
Shield terminal for shield connection system 6,5,
clamping range Rd 1,5 – 6,5 mm, nickel-plated
brass, for earthing cabel shields on busbars
18 x 3 mm with slippling spring element


Brand: DEHN
Type: SAK 6.5 SN MS
Part No.: 919010
or equivalent.



Technical data

Lightning impulse current carrying capability (10/350 µs) 5 kA
Clamping range (Rd) 1.5-6.5 mm
Material nickel-plated brass
For mounting on SN 18x3 CU 1000
Dimensions (W x L x H) 10 x 25 x 40 mm

Product 919010 was added to Notepad.

Go to Notepad

Product 919010 was added to the cart.

Go to Web-Shop

Part No. 919011 SAK 11 SN MS

GTIN 4013364071605, Customs tariff No. (EU): 85369095, Gross weight: 27.70 g, PU: 10.00 pc(s)

Images

Additional information

SAK 11 SN MS shield terminal
Shield terminal for shield connection system 11,
clamping range Rd 5,0 – 11,0 mm, nickel-plated
brass, for earthing cabel shields on busbars
18 x 3 mm with slippling spring element


Brand: DEHN
Type: SAK 11 SN MS
Part No.: 919011
or equivalent.



Technical data

Lightning impulse current carrying capability (10/350 µs) 5 kA
Clamping range (Rd) 5-11 mm
Material nickel-plated brass
For mounting on SN 18x3 CU 1000
Dimensions (W x L x H) 17 x 25 x 47 mm

Product 919011 was added to Notepad.

Go to Notepad

Product 919011 was added to the cart.

Go to Web-Shop

Busbar

Mounting rail for shield terminals. Can be mounted onto busbar supports.

1 Product

Part No. 919016 SN 18X3 CU 1000

GTIN 4013364071551, Customs tariff No. (EU): 74072900, Gross weight: 479.19 g, PU: 1.00 pc(s)

Images

Additional information

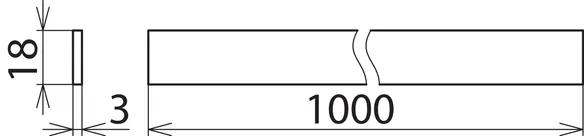

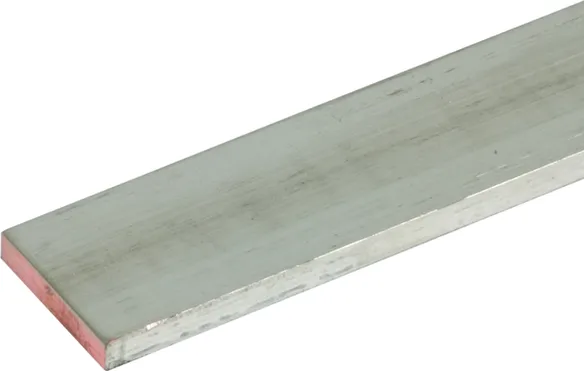

SN 18X3 CU 1000 mounting rail for shield terminals
Busbar 18 x 3 mm, tin-plated copper,
length 1000 mm, for mounting onto the busbar
supports, for mounting the shield terminals


Brand: DEHN
Type: SN 18X3 CU 1000
Part No.: 919016
or equivalent.



Technical data

Material tin-plated copper
For mounting on busbar supports
Dimensions (W x L x H) 18 x 1000 x 3 mm

Product 919016 was added to Notepad.

Go to Notepad

Product 919016 was added to the cart.

Go to Web-Shop

Rail Support with One-Sided Contact

Rail support suitable for DIN rail mounting. Low-impedance connection of the shield terminals to the DIN rail via the busbar.

1 Product

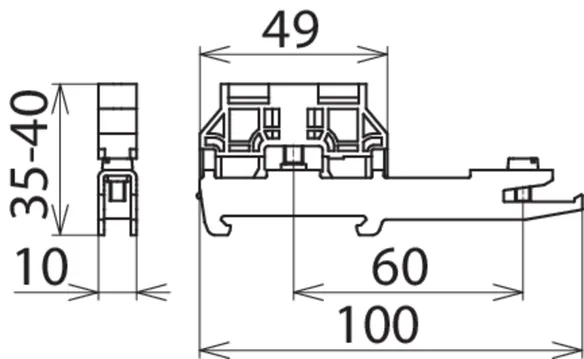

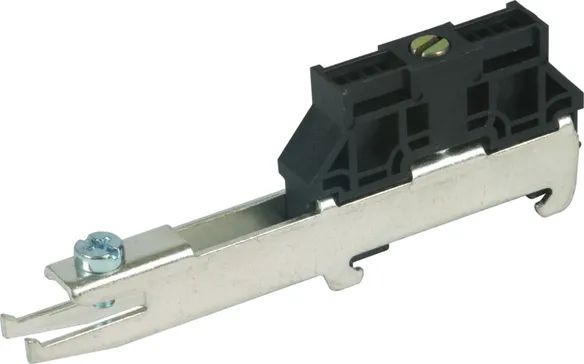

Part No. 919012 SH1 18X3 ST

GTIN 4013364071599, Customs tariff No. (EU): 85389099, Gross weight: 39.90 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

SH1 18X3 ST rail support with one-sided contact
Rail support, Type SH1
with one shield terminal,
tin-plated steel for busbar 18 x 3 mm,
for 35 mm DIN rail mounting according
to EN 60715, for earthed construction

Version: one-sided contact

Brand: DEHN
Type: SH1 18X3 ST
Part No.: 919012
or equivalent.



Technical data

Version one-sided contact
Material tin-plated steel
For mounting on 35 mm DIN rails acc. to EN 60715

Product 919012 was added to Notepad.

Go to Notepad

Product 919012 was added to the cart.

Go to Web-Shop

Insulated Rail Support

Insulated rail support for DIN rail mounting or screw connection.

1 Product

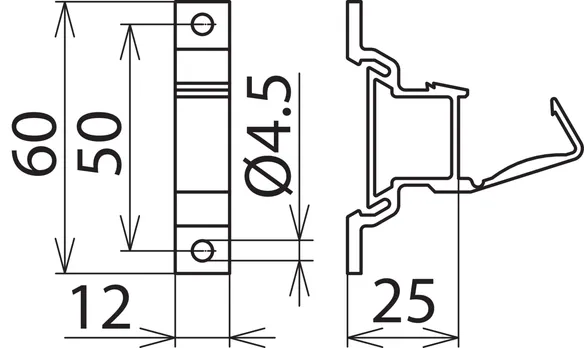

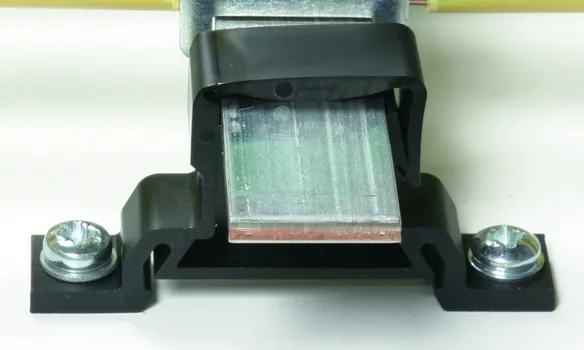

Part No. 919014 SH 18X3 K

GTIN 4013364071575, Customs tariff No. (EU): 39269097, Gross weight: 5.30 g, PU: 10.00 pc(s)

Images

Additional information

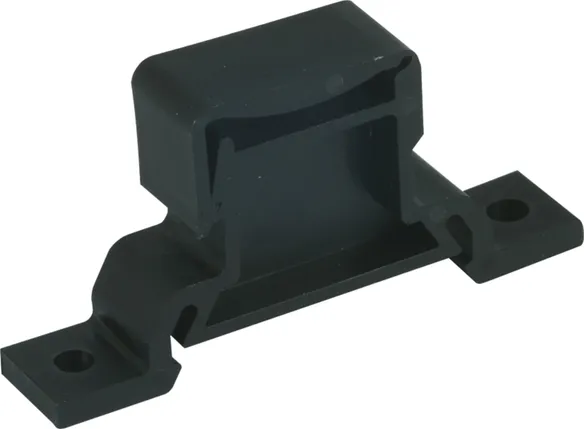

SH 18X3 K insulated rail support
Rail support black plastic, SH3,
for busbar 18 x 3 mm,
suitable for 35 mm DIN rail mounting according
to EN 60715, for earthed construction


Brand: DEHN
Type: SH 18X3 K
Part No.: 919014
or equivalent.



Technical data

Material plastic
Colour black 1
For mounting on DIN rails or mounting plates

Product 919014 was added to Notepad.

Go to Notepad

Product 919014 was added to the cart.

Go to Web-Shop

Terminal

Particularly suited for indirect shield earthing.

1 Product

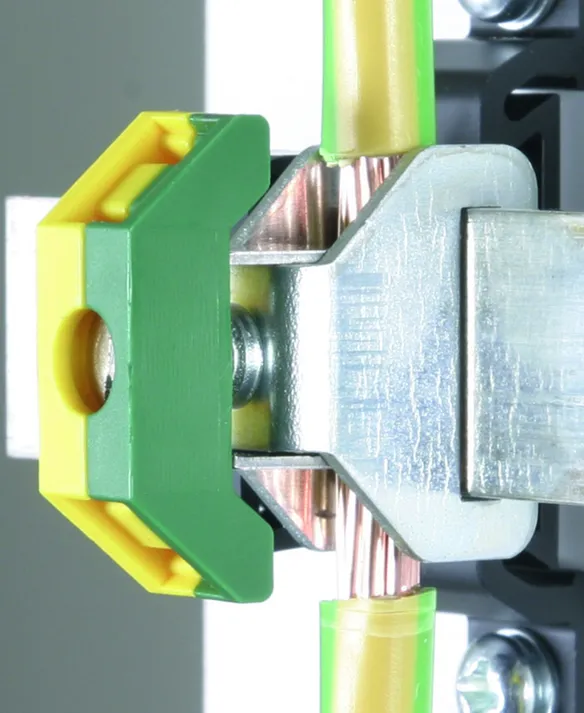

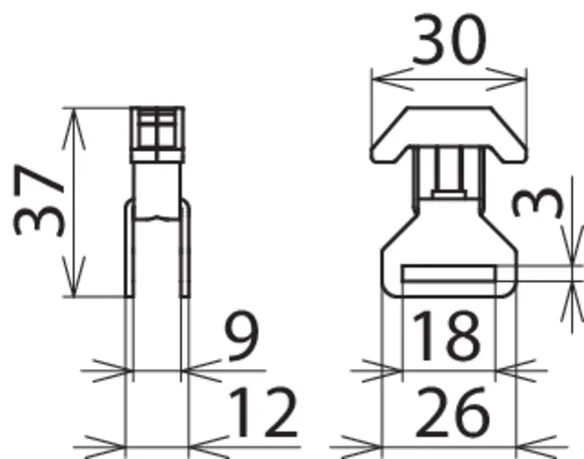

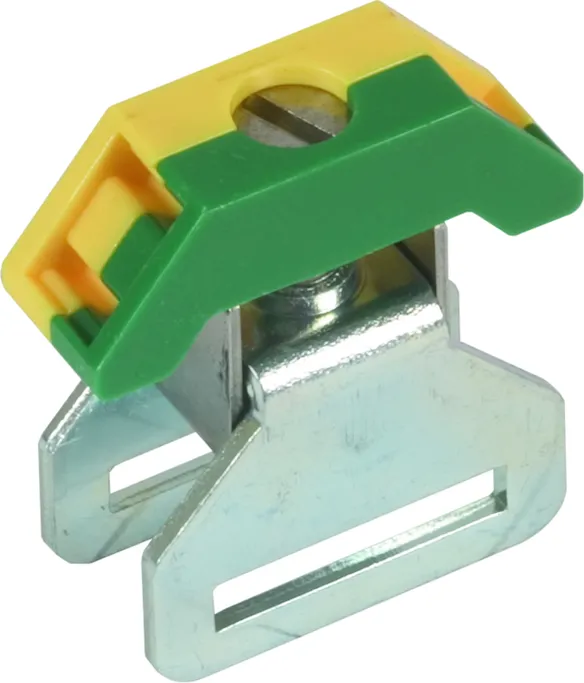

Part No. 919015 AK 35 SN 18X3 GG

GTIN 4013364071568, Customs tariff No. (EU): 85369095, Gross weight: 15.40 g, PU: 1.00 pc(s)

Images

Additional information

AK 35 SN 18X3 GG terminal, green / yellow
Terminal for busbar 18 x 3 mm,
cross-sectional area max. 35 mm², green-yellow

Brand: DEHN
Type: AK 35 SN 18X3 GG
Part No.: 919015
or equivalent.



Technical data

Cross-sectional area 35 mm2
For mounting on busbars

Product 919015 was added to Notepad.

Go to Notepad

Product 919015 was added to the cart.

Go to Web-Shop
