DEHNrecord Alert

Modbus TCP/RTU communication module
Integration of Red/Line and Yellow/Line SPDs in a monitoring system
Monitoring of up to 4 surge arresters with remote signalling contacts and up to 150 BLITZDUCTOR XT arresters (RS 485)
Integration of the remote signalling contacts of further user-defined functional modules in the monitoring system

Details

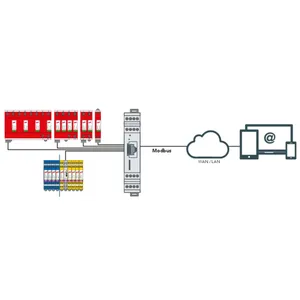

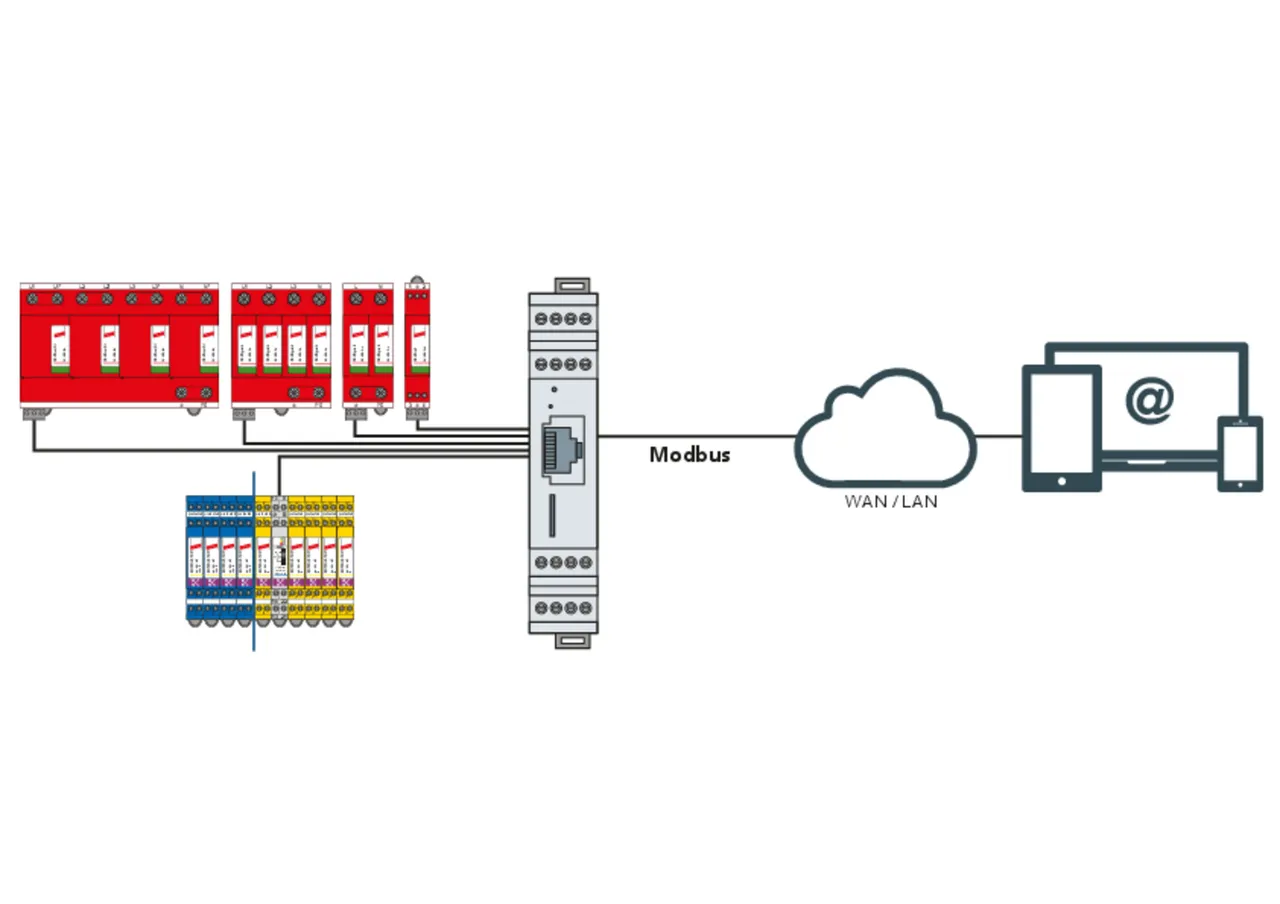

Configuration of the whole DEHNrecord Alert system with Red/Line and Yellow/Line surge arresters.

lorem ipsum — Configuration of the whole DEHNrecord Alert system with Red/Line and Yellow/Line surge arresters.

Further information

Similar topics

DRC AL MODBUS

Compact DIN rail mounted device for the transmission of SPD status information, e.g. functional status, part number of SPD and part numbers of the replacement modules via Modbus RTU/TCP.

1 Product

Part No. 910694 DRC AL MODBUS

GTIN 4013364350212, Customs tariff No. (EU): 90308900, Gross weight: 123.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

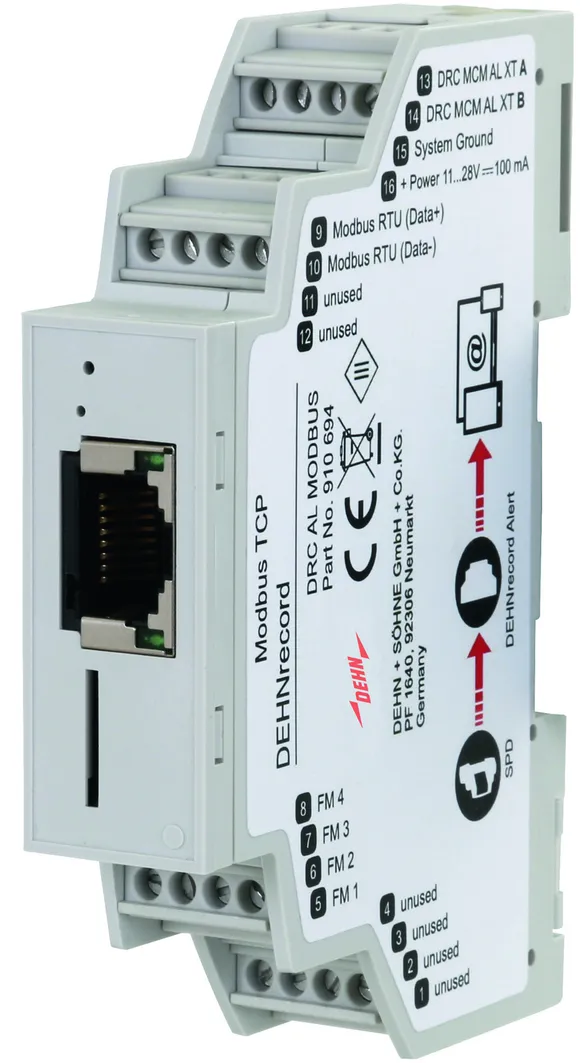

Modbus communication module DRC AL MODBUS
for surge arresters
DIN rail mounting device for the integration of surge arresters
into a Modbus based communication system.
Transmission of status and article data of
max. 150 BXT with LifeCheck and max. 4 remote signalling contacts
via Modbus RTU and Modbus TCP to a supervisory system.
BXT in the system have to be monitored via DRC MCM AL XT.

Brand: DEHN
Type: DRC AL MODBUS
Part No.: 910694
or equivalent.

Certificates

Technical data

Input voltage range (d.c.) (U_IN )	11-28 V
Max. power	600 mW
Inputs	4 universally applicable remote signalling contacts and up to 150 BLITZDUCTOR XT via DRC MCM AL XT (910 698)
Communication	Modbus RTU/TCP

Integration of	up to 15 DRC MCM AL XT modules (maximum 150 Blitzductor XT/XTU), up to 4 remote signalling contacts

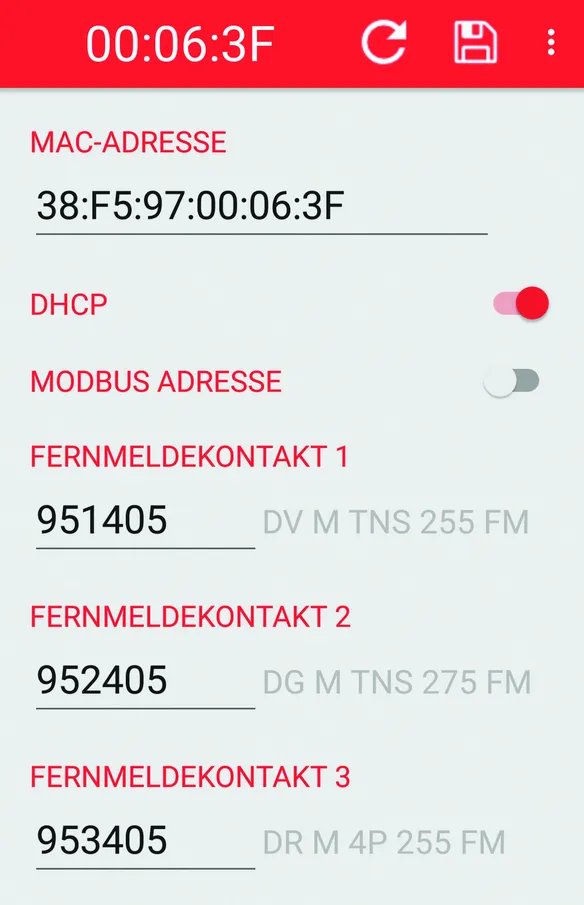

Operating	via App
Integration	in Modbus RTU / TCP areas
Input voltage range (d.c.) (U_IN )	11-28 V
Max. power	600 mW
Terminating resistor	120 Ω
Connection Modbus RTU	RS485
Connection Modbus TCP	RJ45
Communication type	Master-Slave
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 10
Dimensions	1 module(s), DIN 43880
For mounting on	35 mm DIN rail acc. to EN 60715
Connection supply/digital inputs/RS 485	screw 2.5 mm²
Connection Ethernet	RJ45
Cross-sectional area, solid / flexible	0.14-1.5 mm²
Enclosure material	Ultramid B3UGM210
Colour	grey
Test standards	CU
Inputs	4 universally applicable remote signalling contacts and up to 150 BLITZDUCTOR XT via DRC MCM AL XT (910 698)
Communication	Modbus RTU/TCP
Connection of remote signalling contacts	4 digital inputs (IEC 61131-2)
Input wiring	open = 0; 12 V / 24 V = 1
Input voltage	0-28 V
Input current of remote signalling contacts	< 6 mA
Connection DRC MCM AL XT	RS485
Dimensions	18 x 90 x 61 mm

Product 910694 was added to Notepad.

Go to Notepad

Product 910694 was added to the cart.

Go to Web-Shop

DRC MCM AL XT

DIN rail mounted device with integrated LifeCheck sensor for condition monitoring of max. 10 LifeCheck-equipped BLITZDUCTOR XT / XTU arresters. Transmission of the status of the bus address and BXT part numbers to the DEHNrecord Alert communication unit.

1 Product

Part No. 910698 DRC MCM AL XT

GTIN 4013364337053, Customs tariff No. (EU): 90308900, Gross weight: 67.05 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

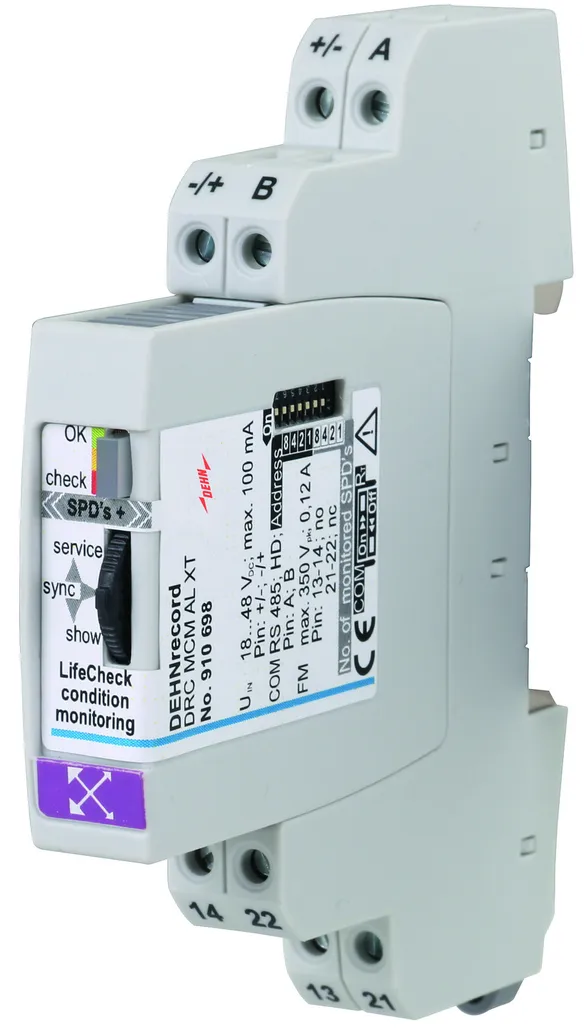

DRC MCM XT DIN rail mounted device with LifeCheck sensor
DIN rail mounted device with integrated
RFIDLifeCheck sensor for
condition monitoring
of max. 10 BXT with LifeCheck.
Visual arrester status indication
combined with remote signalling,
break contact or make contact optional.

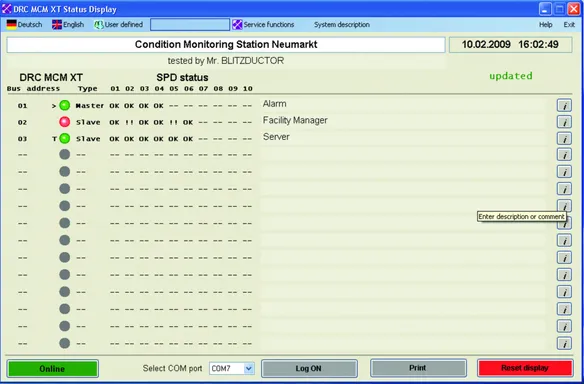

BXTs to be monitored can be
pre-programmed with DRC MCM in combination with a
PC and standard RS 485 adapter
or with DRC LC M3
.

Brand: DEHN
Type: DRC MCM AL XT
Part No.: 910698
or equivalent.

Certificates

Technical data

Input voltage range (d.c.) (U_IN )	18-48 V
Max. nominal current consumption (I_IN )	100 mA
RFID transmission frequency	125 kHz
Physical interface	RS485
Delivery includes	base part, monitoring module, quick guide and labelling system

For testing	up to 10 BLITZDUCTOR XT / XTU ML arresters
For testing	up to 10 BLITZDUCTOR XT / XTU ML EX arresters; for use in non-hazardous atmospheres only! Observe thread measure!
Operating elements	multiway button, DIP switch
Indicator	three-coloured LED (green, orange, red)
Input voltage range (d.c.) (U_IN )	18-48 V
Max. nominal current consumption (I_IN )	100 mA
RFID transmission frequency	125 kHz
Physical interface	RS485
Message: Replacing of SPD recommended	LED, remote signalling contact (break and make contact)
Test cycle	continuous
Operating temperature range for monitoring 10 BXT / BXTU arresters	-20 °C ... +60 °C
Operating temperature range for monitoring 8 BXT / BXTU arresters	-40 °C ... +80 °C
Operating temperature range for addressing the BXT of 10 BXT / BXTU	0 °C ... +60 °C
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection	screw
Cross-sectional area, solid / flexible	0.08-2.5 mm²
Tightening torque (terminal)	0.4 Nm
Enclosure material	polyamide PA 6.6
Colour	grey
Test standards	EN 61010-1, 61000-6-2/4, ETSI EN 300 330-1 V1.7.1

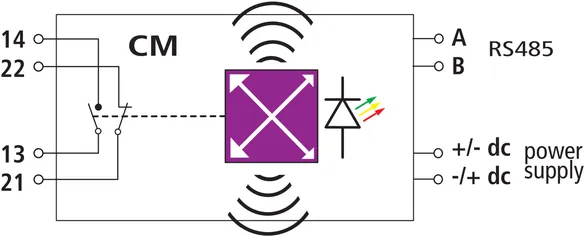

Type of remote signalling contact	make (no) and break contact (nc)
Technical data of remote signalling contact	contact resistance < 25 ohms; leakage current < 1 µA
Switching capacity (d.c.)	350 V / 0.12 A
Switching capacity (a.c.)	250 V / 0.07 A
Delivery includes	base part, monitoring module, quick guide and labelling system
