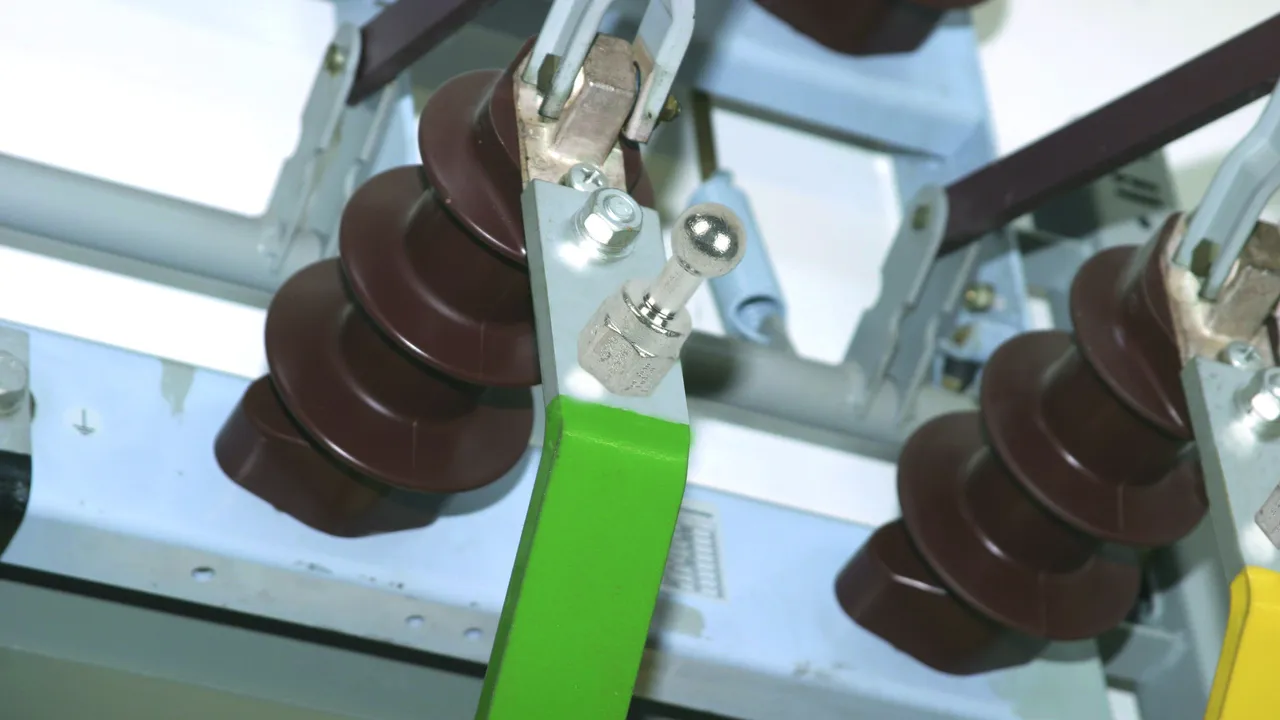

Kugelfestpunkte

  • Geeignet zur Befestigung von Stromschienen-Verbindung nach DIN 43673-1
  • Selbstsichernde Mutter
  • Spanlos geformtes Innengewinde M12 oder M16
  • Gewindebolzen in M12 oder M16

Details

Kugelfestpunkt in abgewinkelter Ausführung.
lorem ipsum

Schräg, mit Anschlusslappen

2 Products

Part No. 706300 KFP 20 S AL 12

GTIN 4013364003675, Customs tariff No. (EU): 85359000, Gross weight: 129.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Bohrung Ø 12,5 mm
Abmessung 45 x 30 x 9 mm
Max. Seilquerschnitt Cu 50 mm²
Max. Kurzschlussstrom Ik 0,5 s 14,0 kA
Max. Kurzschlussstrom Ik 1 s 9,9 kA

Product 706300 was added to Notepad.

Go to Notepad

Product 706300 was added to the cart.

Go to Web-Shop

Part No. 756300 KFP 25 S AL 12

GTIN 4013364003682, Customs tariff No. (EU): 76169990, Gross weight: 212.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Bohrung Ø 12,5 mm
Abmessung 50 x 30 x 9 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 756300 was added to Notepad.

Go to Notepad

Product 756300 was added to the cart.

Go to Web-Shop

Gerade, mit Gewindebolzen und selbstsichernder Mutter

7 Products

Part No. 754235 KFP 20 M12 35 SSM

GTIN 4013364004221, Customs tariff No. (EU): 85359000, Gross weight: 183.70 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12 x 35 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 120 mm²
Max. Kurzschlussstrom Ik 0,5 s 33,5 kA
Max. Kurzschlussstrom Ik 1 s 23,7 kA

Product 754235 was added to Notepad.

Go to Notepad

Product 754235 was added to the cart.

Go to Web-Shop

Part No. 754238 KFP 20 M12 45 SN7078

GTIN 4013364131309, Customs tariff No. (EU): 85359000, Gross weight: 180.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12 x 45 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 120 mm²
Max. Kurzschlussstrom Ik 0,5 s 33,5 kA
Max. Kurzschlussstrom Ik 1 s 23,7 kA

Product 754238 was added to Notepad.

Go to Notepad

Product 754238 was added to the cart.

Go to Web-Shop

Part No. 754645 KFP 20 M16 45 SSM

GTIN 4013364004238, Customs tariff No. (EU): 85359000, Gross weight: 286.80 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M16 x 45 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 120 mm²
Max. Kurzschlussstrom Ik 0,5 s 33,5 kA
Max. Kurzschlussstrom Ik 1 s 23,7 kA

Product 754645 was added to Notepad.

Go to Notepad

Product 754645 was added to the cart.

Go to Web-Shop

Part No. 755225 KFP 25 M12 25 SSM

GTIN 4013364004498, Customs tariff No. (EU): 85359000, Gross weight: 265.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12 x 25 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 150 mm²
Max. Kurzschlussstrom Ik 0,5 s 42,0 kA
Max. Kurzschlussstrom Ik 1 s 29,6 kA

Product 755225 was added to Notepad.

Go to Notepad

Product 755225 was added to the cart.

Go to Web-Shop

Part No. 755245 KFP 25 M12 45 SSM

GTIN 4013364000070, Customs tariff No. (EU): 85359000, Gross weight: 278.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 150 mm²
Max. Kurzschlussstrom Ik 0,5 s 42,0 kA
Max. Kurzschlussstrom Ik 1 s 29,6 kA

Product 755245 was added to Notepad.

Go to Notepad

Product 755245 was added to the cart.

Go to Web-Shop

Part No. 755645 KFP 25 M16 45 SSM

GTIN 4013364000100, Customs tariff No. (EU): 85359000, Gross weight: 318.90 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 150 mm²
Max. Kurzschlussstrom Ik 0,5 s 42,0 kA
Max. Kurzschlussstrom Ik 1 s 29,6 kA

Product 755645 was added to Notepad.

Go to Notepad

Product 755645 was added to the cart.

Go to Web-Shop

Part No. 755247 KFP 25 M12 45 SN7125

GTIN 4013364133327, Customs tariff No. (EU): 85359000, Gross weight: 278.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 150 mm²
Max. Kurzschlussstrom Ik 0,5 s 42,0 kA
Max. Kurzschlussstrom Ik 1 s 29,6 kA

Product 755247 was added to Notepad.

Go to Notepad

Product 755247 was added to the cart.

Go to Web-Shop

Gerade, mit Innengewinde

5 Products

Part No. 754205 KFP 20 M10

GTIN 4013364097865, Customs tariff No. (EU): 85359000, Gross weight: 136.60 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M10
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 120 mm²
Max. Kurzschlussstrom Ik 0,5 s 33,5 kA
Max. Kurzschlussstrom Ik 1 s 23,7 kA

Product 754205 was added to Notepad.

Go to Notepad

Product 754205 was added to the cart.

Go to Web-Shop

Part No. 754200 KFP 20 M12

GTIN 4013364004207, Customs tariff No. (EU): 85359000, Gross weight: 131.30 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 120 mm²
Max. Kurzschlussstrom Ik 0,5 s 33,5 kA
Max. Kurzschlussstrom Ik 1 s 23,7 kA

Product 754200 was added to Notepad.

Go to Notepad

Product 754200 was added to the cart.

Go to Web-Shop

Part No. 754600 KFP 20 M16

GTIN 4013364004214, Customs tariff No. (EU): 85359000, Gross weight: 116.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M16
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 120 mm²
Max. Kurzschlussstrom Ik 0,5 s 33,5 kA
Max. Kurzschlussstrom Ik 1 s 23,7 kA

Product 754600 was added to Notepad.

Go to Notepad

Product 754600 was added to the cart.

Go to Web-Shop

Part No. 755200 KFP 25 M12

GTIN 4013364000087, Customs tariff No. (EU): 85359000, Gross weight: 220.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 150 mm²
Max. Kurzschlussstrom Ik 0,5 s 42,0 kA
Max. Kurzschlussstrom Ik 1 s 29,6 kA

Product 755200 was added to Notepad.

Go to Notepad

Product 755200 was added to the cart.

Go to Web-Shop

Part No. 755600 KFP 25 M16

GTIN 4013364000094, Customs tariff No. (EU): 85359000, Gross weight: 204.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 150 mm²
Max. Kurzschlussstrom Ik 0,5 s 42,0 kA
Max. Kurzschlussstrom Ik 1 s 29,6 kA

Product 755600 was added to Notepad.

Go to Notepad

Product 755600 was added to the cart.

Go to Web-Shop

Gerade, mit Gewindebolzen, Mutter und Scheibe

3 Products

Part No. 755626 KFP 25 M16 25 SKM

GTIN 4013364079625, Customs tariff No. (EU): 85359000, Gross weight: 301.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16 x 25 mm
Max. Kurzschlussstrom Ik 0,06 s 34,0 kA
DB Zeichnungs-Nr. 3 Ebgw 01.63
DB Material-Nr. 157 541

Product 755626 was added to Notepad.

Go to Notepad

Product 755626 was added to the cart.

Go to Web-Shop

Part No. 755627 KFP 25 M12 35 SKM

GTIN 4013364077768, Customs tariff No. (EU): 85359000, Gross weight: 310.90 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12 x 35 mm
Max. Kurzschlussstrom Ik 0,06 s 34,0 kA
DB Zeichnungs-Nr. 3 Ebgw 01.63
DB Material-Nr. 622 014

Product 755627 was added to Notepad.

Go to Notepad

Product 755627 was added to the cart.

Go to Web-Shop

Part No. 755646 KFP 25 M16 45 SKM

GTIN 4013364079632, Customs tariff No. (EU): 85359000, Gross weight: 330.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16 x 45 mm
Max. Kurzschlussstrom Ik 0,06 s 34,0 kA
DB Zeichnungs-Nr. 3 Ebgw 01.63
DB Material-Nr. 157 542

Product 755646 was added to Notepad.

Go to Notepad

Product 755646 was added to the cart.

Go to Web-Shop

Gerade, mit Gewindebolzen

1 Product

Part No. 755636 KFP 25 M16 25

GTIN 4013364079670, Customs tariff No. (EU): 85359000, Gross weight: 309.50 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16 x 25 mm
Max. Kurzschlussstrom Ik 0,06 s 34,0 kA
DB Zeichnungs-Nr. 3 Ebgw 01.63
DB Material-Nr. 609 426

Product 755636 was added to Notepad.

Go to Notepad

Product 755636 was added to the cart.

Go to Web-Shop

Gerade, mit Rundleiterhalbschale für Cu-Rundleiter

6 Products

Part No. 725010 KFP 25 RL 10

GTIN 4013364003750, Customs tariff No. (EU): 85359000, Gross weight: 410.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Für Rundleiter Ød 10 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 725010 was added to Notepad.

Go to Notepad

Product 725010 was added to the cart.

Go to Web-Shop

Part No. 725012 KFP 25 RL 12

GTIN 4013364003767, Customs tariff No. (EU): 85359000, Gross weight: 400.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Für Rundleiter Ød 12 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 725012 was added to Notepad.

Go to Notepad

Product 725012 was added to the cart.

Go to Web-Shop

Part No. 725014 KFP 25 RL 14

GTIN 4013364003774, Customs tariff No. (EU): 85359000, Gross weight: 385.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Für Rundleiter Ød 14 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 725014 was added to Notepad.

Go to Notepad

Product 725014 was added to the cart.

Go to Web-Shop

Part No. 725016 KFP 25 RL 16

GTIN 4013364003781, Customs tariff No. (EU): 85359000, Gross weight: 365.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Für Rundleiter Ød 16 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 725016 was added to Notepad.

Go to Notepad

Product 725016 was added to the cart.

Go to Web-Shop

Part No. 725018 KFP 25 RL 18

GTIN 4013364078048, Customs tariff No. (EU): 85359000, Gross weight: 345.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Für Rundleiter Ød 18 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 725018 was added to Notepad.

Go to Notepad

Product 725018 was added to the cart.

Go to Web-Shop

Part No. 725020 KFP 25 RL 20

GTIN 4013364003804, Customs tariff No. (EU): 85359000, Gross weight: 320.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Für Rundleiter Ød 20 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 725020 was added to Notepad.

Go to Notepad

Product 725020 was added to the cart.

Go to Web-Shop

45° abgewinkelt, mit Gewindebolzen und selbstsichernder Mutter

5 Products

Part No. 706239 KFP 20 W45M12 SN7024

GTIN 4013364155145, Customs tariff No. (EU): 85359000, Gross weight: 227.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12 x 30 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 706239 was added to Notepad.

Go to Notepad

Product 706239 was added to the cart.

Go to Web-Shop

Part No. 706235 KFP 20 W45 M12 35SSM

GTIN 4013364004290, Customs tariff No. (EU): 85359000, Gross weight: 219.40 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12 x 35 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 706235 was added to Notepad.

Go to Notepad

Product 706235 was added to the cart.

Go to Web-Shop

Part No. 706645 KFP 20 W45 M16 45SSM

GTIN 4013364004306, Customs tariff No. (EU): 85359000, Gross weight: 273.80 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M16 x 45 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 706645 was added to Notepad.

Go to Notepad

Product 706645 was added to the cart.

Go to Web-Shop

Part No. 756245 KFP 25 W45 M12 45SSM

GTIN 4013364004337, Customs tariff No. (EU): 85359000, Gross weight: 434.40 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 756245 was added to Notepad.

Go to Notepad

Product 756245 was added to the cart.

Go to Web-Shop

Part No. 756645 KFP 25 W45 M16 45SSM

GTIN 4013364004344, Customs tariff No. (EU): 85359000, Gross weight: 469.80 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 756645 was added to Notepad.

Go to Notepad

Product 756645 was added to the cart.

Go to Web-Shop

45° abgewinkelt, mit Innengewinde

4 Products

Part No. 706200 KFP 20 W45 M12

GTIN 4013364004276, Customs tariff No. (EU): 85359000, Gross weight: 172.40 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 706200 was added to Notepad.

Go to Notepad

Product 706200 was added to the cart.

Go to Web-Shop

Part No. 706600 KFP 20 W45 M16

GTIN 4013364004283, Customs tariff No. (EU): 85359000, Gross weight: 158.40 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M16
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 706600 was added to Notepad.

Go to Notepad

Product 706600 was added to the cart.

Go to Web-Shop

Part No. 756200 KFP 25 W45 M12

GTIN 4013364004313, Customs tariff No. (EU): 85359000, Gross weight: 357.20 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 756200 was added to Notepad.

Go to Notepad

Product 756200 was added to the cart.

Go to Web-Shop

Part No. 756600 KFP 25 W45 M16

GTIN 4013364004320, Customs tariff No. (EU): 85359000, Gross weight: 356.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 756600 was added to Notepad.

Go to Notepad

Product 756600 was added to the cart.

Go to Web-Shop

90° abgewinkelt, mit Gewindebolzen und selbstsichernder Mutter

4 Products

Part No. 707235 KFP 20 W90 M12 35SSM

GTIN 4013364004382, Customs tariff No. (EU): 85359000, Gross weight: 259.20 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12 x 35 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 707235 was added to Notepad.

Go to Notepad

Product 707235 was added to the cart.

Go to Web-Shop

Part No. 707645 KFP 20 W90 M16 45SSM

GTIN 4013364004399, Customs tariff No. (EU): 85359000, Gross weight: 298.80 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M16 x 45 mm
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 707645 was added to Notepad.

Go to Notepad

Product 707645 was added to the cart.

Go to Web-Shop

Part No. 757245 KFP 25 W90 M12 45SSM

GTIN 4013364004429, Customs tariff No. (EU): 85359000, Gross weight: 454.40 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 757245 was added to Notepad.

Go to Notepad

Product 757245 was added to the cart.

Go to Web-Shop

Part No. 757645 KFP 25 W90 M16 45SSM

GTIN 4013364004436, Customs tariff No. (EU): 85359000, Gross weight: 491.20 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16 x 45 mm
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 757645 was added to Notepad.

Go to Notepad

Product 757645 was added to the cart.

Go to Web-Shop

90° abgewinkelt, mit Innengewinde

4 Products

Part No. 707200 KFP 20 W90 M12

GTIN 4013364004368, Customs tariff No. (EU): 85359000, Gross weight: 204.40 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M12
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 707200 was added to Notepad.

Go to Notepad

Product 707200 was added to the cart.

Go to Web-Shop

Part No. 707600 KFP 20 W90 M16

GTIN 4013364004375, Customs tariff No. (EU): 85359000, Gross weight: 191.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 20 mm
Abmessung M16
Schlüsselweite 24 mm
Max. Seilquerschnitt Cu 70 mm²
Max. Kurzschlussstrom Ik 0,5 s 19,5 kA
Max. Kurzschlussstrom Ik 1 s 13,8 kA

Product 707600 was added to Notepad.

Go to Notepad

Product 707600 was added to the cart.

Go to Web-Shop

Part No. 757200 KFP 25 W90 M12

GTIN 4013364004405, Customs tariff No. (EU): 85359000, Gross weight: 394.80 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M12
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 757200 was added to Notepad.

Go to Notepad

Product 757200 was added to the cart.

Go to Web-Shop

Part No. 757600 KFP 25 W90 M16

GTIN 4013364004412, Customs tariff No. (EU): 85359000, Gross weight: 370.00 g, PU: 1.00 Stk.

Images

Additional information



Technical data

Kugelfestpunkt Ø 25 mm
Abmessung M16
Schlüsselweite 27 mm
Max. Seilquerschnitt Cu 95 mm²
Max. Kurzschlussstrom Ik 0,5 s 26,5 kA
Max. Kurzschlussstrom Ik 1 s 18,7 kA

Product 757600 was added to Notepad.

Go to Notepad

Product 757600 was added to the cart.

Go to Web-Shop
back to top
